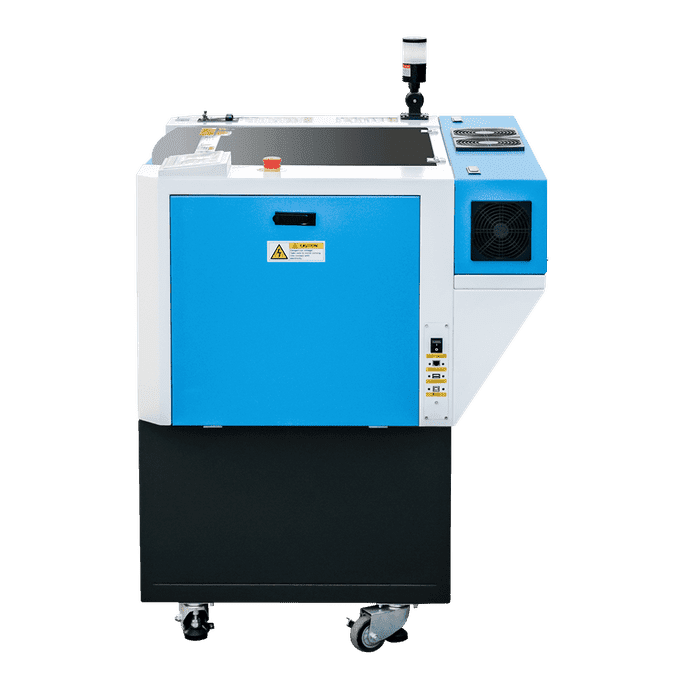

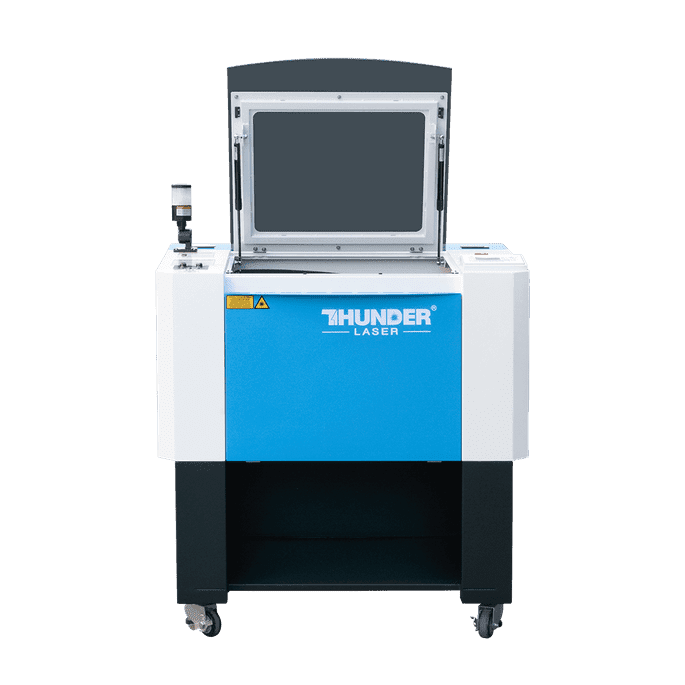

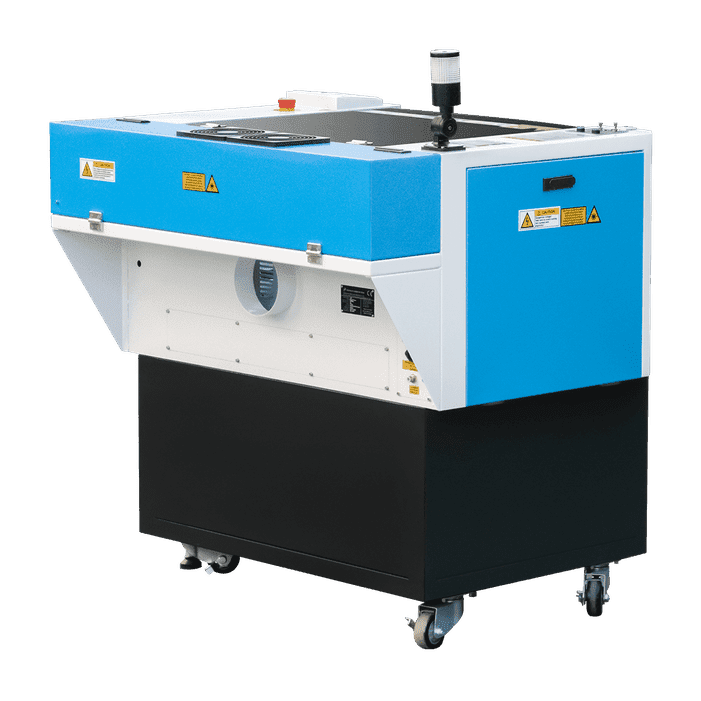

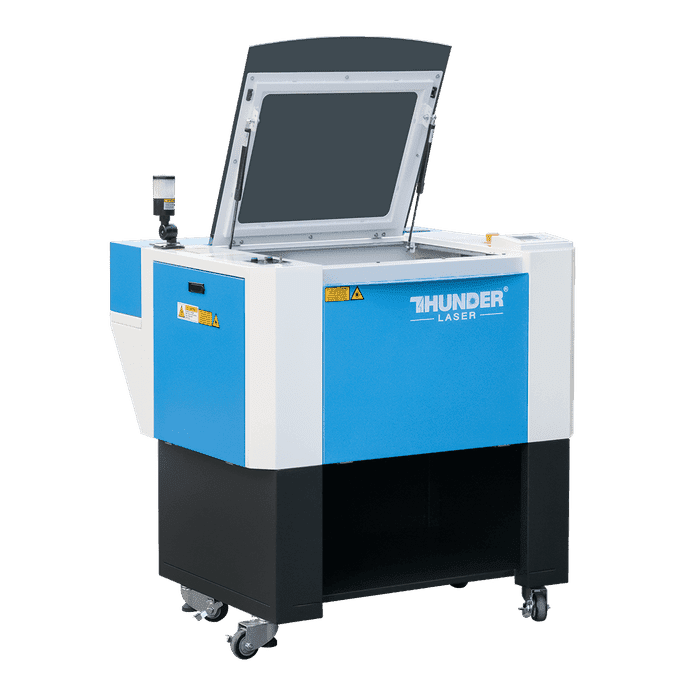

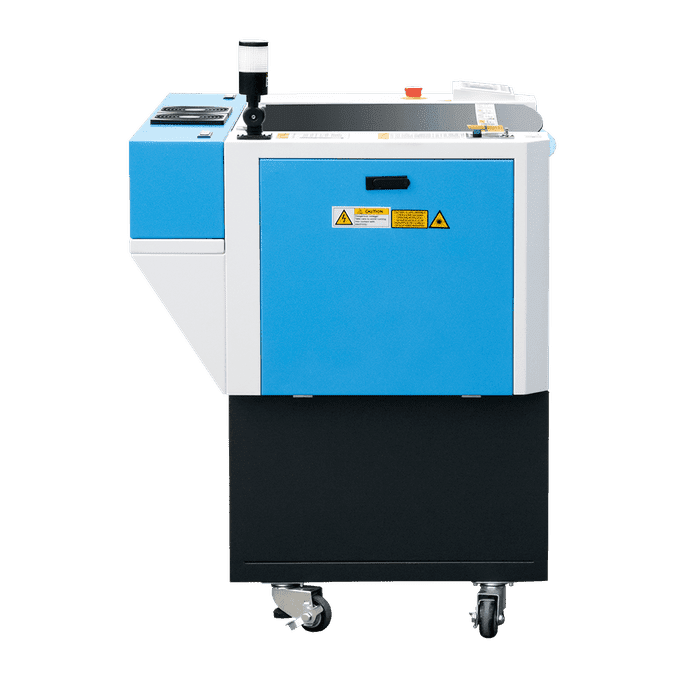

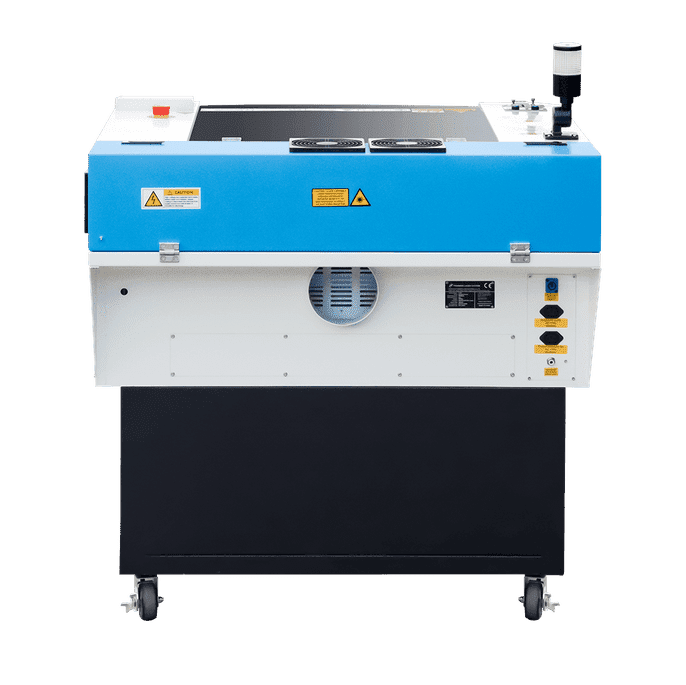

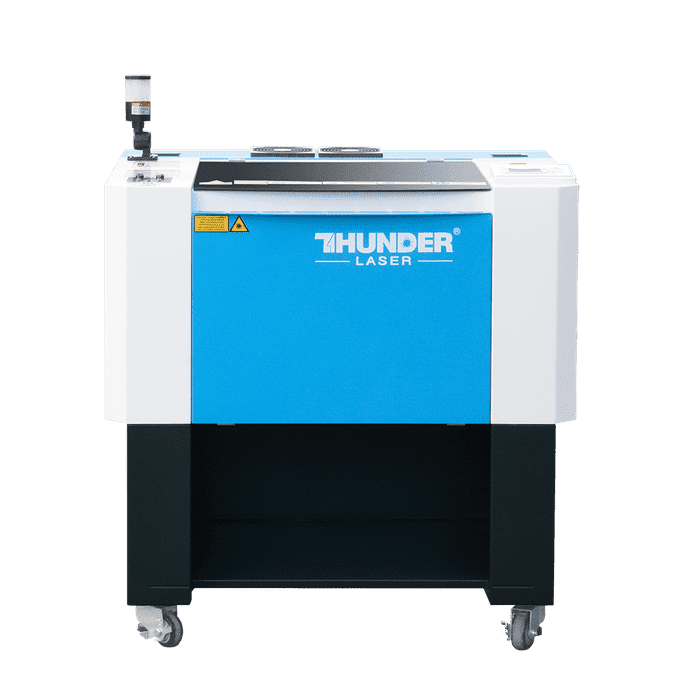

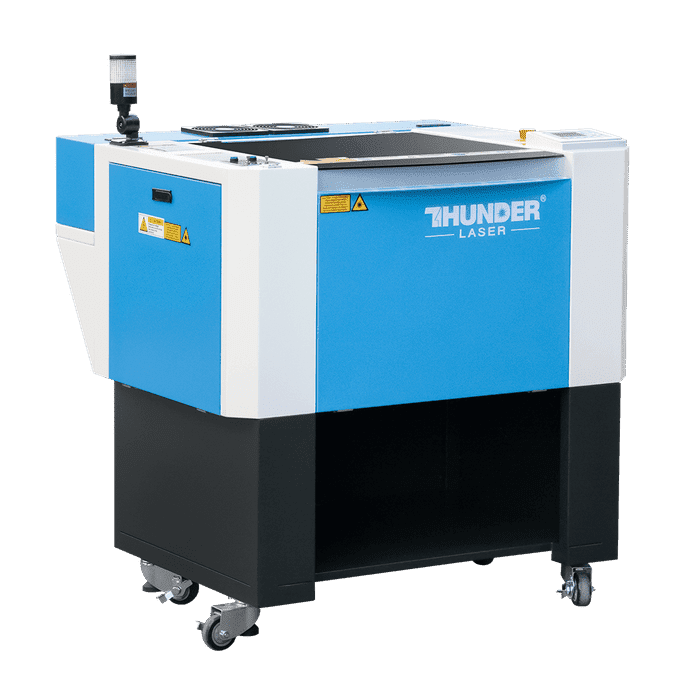

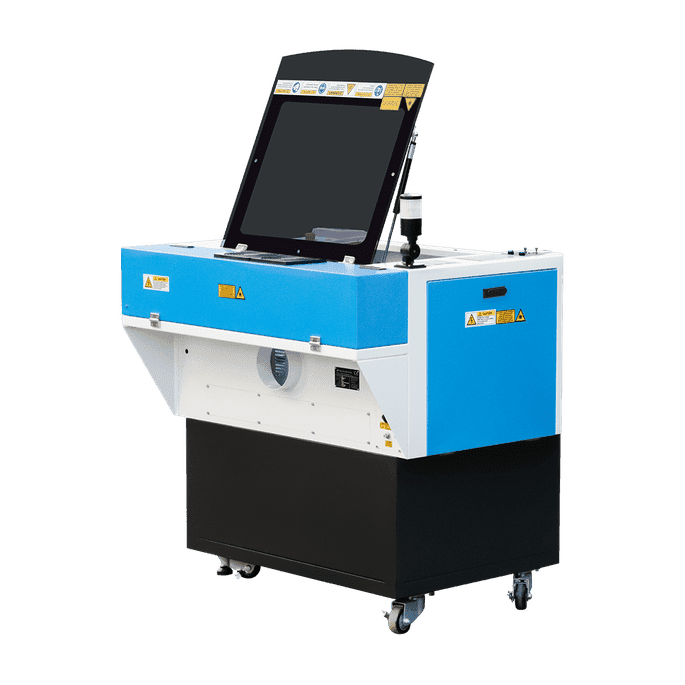

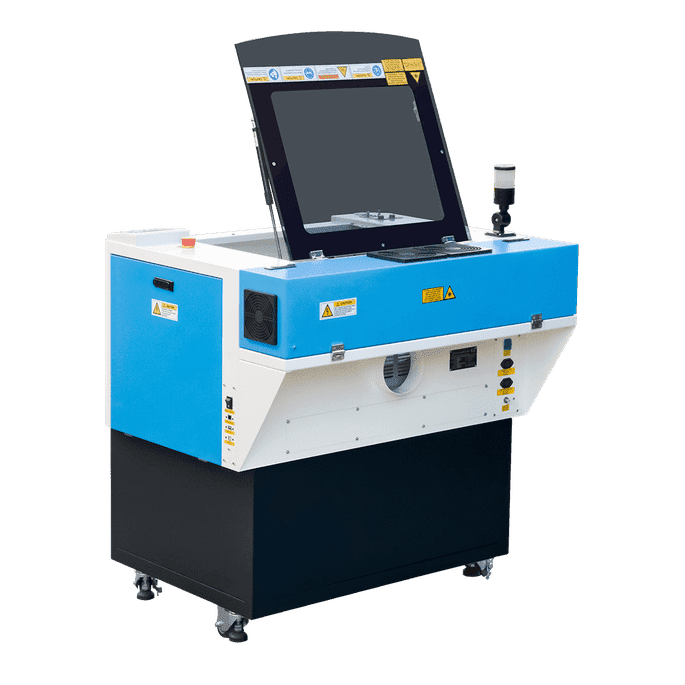

The Odin series laser machine combines small size, compact, high quality engraving and cutting at a low cost. With 3G acceleration and 80 IPS (2000mm/sec) engraving speed, it provides a super fast laser engraving solution for industry. The RF tube allows fantastic beam signature and is air cooled, you don’t have to worry about a water chiller. The gantry payload is minimal and is super smooth.
| Laser System | Odin 22 | Odin 32 | ||
|---|---|---|---|---|
| Laser Tube Wattage | 30 Watt | 55 Watt （Coherent） | ||
| Working Area | 559 x 381 mm (22″ x 15″) | 813 x 508 mm (32″ x 20″) | ||
| Table Size | 625 x 440 mm (24.6″ x 17.3″) | 899 x 567 mm (35.4″ x 22.3″) | ||
| Max Part Size(W x L x H) | 625 x 440 mm x 185mm(24.6″ x 17.3″ x 7.3″) | 899 x 567 mm x 185mm(35.4″ x 22.3″ x 7.3″) | ||
| Dimensions(W x D x H) | 1030x860x1090mm (40″ x 34″ x 43″) | 1284x987x1090mm (51″ x 39″ x 43″) | ||
| Laser Type | Radio Frequency Laser Tube | |||
| Cooling | Air Cooled | |||
| Maximum Speed | 2000MM/S | |||
| Maximum machining size at 1000 speed – lightweight laser head | 529 x 381 mm(20.8″ x 15″) | 783 x 508 mm(30.8″ x 20″) | ||
| Maximum machining size at 2000 speed – lightweight laser head | 461 x 381 mm(18″ x 15″) | 715 x 508 mm(28″ x 20″) | ||
| Speed and Power Control | Computer or manually controlled speed and power from 0-100%.Vector color mapping sets speed and power settings using RGB color mapping. | |||
| Operating Modes | Optimized raster,vector,and combined mode | |||
| Resolution(DPI) | User controlled from 100 to 1000DPI(standard laser head) | |||
| Computer Interface | Ethernet and USB Connection | |||
| Compatible Operating Systems | Windows, Mac, and Linux (Mac and Linux with LightBurn Software) | |||
| Buffer Memory | 128MB Standard | |||
| Display Panel | 3.5″ LCD panel showing current file, total working time, laser power, speed, etc… | |||
| Electrical Requirements | Requirements110 to 240 volts,50 or 60 Hz,single phase | |||
| Z-Axis Height | 185mm (7.3″) | 185mm (7.3″) | ||
| Net Weight | 125kgs (275lbs) | 300kgs (661lbs) | ||
| Motion Control System | High-Speed Stepper Motors | |||
| Speed and Power Control(engraving depth) |
Computer or manually controlled speed and power from 0-100%. Vector color mapping sets speed and power settings using RGB color mapping. |
|||
| Operating Modes | Optimized raster, vector, and combined mode | |||
| Ventilation System | Integral exhaust fan. There is 1 output port, 5.7″ (145 mm) in diameter in the rear of the case. | |||
| Max. Speed | 2000mm/s | |||
| Workpiece table | Solid metal blades & Honeycomb table | |||
| Max. table load | 20kg / 44lbs | |||
