  • SKU: Nova35
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

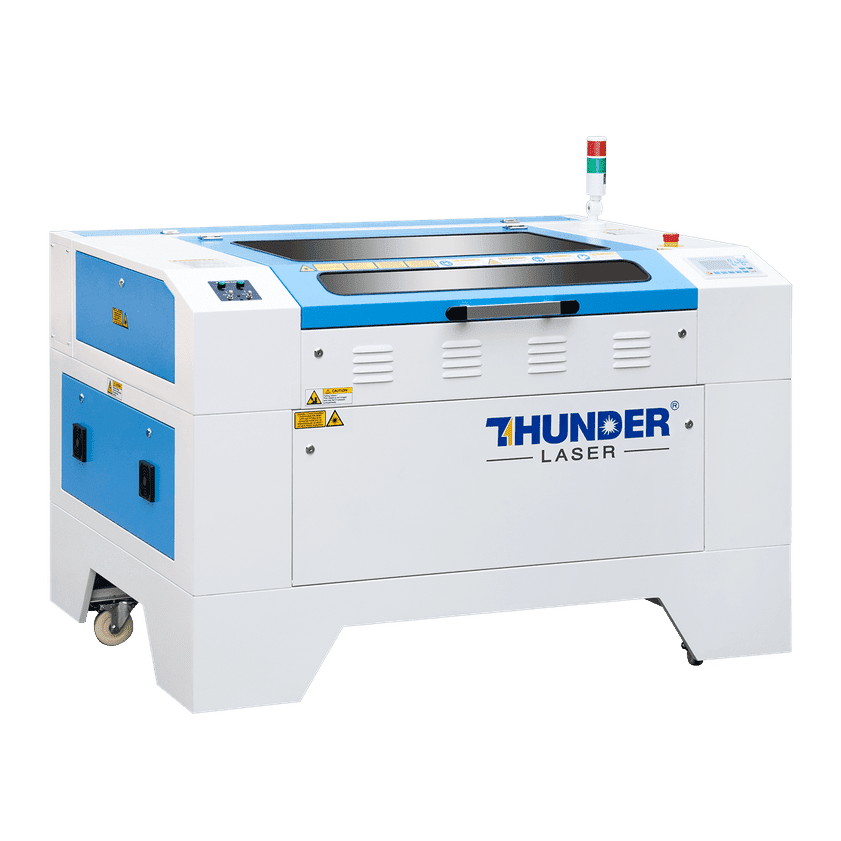

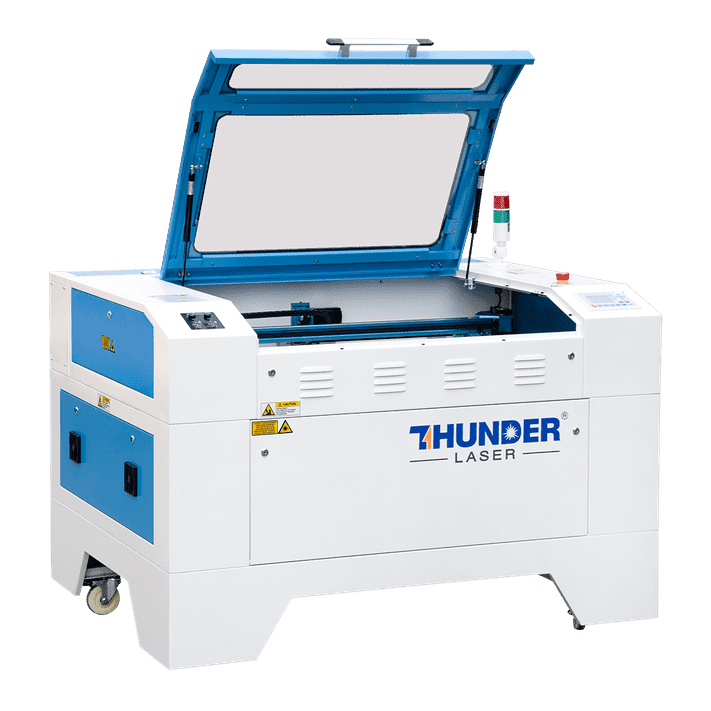

Nova35 - Laser System

$12,350.00

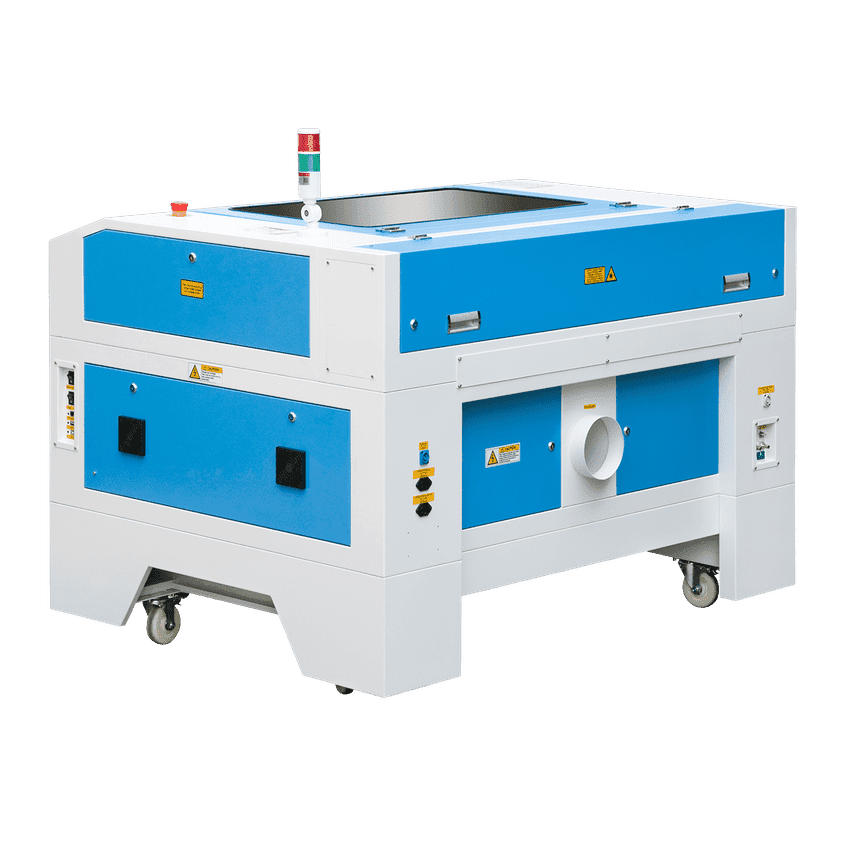

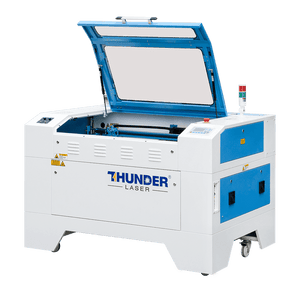

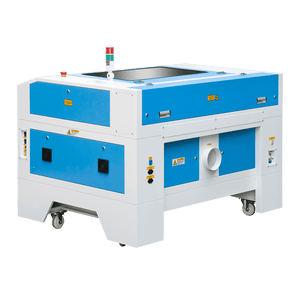

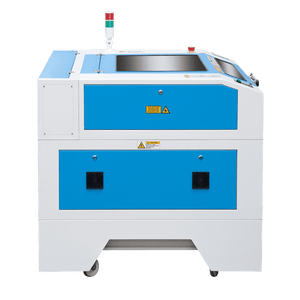

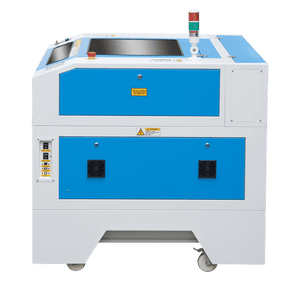

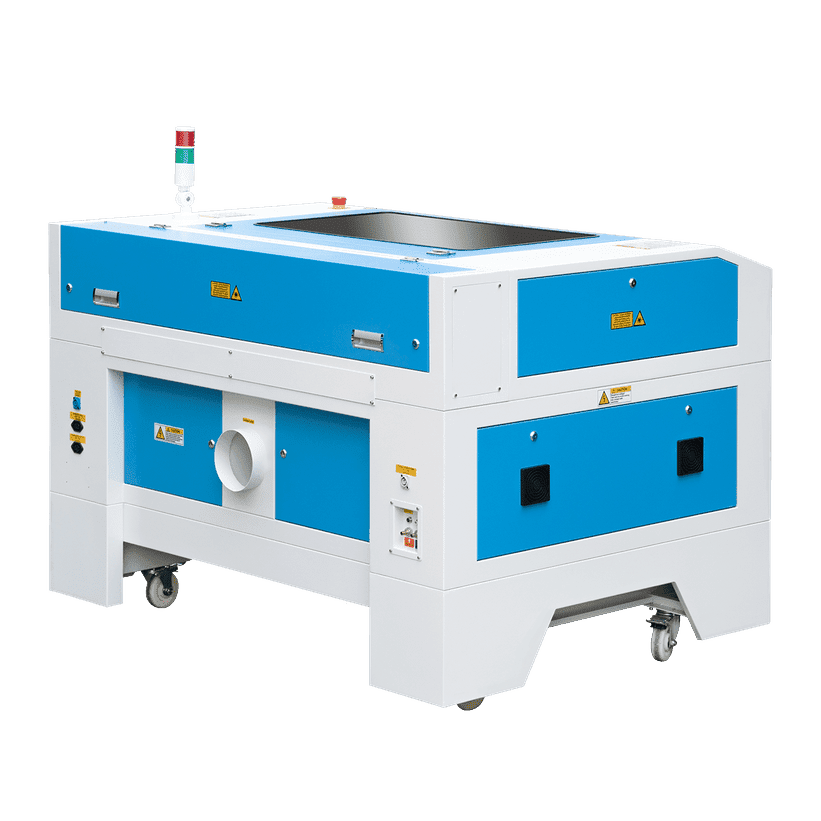

Our Nova 35 laser engraver is our most popular machine. Available in 80w or 100w and a 35″ wide cutting area.

Features

  • 100W High quality tube
  • 900x600mm working area

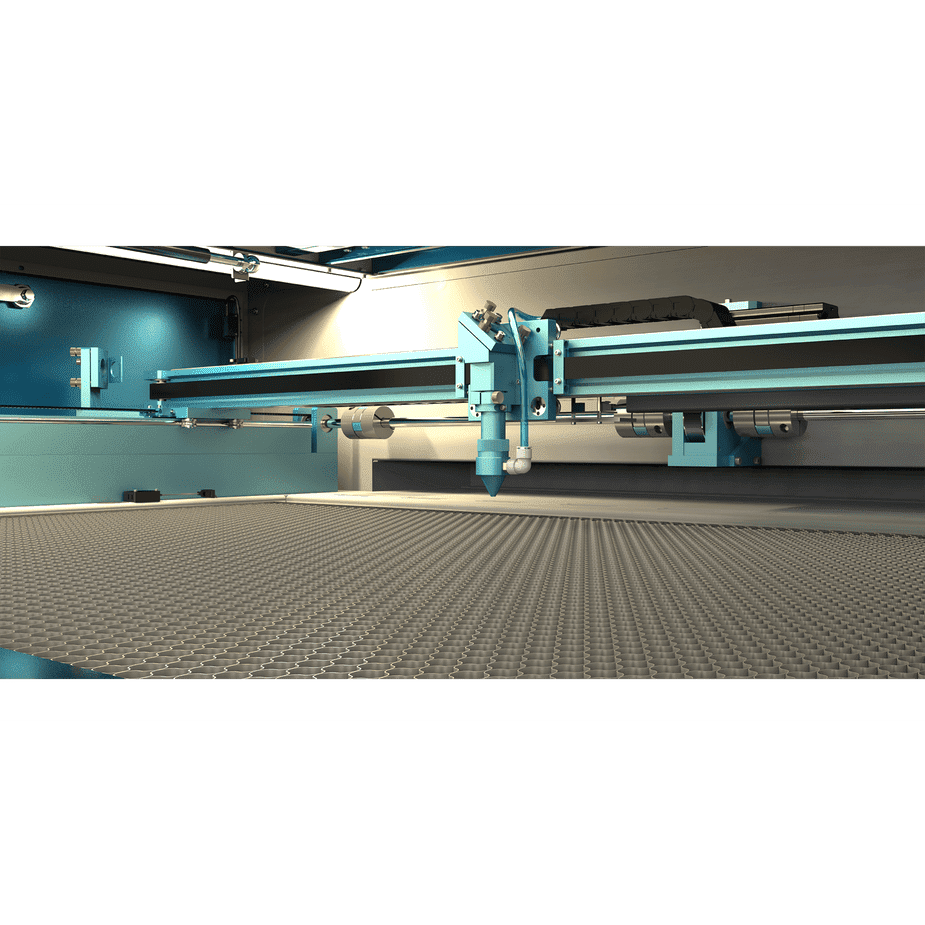

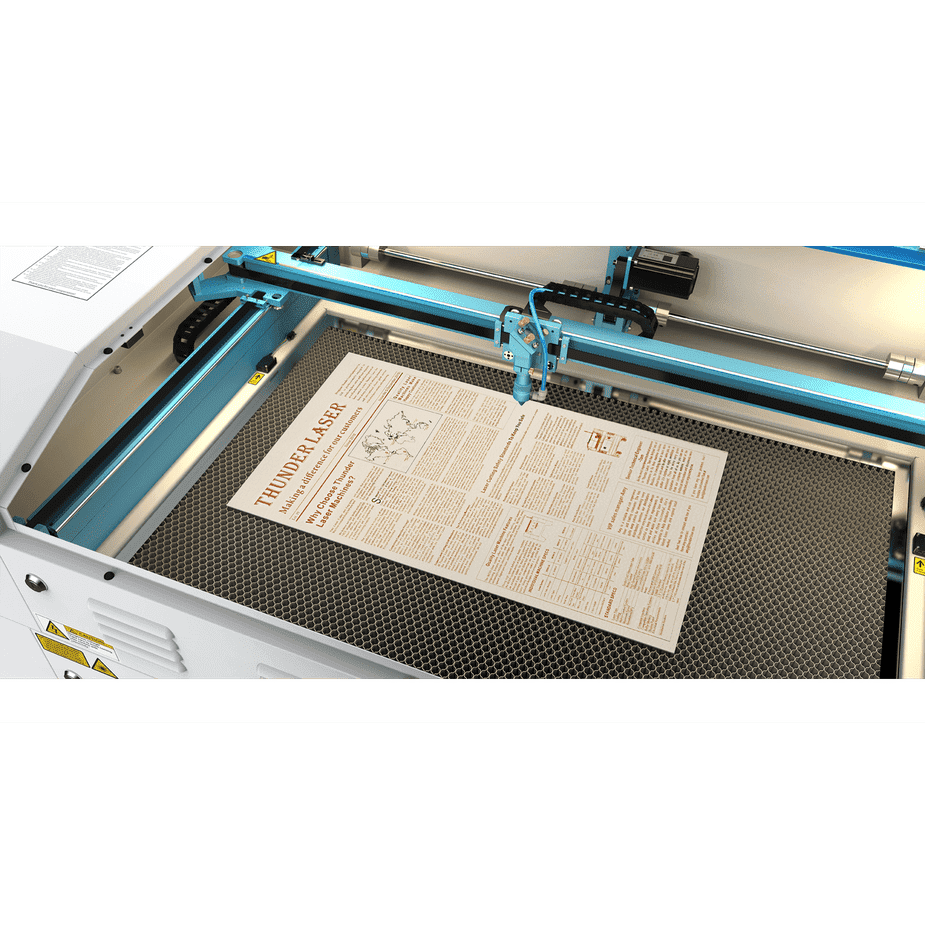

  • Aluminum Blade Bed & Honeycomb bed
  • Optical Autofocus system
  • Smooth cutting and engraving

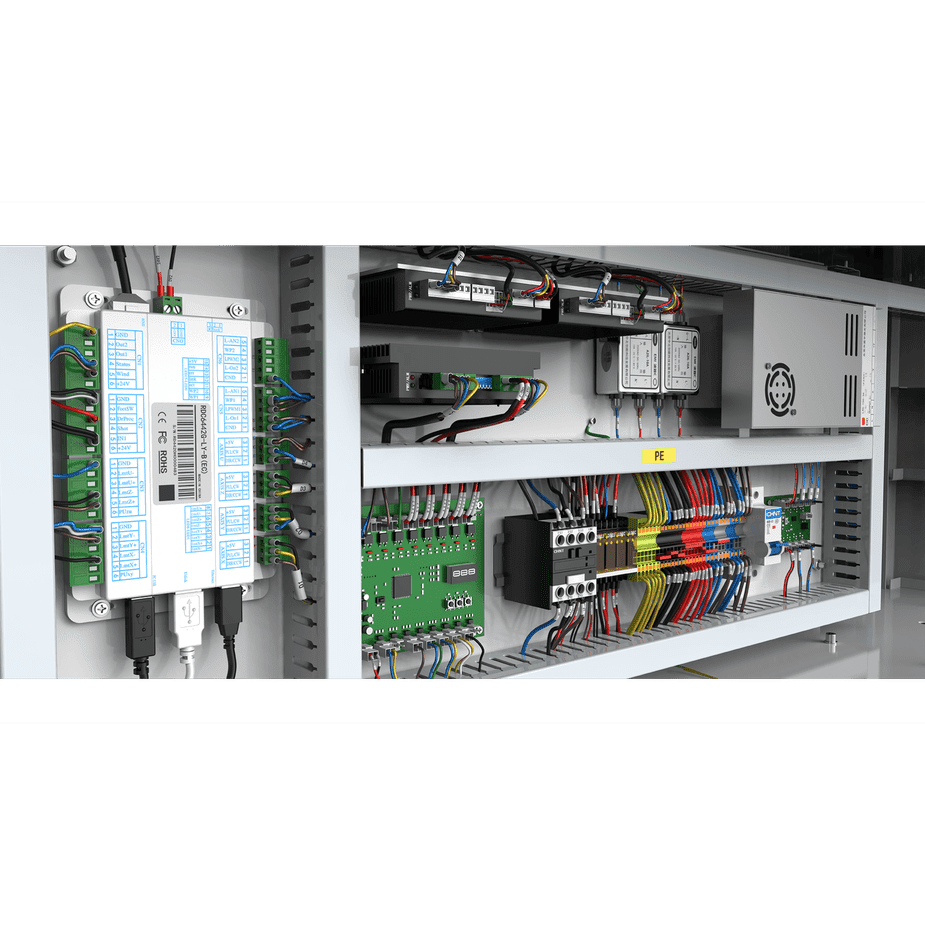

  • Hybrid Servo motors & Ruida controller
  • Red dot through lens system
  • Motorized rise and fall table
  • RJ45 Network, Usb & Udisk
  • Automatic Air assist and exhaust
  • CW5000 water cooler
  • Turbine fan
  • Air assist compressor
  • Basic tools kit and cleaning items

 Click Here to Download Brochure

Specifications
Laser System NOVA 24 NOVA 35 NOVA 51 NOVA 63
Laser Tube Wattage 60Watt 80Watt OR 100Watt 100Watt OR 130Watt 130Watt
Work Area 600x400mm(23.6″ x 15.7″) 900x600mm(35.4″ x 23.6″) 1300x900mm(51.2″x35.4″) 1600x1000mm(63.0″x39.4″)
Max Part Size (WxLxH) Front door closed

700x530x170mm(after taking out the honeycomb bed)(27.6″ x 20.9″ x6.7″)

1000x730x230mm(39.4″ x 28.7″ x9.0″)

1400x1030x230mm(55.1″ x 40.6″ x9.0″)

1700x1130x230mm(66.9″ x 44.5″ x9.0″)

Pass-through door

700x∞x20mm(27.6″ x ∞” x 0.8″)

1000x∞x20mm(39.4″ x ∞” x0.8″)

1400x∞x20mm(55.1″ x ∞” x0.8″)

1700x∞x20mm(66.9″ x ∞” x0.8″)

Table Size 700x530mm(27.6″ x 20.9″) 1000x730mm(39.4″ x 28.7″) 1400x1030mm(55.1″ x40.6″) 1700x1130mm(66.9″ x 44.5″)
Z Axis Height 150mm(5.9″) 230mm(9.1″) 230mm(9.1″) 230mm(9.1″)
Dimensions(WxDxH)

1070x810x610mm(42.1″ x 31.9″ x24″)

1500x1105x1040mm(59.1″ x 43.5″ x40.9″)

1900x1405x1040mm(74.8″ x 55.3″ x40.9″)

2200x1505x1040mm(86.6″ x 59.3″ x40.9″)

Net Weight

130kgs(287lbs)

310kgs(683lbs) 430kgs(948lbs) 470kgs(1036lbs)
Laser Type Sealed Co2 Glass Laser Tube
Cooling Water Cooled
Motion Control System High-Speed Hybrid servo motors
Maximum Speed 1000mm/S(39.4 IPS)
Speed and Power Control (engraving depth) Computer or manually controlled speed and power from 0-100%. Vector color mapping sets speed and power settings using RGB color mapping.
Operating Modes Optimized raster, vector, and combined mode
Resolution(DPI) User controlled from 100 to 500DPI(standard laser head), up to 1000 DPI(HR head)
Computer Interface Ethernet and USB Connection
Compatible Operating Systems Windows XP/2000/Vista/7/8/10
Buffer Memory 128MB Standard
Display Panel 3.5″ LCD panel showing current file, total working time, laser power, speed etc.
Electrical Requirements 110v,60 Hz, single phase
Ventilation System Integral exhaust fan.There is 1 output port, 5.7″ (145 mm) in diameter in the rear of the case.
