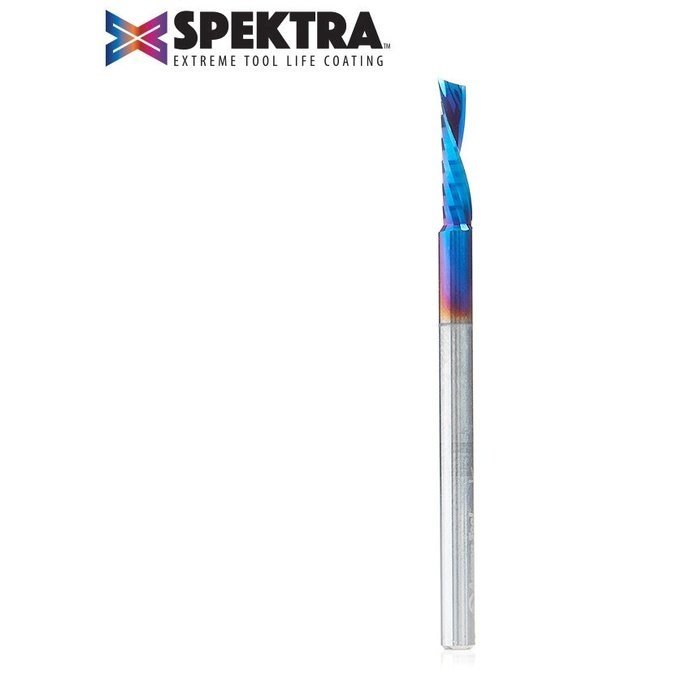

51510 K Solid Carbide CNC Spektra
  • SKU: AMA51510-K

51510 K Solid Carbide CNC Spektra

$49.95
Shipping calculated at checkout.
51510 K Solid Carbide CNC Spektra Extreme Tool Life Coated Spiral O Flute, Plastic Cutting 1/8 Dia x 1/2 x 1/8 Shank Down Cut Design Router Bit


To be used only on CNC machines and routers with automatic feeding.

Produce super clean, smooth cuts especially in acrylic materials (Plexiglas® Lucite®) other plastics and wood. Bits are made according to strict tolerances from an exclusive carbide grade and polished to a mirror finish using Amana’s unique process. Designed to eject chips up. Ideal for industrial applications and CNC machines. Left hand helix left hand cut.

Excellent for cutting:

  • Plastic/Acrylic
  • Acetal and Nylon
  • Acrylic Stone
  • Acrylonitrile Butadiene Styrene (ABS)
  • Aluminum Composite Material (ACM)
  • Alupanel®
  • Corian
  • Coroplast®**
  • Corrugated Plastics* such as Correx Boards and Polypropylene
  • Crosslinked Polyethylene (XPE, PEX, XLPE)
  • Delrin
  • Dibond®
  • Extruded Acrylic
  • Foam Board
  • Fomex®
  • Gatorfoam®***
  • Hard Plastic
  • High Density Polyethylene (HDPE)
  • High Density Urethane (HDU Board)
  • High Impact Polystyrene (HIPS)
  • High Impact Polystyrene (HIPS) for digital printing
  • High Pressure Laminates (HPL)
  • Hydroxy-Terminated Polyether (HTPE)
  • King ColorCore® The Multi-Color Engravable Polymer Sheet.
  • Laminate

  • Low Density Polyethylene (LDPE)
  • LubX®
  • Lucite®
  • Mechanical/Engineered Plastics
  • Perspex® Cast Acrylic Sheet
  • Plexiglas®
  • Poly (methyl methacrylate) (PMMA)
  • Polycarbonate (Lexan™)
  • Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
  • Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde.
  • Polystyrene (PS)
  • PVC
  • Sign Foam
  • Sintra PVC
  • Solid Surface
  • StarBoard® (King StarBoard R) High Density Polyethylene Sheet (HDPE)
  • Teflon®
  • Thermoplastic Polyolefin (TPO)
  • Trespa® Meteon®****
  • Ultra High Molecular Weight Polyethylene (UHMWPE)
  • Urethane
  • Vinyl Flooring
  • Wood


    *Corrugated Plastics such as Correx refers to a wide range of extruded twinwall plastic-sheet products produced from high-impact Polypropylene resin with a similar make-up to corrugated fiberboard. They are used in a variety of applications including boat building packaging signage outdoor advertising and the production of pet cages.

    **A soft plastic cardboard made with super soft super flexible PVC.

    ***Gatorfoam® Foam Board a polystyrene foam board bonded between two layers of Luxcell® wood-fiber veneer.

    ****Decorative high-pressure compact laminate (HPL) with an integral surface.

     Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan.

    Benefits of Mirror-Finish:

    • Razor sharp cutting edge
    • Effortless chip removal
    • Helps prevent chip re-welding
    • Extends tool life
    • Exceptional cut quality
    • Dissipates heat well and
      prevents melting



    Our Spektra bits feature a nACo® nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.

    • nACo coating is a micro-thin ceramic coating which enables the tools cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
    • Coating prevents high heat and oxidation which is detrimental to cutting tool performance.
    • Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective.
    • nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.

    Note: Blue based color dissipates immediately upon use. nACo® nanocomposite coating will not wear off.


    Maximum RPM: 35,000

    Router collet reducer RB-102 (1/4 to 1/8) available for 1/8 shank bits.

    Vectric compatible tool file for 51510-K available for download, click here.



    Direction Down-Cut
    (D) Diameter 1/8
    (B) Cutting Height 1/2
    (d) Shank 1/8
    Overall Length (L) 2
    Type nACo Ceramic Coating
    Flutes 1
