45792 Carbide Tipped Double Edge Folding V Groove

45792 Carbide Tipped Double Edge Folding V Groove

$76.95

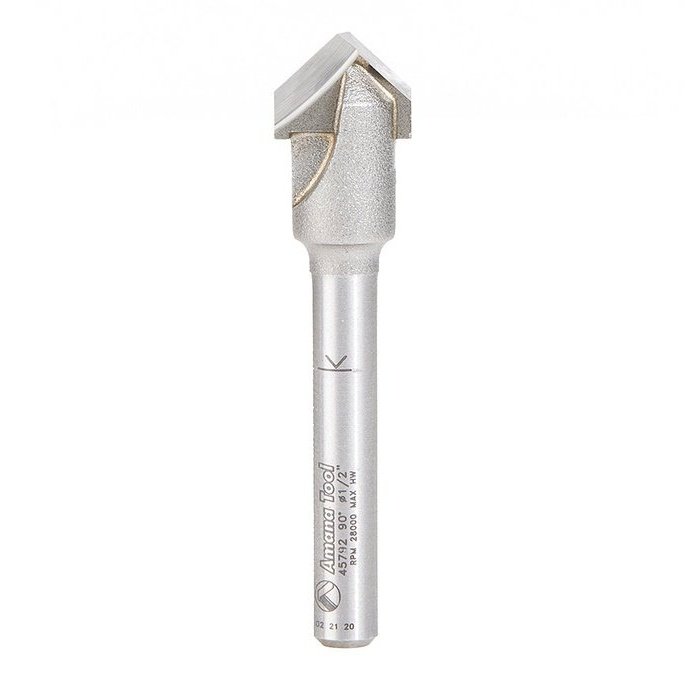

45792 Carbide Tipped Double Edge Folding V Groove 90 Deg x 0.090 Inch Tip Width x 1/2 Dia x 13/64 x 1/4 Inch Shank

Designed for shaping Aluminum Composite (sandwich) Materials (ACM) with 90ª angle V-grooves with flat bottoms. Routing V-shaped grooves, whereby the aluminum cover and a part of the polyethylene core is removed, allows folding/creasing the remaining material by hand. Ideal for wall panel fabrication.

ACM is widely used for cladding many diverse exterior and interior applications such as office buildings, hospitals, convention centers, airports, and hotels. The long lasting durability of the material makes it an excellent choice for buildings, signage, displays, etc.

Designed for cutting and scoring aluminum sandwich materials including:

  • Acetate
  • Aluminum, Brass, Bronze, Clay, Zinc & Wood Composite Panels
  • Aluminum 5052
  • Aluminum Composite Materials (ACM)
  • Aluminum Composite Panel (ACP)*
  • ALPOLIC® Copper Composite Material (CCM)
  • Alucobond®
  • Alupanel®
  • Bakelite
  • Dibond®
  • Durabond**
  • e-panel
  • Etalbond®
  • Nylon
  • PE and FR Cores
  • Phenolics
  • Plastic/Acrylic
  • Plexiglas®
  • PVC
  • Thermoplastics
  • Titanium Composite Material (TCM)
  • Wood

*Aluminum Composite Panel (ACP) is a type of ACM flat panel that consists of two thin aluminum sheets bonded to a non-aluminum core. ACPs are frequently used for external cladding or facades of buildings, insulation, and signage. **Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side, pre-finished requiring no decoration.

Vectric compatible tool file for 45792 available for download, click here.


Specification
Angle (a°) 90°
a1° 45°
Diameter (D) 1/2
D1 0.090"
Cutting Height (B) 13/64
B1 3/8
Shank (d) 1/4
Overall Length (L) 2
Max RPM 35,000
Type Carbide Tipped V-Groove
Flutes 2
