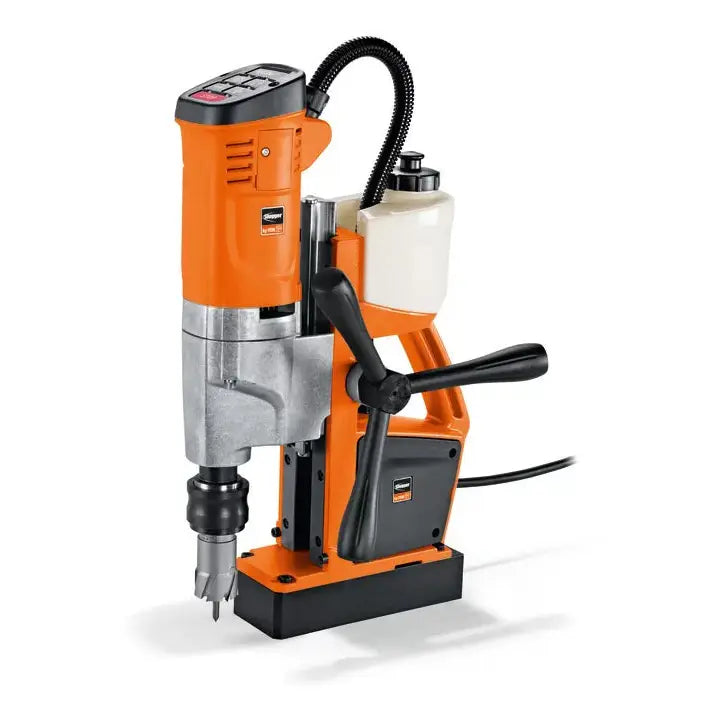

JMU 137-2 QW Universal Magnetic Core Drill 1-3/8
JMU 137-2 QW Universal Magnetic Core Drill 1-3/8
JMU 137-2 QW Universal Magnetic Core Drill 1-3/8
JMU 137-2 QW Universal Magnetic Core Drill 1-3/8
  • SKU: 72705861120

JMU 137-2 QW Universal Magnetic Core Drill 1-3/8" 2-speed 120V N12

$2,571.00
Shipping calculated at checkout.
Product Availability Ask about this product

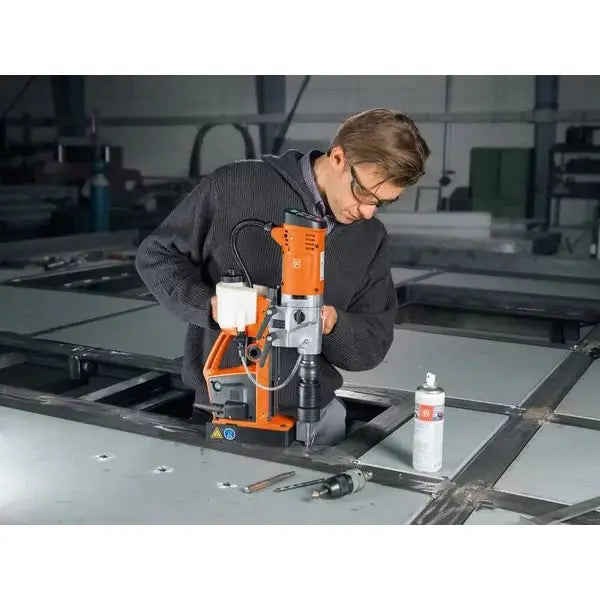

Small, long-stroke, 2-speed universal magnetic core drill with forward / reverse rotation and high-speed for efficient twist drilling on the construction site.



  • Extremely resilient design due to solid machine construction with pivoting motor cable protection sleeve. Designed for heavy use in trade and industry.
  • Perfect power-to-weight ratio, thanks to compact, weight-optimized design and FEIN 1100 W high-performance motor with tacho electronics for high speed stability for reliable and efficient operation.
  • Universal use, such as mag base drilling, twist drilling, tapping, countersinking, and reaming is possible due to forward / reverse rotation, electronic speed setting and a 10-1/4 in [260 mm] stroke.
  • Small, with mechanic 2-gearbox for twist drilling.
  • Simple and error-proof control concept in the operator's field of view.
  • Easy to read convenient magnetic holding force display.
  • High magnetic holding force.
  • Motion sensor.
  • Additional magnet switch in the drill stand.
  • Integrated coolant tank.
  • Hand feed wheel can be mounted on either side.
  • "Memory function" speed storage.



Technical data
Power consumption 1,100 W Sound pressure level LpA 83,2 dB
Power output 550 W Measurement uncertainty of the measured value KpA 5 dB
Load speed: 1st gear 130 - 520 rpm Sound power level LWA 94,2 dB
Load speed: 2nd gear 400 - 1,600 rpm Measurement uncertainty of the measured value KWA 5 dB
Carbide cutter max. dia. 1-3/8 [35] in[mm] Peak sound value LpCpeak 96,8 dB
HSS cutter max. dia. 1-3/8 [35] in[mm] Measurement uncertainty of the measured value KpCpeak 5 dB
Cutter max. drilling depth 2 [50] in[mm] Vibration value 1 αhv 3-way αh,D <2,5 m/s²
Twist drill max. dia. 5/8 [16] in[mm] Measurement uncertainty of the measured value Kα 1,5 m/s²
Tapping M 14
Max. countersinking dia. 1-1/4 [31] in[mm]
Reaming max. dia. 5/8 [16] in[mm]
Cutter holder 3/4" Weldon
Cutter change tool-free
Stroke 5-5/16 [135] in[mm]
Total stroke range 10-1/4 [260] in[mm]
Magnetic holding force 2136 [9,500] lbs[N]
Magnetic base dimensions 7-5/16 [186] x 2-3/4 [70] in[mm]
Cable with plug 13.1 [4] ft[m]
Weight 24.47 [11.10] lbs[kg]

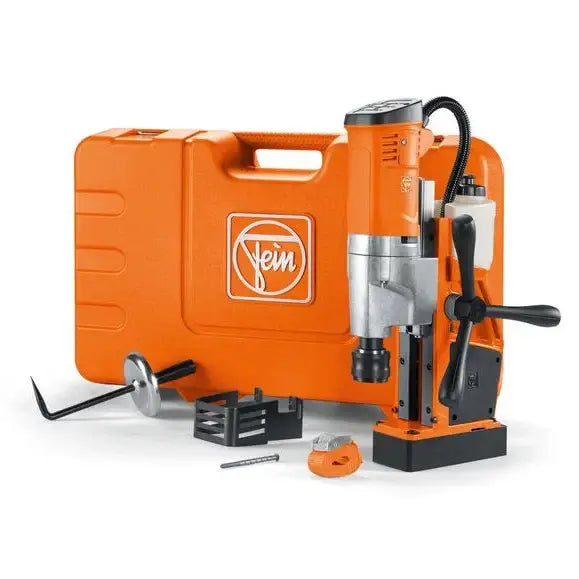

Includes
  • 1 coolant tank
  • 1 safety strap
  • 1 chip hook
  • 1 pilot pin
  • 1 chip guard
  • 1 case
Product feature



  • Magnet holding force display
  • Forward/reverse operation
  • Electronic speed setting
  • Memory function
  • Speed-controlled tacho electronics
  • Tilt sensor
