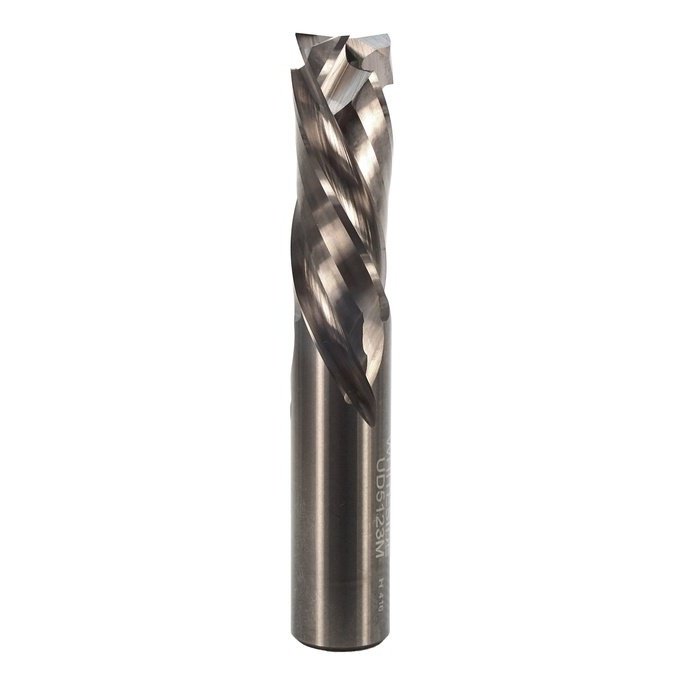

UD5123M UP/DOWN CUT SPIRAL

Up/Down Cut Spiral Bit Sc 3+3 1/2Sh 1/2Cd 1-1/4Cl 3Oal 3Fl Mortise Style

Made from solid carbide, each bit has both up cut and down cut flutes to provide a smooth cut to both the top and bottom side of your project.  This bit has the added feature of shorter up cut flutes, allowing the down shear cutting action to the top surface during shallow cuts.

Materials: Natural woods, composites, hard plastics, thin aluminum

Recommended RPM: 16,000-18,000 (max 24,000)

UD5123M Spec

• Shank DIA: 1/2"
• Cutting DIA: 1/2"
• Cutting Length: 1-1/4"
• Overall Length: 3"
