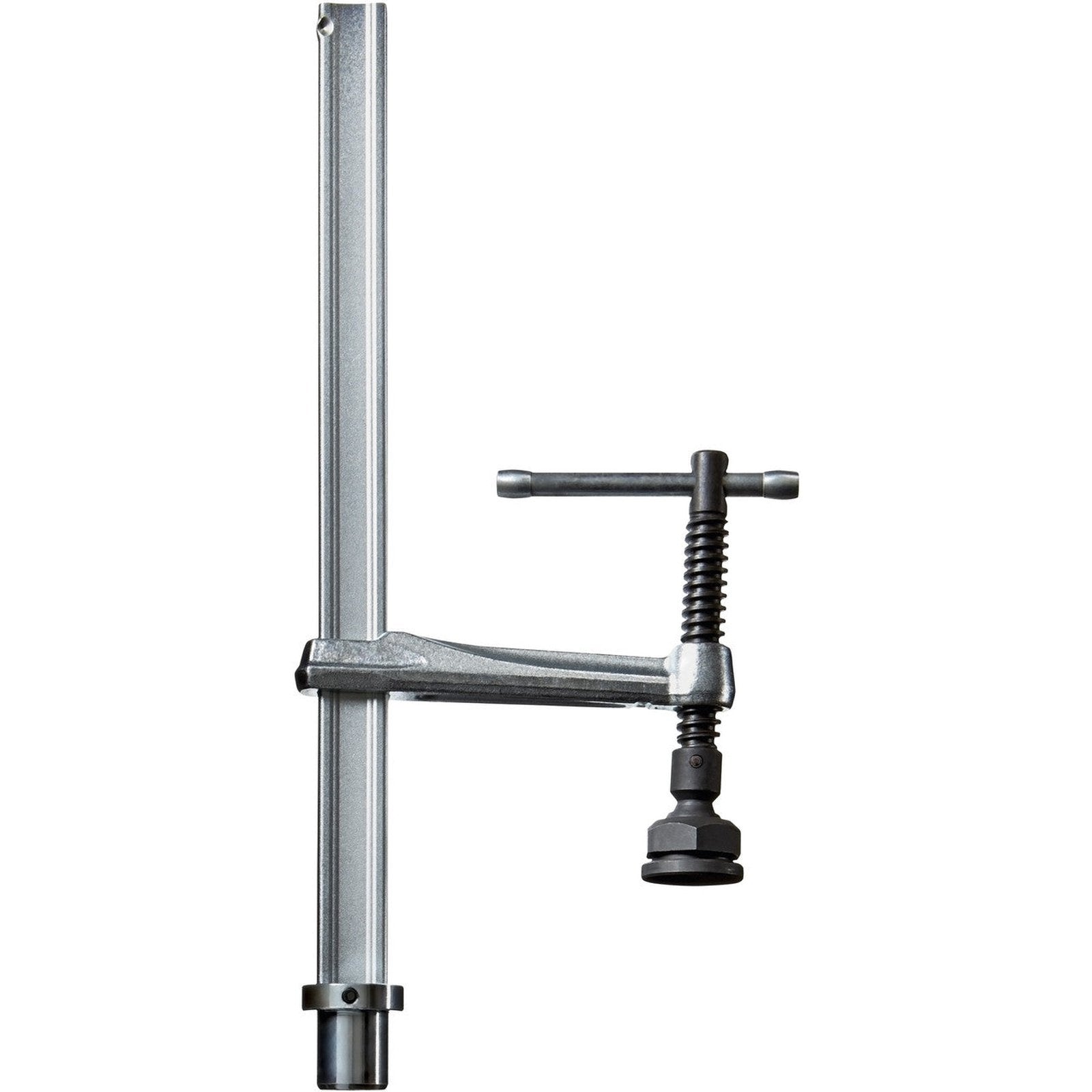

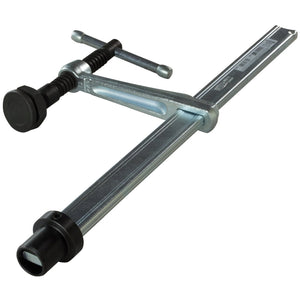

Bessey TWM28-30-12 - Table Clamp 12" x 4.75" for 28mm Matrix Tables

Shipping calculated at checkout.

Welding Table Clamp, 12" X 4.75", T-Bar, Heavy Duty MorPad, for 28 mm Matrix Tables

BESSEY welding table clamps designed for 28 mm matrix tables are available in a wide range of choices for different needs including variable throat depth versions and accessories to complement the clamps. The TW28 series from BESSEY offers clamping elements with two fixed throat depths of 4.75 in. (120 mm) in. and 5.5 in., and a clamping capacity of approx. 12 in. (300 mm). For increased flexibility the TWV28 series adds 3 more clamps into the mix that have variable throat depth. The variable throat depth may be set to any distance that falls within the min-max range of the sliding arm. Both series are characterized by a tempered profiled rail and forged sliding arm for strength where you need it, as well as the option to choose between three handle variants. The versions with the high quality 2-component plastic handle and the T-bar have a smooth-running trapezoidal threaded spindle and replaceable pressure pads that require no tools to install. The lever handle variant has a positive locking ratchet mechanism for controlled, fast and vibration-proof clamping. There is also version with a gripping arm (TW28GRS) and a heavy duty version with T-handled spindle and heavy-duty MorPad. Many accessories are available, such as V-blocks, variable risers and assorted adapters that enable the use of toggle clamps and other machine-table clamps on matrix tables with 28 mm holes. BESSEY. Simply better.

  • For use on matrix tables with 28 mm holes
  • Versatile, making changes to a set up is very easy
  • Fixed throat depth of 4-3/4 inches
  • Heavy duty
  • T-Bar handle
  • Heavy duty MorPad
  • Pad tilts up to 35 degrees
  • Welding table clamp with special pressure plate (TWM28)

Tempered profiled rail and drop forged sliding arm for strength where it is most needed. Tempered spindle particularly sturdy and wear-resistant for noticeably improved service life. Long life due to heat-resistant pressure plate with sintered steel insert, which can be tilted up to 35°.


  • Jaw Width: 1.5 Inches.
  • Throat Depth: 4.75 Inches.
  • Nominal Clamping Capacity: 12 Inches.
  • Clamping Force: 1400 LBS.
  • Rail Dimensions: 1-3/32 Inches x 7/16 Inches.
  • Clamping Screw Diameter: 0.7 Inches.
  • Handle Length: 3.858 Inches.
