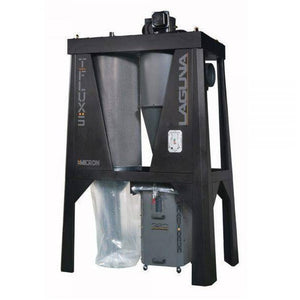

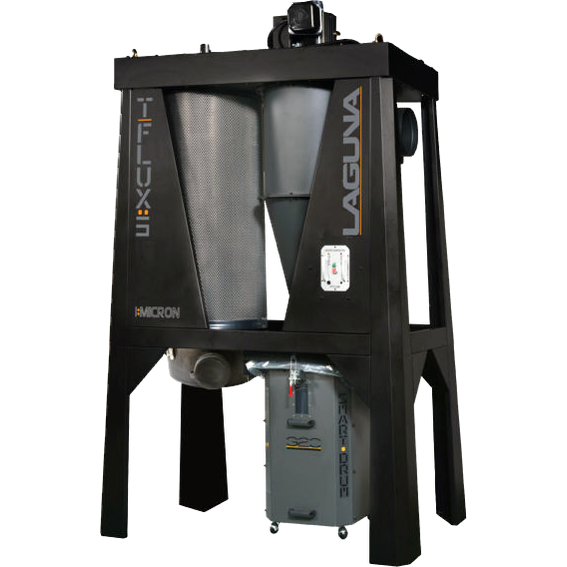

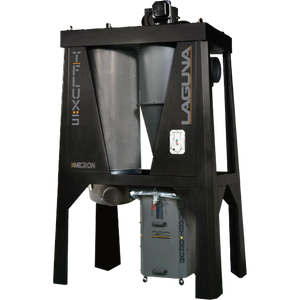

TFlux 5 Cyclone Dust Collector
  • SKU: T|Flux5

TFlux 5 Cyclone Dust Collector

$8,799.00
Shipping calculated at checkout.

The T|Flux series from Laguna starts to get serious. The Titan cyclones are geared towards clients who desire a single central unit for the entire shop. The T|Flux cyclones are equipped with a 10″ port that splits into 3 x 4″, allowing you to run a large diameter pipe system throughout your shop with drops to the individual stations.

Features:
  • Motor HP: 5 HP
  • 220V, 22.4 Amps, 1 Phase
  • 40 AMP Recommended Breaker
  • 60 Hertz
  • 3450 RPM
  • Switch Type: Sunken Radio Frequency Remote switch with LED full drum & LED Filter dirt detection
  • Hand Held Remote Control: High Frequency

All models are outfitted with smart drums which alert the user when the drums reach capacity. Automatic canister cleaning is controlled by a timer that turns on every work hour & runs 10 seconds clockwise & counter clockwise. The 1 micron canister has a huge surface area and filtrates 99.97% of particles ranging from 0.2 to 2 microns. Smart Drums comes standard with high quality casters and feature our unique quick disconnect design.


  • Shop Setting CFM*: 2450
  • Inlet CFM: 4295
  • Max Static Pressure (Inches of Water): 12.1″
  • Impeller/Fan Size: 16″
  • Impeller Material: Steel
  • Impeller Type: Radial Fin
  • Balanced To: ISO 1940
  • Inlet Diameter: 10″
  • Drum Capacity: 54 Gal
  • Octagon Drum: Low Pressure Suction
  • Drum Collection Bag (Dia. x L): Plastic Bag (740 x 1300mmL)
  • Canister Filter Type: Black 1 Micron
  • Filtration Efficiency: 1.2-2 Micron @ 99.97%
  • MERV Rating: 12
  • Canister Diameter: 600mm (23.62″)
  • Canister Length: 1200mm (47.24″)
  • Filter Surface Area: 15m²/162ft²
  • Canister Cleaning: Auto Clean (Gear Motor)/ Cleans every hour 10 sec clockwise, 10 sec counter-clockwise
  • Canister Filter Lower Dust Collection: Plastic Bag (610 x 600mmL)
  • Wheels: None
  • US/CSA Approved: Yes
  • Decibel Reading: 76dB(A)(@9.8ft)
  • Machine Weight: 325 kgs/717 lbs
  • Shipping Weight: 430 kgs / 948 lbs
  • Shipping Dimensions (L x W x H): 75″ x 39″ x 80″
  • Assembled Dimensions (L x W x H): 73″ x 39″ x 111″ (1845 x 989 x 2810mm)
Performance

T Flux 5 Performance

Dimensions
