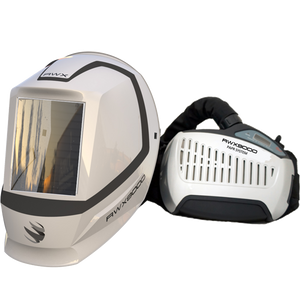

RWX9000 PAPR System
RWX9000 PAPR System
RWX9000 PAPR System
RWX9000 PAPR System
  • SKU: RWX9000

RWX9000 PAPR System


NIOSH Approved

4 Arc Sensors
Maintain constant sensing and automatically switches the helmet from light to dark and back again.

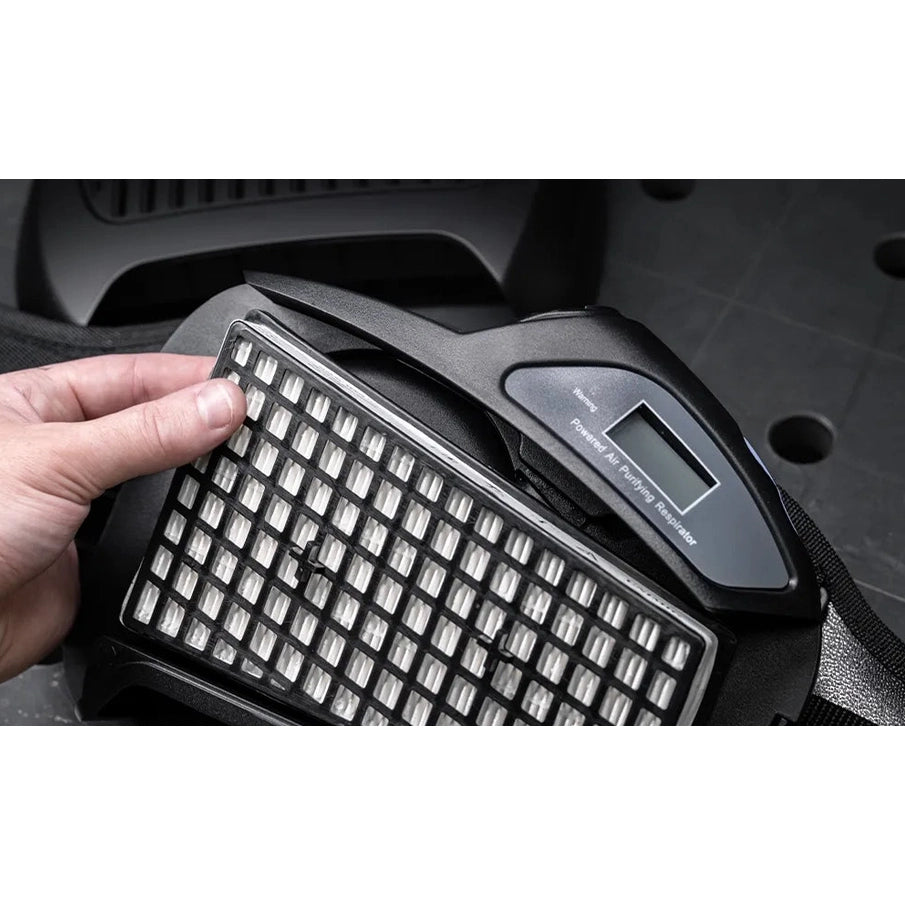

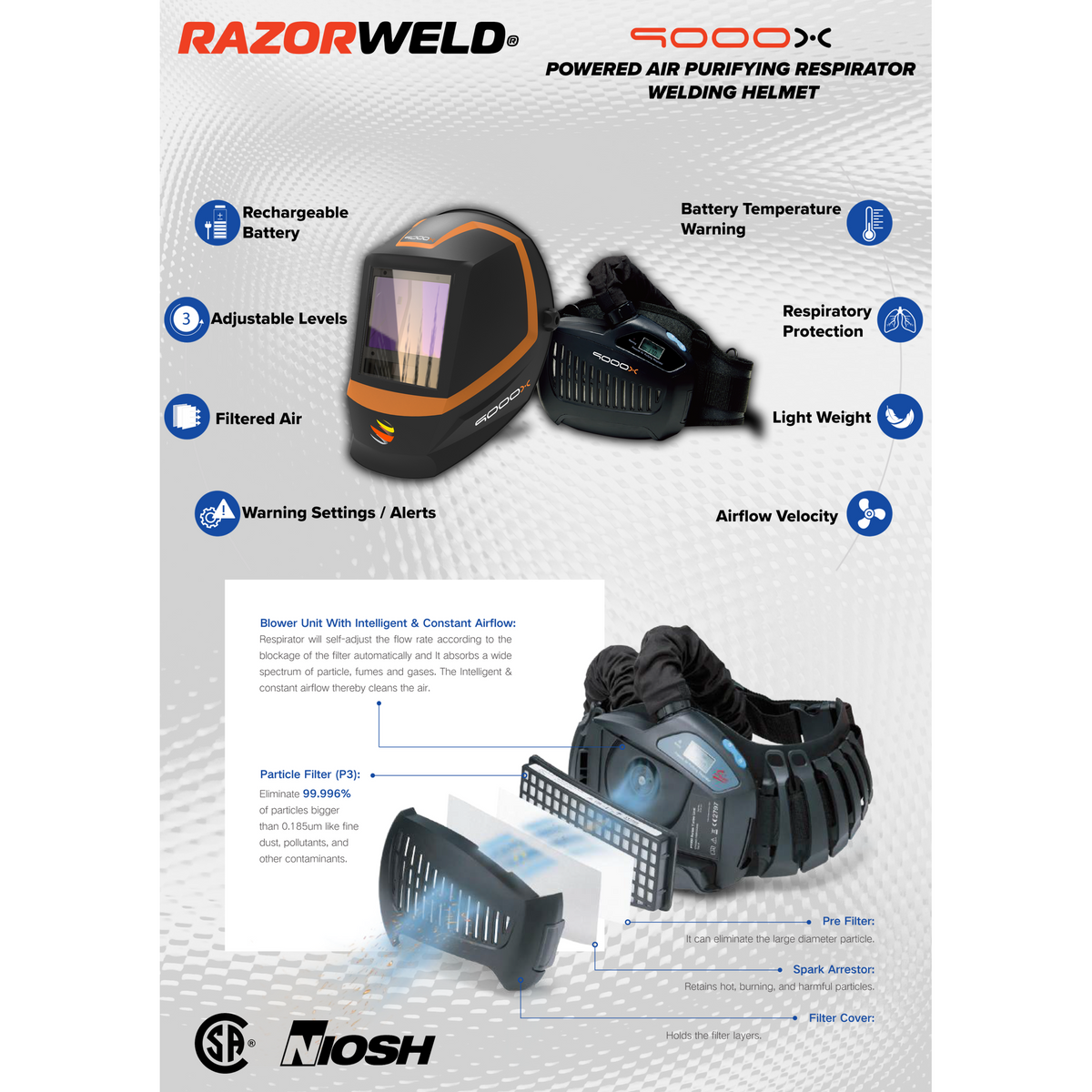

Continuous Filtered Air
Adjustable 3 level airflow control

TH3 P R SL Protection
Enhanced protection for extended use

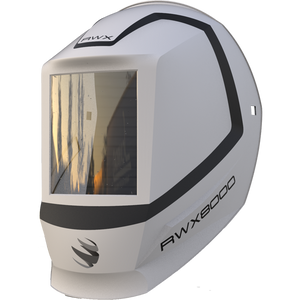

Enhanced Viewing Area
Offers a larger viewing area for the operator. This larger viewing area enhances the operators view of the welding area

High Definition Filter Technology is a feature that greatly improves the optics allowing the user to see a full
spectrum of colours. It also helps to alleviate eye fatigue making it safer for extended periods of welding.

Operator Comfort
Lightweight Design makes wearing the welding helmet more comfortable for the operator.

Memory Function
Allows the operator to store different shade, sensitivity and delay options into three easily accessible pre-sets.

Warning Settings
Customizable warning settings.

  • Filter dimension4.5 x 5.2 x 0.37in
  • View size3.94 x 3.28in
  • Classification1/1/1/1
  • Sensors4
  • Light state4
  • Dark stateVariable shade 5-9/9-13
  • Power controlFully automatic
  • Shade controlInternal
  • Switching time at 73˚F0.04ms
  • Sensitivity & Delay time controlAdjustable (Internal)
  • Time from dark to light0.1-0.9s adjustable (internal)

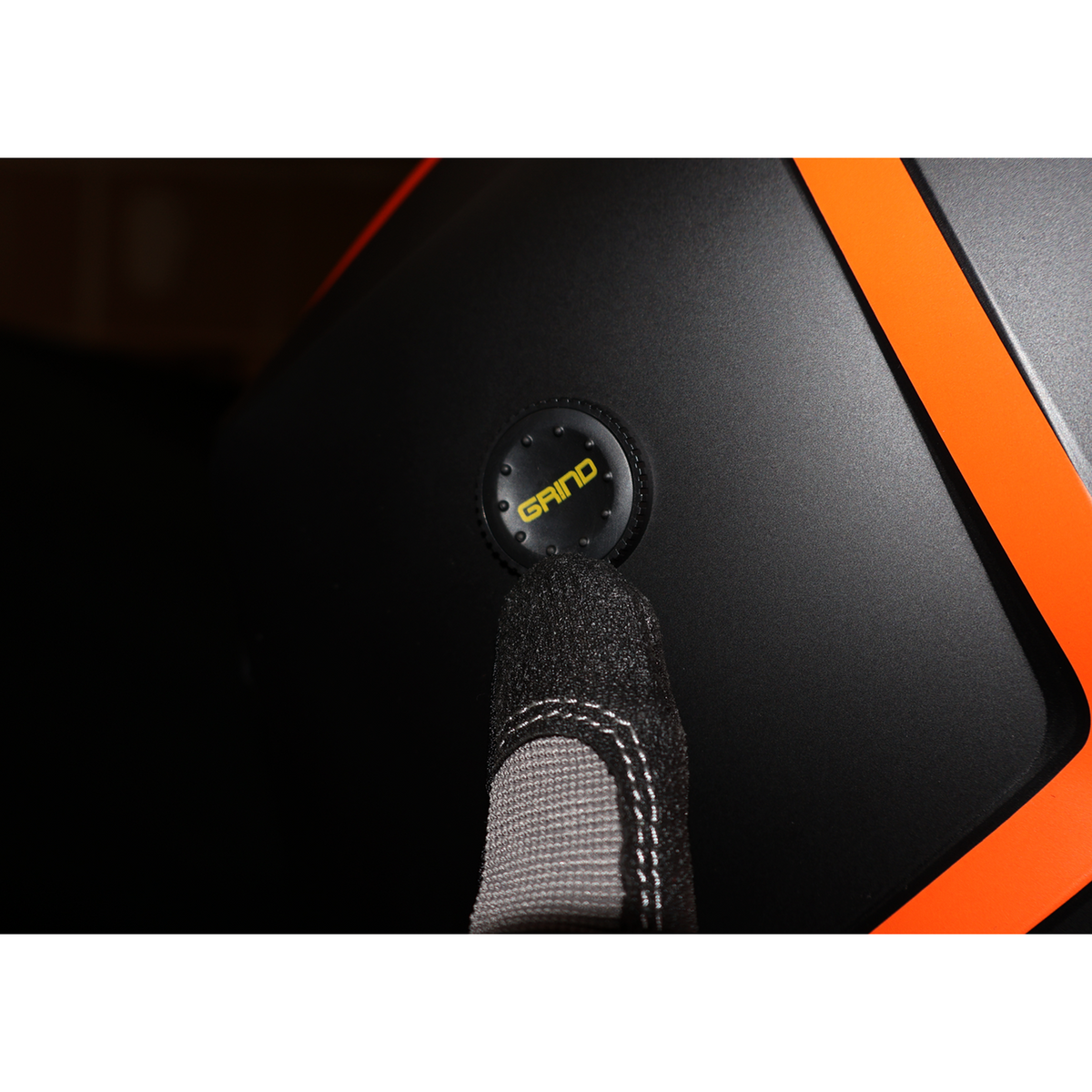

  • Grinding functionYes
  • Grinding warning flashYes
  • Low battery Warring indicatorYes
  • Operation temperature-14˚F - 149˚F
  • Storing temperature-4˚F - 185˚F
  • Power supplySolar cell, replaceable battery (CR2450*1PCS)
  • Certified toCE, ANSI , CSA, AS/NZS
