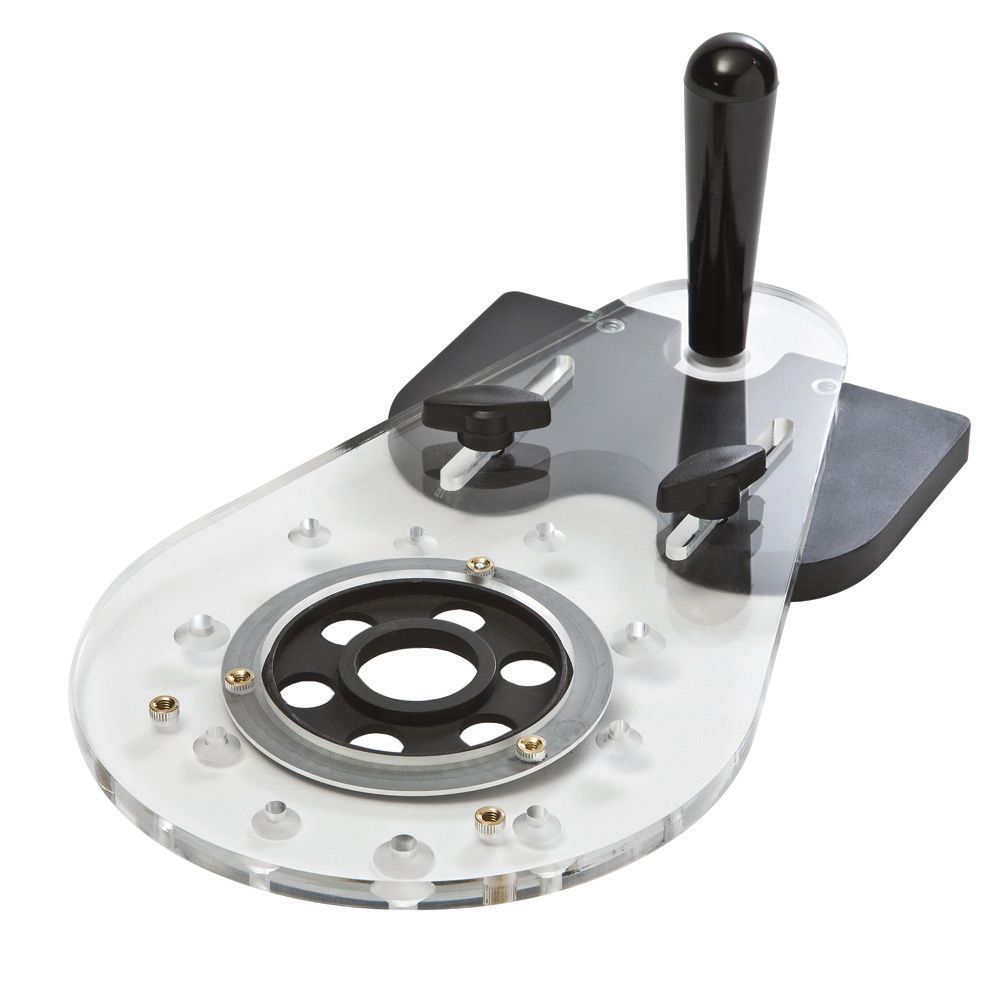

Rockler Universal Router Sub-Base

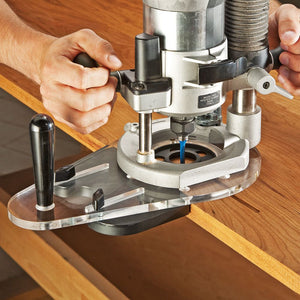

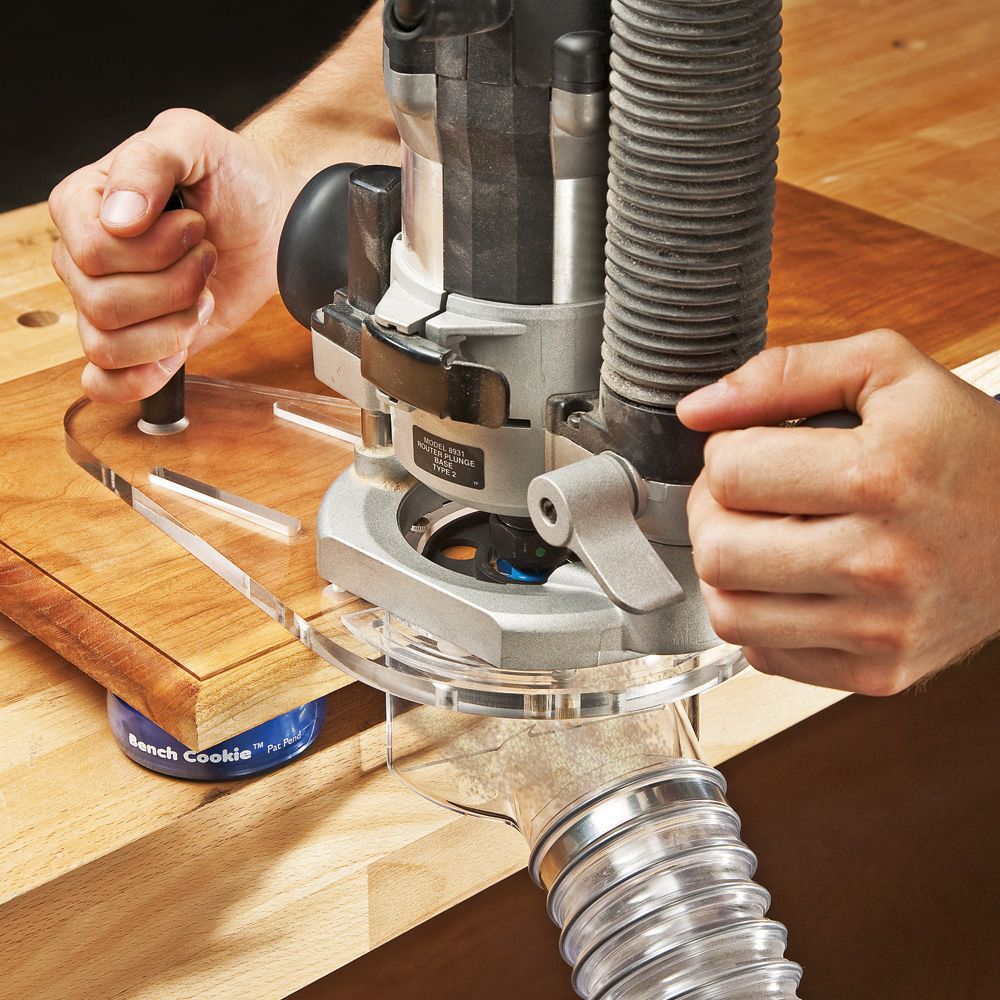

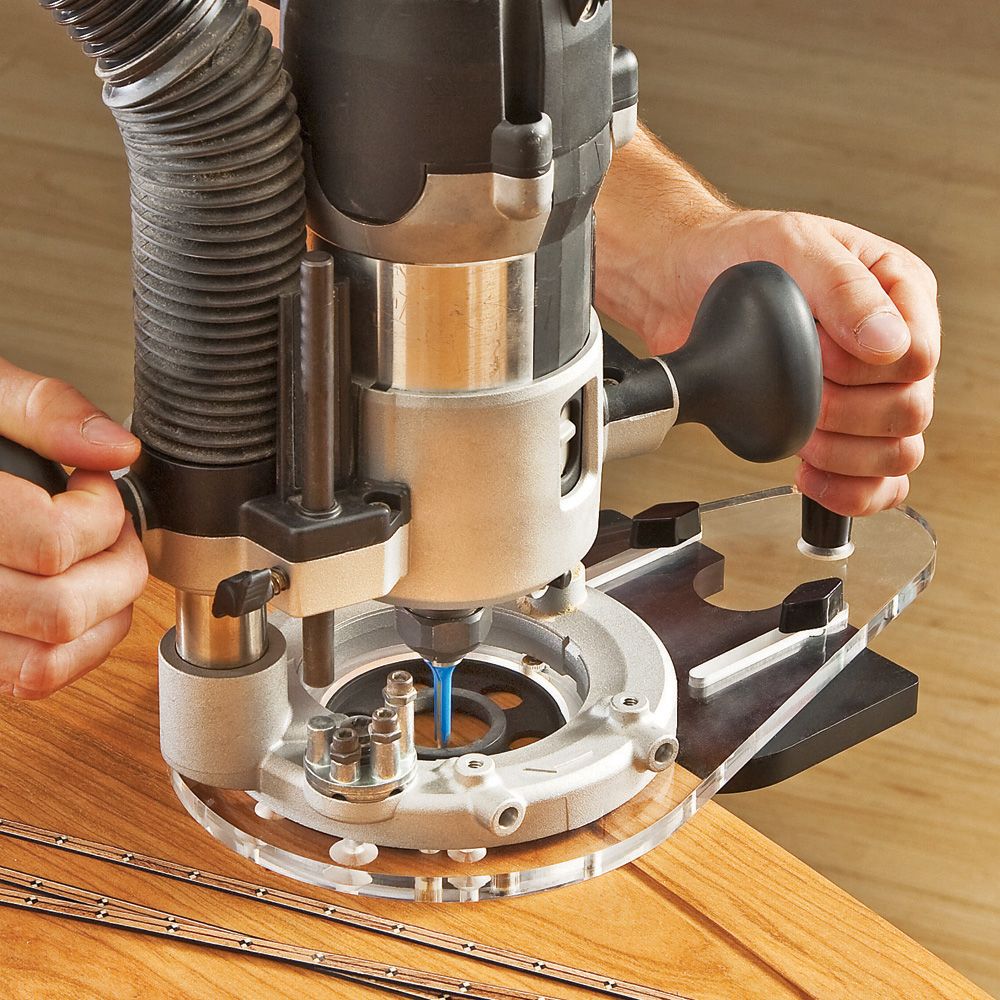

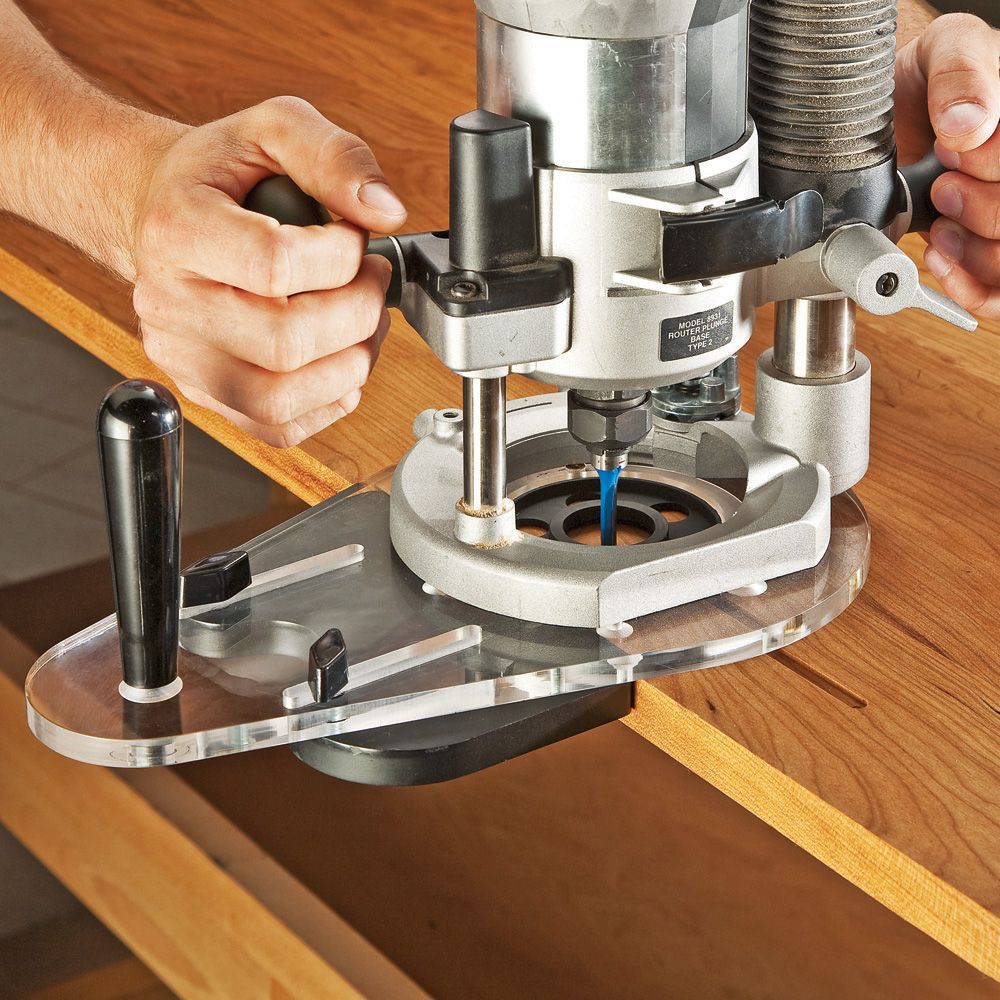

This versatile router baseplate extends well over the flat face of your workpiece, providing far better stability when edge profiling. In addition, the sub-base includes a fence/edge guide that can be used to guide bits without bearings along the edge of your workpiece—ideal for dados, grooves, fluting and inlays. The fence is reversible: one edge is straight, while the other is a contoured two-point guide that's useful for following inside and outside curves. Finally, the baseplate accepts our selection of Standard (4'' O.D.) Rockler Router Plate Insert Rings, which add a great deal of versatility to your router. A standard guide bushing insert is included, while a variety of other inserts are available separately.

Features:

• Adds stability, edge-routing precision and the ability to change inserts
• Edge guide is reversible for straight workpieces and curved workpieces
• Two separate fence attachment points allow you to rout from 0'' to 5'' from the edge
• Accepts our selection of Standard (4'' O.D.) Rockler Router Plate Insert Rings

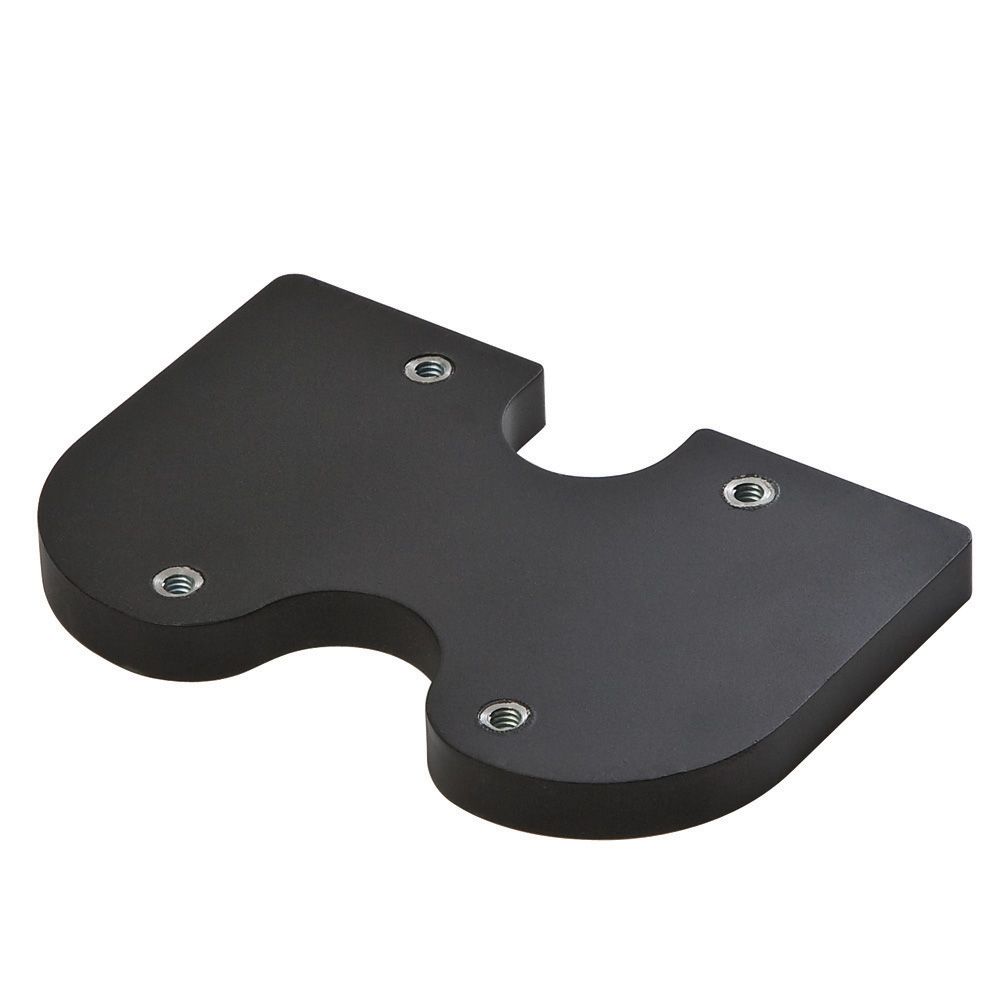

• Made from 3/8'' thick clear acrylic for excellent visibility, with a durable 1/2'' thick edge guide
• Pre-drilled to fit many popular routers and can be drilled to fit others
• Includes standard 1-3/16'' guide bushing insert and screws to attach router

Pre-drilled for the following routers:

• Bosch 1617 (fixed base only)
• Bosch 1618 series
• Bosch 1619
• Bosch 1619 EVS
• Dewalt DW625
• Dewalt DW616
• Dewalt DW618 series
• Hitachi M12VC (not M12V)
• Makita 1100 series
• Porter-Cable 100
• Porter-Cable 690
• Porter-Cable 890 series
• Porter-Cable 7529
• Porter-Cable 8529

Note: If you plan to use this product with a Skil router, please download and use the Drilling Template in the Technical Documents section.

Included

(1) Rockler Universal Router Baseplate
(1) Standard (4'' O.D.) 1-3/16" Guide Bushing Insert
(1) Pack of Screws to Attach Router
