Rockler Doweling Jig Kit with Bit and Stop Collar

$36.95
Shipping calculated at checkout.

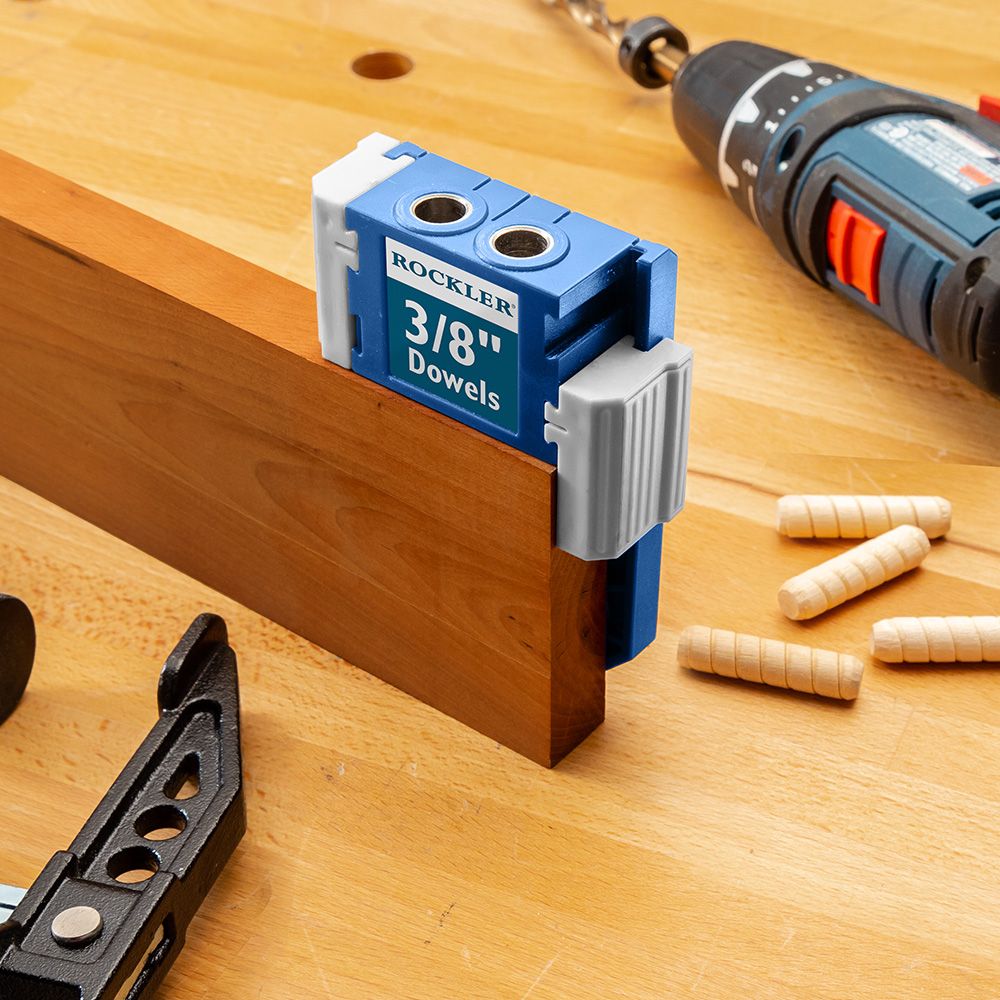

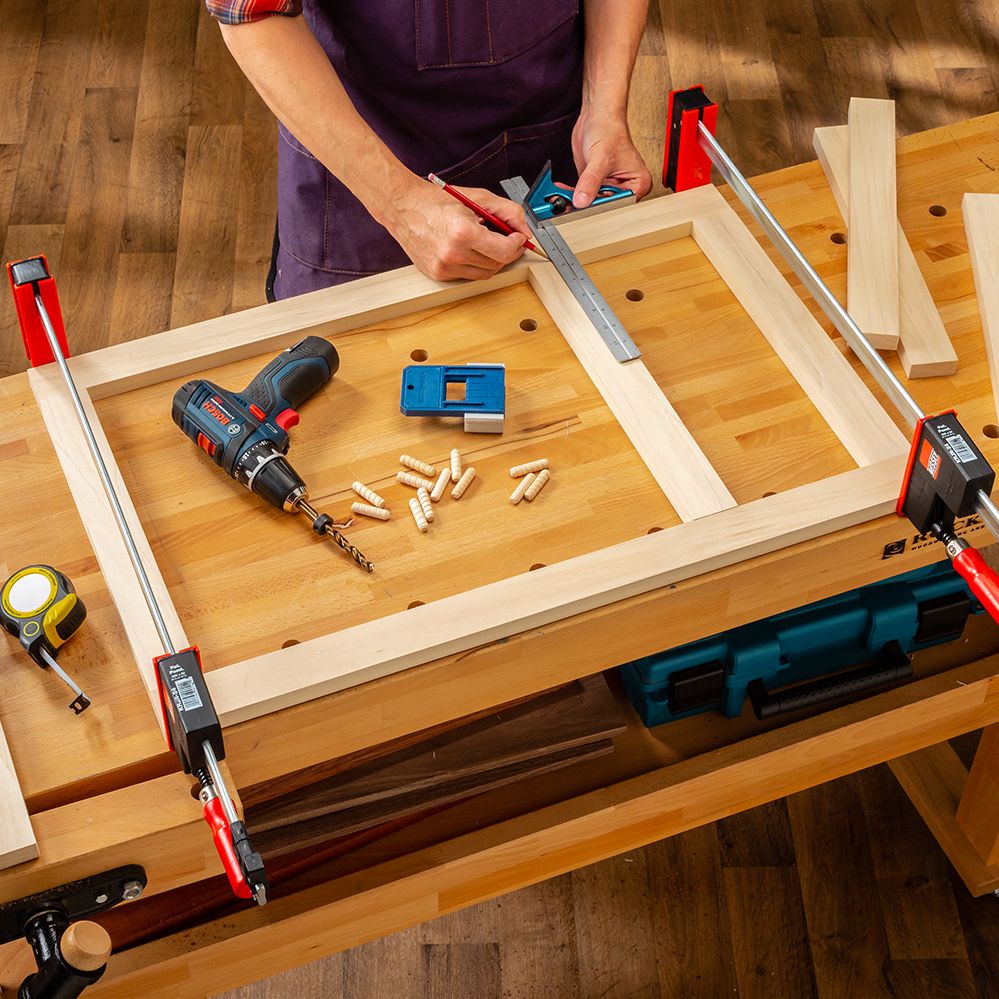

These doweling jigs give you a strong joint with perfectly flush faces, every time. That's thanks to two stops that let you reference off of the end or edge of your stock for perfect alignment. The stops also allow easy repeatability when batching parts, and dovetailed ways make it easy to slide the stop out of the way when it's not needed. A depth scale is molded into the back of the jig to make setting the drilling depth dead simple. Each jig includes a corresponding drill bit and stop collar. Just clamp it in place, drill and you're done!

Features:

  • Dual edge stops allow easy alignment and repeatability, and slide out of the way when not needed

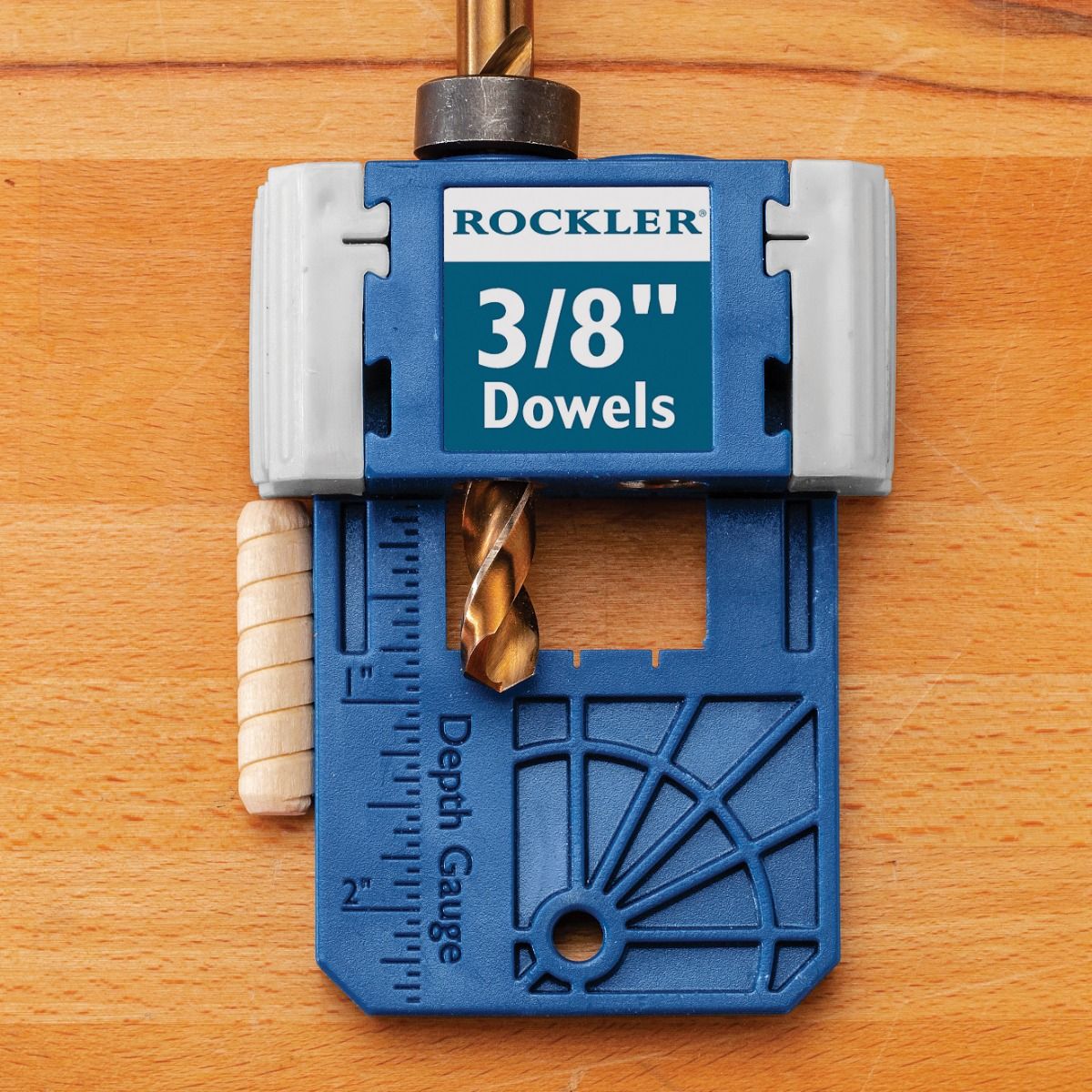

  • Depth scale is molded into back of jig for easy setting of drilling depth using the stop collar

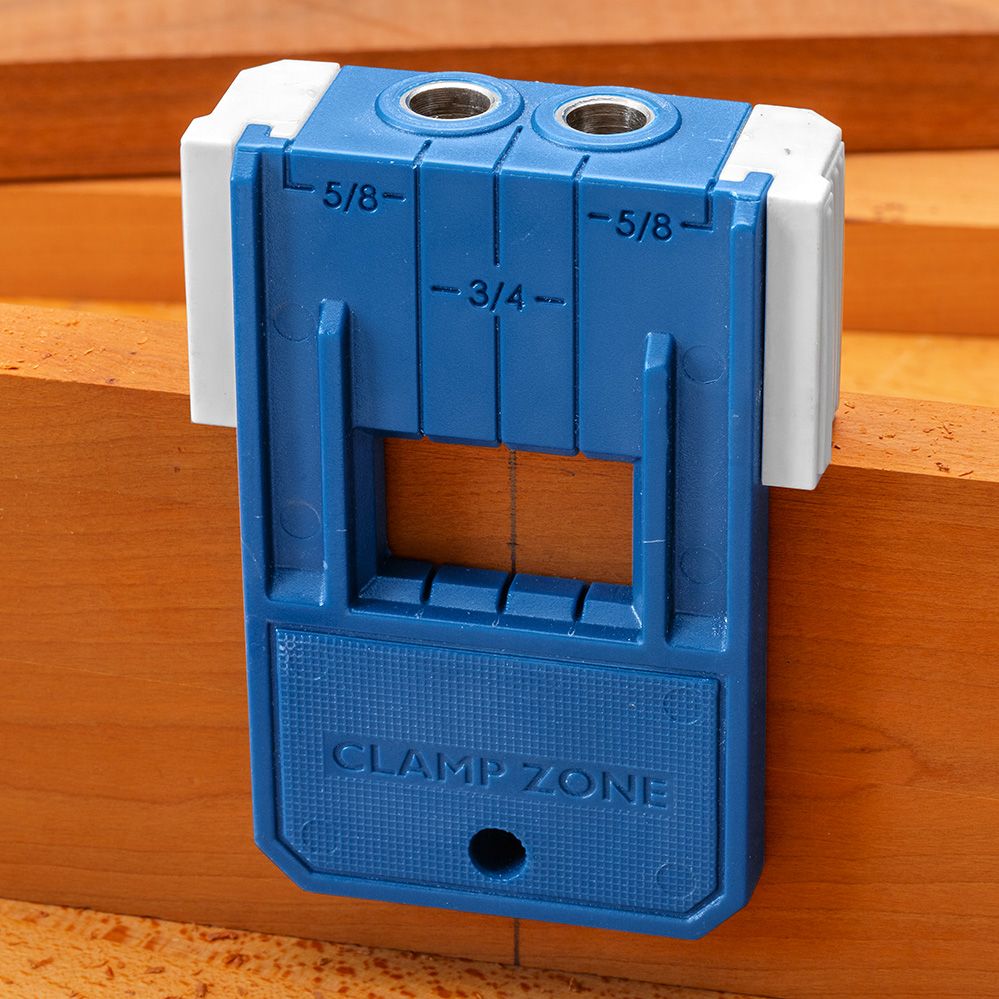

  • Window with reference lines makes it easy to align the jig with layout marks when drilling far from the ends

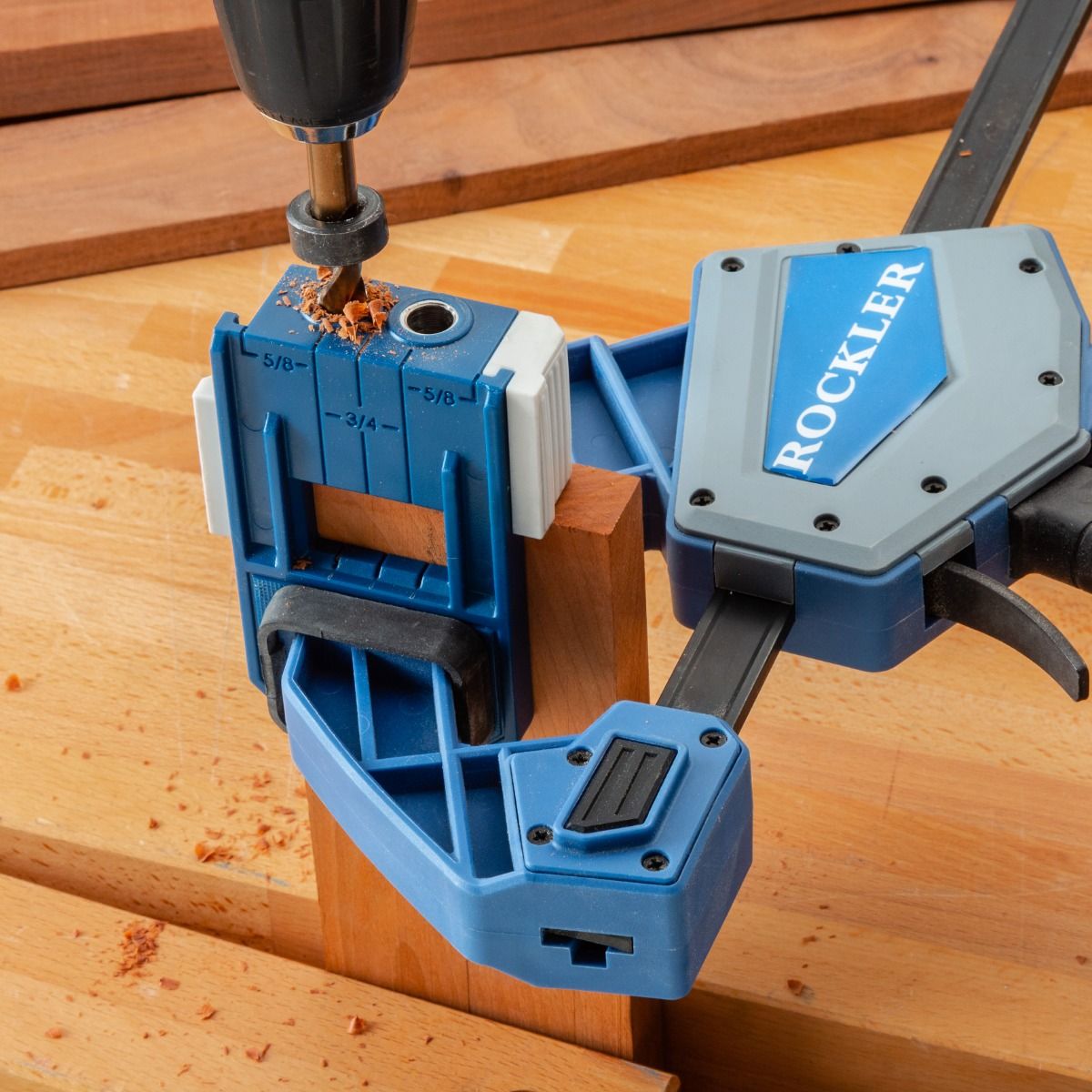

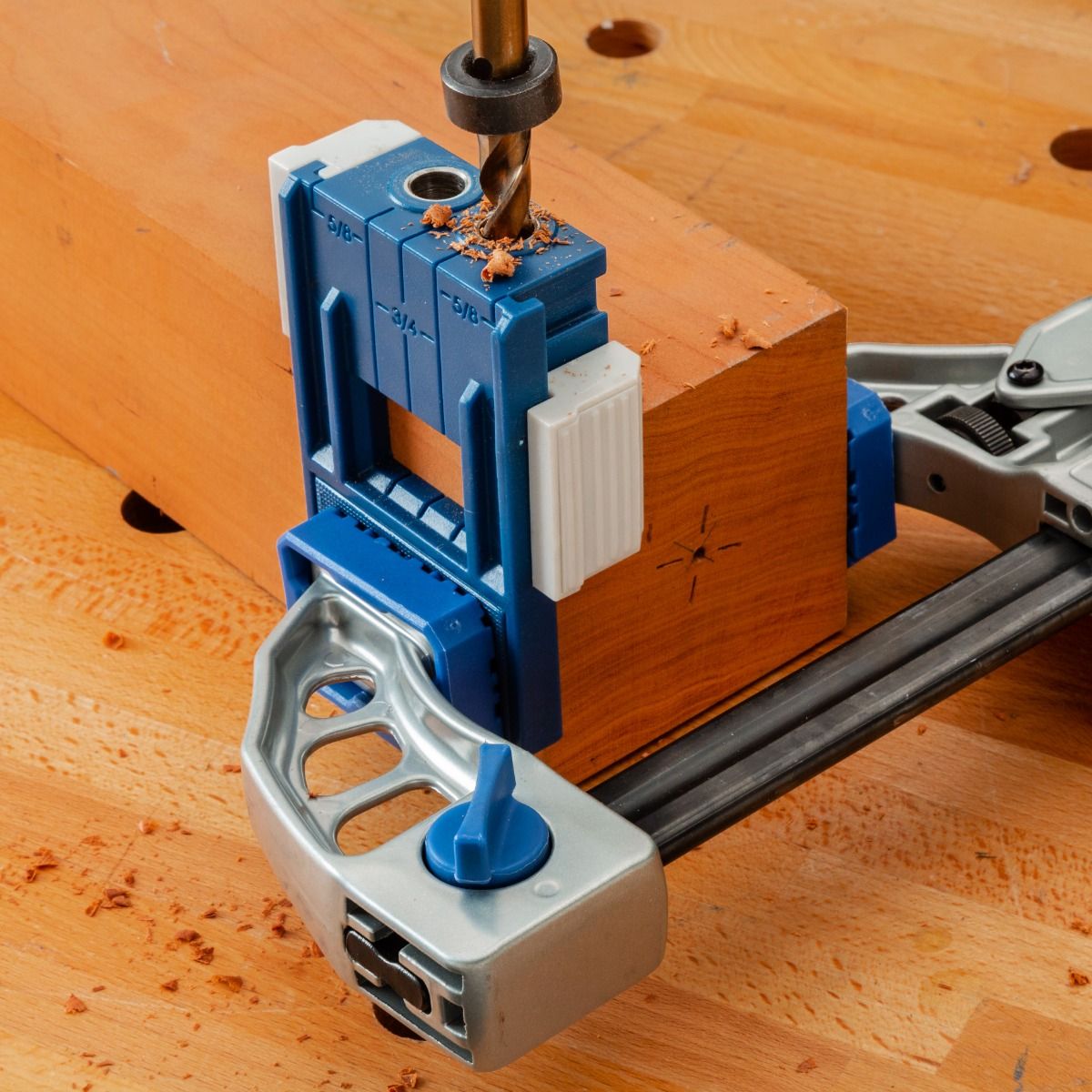

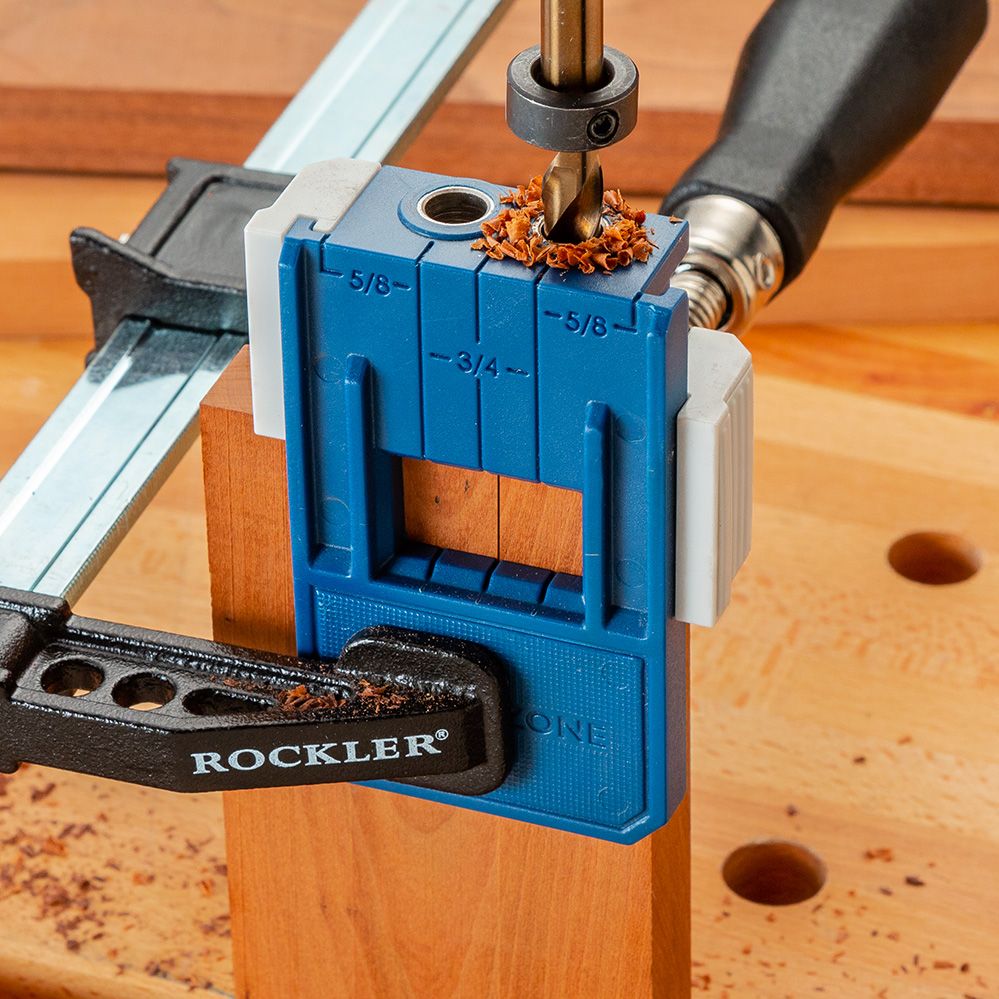

  • Generous clamping area accepts a wide variety of clamps
  • Made from durable glass-reinforced nylon with hardened steel bushings

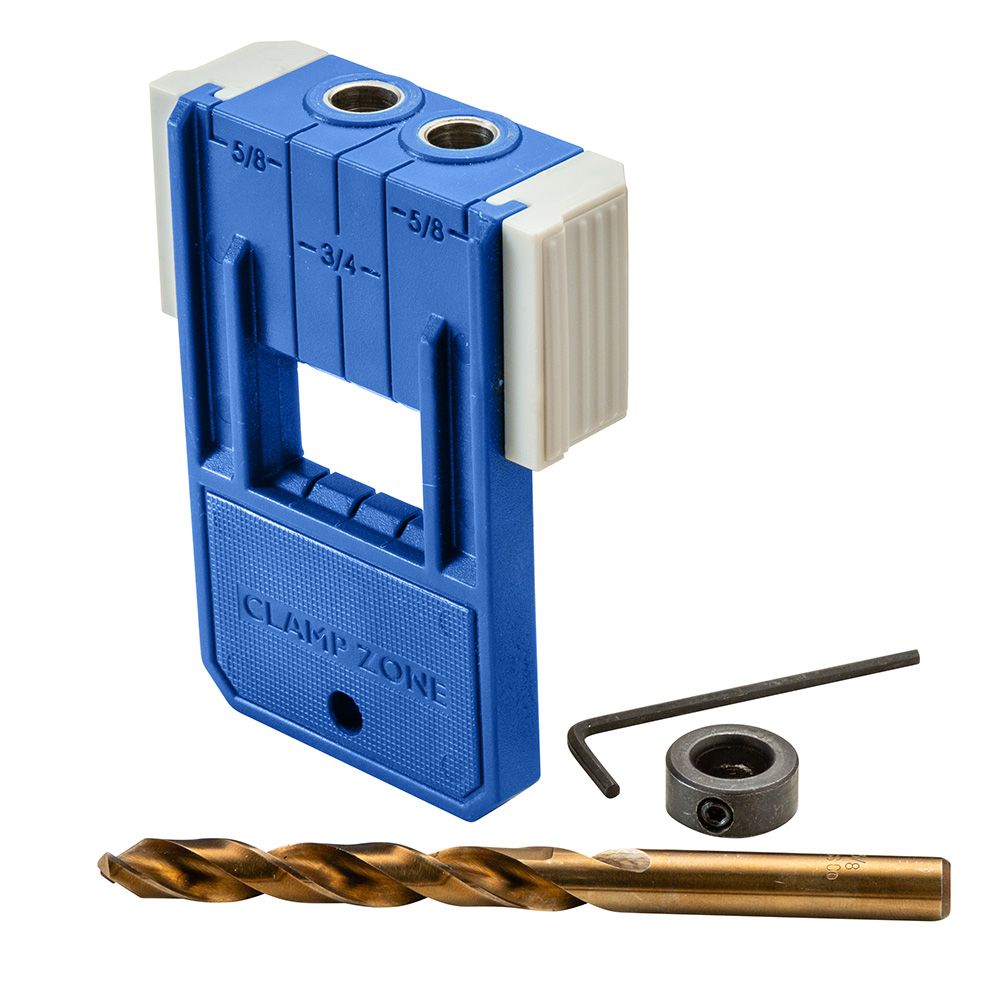

  • Each kit includes a drill bit, stop collar and hex wrench
  • Hang hole for convenient storage
Included

(1) Rockler Doweling Jig (choose from several sizes)
(1) Matching drill bit
(1) Matching stop collar
(1) Hex key

Specifications

1/4'' Doweling Jig:

  • Stock Thickness: Centers dowel holes on 1/2'' thick stock
  • Center-to-Center Hole Dimension: 3/4'' on center
  • Hole Distance From Edge with Stop Engaged: 5/8'' on center
  • Material: Glass-reinforced nylon

3/8'' Doweling Jig:

  • Stock Thickness: Centers dowel holes on 3/4'' thick stock
  • Center-to-Center Dimension: 3/4'' on center
  • Hole Distance From Edge with Stop Engaged: 5/8'' on center
  • Material: Glass-reinforced nylon

1/2'' Doweling Jig:

  • Stock Thickness: Centers dowel holes on 1'' thick stock
  • Center-to-Center Hole Dimension: 1'' on center
  • Hole Distance From Edge with Stop Engaged: 1/2'' on center
  • Material: Glass-reinforced nylon
