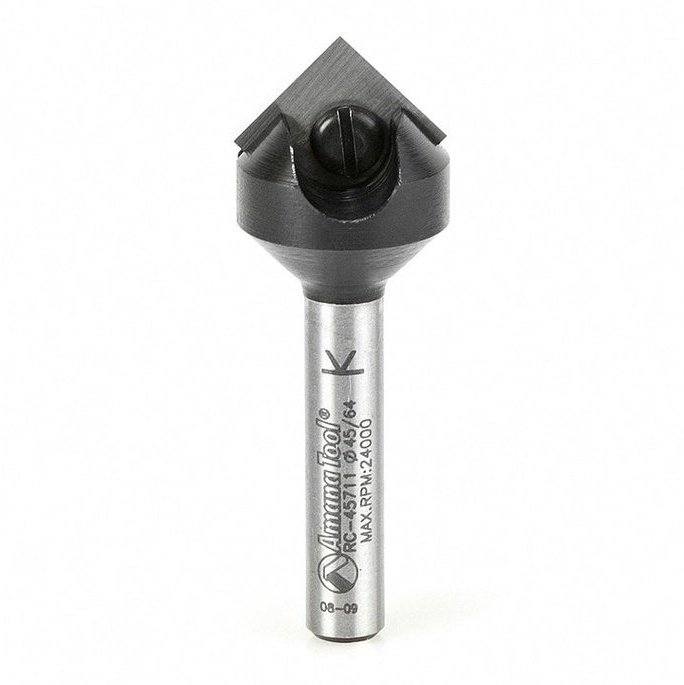

RC 45711 In Tech Insert Carbide V Groove 90 Deg x 11/16 D x 21/64 CH x 1/4 Inch SHK Single Flute Router Bit
These popular insert router bit profiles provide all woodworkers access to the industrial-grade technology, at an affordable price. By replacing worn knives instead of sharpening standard carbide tipped bits, router bit dimensions, cutting quality and accuracy remain constant during the life of the tool.
Each insert knife can be rotated to four new points.
Vectric and Fusion 360 compatible tool files for RC-45711 available for download, click here.
Angle (a°) | 90° |
---|---|
a1° | 45° |
Diameter (D) | 11/16 |
Cutting Height (B) | 21/64 |
Shank (d) | 1/4 |
Overall Length (L) | 1-61/64 |
Type | V-Groove/Signmaking |
Replacement Insert Knives | AMA-12 (12x12x1.5mm) |
Flutes | 1 |
# of Knives | 1 |
Cutting Edges | 4 |
