RC 2248 Insert Carbide Mini Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler & Surface Planer 1 1/2 Dia x 15/32 (12mm) x 1/4 Inch Shank Router Bit
Mini insert carbide spoilboard surfacing & rabbeting router bit great for cutting tight corners and surface planing.
Also suitable for router sled machines,
Make sure that your router sled is fully stable and squared.
Perfect for:
- Resurfacing spoilboards using CNC
- Planing large glued up panels using CNC
- Surfacing and finishing wood using timber slab machines
- Rabbeting or slotting
Designed for planing & rabbeting the following materials:
- MDF
- Fiberboard
- HDF/LDF
- Balsa Core*
- Epoxy (Epoxy Resins)*
- High Density Urethane (HDU Board)*
- Plastic/Acrylic*
- Plywood/Chipboard*
- Hardwood/Softwood*
- Ultra-High-Molecular-Weight Polyethylene (UHMWPE)*

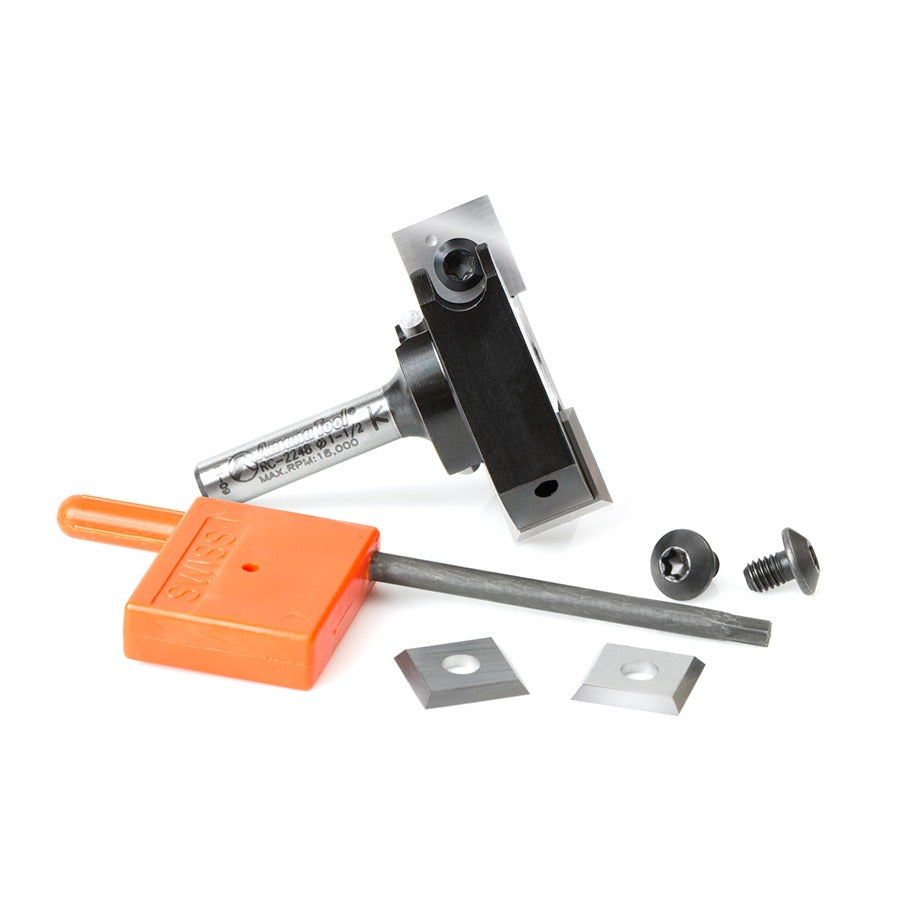

*For optimal results and maximum insert life, replace inserts with optional general purpose knives #AMA-12 (sold separately).
Featuring:
- 4-sided solid carbide insert knives
- Exclusive carbide grade for highest quality of cut
- Maximum cutting efficiency
- Faster material removal process
Â
These industrial router bits feature solid carbide insert knives with four cutting edges that allow users to rotate the knife when one side becomes dull providing the highest-quality finish available on woodworking tools.
Proper torques rating to tighten down screws is 2-3Nm Torques.
Vectric and Fusion 360 compatible tool files for RC-2248 available for download, click here.

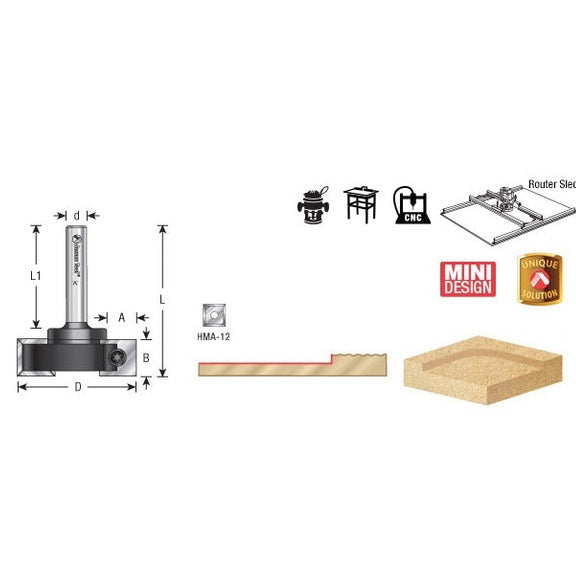

| (D) Diameter | 1-1/2 |
|---|---|
| (B) Cutting Height | 12mm (15/32) |
| (d) Shank | 1/4 |
| Overall Length (L) | 1-11/16 |
| L1 | 1-1/16 |
| Max RPM | 24,000 |
| Replacement Knives | HMA-12 (2) |
| (A) Cut Depth | 1/4 |
