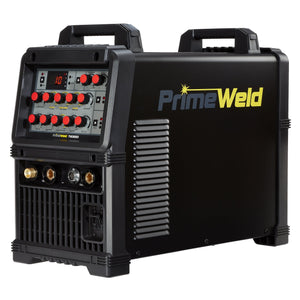

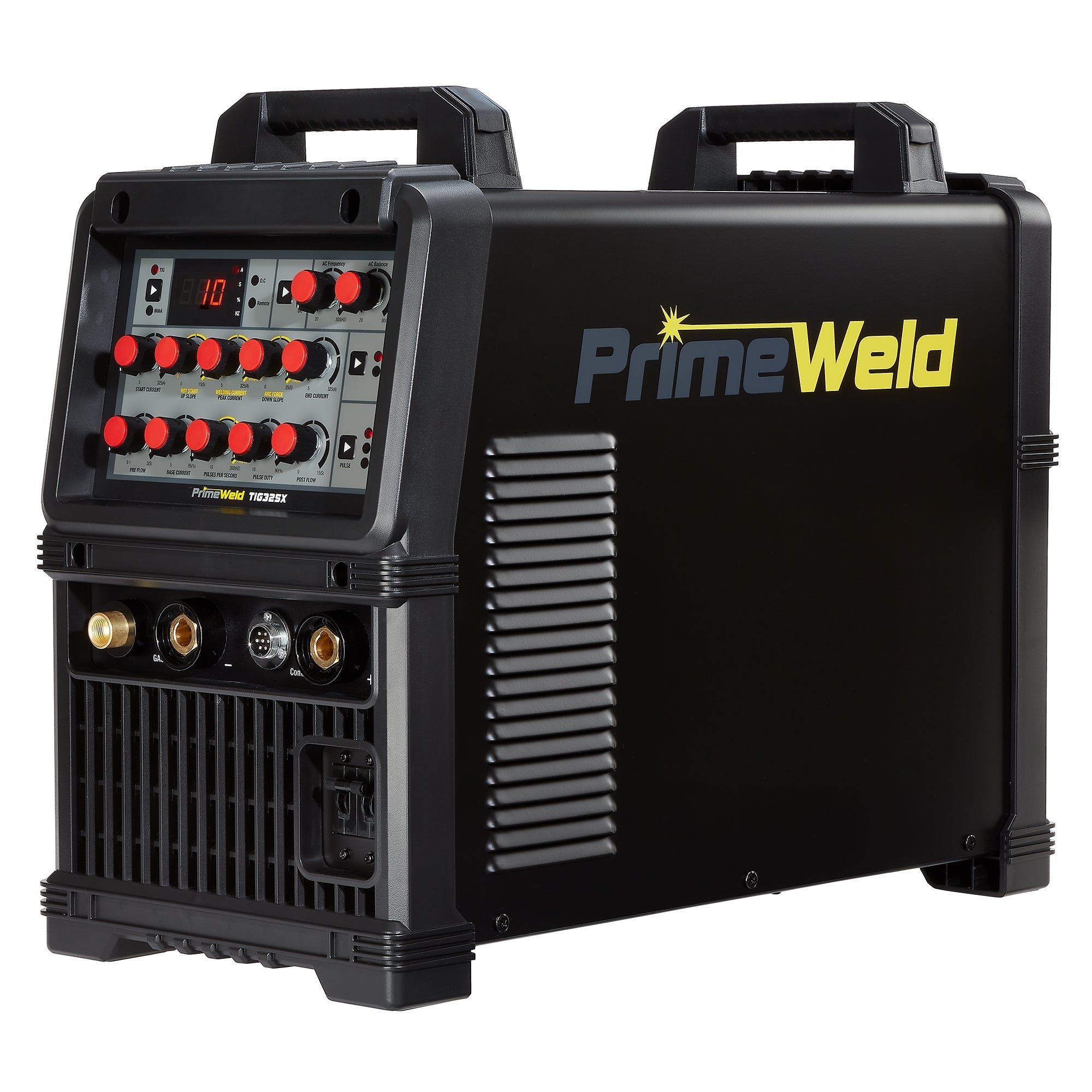

PrimeWeld TIG325X AC/DC TIG Welder With Foot Pedal
PrimeWeld TIG325X AC/DC TIG Welder With Foot Pedal
PrimeWeld TIG325X AC/DC TIG Welder With Foot Pedal
PrimeWeld TIG325X AC/DC TIG Welder With Foot Pedal
PrimeWeld TIG325X AC/DC TIG Welder With Foot Pedal
PrimeWeld TIG325X AC/DC TIG Welder With Foot Pedal
PrimeWeld TIG325X AC/DC TIG Welder With Foot Pedal
PrimeWeld TIG325X AC/DC TIG Welder With Foot Pedal
PrimeWeld TIG325X AC/DC TIG Welder With Foot Pedal
PrimeWeld TIG325X AC/DC TIG Welder With Foot Pedal
PrimeWeld TIG325X AC/DC TIG Welder With Foot Pedal
PrimeWeld TIG325X AC/DC TIG Welder With Foot Pedal
  • SKU: PW-TIG325X-NT

PrimeWeld TIG325X AC/DC TIG Welder With Foot Pedal

$1,983.95



**NOTE**  This product cannot be shipped to a PO Box Address (We can ship to any UPS Store drop off point. Must be UPS Store )  **

The Primeweld 325X combines power and functionality so you can handle any project. Suitable for 120v or 240v input, this machine has a maximum output of 325A. Run tough beads with the stick function or use the torch to lay down beautiful TIG welds.


Create Flawless Welds On Steel or Aluminum

With the TIG325X, you can take on projects using almost any metal. The AC balance feature allows you to break through the oxidation layer of non-ferrous metals like aluminum and magnesium. With a DC setup, you can weld on carbon steel, stainless, and even cast iron.


Perfect for Light Fabrication or Industrial Welding

With a maximum stick welding output of 250A, the TIG325X can weld steel as thick as 1/2”. With the flip of a switch, you can go from running beads on structural steel to stacking dimes with the torch. Run a TIG root pass and burn rods for fill passes with just one machine.


All-In-One Control System for TIG Welding

With the TIG 325X, you can dial in your weld settings with a full assortment of adjustment options. This machine features individual knobs for:

  • Welding current
  • Power Switch on front
  • On demand Fan
  • 6010 Capable
  • All parameters from Knobs will show on lcd Readout
  • AC start Amps 10
  • Upgrade Ground Clamp
  • Pre-flow
  • Start current
  • Upslope
  • Base current
  • Pulses per second
  • Pulse duty
  • Downslope
  • End current
  • Post-flow
  • AC frequency
  • AC balance

The variety of setting adjustments gives you total control over your welding experience. Quickly adjust any setting with one easy motion to get your arc just right.


Water Cooler Compatible

Just because your welds run hot doesn’t mean your machine has to. The TIG 325X can power a water cooler to keep it from overheating. With a water cooler connected right to your welder, you can knock out jobs faster without having to stop and let your torch cool down.


Backed by the Legendary Primeweld 3-Year Warranty

When you become a Primeweld customer, you gain access to our legendary support team. Our support team is ready to advise you on your next project and answer questions about your machine.

Primeweld is committed to helping every customer get the most out of their welding equipment. Up to three years after your purchase, we will replace any defective gear at no cost to you.

TIG FUNCTIONALITY FEATURES

  • Pre Flow
  • Start Current
  • Up Slope
  • Base Current
  • Welding Current
  • Pulse Frequency
  • Pulse Duty
  • Down Slope
  • End Current
  • Post Flow
  • AC Balance Control
  • AC Frequency
  • Variable Pulse Parameters
  • High Frequency (HF) Start
  • Remote Current Control

THE TIG325X IS IDEAL FOR

  • Cast iron, stainless, and mild steels
  • Aluminum and stainless steel fabrication
  • Light industrial use
  • Repair and maintenance

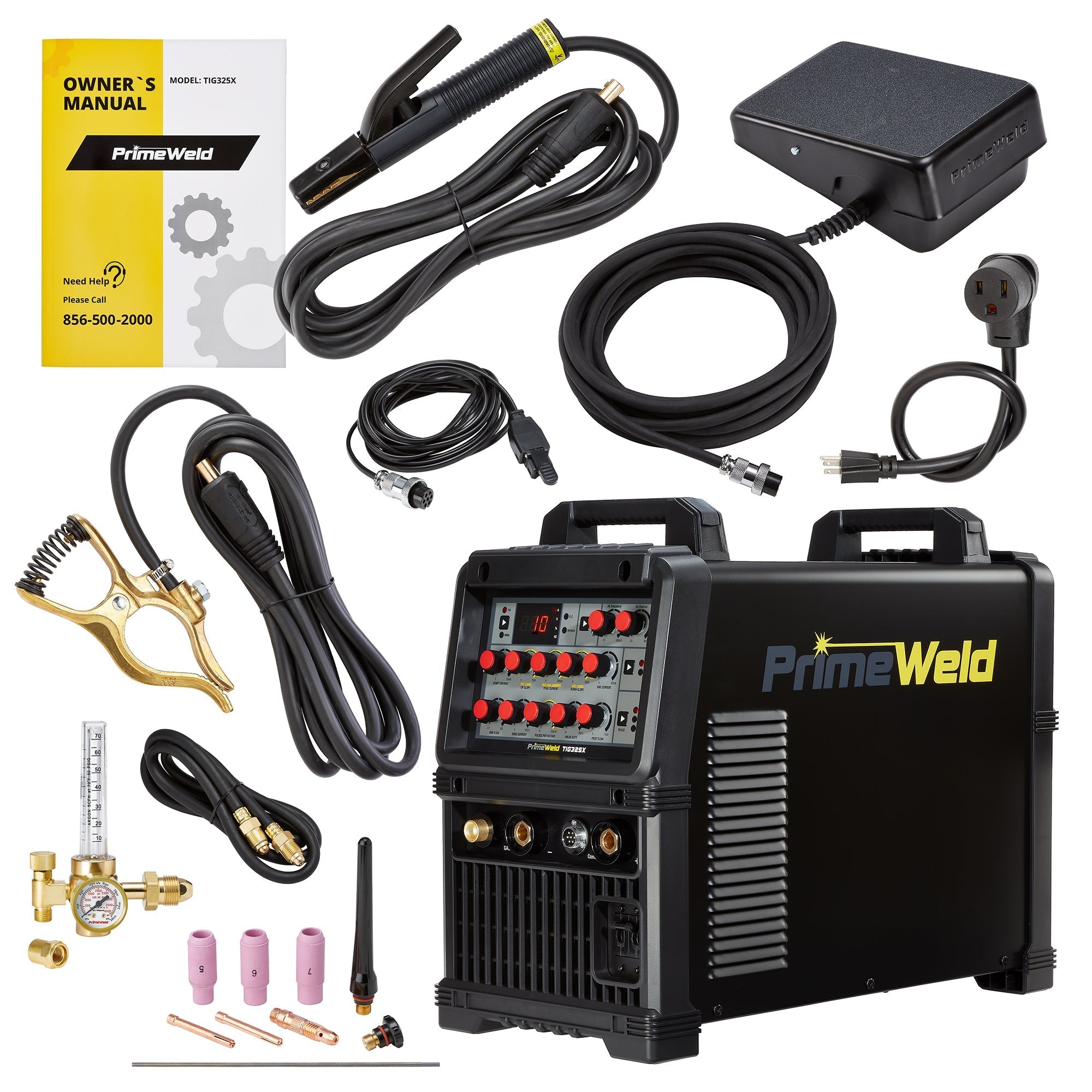

What's Included

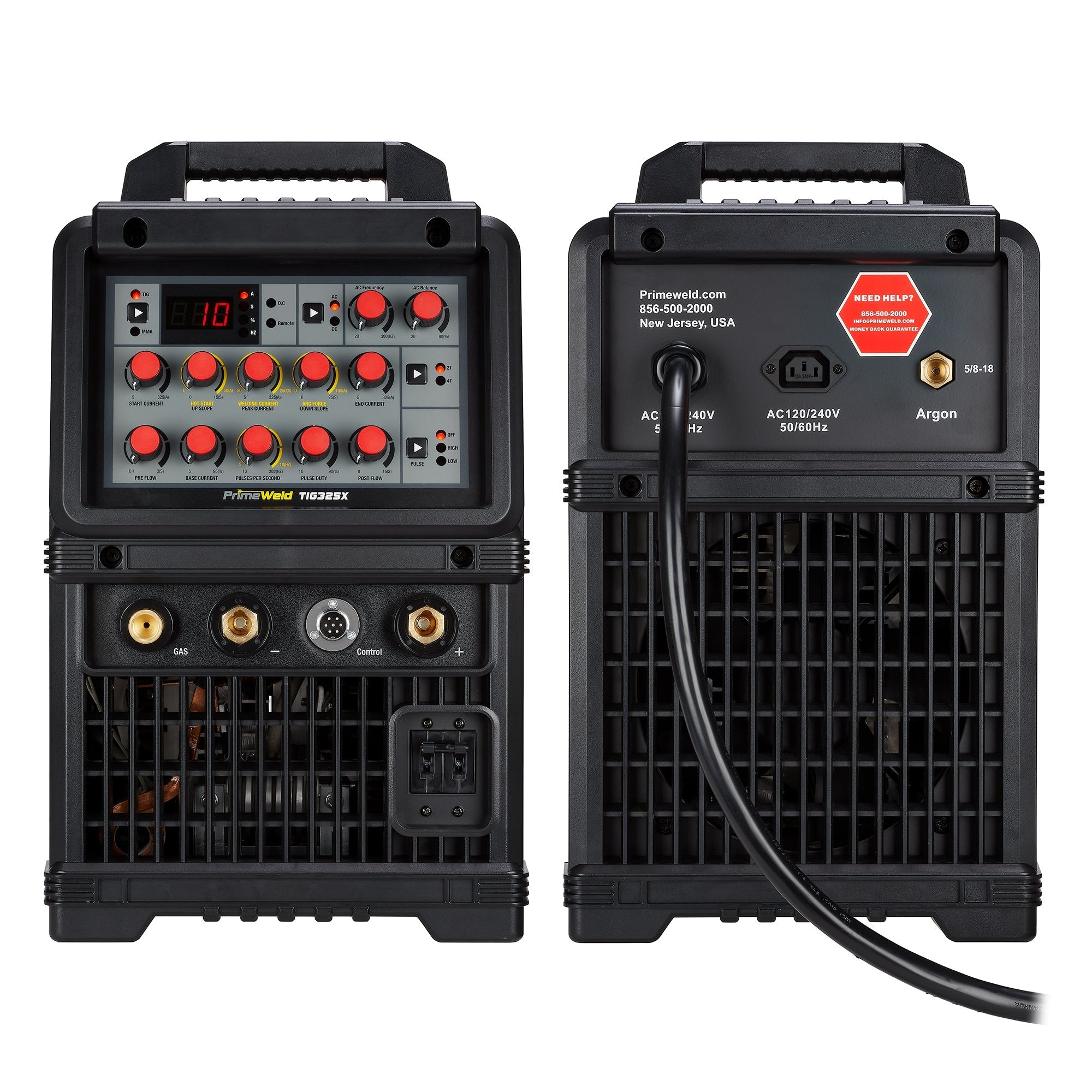

  • TIG325X Welding Machine
  • CK Worldwide 17 Series Superflex TIG Torch with Flex Head and CK Superflex Hose
  • CK Dinse Connector

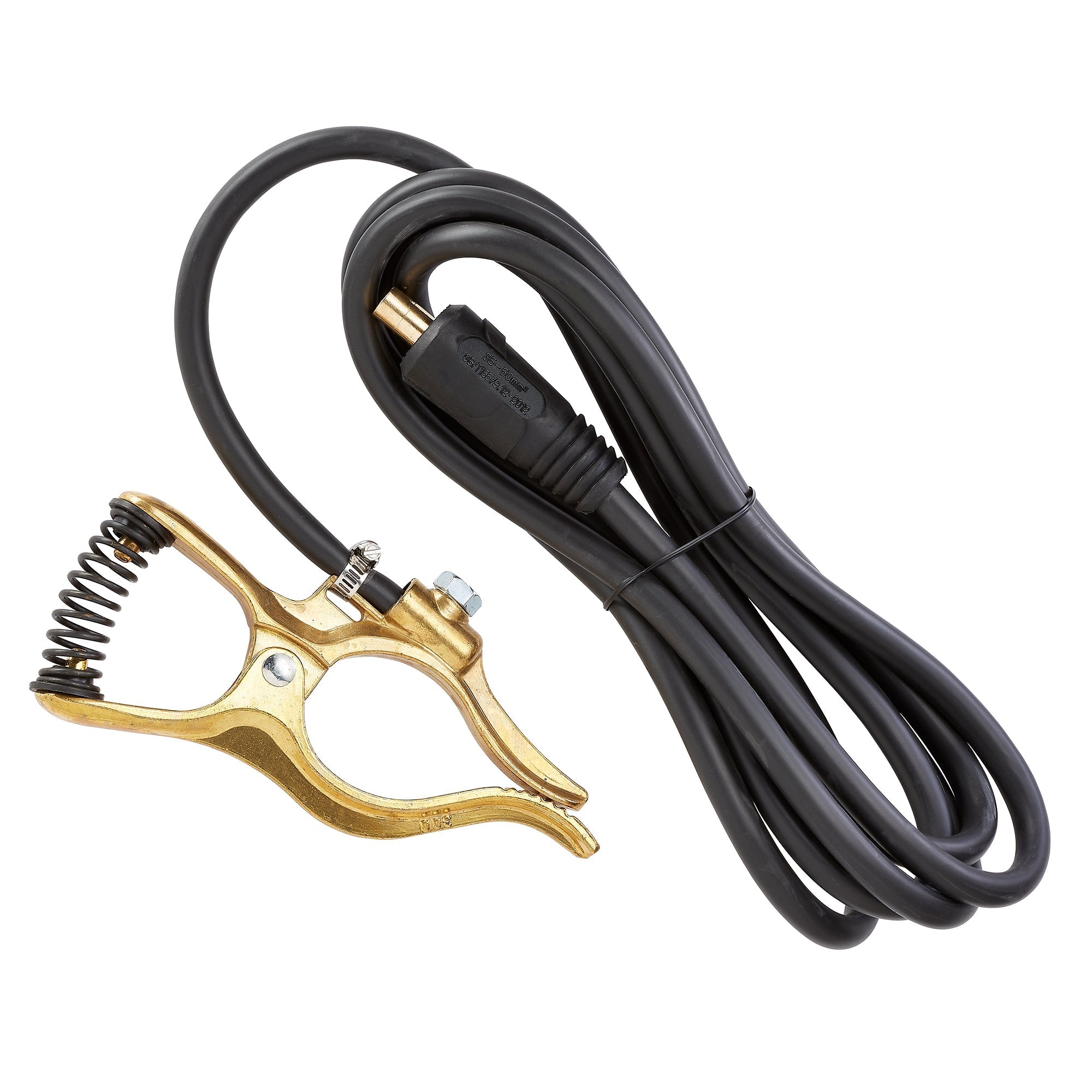

  • Ground Clamp with 12 ft Cable

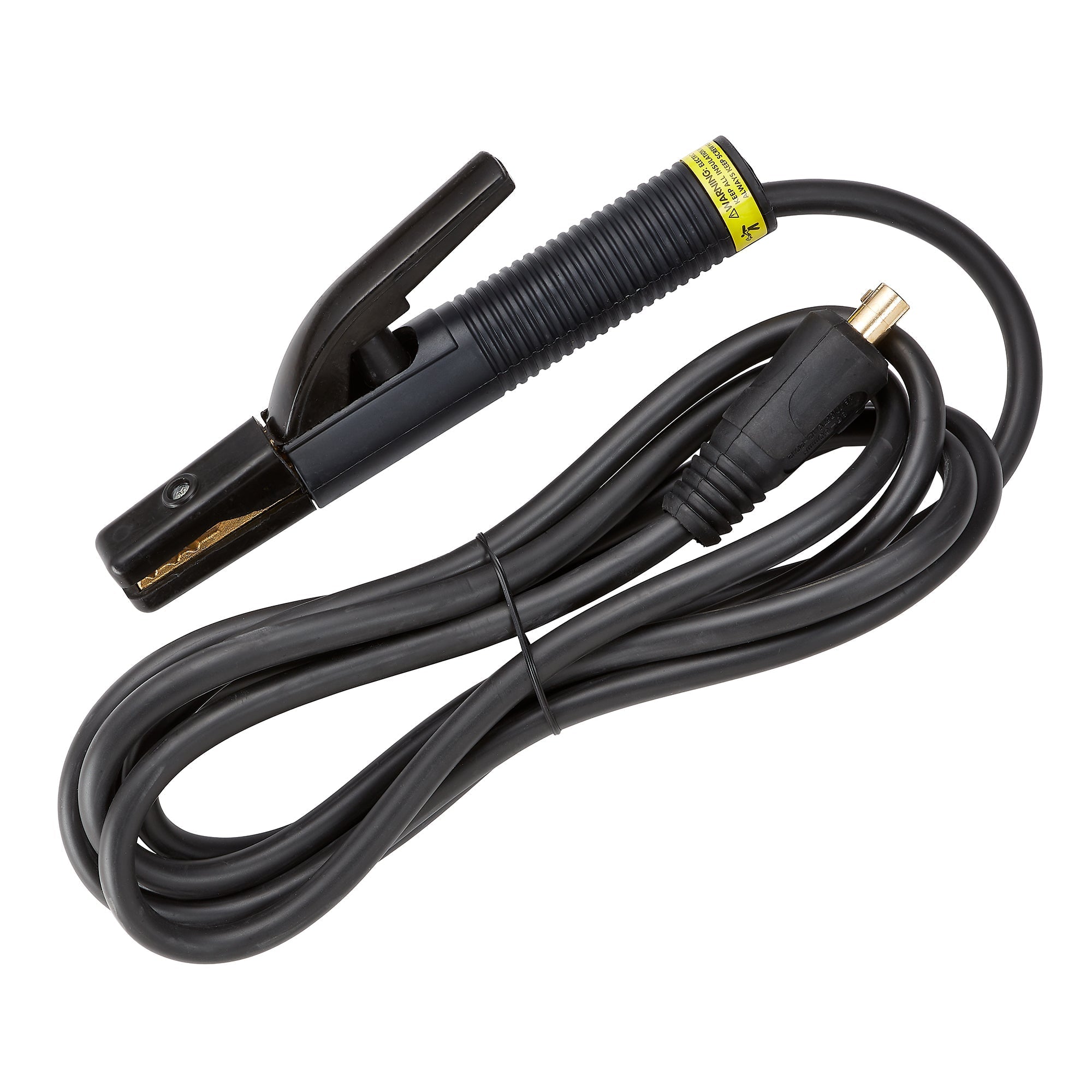

  • Electrode Holder with 12 ft Cable

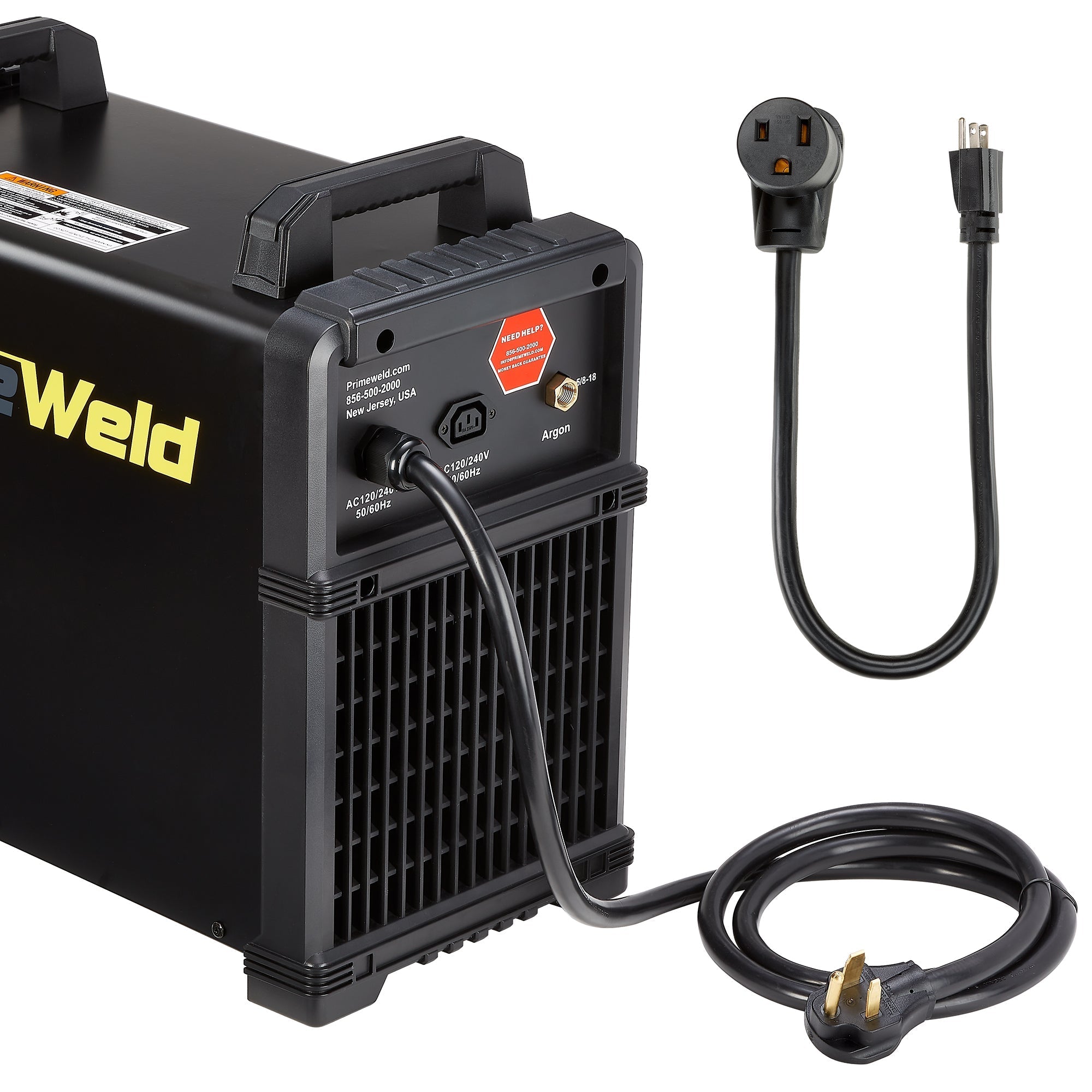

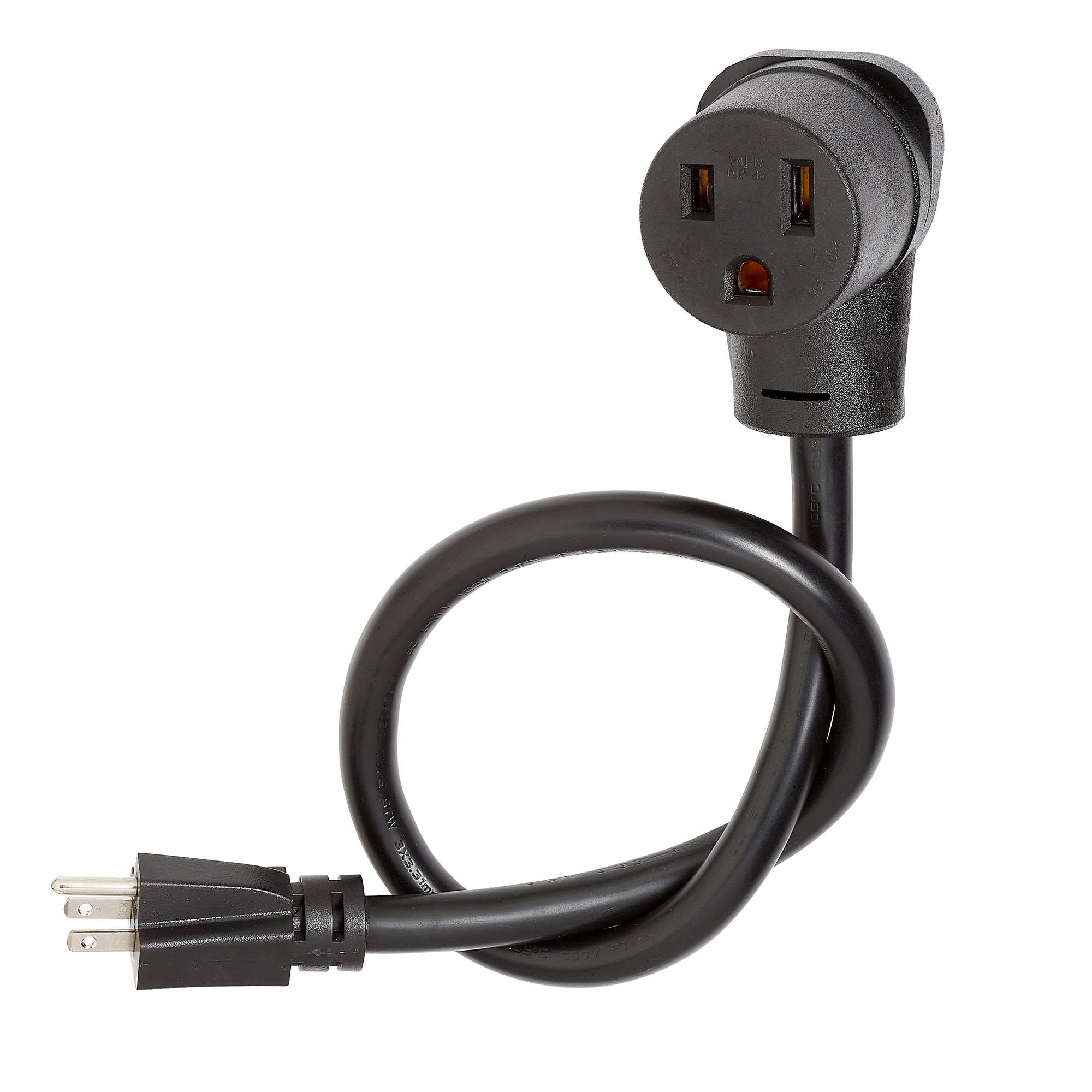

  • 240V to 120V Power Adapter

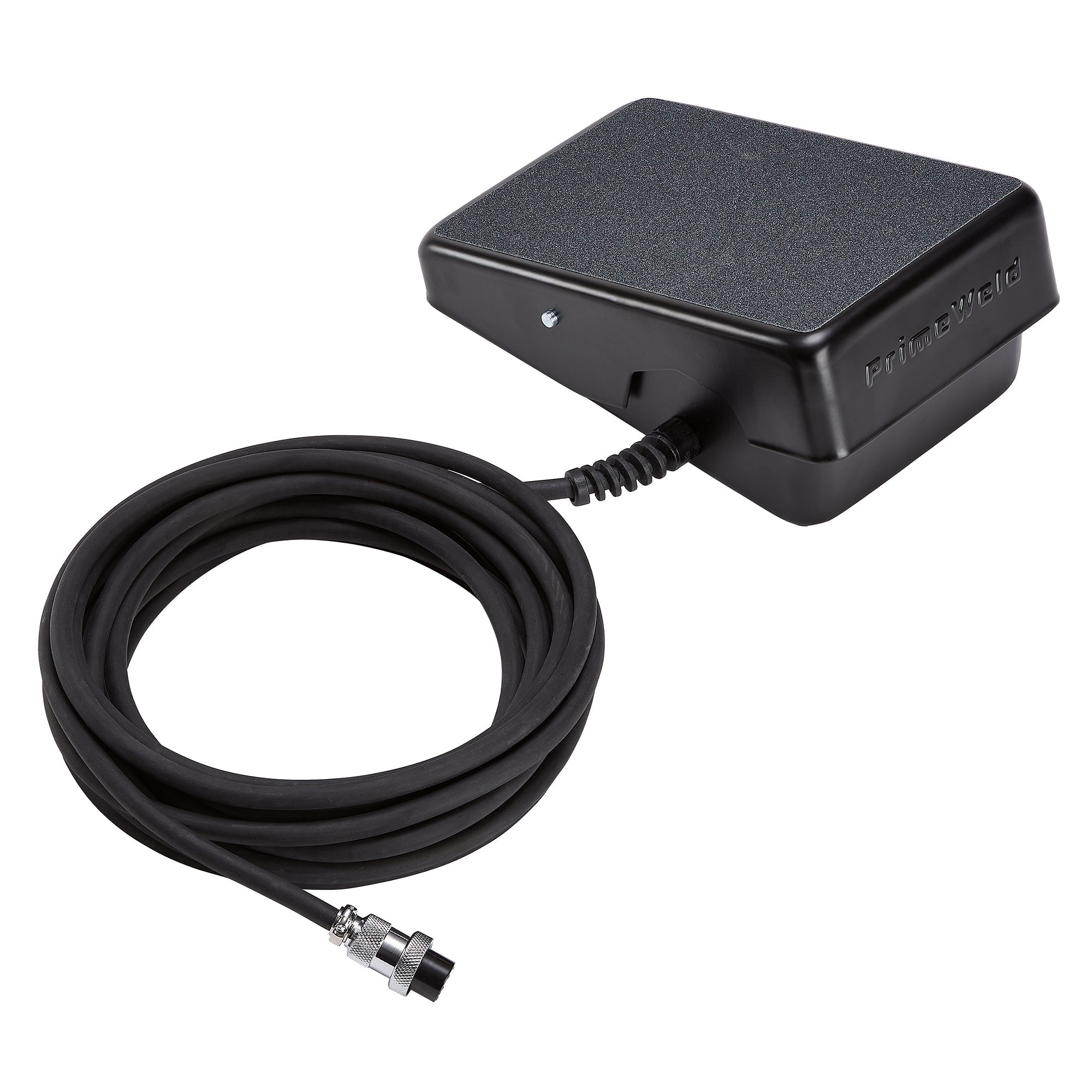

  • Foot Pedal Amperage Control

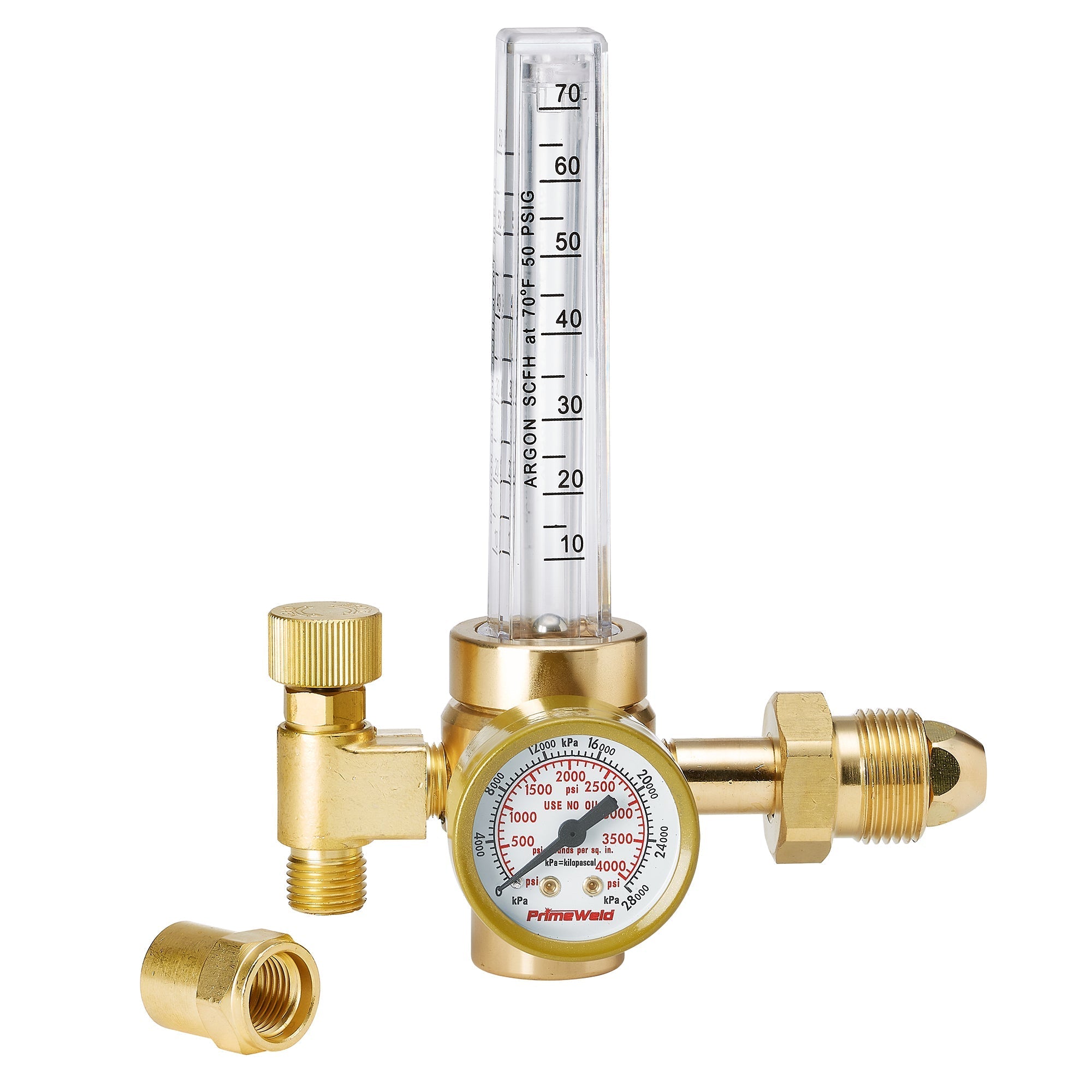

  • Gas Regulator
  • TIG Torch Consumables Kit*

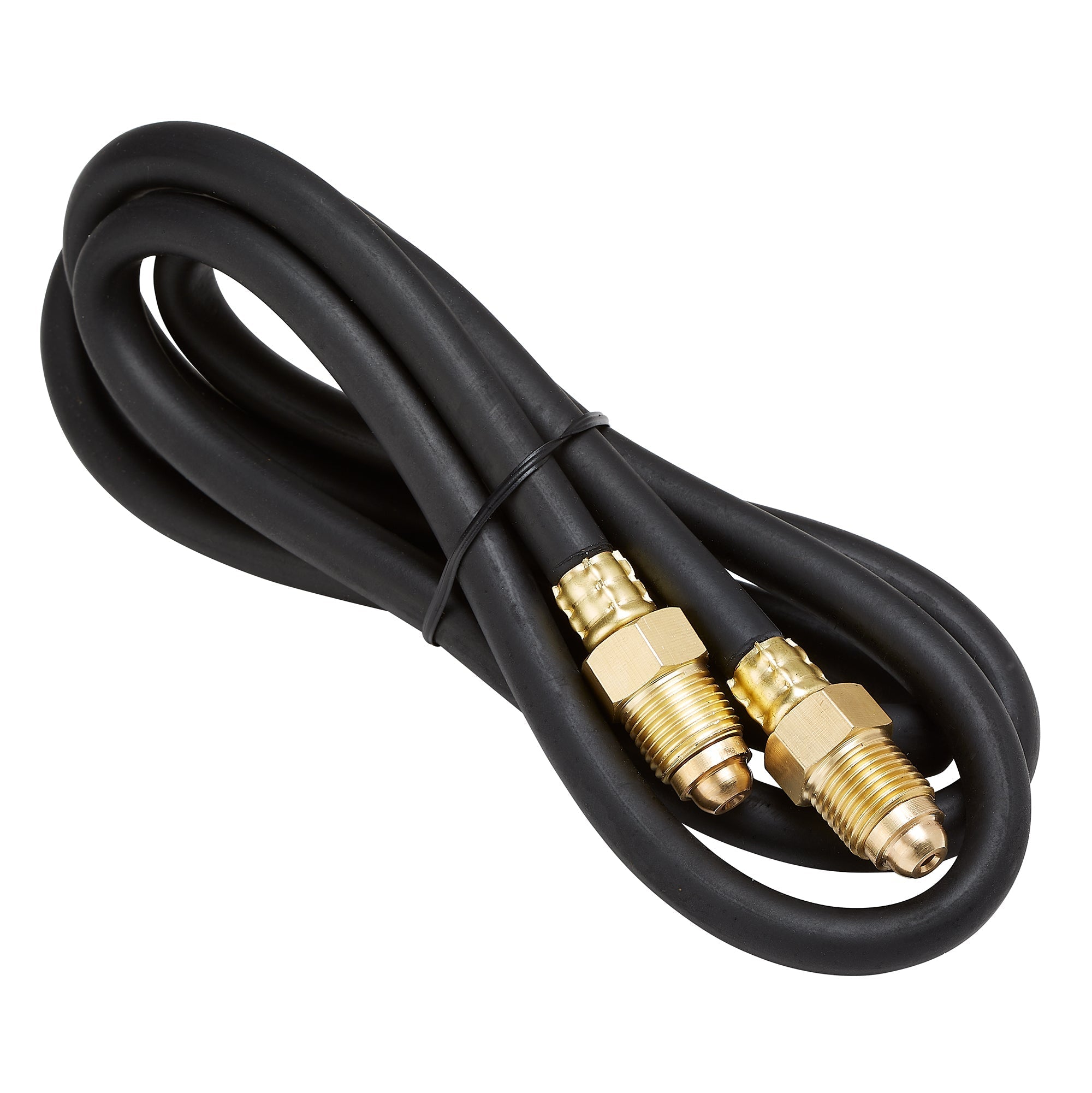

  • Argon Hose
  • Hand-Hold Mask and Hammer Brush

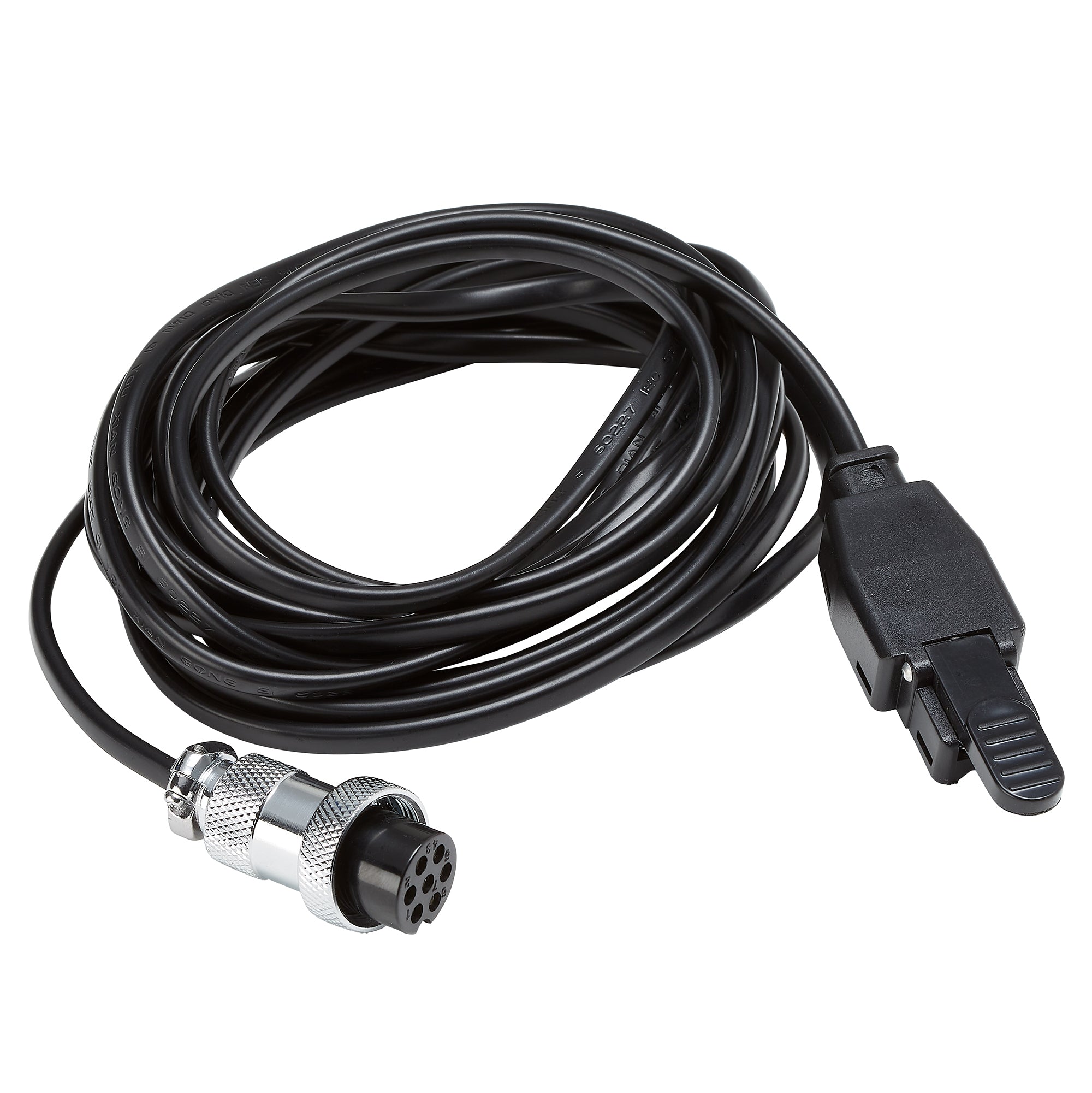

  • Torch Switch

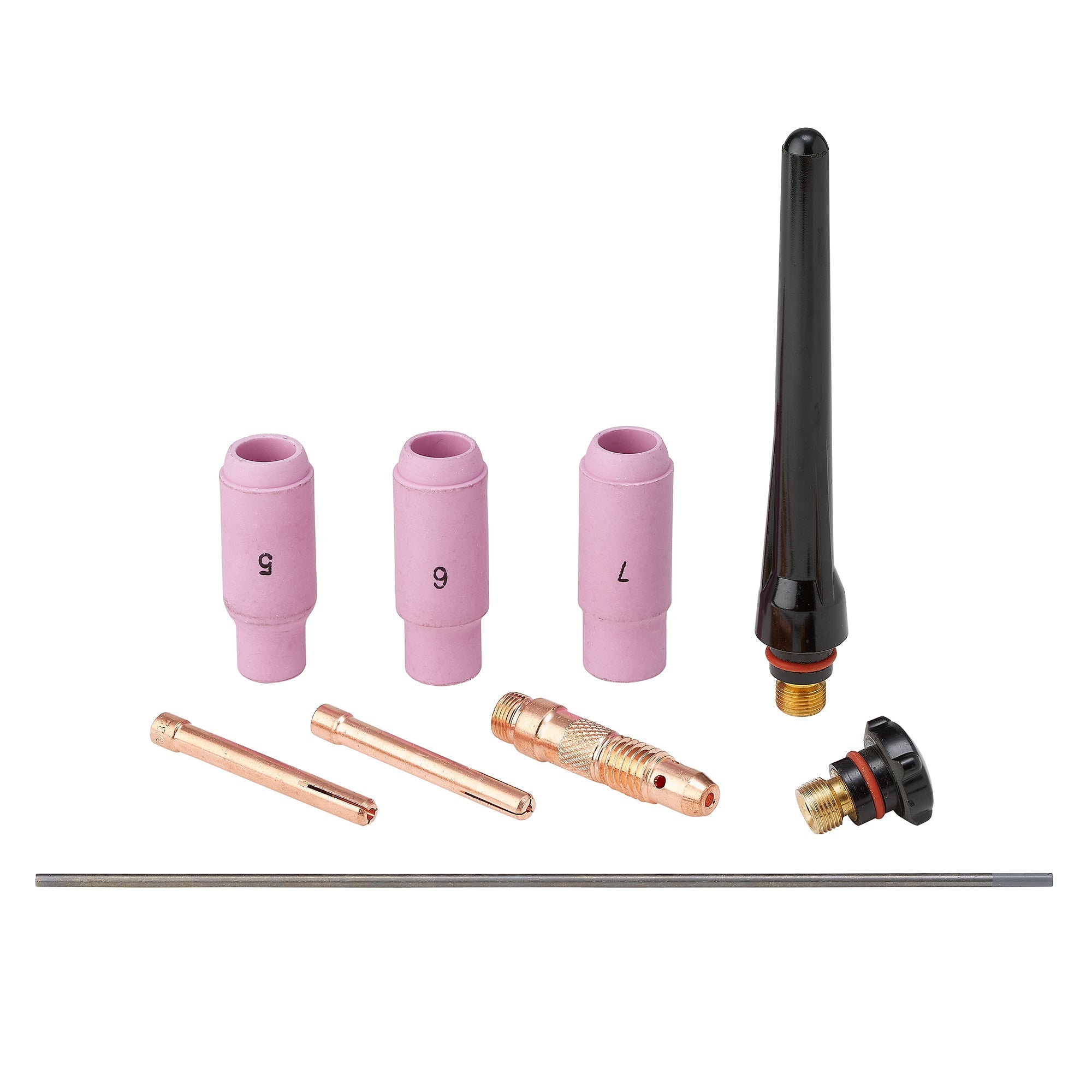

*TIG Torch Consumables Kit Includes:

  • #5, #6, and #7 Cups
  • 1/16" 3/32" Collets
  • 3/32"*175mm
  • Short Back Cap
  • Long Back Cap

IGBT TYPE

  • IGBT Module

INVERTER TYPE

  • Digital/Micro-Controlled
  • Full-Bridge

OUTPUT TYPE

  • AC/DC TIG
  • AC/DC Stick

VOLTAGE/PHASE

  • 1phase- 120V/240V

MAX RATED TIG AMPS

  • 325A

MAX RATED STICK AMPS

  • 250A



AMPERAGE & DUTY CYCLES



Welding Type

Amps@Rated Duty Cycle

TIG

280A @ 60%
250A @ 100%
325A @ 40%

Stick

220A 60%
250A 40%
180A 100%



SPECIFICATIONS TABLE



Parameter

TIG325X

Max Inrush (I1MAX) Amps

120v 25.3A(TIG) 42.5A (STICK)

240v 53.3A (TIG) 53.5(STICK)

Max Rated (I1eff) Amps

120v 15.1A(TIG) 26.5A(STICK)

240v 35.7A(TIG) 34.9(STICK)

OCV

TIG 75V

STICK 75V

TIG Output range DC

5-325A/ 10.2v-23v

TIG Output range AC

10-325A/ 10.4v-23v

Stick Output rang DC

20-250A/ 20.8-30v

Stick Hot Start Amps

0-50A

Stick Arc Force Amps

0-100A

Stick Hot Start

Adjustable

Stick E6010/ Cellulose setting or capablity

YES

Minimum TIG Amps DC

5A

Minimum TIG Amps AC

10A

TIG Start Type

HF

Memory

NO

TIG Start Amps Range

5-325A

End Amps Range

5-325A

TIG Upslope Time

0-15s

Downslope Time

0-25s

Pre flow time

0.1-3s

Post flow time

0-15s

TIG Pulse

yes

TIG Pulse Frequency ( Pulses per second) DC

0.5-200HZ

TIG Pulse Frequency ( Pulses per second) AC

0.5-200HZ

TIG Pulse Time On

10-90%

TIG Pulse Amp Range ( Base Amps %)

5-95%

TIG AC Frequency

20-300HZ

TIG AC Balance

20-80%

TIG AC Wave Form

Adv. Square

Remote Control

2T/4T

Foot pedal

Standard

Machine alone size

23.27*11.34*19.13inches

Machine Weight

73.24lb

Power cable length

86.61inches



Customer Reviews

Based on 9 reviews Write a review


2% THORIATED (RED) EWTh-2/WT20
Principal Oxide: 1.7–2.2% Thorium Oxide

Radioactive. Best for use in Direct Current (D/C) applications using transformer based constant current power sources. Best for use on non corroding steels, titanium alloys, nickel alloys, copper alloys. Good D/C arc starts and stability, medium erosion rate, medium amperage range, medium tendency to spit.

0.8% ZIRCONIATED  (WHITE)  EWZr-8/WZ8
Principal Oxide: 0.7–0.9% Zirconium Oxide

Non-Radioactive. Best for use in Alternating Current (A/C) for aluminum alloys and magnesium alloys using inverter or transformer based constant current power sources. Balls well, handles higher amperage than pure tungsten with lesspitting, better arc starts and arc stability than pure tungsten.

1.5% LANTHANATED (GOLD) EWLa-1.5/WL15
Principal Oxide: 1.3–1.7% Lanthanum Oxide

Non-Radioactive. Best for use in Direct Current (D/C) as an alternative to 2% Thoriated using inverter or transformer based constant current power sources. Best for non corroding steels, titanium alloys, nickel alloys, copper alloys. Best D/C arc starts and stability, low erosion rate, wide amperage range, no spitting.

2% CERIATED (GRAY) FORMERLY ORANGE EWCe-2/WC20
Principal Oxide: 1.8–2.2% Cerium Oxide

Non-Radioactive. Best for use in Alternating Current (A/C) or Direct Current (D/C) applications using inverter or transformer based constant current power sources. Good for low-alloyed steels, non corroding steels, aluminum alloys, magnesium alloys, titanium alloys, nickel alloys, copper alloys. Good ignition and re-ignition properties, long service life, excellent arc stability. Low erosion rate, best at low amperage range, no spitting, good D/C arc starts and stability.

PURE (GREEN) EWP/WP
Principal Oxide: None

NON-RADIOACTIVE. Good for use in Alternating Current (A/C) for aluminum alloys and magnesium alloys in low to medium amperage applications using transformer based constant current power sources only. Balls easy, tends to spit at higher amperages. Used for non-critical welds only.

2% LANTHANATED (BLUE) EWLa-2/WL20
Principal Oxide: 1.8–2.2% Lanthanum Oxide

Non-Radioactive. Best general purpose electrode for both Alternating Current (A/C) or Direct Current (D/C) using inverter or transformer based constant current power sources. Good for low-alloyed steels, non corroding steels, aluminum alloys, magnesium alloys, titanium alloys, nickel alloys, copper alloys. Good arc starts and stability, medium to high amperage range, low erosion rate.

LaYZr™ (CHARTREUSE) EWG
Principal Oxides: 1.5% Lanthanum, 0.8% Yttrium Oxides, 0.8% Zirconium

Non-Radioactive. Best for automated or robotic applications in Alternating Current (A/C) or Direct Current (D/C) due to low voltage tolerance (changes in tip to work piece distance) using inverter or transformer based constant current power sources. Good for low-alloyed steels, non corroding steels, aluminum alloys, magnesium alloys, titanium alloys, nickel alloys, copper alloys. Very stable tip geometry, runs cooler than 2% Thoriated with longer life, low to medium amperage range. Very best low amperage starts
