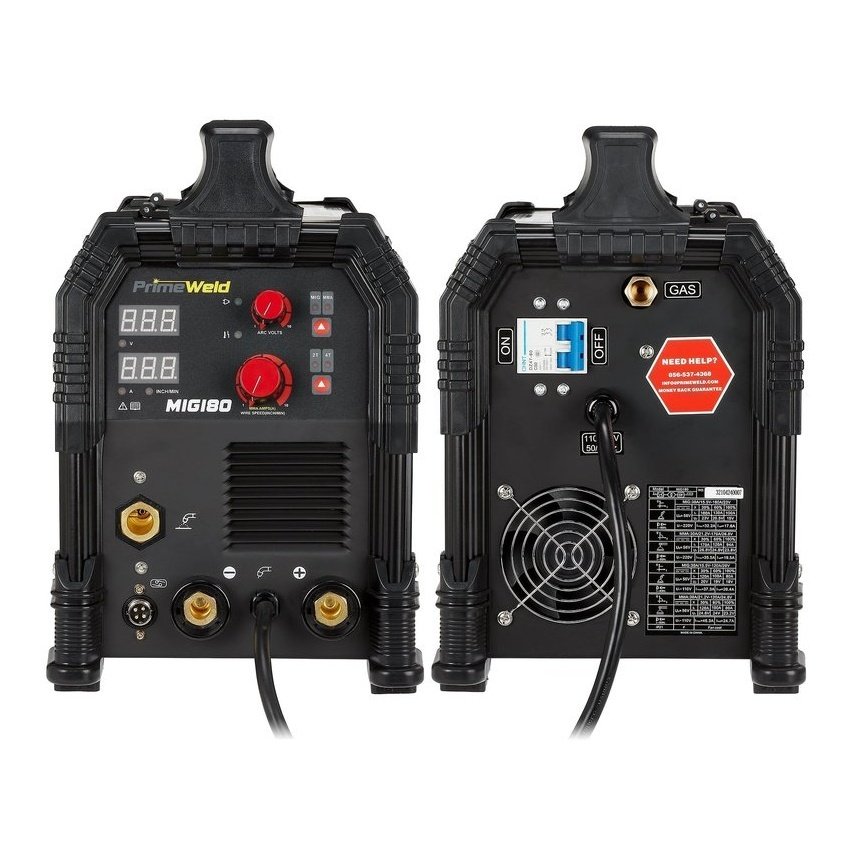

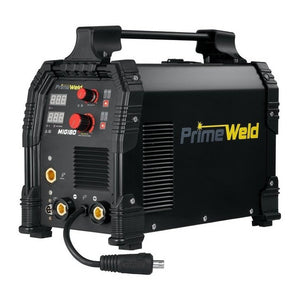

The MIG180 180-Amp MIG Welder With Spool Gun gives you three different welding processes. Like most MIG welders, you can run flux-core wire without shielding gas using the same equipment as you do for MIG. This machine also adds aluminum welding to your shop's arsenal at the best price/performance ratio on the market.

Included Spool Gun for Aluminum Welding

The dual-voltage 120/240 volt-powered PrimeWeld MIG180 ships with its own spool gun for aluminum MIG wire. Aluminum welding wire tends to be quite soft compared to steel wire. Feeding aluminum wire the entire distance from the spool to the torch can cause kinks and jams.

This PrimeWeld 180 amp MIG welder solves the problem with a special gun that replaces the standard MIG torch. The spool gun holds a spool of wire close to the torch end, so it only feeds for a few inches instead of 12 feet or more. The result is a smooth, reliable aluminum wire feed that makes your job easier, which will likely increase the quality of your work.

2T/4T Trigger-Lock Means Less Fatigue on Long Welds

For long runs like welding quarter panels or floors into auto bodies, the PrimeWeld MIG180 features a 2T/4T trigger lock. The 2T/4T feature saves hand fatigue for those long welds. In "2 Touch" or 2T mode, the arc strikes when you pull the trigger and stops when you let up.

4T mode strikes the arc when you touch the trigger, stays on when you let up, goes off when you touch again, and stays off when you let up. The effect "locks" the trigger, so you don't have to keep pressing to continue welding. It's perfect for those long welding runs such as floor pans, body panels, and heating ducts—no more hand cramps from holding the trigger in for several minutes at a time.

PrimeWeld Machines are backed by LEGENDARY SUPPORT

NO-HASSLE 3-YEAR WARRANTY

Our Customer Service gives you GENUINE PEOPLE that are easy to contact, provide great advice, and know-how to troubleshoot every PrimeWeld model for optimum performance.

Features

Features:

Dual 120/240-volts input
IGBT Inverter powered
DC Stick Welder (MMA)
Flux Core Welder (FCAW)
MIG Welder (GMAW)
Weld after unpacking the box

PROTECTION FEATURES:

Cold Electrode
Overcurrent protection
Overheating protection
Power spike protection

MIG (GMAW) FEATURES:

High-Frequency arc
Shielding Gas Pre-Flow and Post-Flow
2T/4T Torch Trigger Lock
Welds aluminum
Change Processes with the touch of a button

STICK ARC (MMA) FEATURES:

Electrode Anti-Sticking feature
Quality 10-foot stinger clamp
Easily change processes

USABILITY FEATURES:

Euro-style central connector

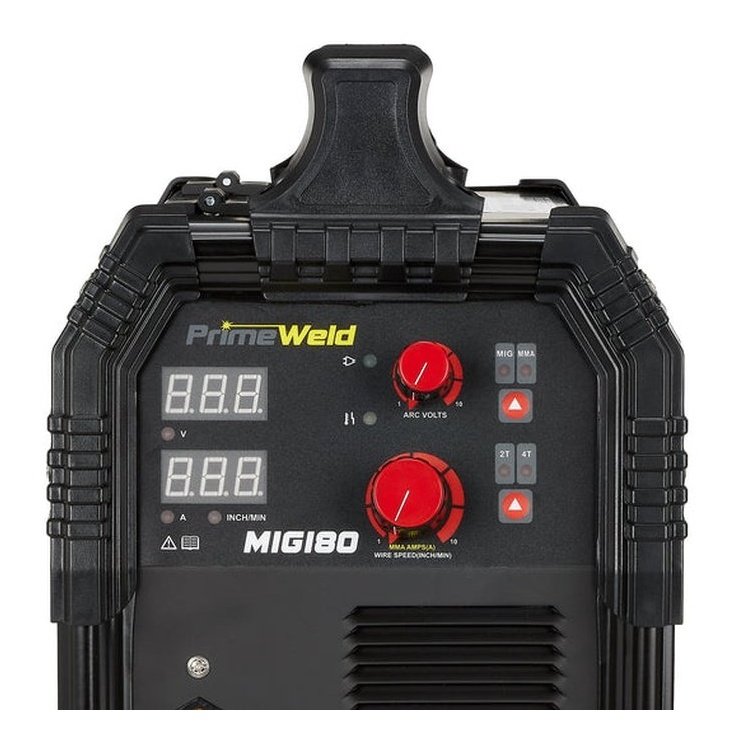

Digital Power Display
Loads 2-pound and 10-pound wire spools
Built-in Shielding Gas solenoid

SPECIFICATIONS:

Breaker size:

30 amps

Duty Cycle MIG/Flux:

30 percent @ 180 amps
60 percent @160
100 percent @ 100 amps

Duty Cycle Stick arc:

30 percent @ 180 amps
60 percent @ 120
100 percent @ 99 amps

Gas Postflow:

1 second

Weight:

30 pounds

Specifications

Parameter	MIG180 MIG Welder
Supply voltage (V)	1 phase 110V +/- 15%	1 phase 220V +/- 15%
Frequency (Hz)	60 Hz
No-load voltage (V)	56 V
Output current (A)	MIG: 30-120 MMA: 30-120	MIG: 30-180 MMA: 30-170
Output voltage (V)	MIG: 15.50-20 MMA: 21.2-24.8	MIG: 15.5-23 MMA: 21.2-26.8
Duty cycle (%)	30%
Power factor	>=0.73
Efficiency (%)	>=80
Wire speed (in/min)	79-551
Post flow (s)	1 +/- 0.5
Wire diameter (in)	MIG: 0.023-0.040 Flux-cored: 0.030-0.040
Appropriate thickness	>= 22 ga.
Housing protection class	lp21
Insulation class	F
Cooling method	Fan-cooled
Machine Weight (lb)	29.8
Dimensions (in)	18.4 * 9.7 * 14.2

What's Included

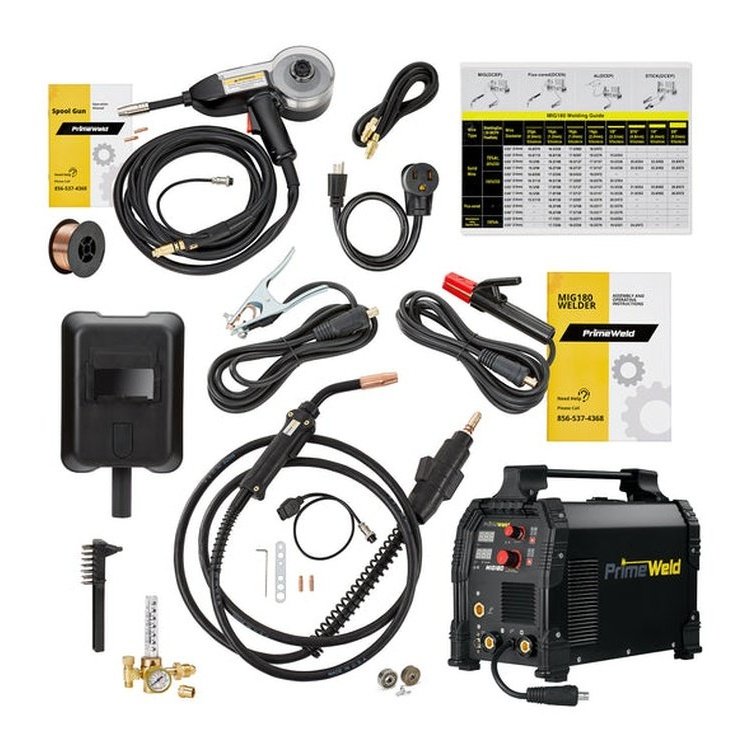

MIG180 180-Amp MIG Welder Comes With:

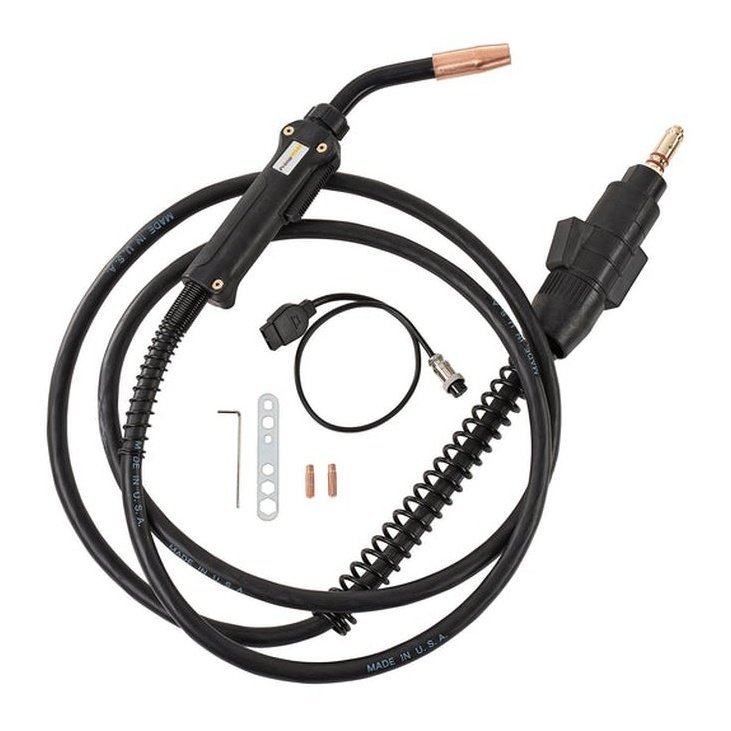

MIG torch with 10 feet cable

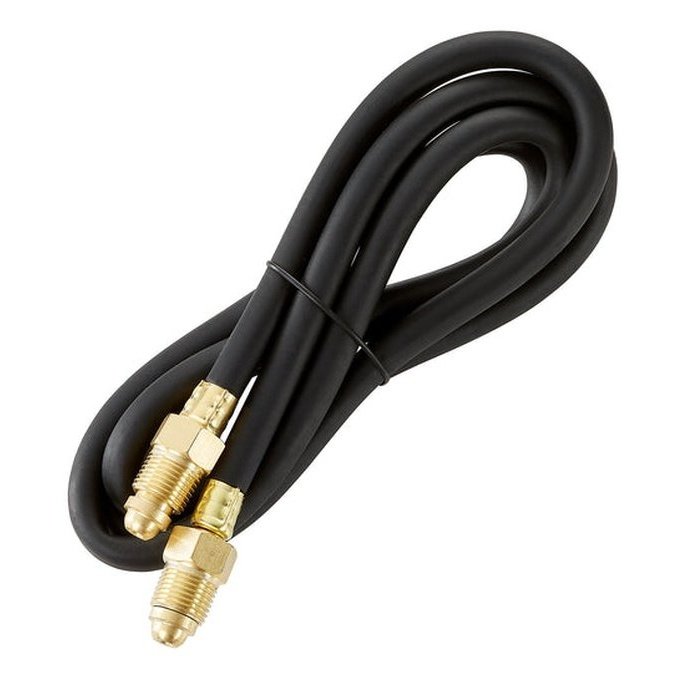

Gas hose

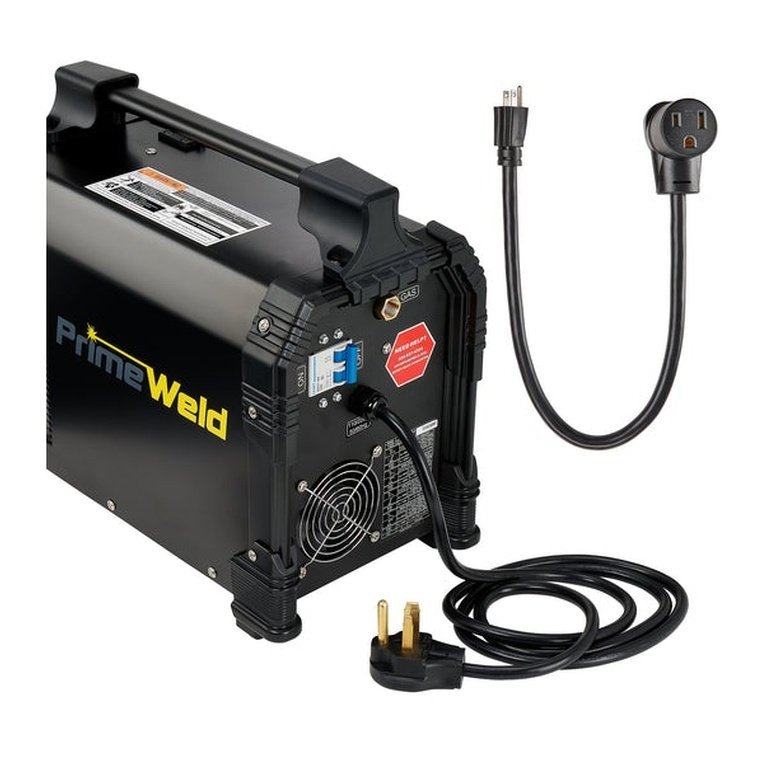

220v to 110v power adapter

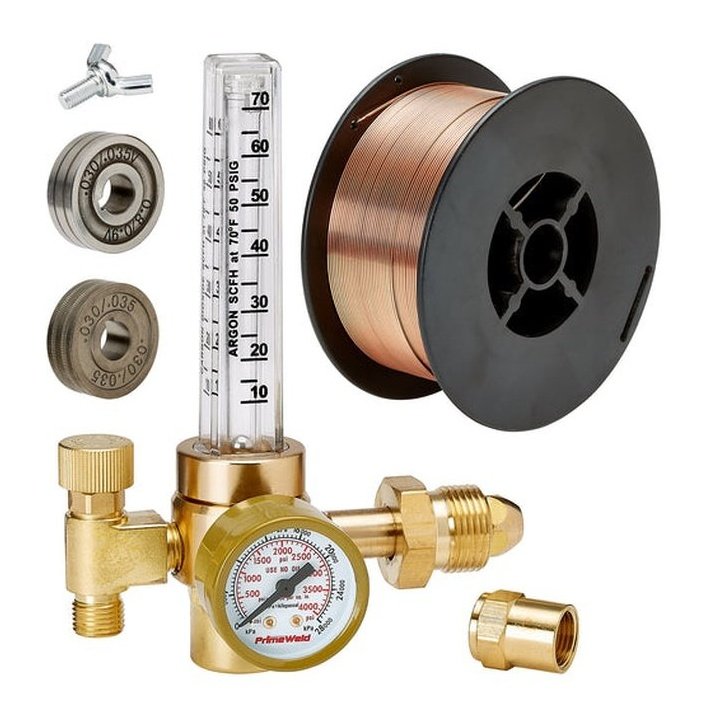

Gas regulator

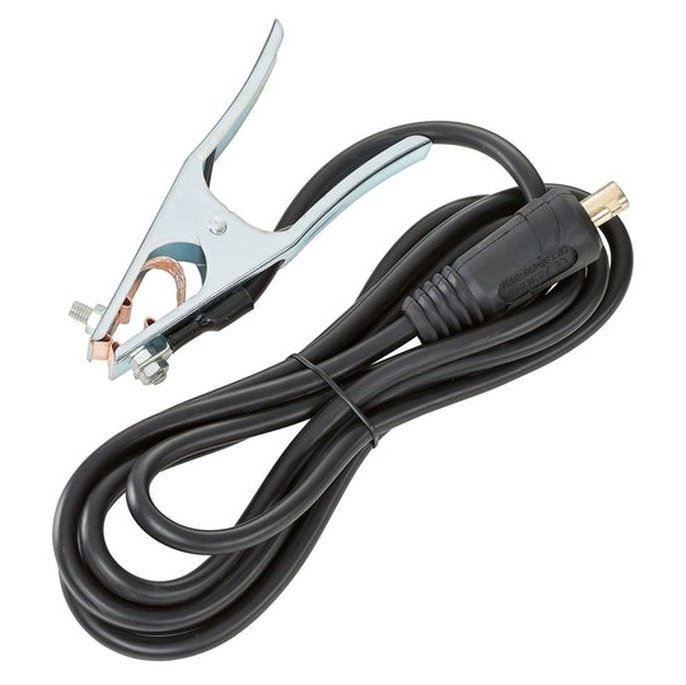

Ground Clamp with 12 feet cable

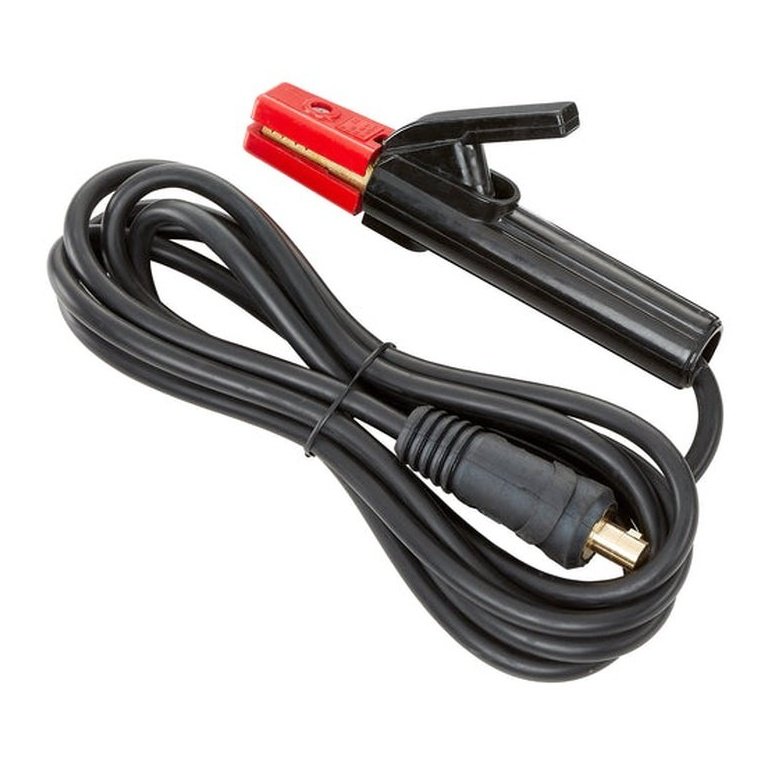

Electrode holder with 12 feet cable

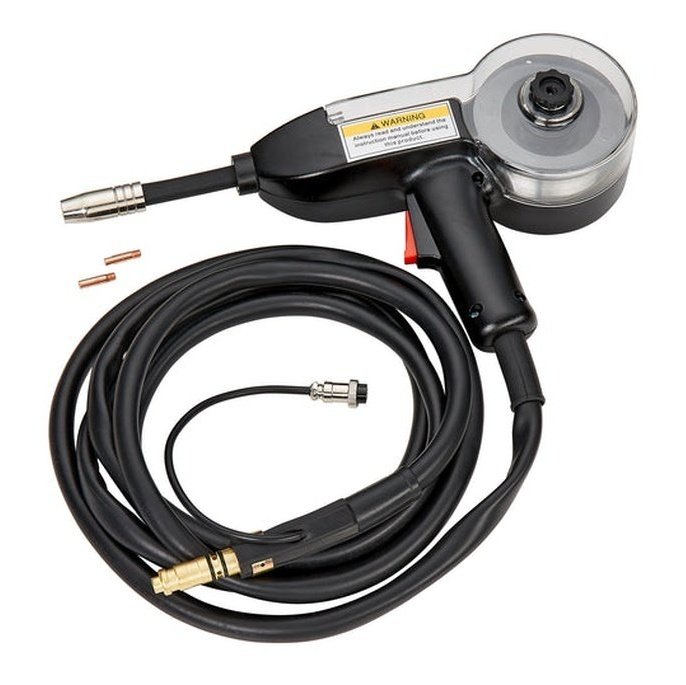

Spool gun with 12 feet cable, extra contact tip 0.8/0.9mm
2lb. Spool of .030"(0.8mm) MIG wire
.030"(0.8mm）,.040" (1.0mm) contact tip
.023"-.030"/.035" V-groove drive roll
.030"/.035"- .045" knurled-groove drive roll
User manual
