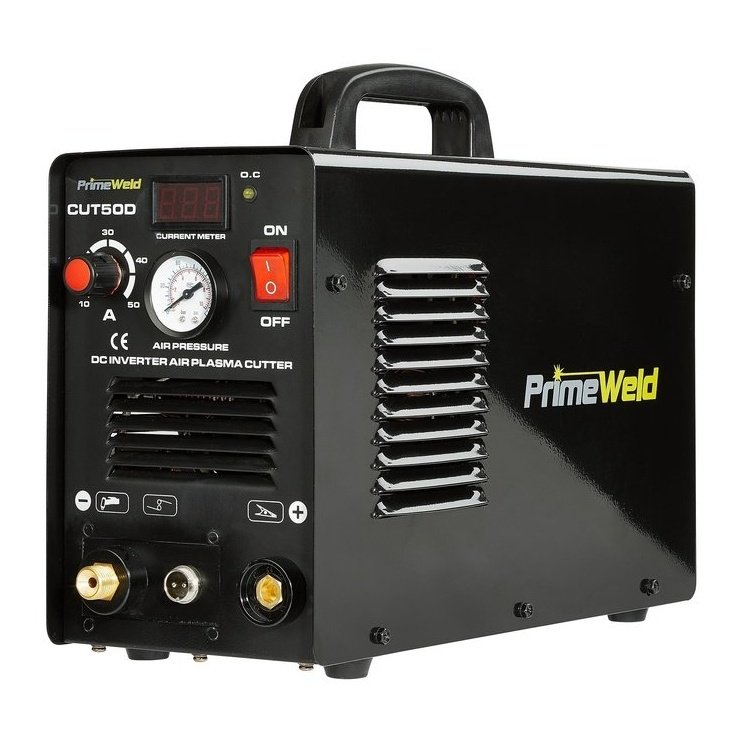

PrimeWeld CUT50D 50-Amp Portable Plasma Cutter

The CUT50D 50-Amp Air Inverter Portable Plasma Cutter offers you heavy-duty cutting ability right out of the box. This inverter plasma cutter has 50 amps of power on tap, able to cut up to 1/2-inch thick steel plate.

Portable Plasma Cutter for Convenience & Power

This is one tool that every fabricator needs in the arsenal. Save space, time, and money with a 50 amp plasma cutter in one convenient package.

The CUT50D is a MOSFET inverter plasma cutter, weighing only 23 pounds. Light enough to take with you when you head over to your friend’s place to handle a little auto body and suspension work.

Easily Cut Sensitive Sheet Metal

The lower limit output of 20 amps cuts sheet metal as thin as 22 gauge without blowing your nicely cut edges out, saving preparation time to get the workpiece prepared for welding.

Bring exceptional cutting power to your shop for under $300. Work with the lightweight 50-amp MOSFET inverter plasma cutter with the durable build quality, innovative design, and helpful support from a knowledgeable customer service team. The CUT50D 50A Air Inverter Portable Plasma Cutter can power any DIY workshop project.

High-Frequency Arc Control for Precise Cuts

The CUT50D Portable Plasma Cutter’s high-frequency arc control uses a non-pilot “touch and lift” arc start. Lift start machines are good for drag starts and drag cutting. Touch the torch momentarily to light the arc, then drag the torch across the surface to make your cut. With the torch tip is so close to the metal, drag starts let you get finer, more precise cuts

Lightweight, with Dual-Voltage Input Power

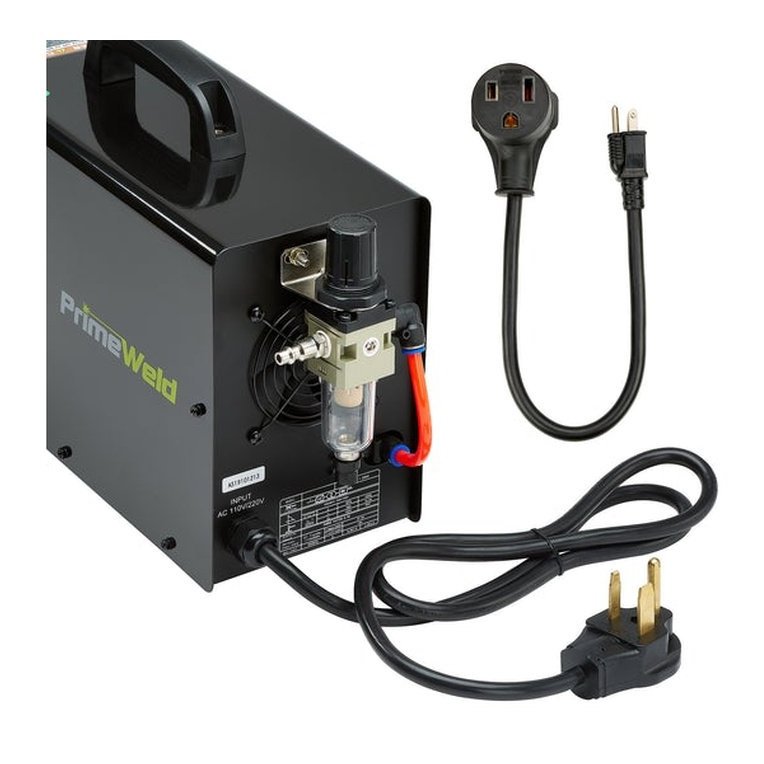

The PrimeWeld CUT50D 50A Air Inverter Portable Plasma Cutter runs on either 120 volts or 240 volts input power. It uses an adapter pigtail to enable the base 240-volt power supply to plug into 120-volt outlets.

PrimeWeld’s LEGENDARY Customer Service Keeps You Welding

NO-HASSLE 3-YEAR WARRANTY!

If you run into issues, have a problem, or want advice, call PrimeWeld for personalized support from live people. They’re easy to contact, knowledgeable, and deliver the kind of troubleshooting know-how that keeps you producing.

Features

50A Air Inverter Portable Plasma Cutter Features:

• Dual 120/240-volts input
• MOSFET Inverter-powered
• Start cutting out of the box
• Lift-type arc start
• Air Supply Postflow
• Drag Start capability

PROTECTION FEATURES:

• Overcurrent protection
• Overheating protection
• Power spike protection

USABILITY FEATURES:

• Dinse connections

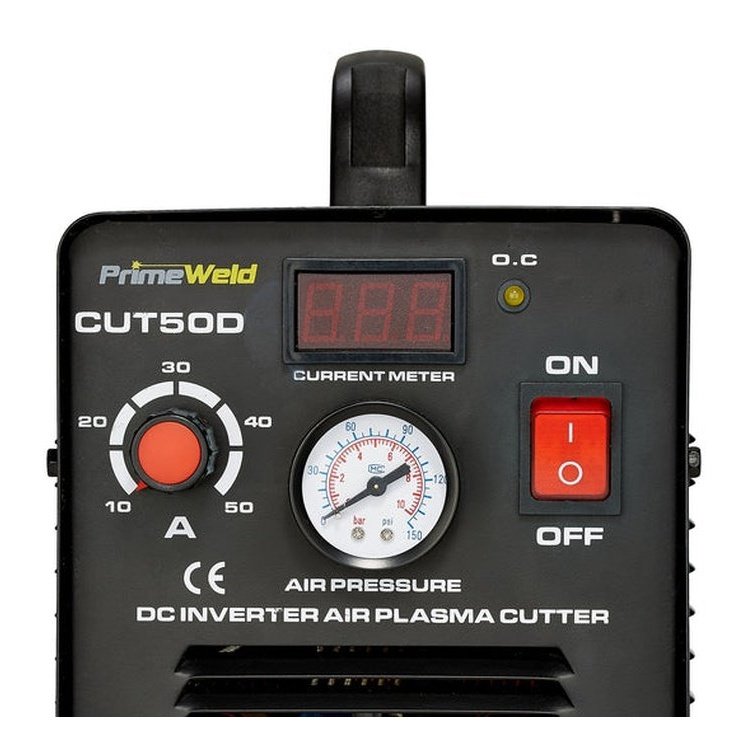

• Front Panel air pressure gauge
• Digital Power Display

SPECIFICATIONS:

Breaker size:

• (120V) 30 amps
• (240V) 50 amps

Plasma Output in Amps:

• Arc 120 volts: 20-40 amps
• Arc 240 volts: 20-50 amps

Duty Cycle:

• 60 percent @ max rating (120/240V)
• 100 percent @ 23 amps (120V)
• 100 percent @ 40 amps (240V)

Air Pressure:

• 40-75 PSI

Airflow Required:

• 5 CFM @ 80 PSI

Air Postflow:

• 5 seconds

Weight:

• 22.5 pounds

Specifications

The CUT50D Air Inverter Portable Plasma Cutter weighs only 8.9 kgs, less than 20 lbs. It is industrial-rated, with 50-amps of cutting current, lightweight, and portable. Check out the other specifications for this highly-rated plasma cutter below:

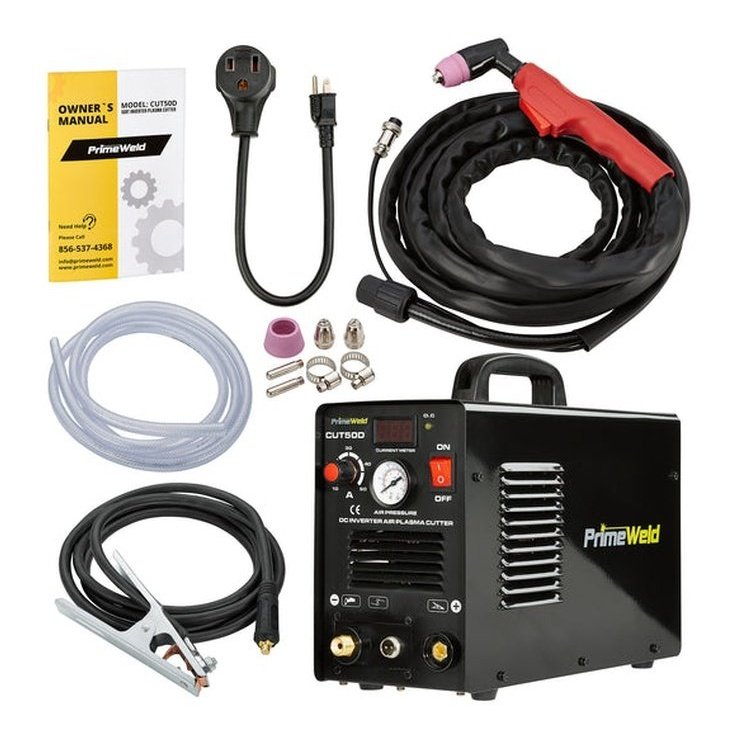

What's Included

CUT50D Dual Voltage 60-Amp Plasma Cutter Comes With:

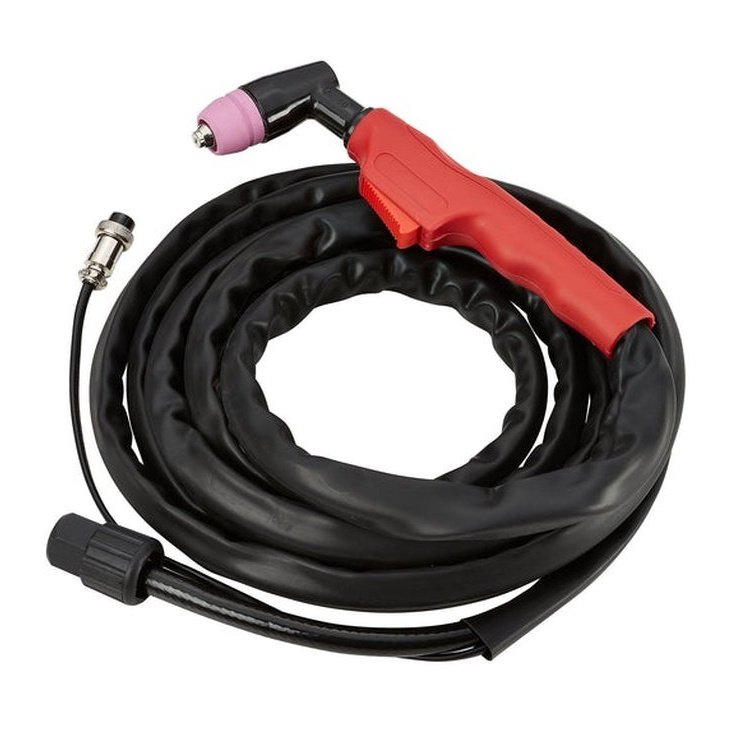

1. AG60 Torch
2. 13-foot Torch Hose
3. Flowmeter
4. Air supply hose
5. Ground Clamp 10 ft
6. Brush
7. Hand-held mask
8. Reference Manual
9. 240-volt to 120-volt adapter pigtail
10. FREE SHIPPING IN A WELL-PACKED, HEAVY-DUTY CARTON!

How To Use

Technique Tips

• It is easier to pull the torch through the cut than to push it.
• To cut thin material, reduce the amperage until you get the best quality cut.
• Use the correct size tip orifice for the amperage being used.
• For straight cuts, use a straight edge or cutting buggy as a guide. For circles, use a template or circle-cutting attachment.
• Check that the front-end consumable parts of the plasma cutting torch are in good condition.
