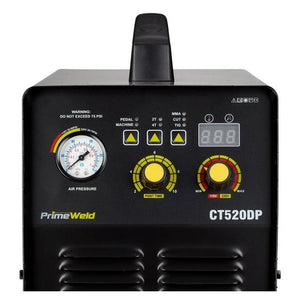

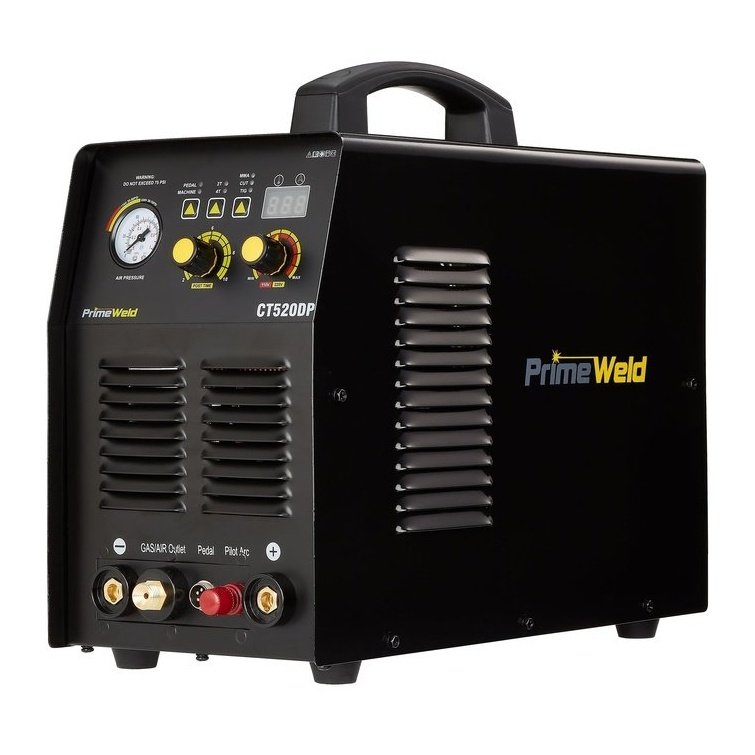

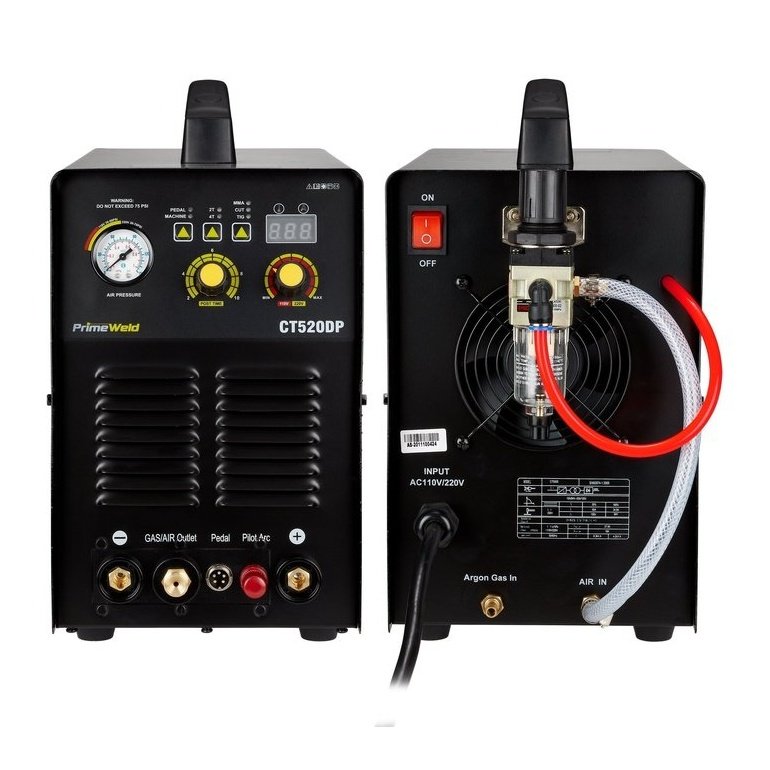

PrimeWeld CT520DP 50A Pilot Arc Plasma Cutter

The PrimeWeld CT520DP 50A Pilot Arc Plasma Cutter Combo is a 3-in-1 triple threat featuring TIG welding, stick welding, and a plasma cutter. This pilot arc plasma cutter and TIG/stick welder cuts and welds 1/2-inch thick steel plate. You’ll be able to cut parts quickly and easily. Switch to TIG welding by changing leads and flipping a switch. If you don’t feel like the challenge or cost of shielding gas, you have a stick arc welding on tap as well.

Affordable Versatility in a Compact Package

At the other end, this pilot arc welder gets down to 10 amps on all three processes, low enough heat to work on 24-gauge sheet metal. It’s a great machine for auto bodywork, with the ability to cut damage out, prepare replacement panels, tack them into place and then weld the seams to a beautiful finish. Preparation for paint goes much faster, lowering the costs of body repair work.

The CT-520DP offers dual-voltage input power, with the ability to run on either 120 volt or 240-volt outlets. These 3 in 1 plasma cutters with welding functions are what you need to bring versatile fabrication to your workbench. Every barn shop and racing trailer has a place for the PrimeWeld CT-520DP multi-process welder.

HIGH-FREQUENCY ARC STARTS AND ADVANCED DESIGN

The pilot arc plasma cutter features high-frequency no-touch arc starts. Start your plasma cutter by simply pulling the trigger and starting the arc. Most 3 in 1 plasma cutters don’t offer no-touch arc starting or arc force control. PrimeWeld's pilot arc welder offers an ideal mix of features for under $500.

With PrimeWeld’s optional foot pedal, control the current for TIG welding and plasma cutting. The PrimeWeld CT520DP Pilot Arc Plasma Cutter and Welder is ruggedly built from the ground up to stay alive in the workshop environment.

NO-HASSLE 3-YEAR WARRANTY

ENJOY PRIMEWELD’S LEGENDARY SUPPORT

PrimeWeld Customer Support connects you real PEOPLE, real quick. We’re easy to contact and will strive to handle any issue that comes up.

Offering excellent and knowledgeable advice, they know how to keep PrimeWeld equipment up and welding right.

CT-520DP Plasma Cutter Combo Features:

• Dual powered 120/240-volt input
• IGBT Inverter powered
• DC Stick Welder (MMA)
• DC TIG Welder (GTAW-PD)
• 50-amp Plasma Cutter
• Unpack it and Weld

PROTECTION FEATURES:

• Cold Electrode
• Overcurrent protection
• Overheating protection
• Power spike protection

TIG FEATURES (GTAW):

• GR-17 TIG Torch
• 13-foot connector hose
• High-Frequency no-touch arc start
• Shielding Gas Pre-Flow and Post-Flow

PLASMA CUTTER FEATURES:

• Will cut 1/2-inch steel
• AG60P Plasma Torch
• 13-foot torch hose
• Air preflow/post flow

STICK ARC (MMA) FEATURES:

• Quality 13-foot stinger clamp
• Change to TIG/Plasma with flip of switch
• Arc Force Control

USABILITY FEATURES:

• Optional TIG/Plasma foot pedal
• Dinse connectors

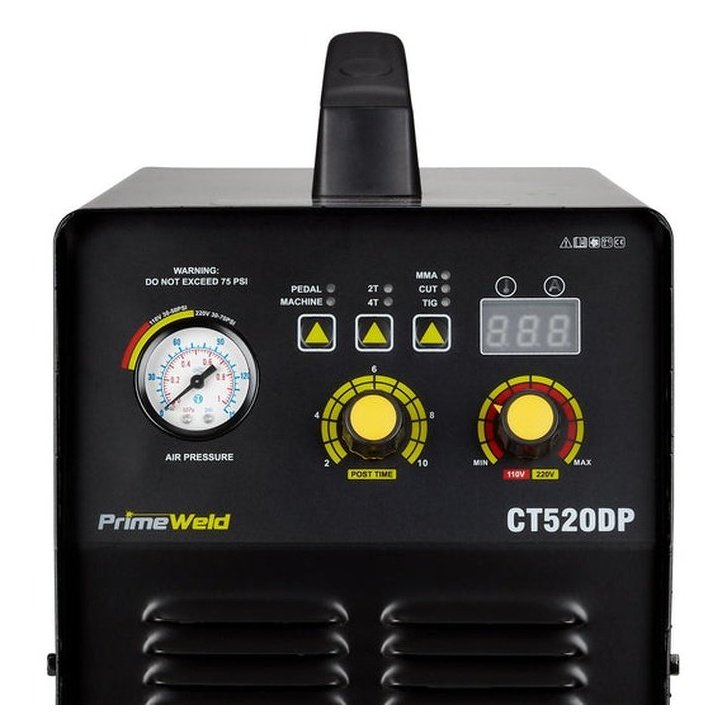

• Digital Power Display
• Built-in Shielding Gas solenoid

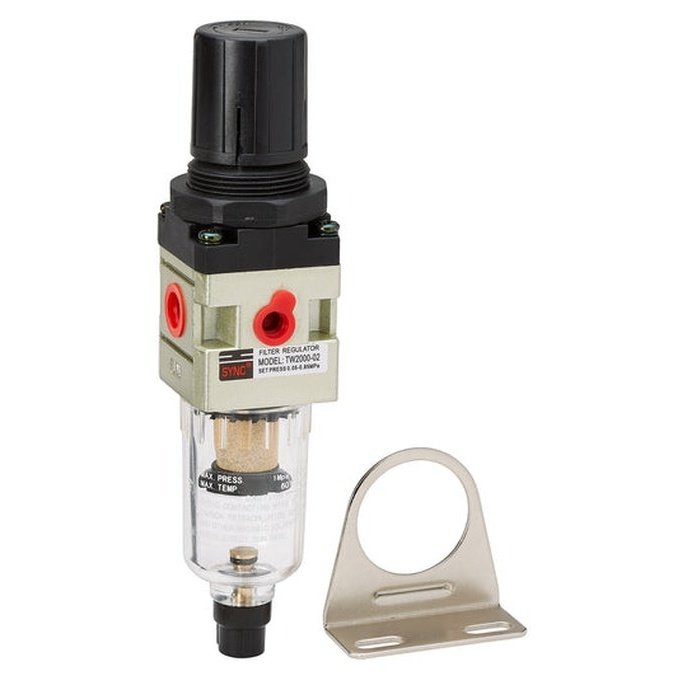

• Regulator gauge on front
• 13-foot ground, plasma and TIG leads
• TIG/MMA/Plasma selection switch

SPECIFICATIONS:

BREAKER SIZE:

• (120V) 30 amps / (240V) 50 amps

TIG OUTPUT IN AMPS:

• TIG 120 volts: 10-120 amps
• TIG 240 volts: 10-200 amps

ARC OUTPUT IN AMPS:

• Arc 120 volts: 10-120 amps
• Arc 240 volts: 10-160 amps

PLASMA OUTPUT IN AMPS:

• Plasma 120 volts: 10-27 amps
• Plasma 240 volts: 10-50 amps

DUTY CYCLE TIG:

• 35 percent @ max rating (120/240V)
• 100 percent @ 72 amps (120V)
• 100 percent @ 130 amps (240V)

DUTY CYCLE STICK (MMA):

• 35 percent @ max rating (120/240V)
• 100 percent @ 72 amps (120V)
• 100 percent @ 100 amps (240V)

DUTY CYCLE PLASMA CUTTER:

• 60 percent @ max rating (120V)
• 30 percent @ max rating (240V)
• 100 percent @ 21 amps (120V)
• 100 percent @ 30 amps (240V)

GAS PREFLOW:

• 1.5 seconds

GAS POSTFLOW:

• 5 seconds

WEIGHT:

• 32 pounds

SPECIFICATIONS TABLE

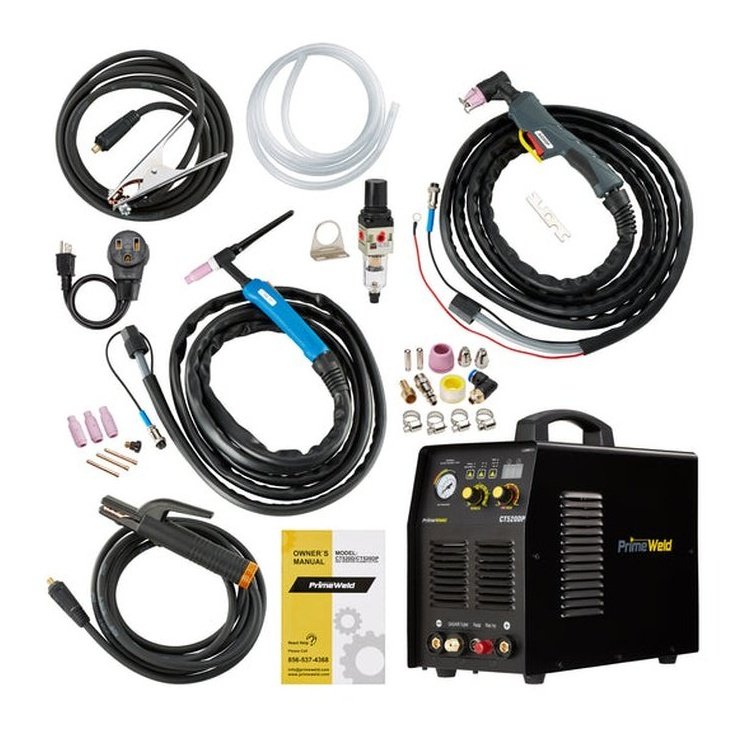

CT-520DP 50A Pilot Arc Plasma Cutter Combo Comes With:

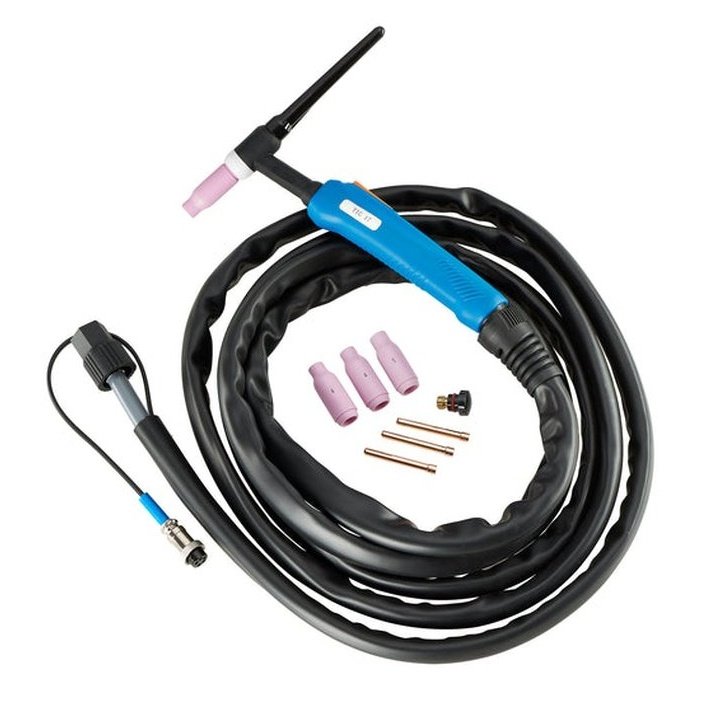

1. Size 17 TIG Torch
2. TIG Hose

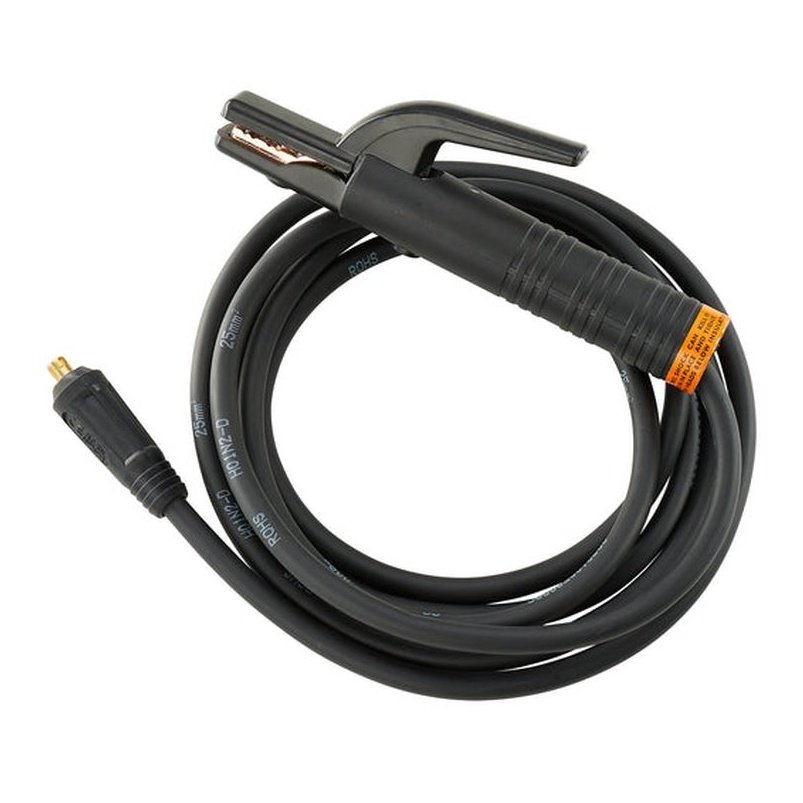

3. Arc Welder Electrode Clamp 13 ft

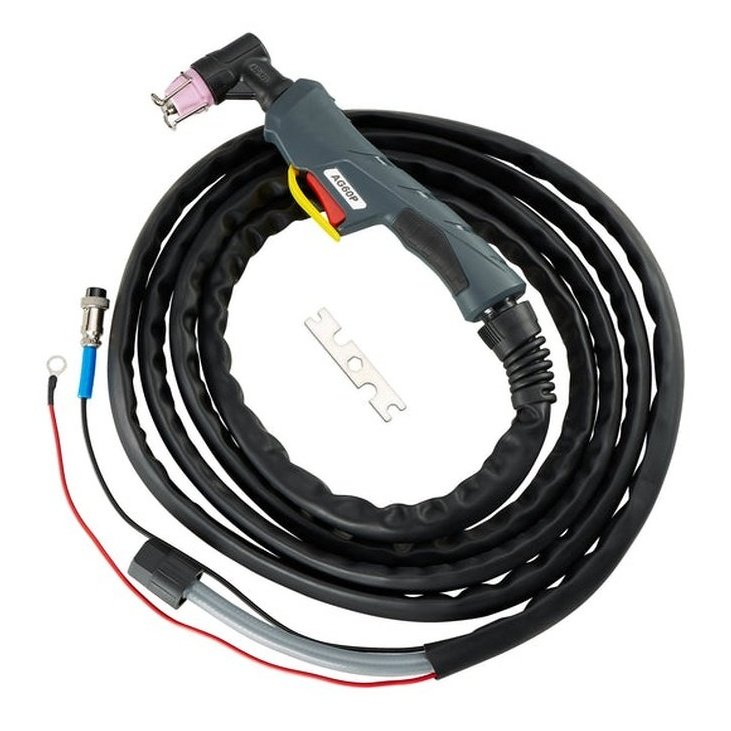

4. AG60 Plasma Torch
5. Plasma Hose

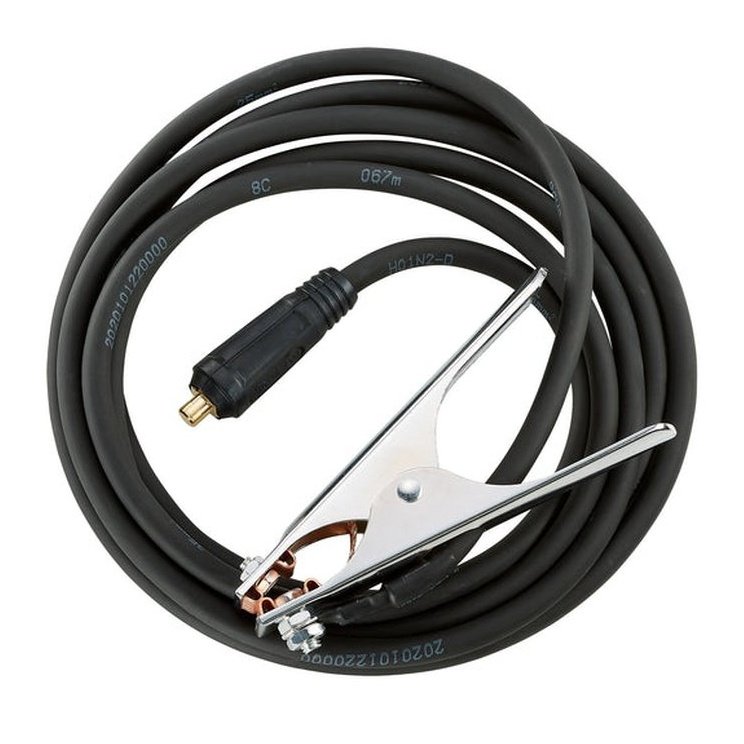

6. Ground Clamp 13 ft

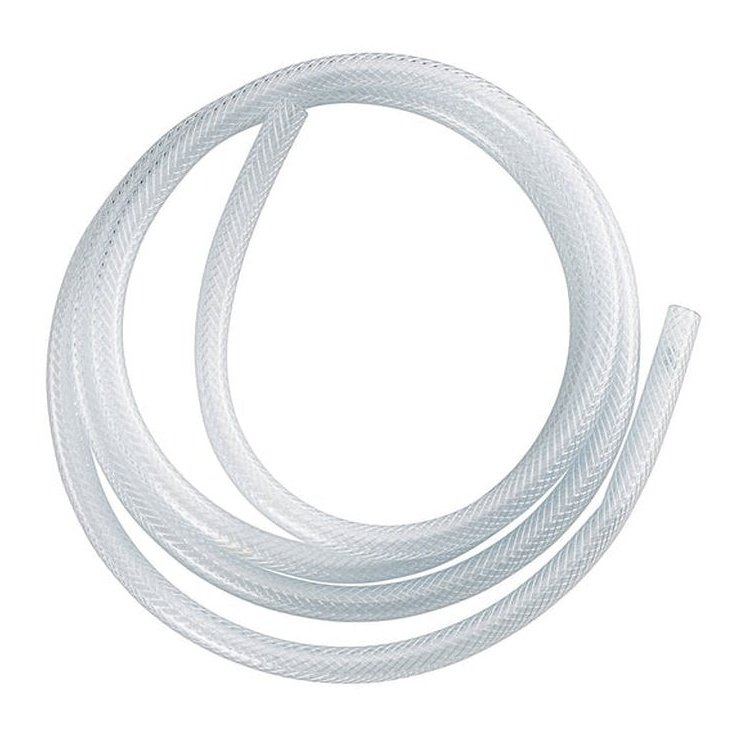

7. Gas hose

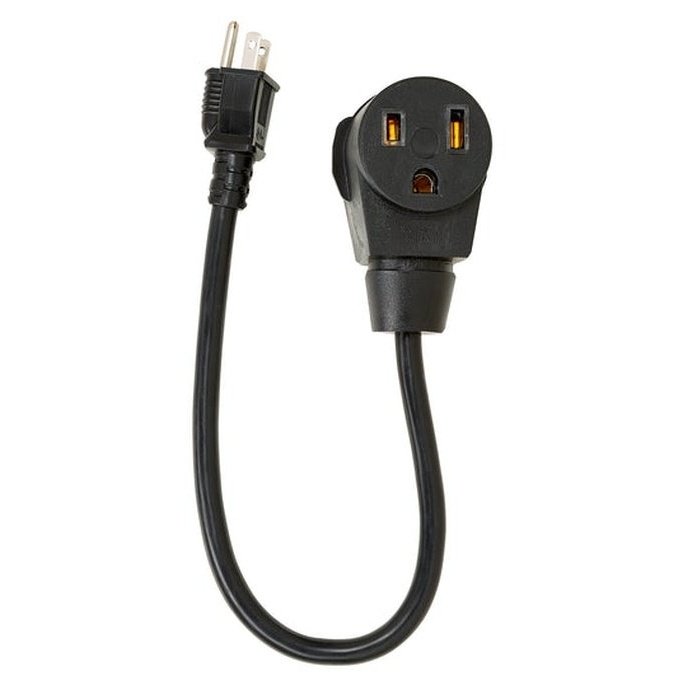

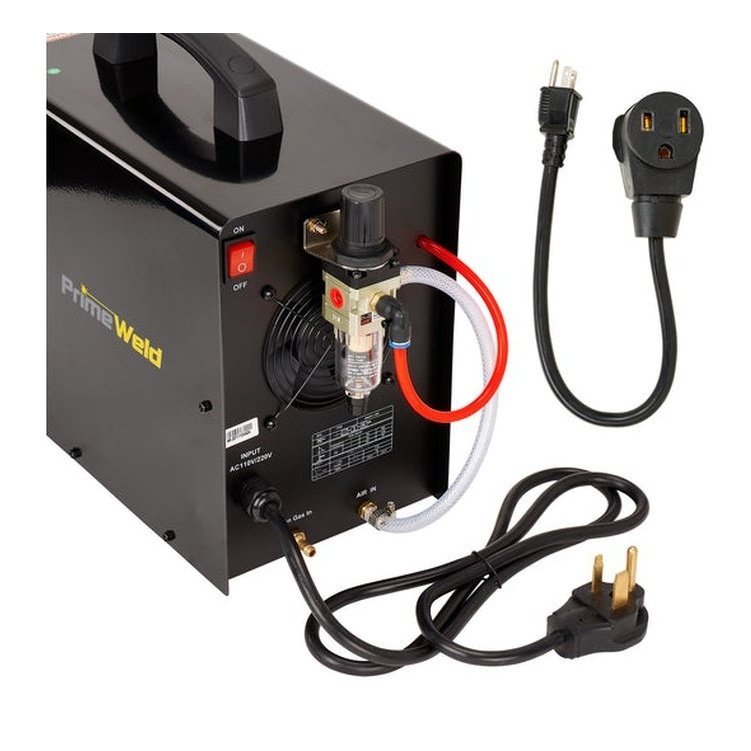

8. 240-volt to 120-volt adapter pigtail
9. FREE SHIPPING in our WELL-PACKED, HEAVY-DUTY CARTON!
