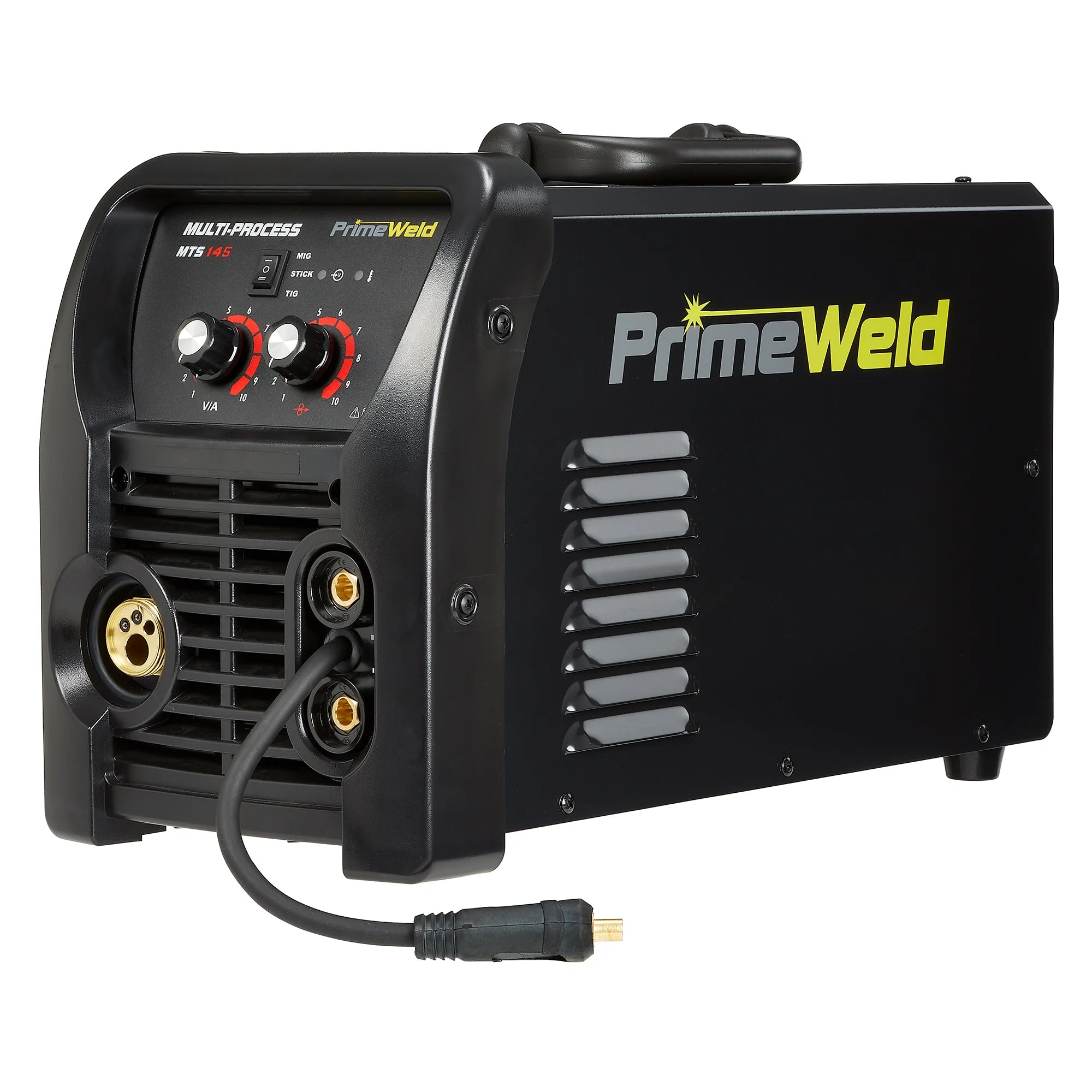

PRIME WELD MTS 145 MULTI PROCESS MIG, TIG, STICK
PRIME WELD MTS 145 MULTI PROCESS MIG, TIG, STICK
PRIME WELD MTS 145 MULTI PROCESS MIG, TIG, STICK
PRIME WELD MTS 145 MULTI PROCESS MIG, TIG, STICK
PRIME WELD MTS 145 MULTI PROCESS MIG, TIG, STICK
PRIME WELD MTS 145 MULTI PROCESS MIG, TIG, STICK
PRIME WELD MTS 145 MULTI PROCESS MIG, TIG, STICK
PRIME WELD MTS 145 MULTI PROCESS MIG, TIG, STICK
  • SKU: PW-MTS145

PRIME WELD MTS 145 MULTI PROCESS MIG, TIG, STICK

$589.95

Availability:   Usually in Stock and Ships in 1-2 Days
  • MULTI-PROCESS WELDER- 3 in 1 Stick Welder, MIG Welder and DC TIG Welder TIG Welding torch included everything you need in one machine

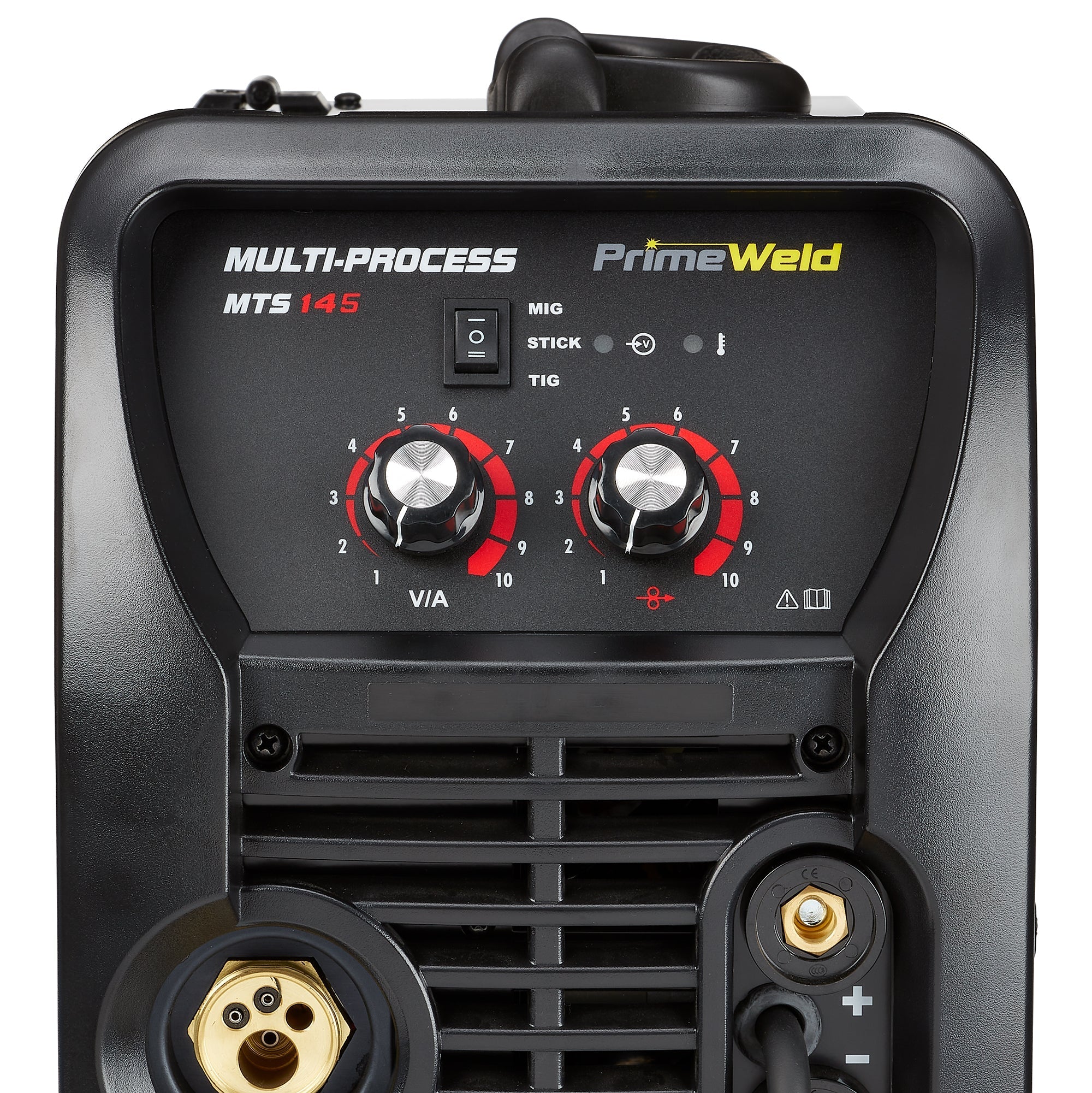

  • EASY TO USE- Easy start makes every strike EASY! Three position switch allows you to change process quickly
  • CONTROL YOUR WELD- Infinite voltage and wire feed speed controls allows you to dial in the perfect weld. Rated output voltage range- 12 - 23V. Rated output current range- 43 - 110A. Full output curren range- 10 - 140A

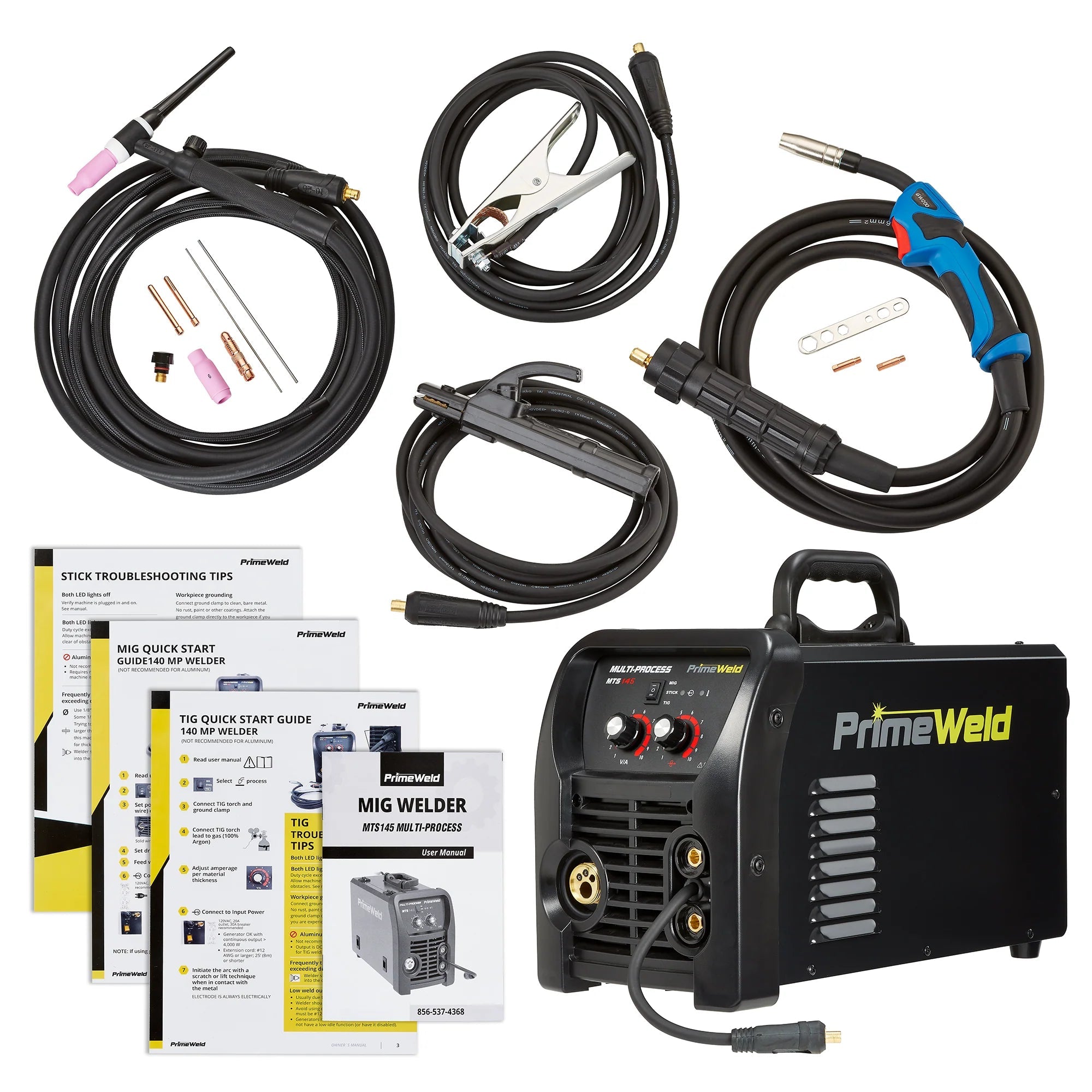

  • WELDER INCLUDES- 10' MIG gun, 12' electrode holder, 12' ground clamp, Integrated handle with torch wrap, 20A - 15A adapter and one additional .030" contact tip. Backed by a 3 year warranty
  • PRODUCT SPECIFICATIONS- Dimensions: 18"L  x 8.5"w x 11"H. Weight: 23 lbs. Plate thickness range: Up to 1/4". Uses gas or gasless wire up to 0.35 in. and up to 1/8 in. stick electrodes
  • MULTI-PROCESS WELDER- 3 in 1 Stick Welder, MIG Welder and DC TIG Welder  everything you need in one machine
  • EASY TO USE- Easy start makes every strike EASY! Three position switch allows you to change process quickly
  • CONTROL YOUR WELD- Infinite voltage and wire feed speed controls allows you to dial in the perfect weld. Rated output voltage range- 12 - 23V. Rated output current range- 43 - 110A. Full output curren range- 10 - 140A
  • RUGGED- All metal case, Built to take the day to day. Big enough to handle 2 and 10 pound rolls of wire.
  • WELDER INCLUDES- 10' MIG gun, 8' electrode holder, 8' ground clamp, Integrated handle with torch wrap, 20A - 15A adapter and one additional .030" contact tip.
  • PRODUCT SPECIFICATIONS- Plate thickness range: Up to 1/4" (6.35 millimeters). Uses gas or gasless wire up to 0.35 in. and up to 1/8 in. stick electrodes

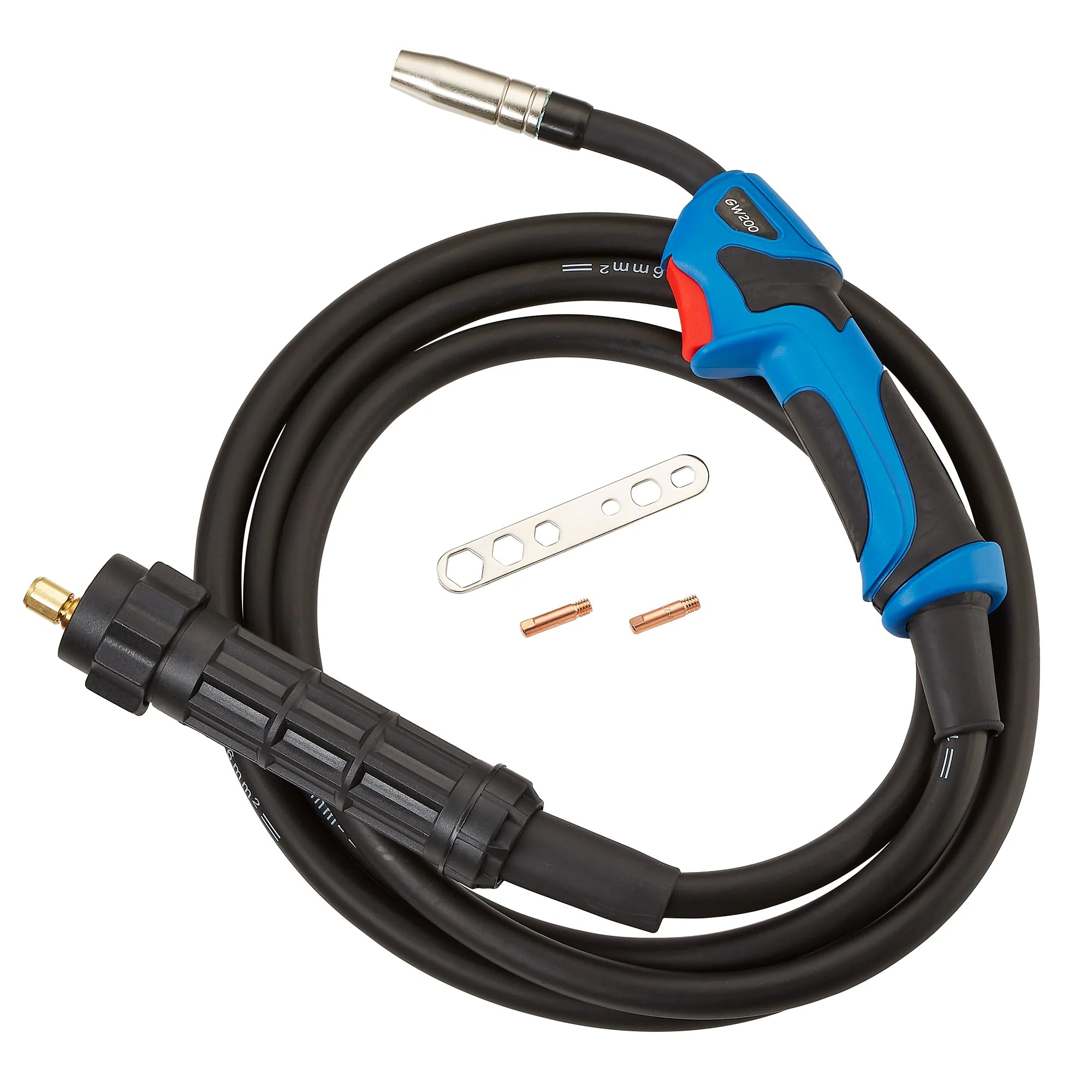

  • 10' MIG gun

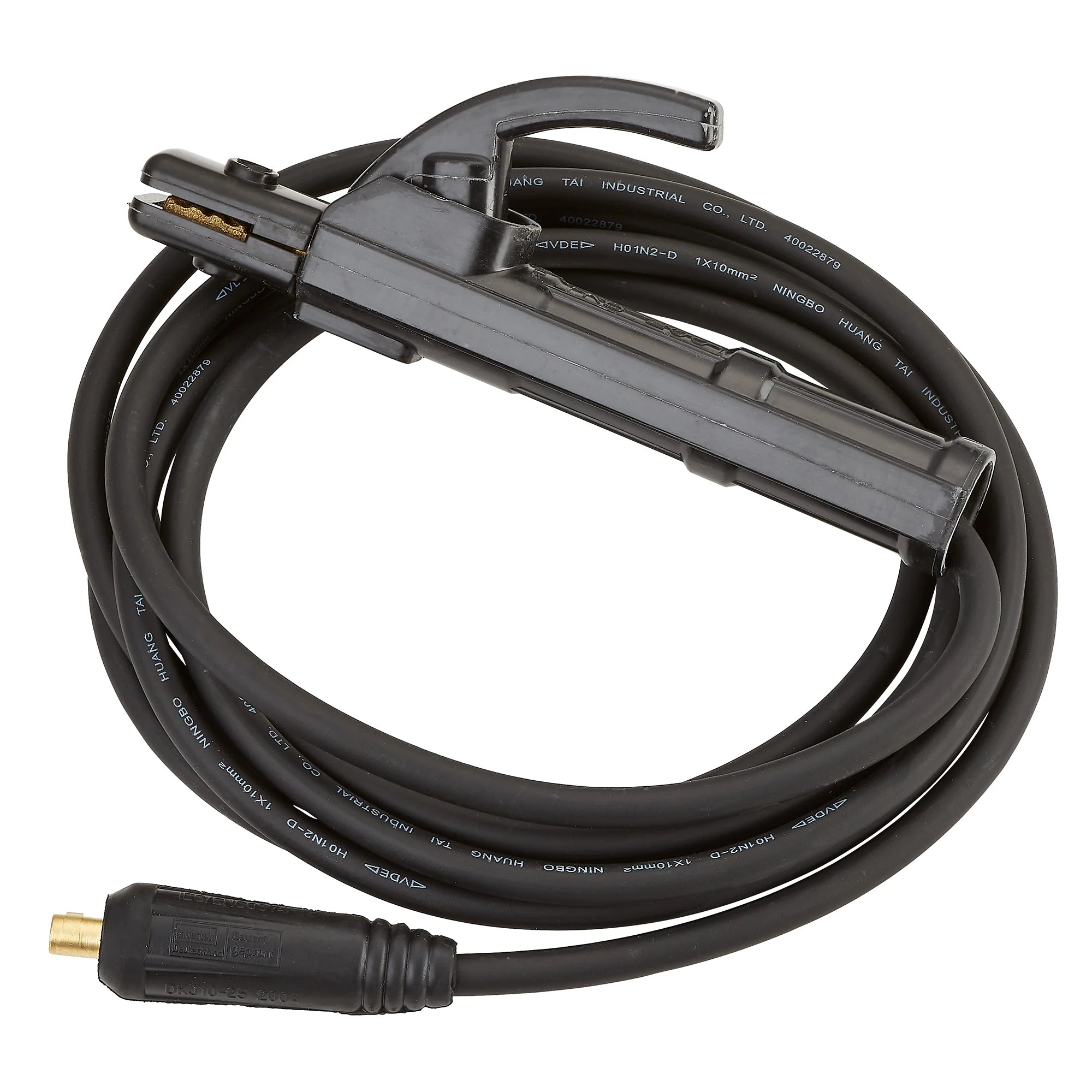

  • 8' electrode holder

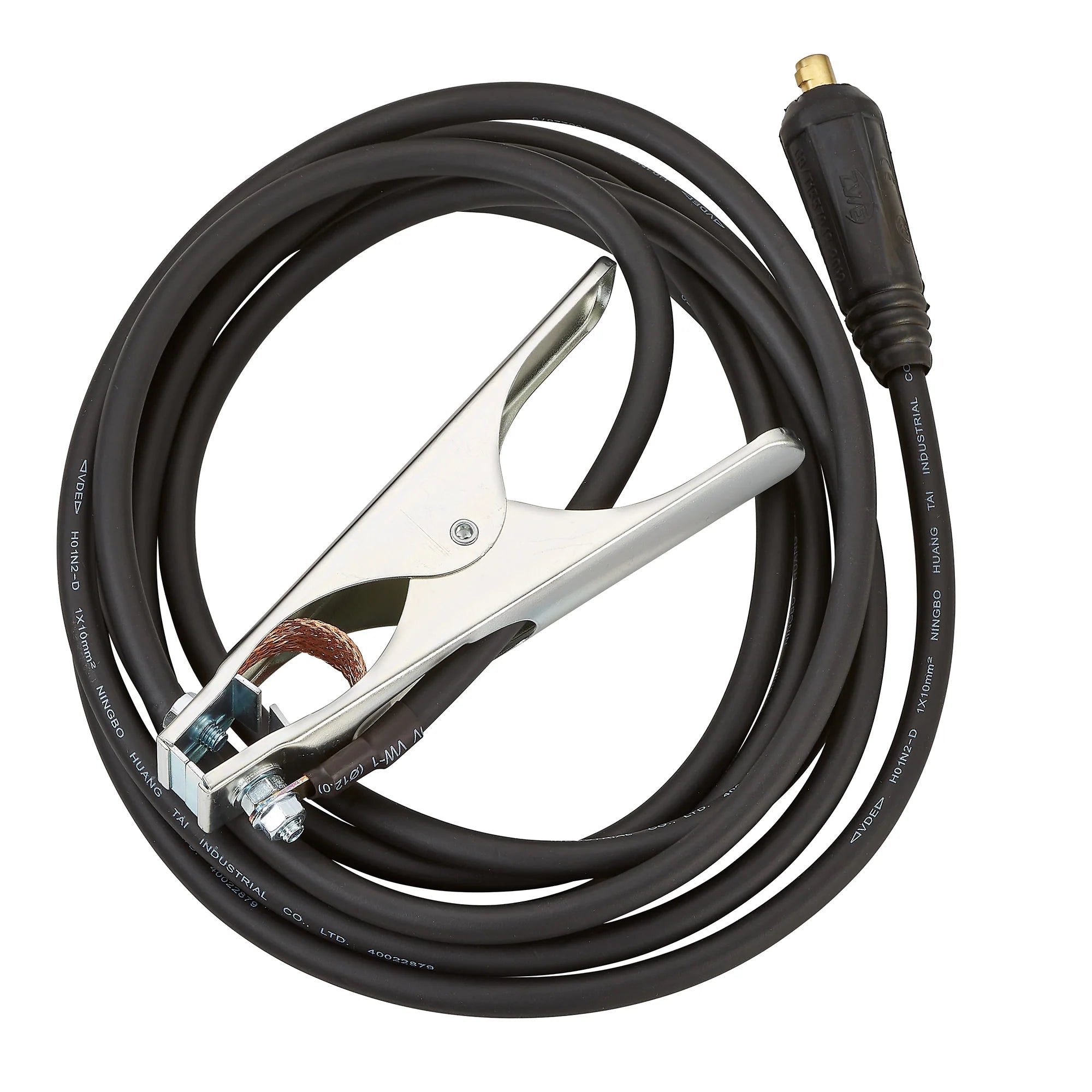

  • 8' ground clamp
  • Integrated handle
  • 20A - 15A adapter

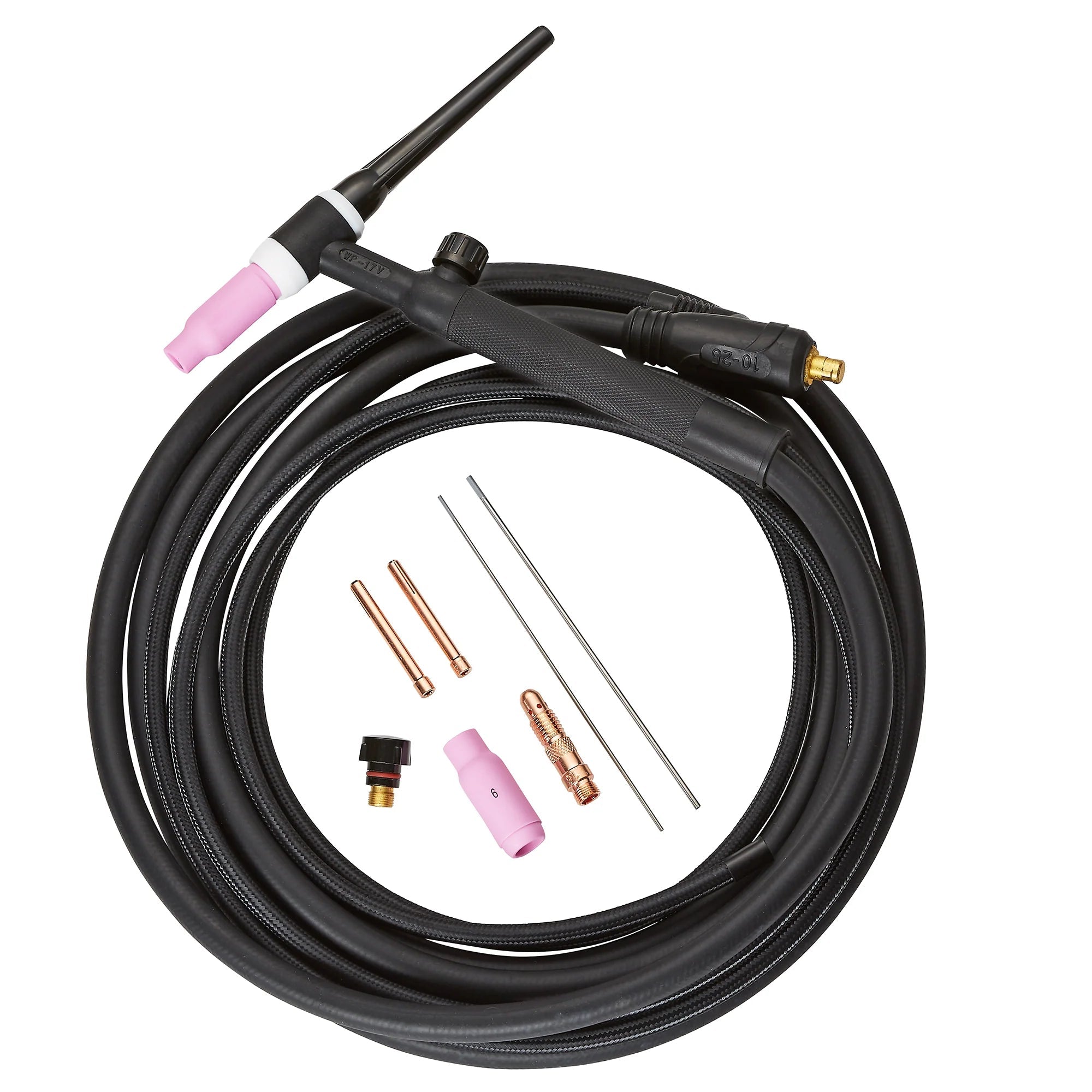

  • Tig Torch
  • 1 additional .030" contact tip
  • Plate thickness range: Up to 1/4" (6.35 millimeters)
  • Generator friendly minimum rated continuous output 4500W


2% THORIATED (RED) EWTh-2/WT20
Principal Oxide: 1.7–2.2% Thorium Oxide

Radioactive. Best for use in Direct Current (D/C) applications using transformer based constant current power sources. Best for use on non corroding steels, titanium alloys, nickel alloys, copper alloys. Good D/C arc starts and stability, medium erosion rate, medium amperage range, medium tendency to spit.

0.8% ZIRCONIATED  (WHITE)  EWZr-8/WZ8
Principal Oxide: 0.7–0.9% Zirconium Oxide

Non-Radioactive. Best for use in Alternating Current (A/C) for aluminum alloys and magnesium alloys using inverter or transformer based constant current power sources. Balls well, handles higher amperage than pure tungsten with lesspitting, better arc starts and arc stability than pure tungsten.

1.5% LANTHANATED (GOLD) EWLa-1.5/WL15
Principal Oxide: 1.3–1.7% Lanthanum Oxide

Non-Radioactive. Best for use in Direct Current (D/C) as an alternative to 2% Thoriated using inverter or transformer based constant current power sources. Best for non corroding steels, titanium alloys, nickel alloys, copper alloys. Best D/C arc starts and stability, low erosion rate, wide amperage range, no spitting.

2% CERIATED (GRAY) FORMERLY ORANGE EWCe-2/WC20
Principal Oxide: 1.8–2.2% Cerium Oxide

Non-Radioactive. Best for use in Alternating Current (A/C) or Direct Current (D/C) applications using inverter or transformer based constant current power sources. Good for low-alloyed steels, non corroding steels, aluminum alloys, magnesium alloys, titanium alloys, nickel alloys, copper alloys. Good ignition and re-ignition properties, long service life, excellent arc stability. Low erosion rate, best at low amperage range, no spitting, good D/C arc starts and stability.

PURE (GREEN) EWP/WP
Principal Oxide: None

NON-RADIOACTIVE. Good for use in Alternating Current (A/C) for aluminum alloys and magnesium alloys in low to medium amperage applications using transformer based constant current power sources only. Balls easy, tends to spit at higher amperages. Used for non-critical welds only.

2% LANTHANATED (BLUE) EWLa-2/WL20
Principal Oxide: 1.8–2.2% Lanthanum Oxide

Non-Radioactive. Best general purpose electrode for both Alternating Current (A/C) or Direct Current (D/C) using inverter or transformer based constant current power sources. Good for low-alloyed steels, non corroding steels, aluminum alloys, magnesium alloys, titanium alloys, nickel alloys, copper alloys. Good arc starts and stability, medium to high amperage range, low erosion rate.

LaYZr™ (CHARTREUSE) EWG
Principal Oxides: 1.5% Lanthanum, 0.8% Yttrium Oxides, 0.8% Zirconium

Non-Radioactive. Best for automated or robotic applications in Alternating Current (A/C) or Direct Current (D/C) due to low voltage tolerance (changes in tip to work piece distance) using inverter or transformer based constant current power sources. Good for low-alloyed steels, non corroding steels, aluminum alloys, magnesium alloys, titanium alloys, nickel alloys, copper alloys. Very stable tip geometry, runs cooler than 2% Thoriated with longer life, low to medium amperage range. Very best low amperage starts
