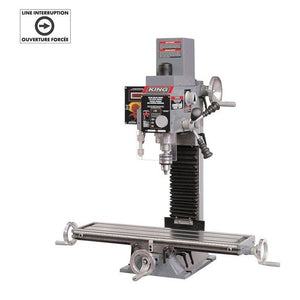

MILLING DRILLING MACHINE WITH DIGITAL READOUTS

King KC-20VS-2 - Milling Drilling Machine with Digital Readouts

King KC-20VS-2 - Milling Drilling Machine with Digital Readouts

MILLING DRILLING MACHINE WITH DIGITAL READOUTS

SKU: KC-20VS-2

King KC-20VS-2 - Milling Drilling Machine with Digital Readouts

$2,399.00

Shipping calculated at checkout.

Product Availability Ask about this product

Vendor: King Canada
Product Type: Milling Machines

Powerful 1 HP single phase DC motor

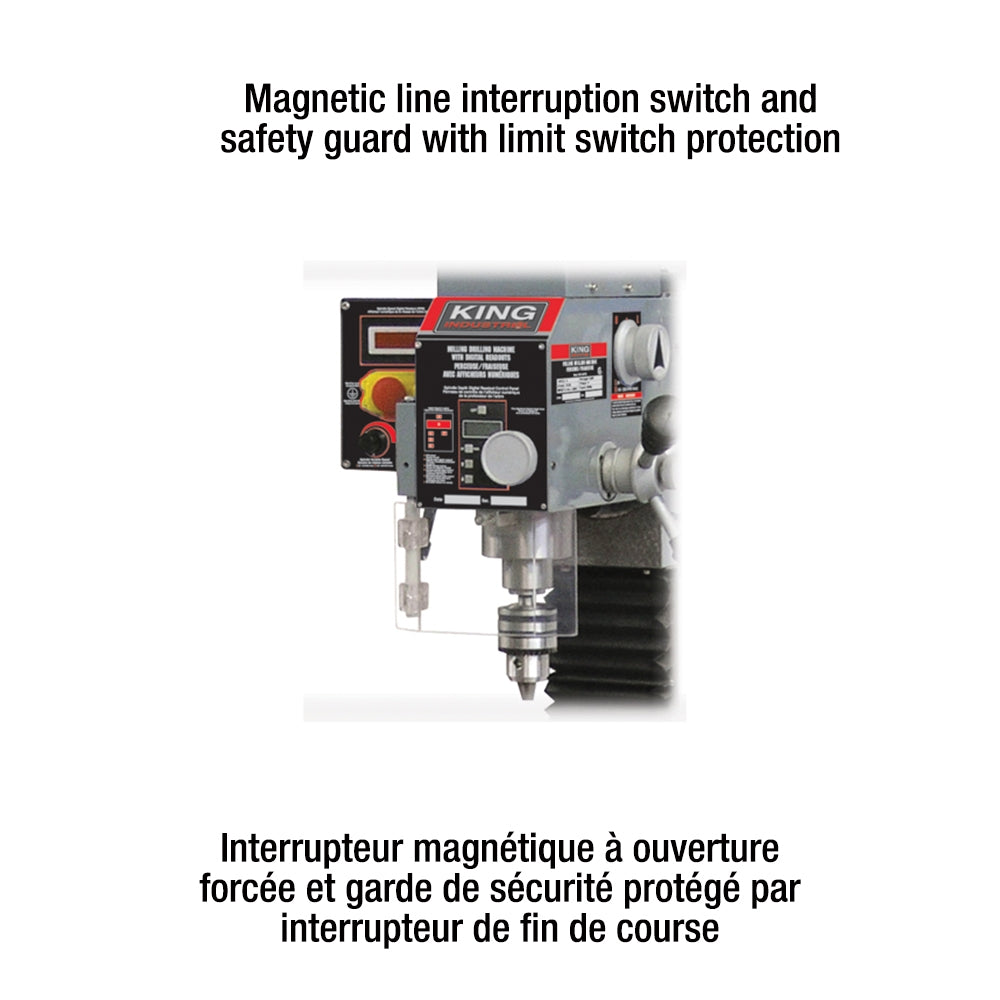

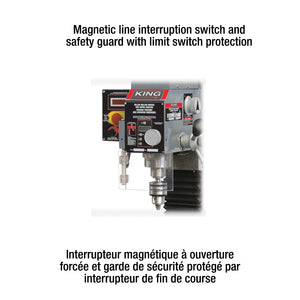

Safety guard with limit switch protection
Magnetic line interruption switch needs a restart after a power failure
Spindle depth digital readout and control panel with metric and imperial readings
Spindle RPM digital readout
Spindle depth fine feed knob
Forward/reverse switch and variable speed selector dials
Comes with 1/2" chuck, chuck key, R8 chuck arbor, safety guard, 2 T-bolts, oil bottle, adjustment wrenches, hex. keys and tool box

DRILLING CAPACITY IN CAST-IRON: 3/4"
DRILLING CAPACITY IN STEEL: 5/8"
MAX. DISTANCE SPINDLE NOSE TO TABLE: 13"
SWING: 13"
SPINDLE TAPER: R8
SPINDLE STROKE: 2"
VARIABLE SPEEDS: 2 (50-1,125 / 100-2,250) RPM
FACE MILL CAPACITY: 2-1/2"
END MILL CAPACITY: 3/4"
MAX. LONGITUDINAL TRAVEL: 18-7/8"
CROSS TRAVEL: 6-7/8"
WORKING AREA OF THE TABLE: 7-1/16" x 27-1/2"
SIZE OF T-SLOT ON TABLE: 1/2"
MOTOR: 4.8 Amp., 2,250 RPM
VOLTAGE: 120V, 1 phase, 60 Hz
ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT: 27-1/2" x 29-5/8" x 35-3/8" / 264 lbs
PACKAGING DIMENSIONS (LXWXH) / WEIGHT: 17-1/2" x 16-1/2" x 32-1/2" / 308 lbs
UPC: 7 72995 01009 7
