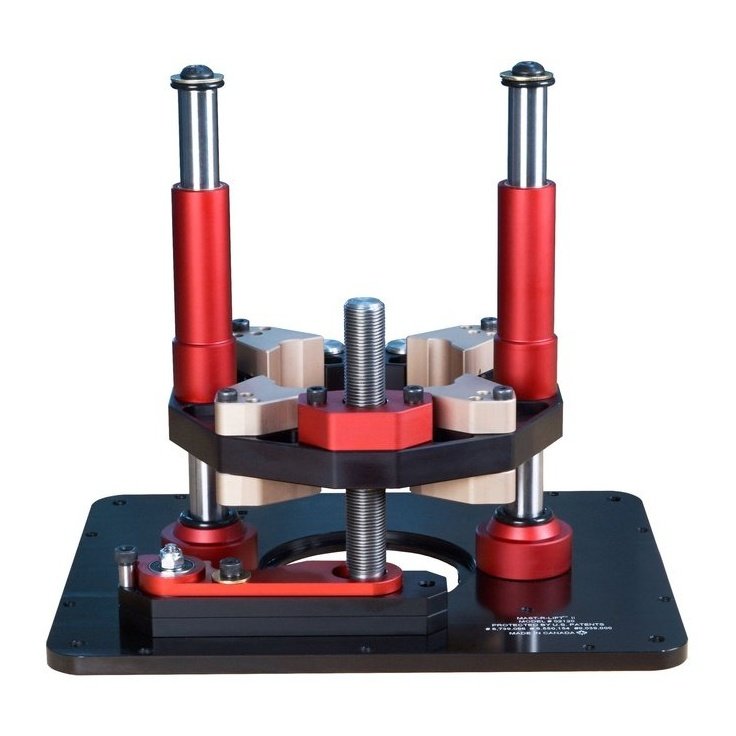

The Mast-R-Lift II is a precision piece of engineering you will be proud to own and find use for whenever you are in your workshop.

FEATURES:

  • Double sealed ball bearings, for super smooth rotation and a lifetime of use even with the heaviest of routers.
  • Patented tension feature, removing backlash.
  • Mast-R-Lift II has a built in locking mechanism from above the table.  Using the same handle you raise and lower your router lift, a simple turn and you are ready for those heavy duty, long term routing operations.
  • The Mast-R-Lift II fits every fixed base router that we could find on the market with its unique adjustable clamping block system. (Compatible routers)

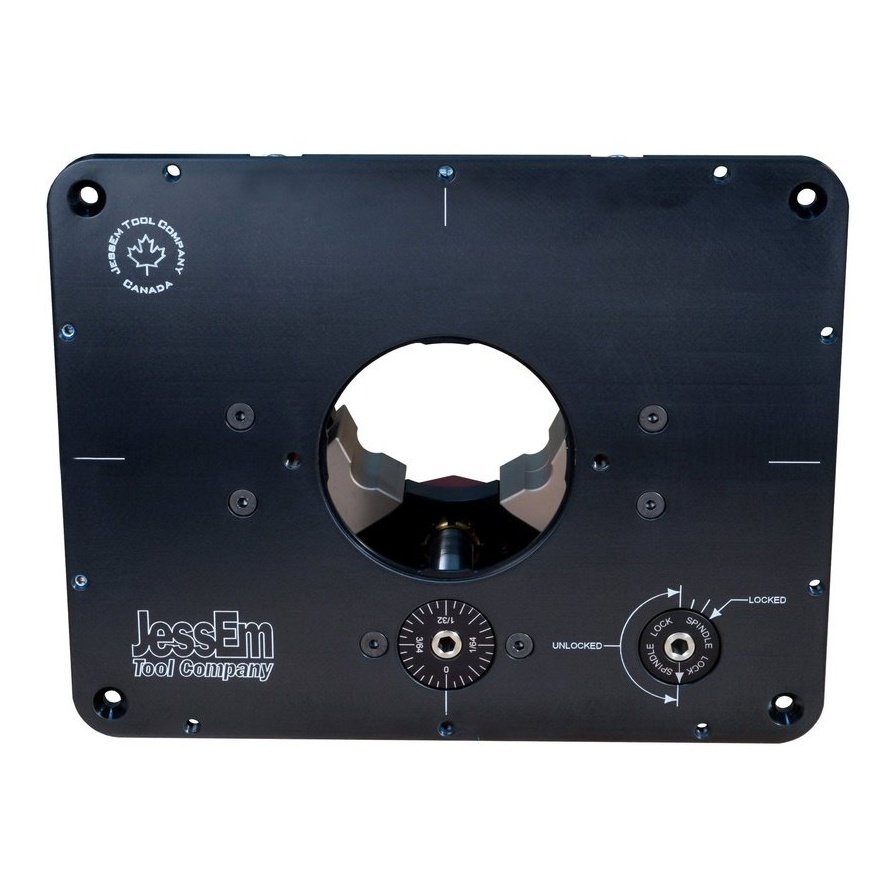

  • Mast-R-Lift II top plate is Hard Anodized, several times more expensive than the common sulphuric anodizing.  Hard anodizing is an engineered surface treatment providing a thick abrasion resistant coating and not just a cosmetic treatment that will wear off.
  • All of our Lift shafts are hydraulically pressed into a larger diameter mount.  Attaching the shaft mount to the top plate spreads the lateral load, providing a very rigid and durable mount, standing up to the toughest of routing operations.
  • No bent wrenches required here!  All bit changes can be done from above the table.
  • All of the Mast-R-Lift II components are CNC machined here in Oro-Medonte, Ontario, Canada, and all non wearing components are anodized for appearance, corrosion and some wear resistence.
  • Mast-R-Lift II router bit opening is 3-1/2".
  • Features our Tab-Loc Design Insert Rings.
  • One full revolution of the crank handle = 1/16".
  • Built in Snugger Buttons for a perfect fit in your table opening.

Compatible Routers

  • Porter Cable 7518 (4.2” Motor Dia.)
  • Porter Cable 690/890 (3.5” Motor Dia.)
  • JessEm's Pow-R-Tek Router Motor - (4.2" Motor Dia.)
  • Bosch 1617/1618 (3.5” Motor Dia.)
  • DeWalt 610/618/616 (3.5” Motor Dia.)
  • Makita 1101 (3.218” Motor Dia.)
  • Hitachi M12VC & KM12VC (3.267” Motor Dia.)
  • Milwaukee 5625 (4.143” Motor Dia.)
  • Milwaukee 5615/5616/5619 (3.32” Motor Dia.)
  • Craftsman 17543/17540/28190 (3.5” Motor Dia.)
  • Rigid R29302 (3.625” Motor Dia.)
  • Portamate PM-P254 - (4.2 Motor Dia.)
