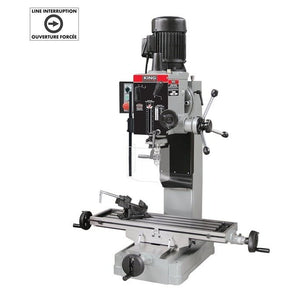

GEARHEAD MILLING/DRILLING MACHINE WITH SAFETY GUARD
GEARHEAD MILLING/DRILLING MACHINE WITH SAFETY GUARD
GEARHEAD MILLING/DRILLING MACHINE WITH SAFETY GUARD
  • SKU: KC-45

GEARHEAD MILLING/DRILLING MACHINE WITH SAFETY GUARD

$5,999.00
Shipping calculated at checkout.
Product Availability Ask about this product

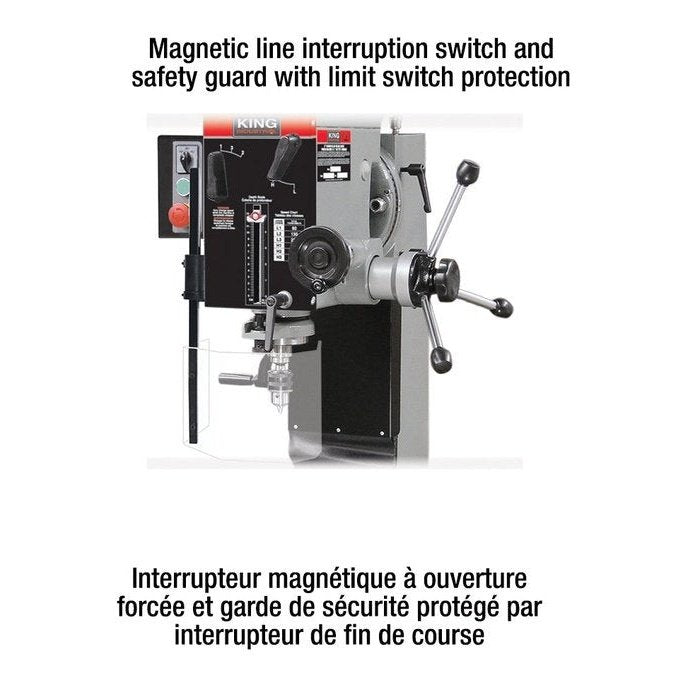

  • Safety guard with limit switch protection
  • Magnetic line interruption switch needs a restart after a power failure
  • Powerful 1.5 HP single phase motor
  • Spindle is equipped with four heavy-duty tapered roller bearings
  • Forward and reverse switch
  • Table control hand wheels have large micrometer dials graduated in .001"
  • Comes complete with 3" face cutter, 3-1/2" angle vise and safety guard

  • Optional Stand Available

  • Specification

    • DRILLING CAPACITY1-1/4"
    • MAX. DISTANCE SPINDLE NOSE TO TABLE18"
    • SWING20-7/16"
    • SPINDLE TAPERR8
    • SPINDLE STROKE5"
    • SPEEDS6 (60-1,500) RPM
    • FACE MILL CAPACITY4"
    • END MILL CAPACITY1-1/4"
    • MAX. LONGITUDINAL TRAVEL20-1/2"
    • MAX. CROSS TRAVEL8-1/4"
    • WORKING AREA OF THE TABLE9-1/2" x 32-1/4"
    • SIZE OF T-SLOT ON TABLE5/8"
    • MOTOR11 Amp.
    • VOLTAGE220V, 1 phase, 60 Hz
    • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT47"x 34" x 55" / 700 lbs
    • PACKAGING DIMENSIONS (LXWXH) / WEIGHT35-3/4" x 28-7/8" x 48-3/4" / 772 lbs
    • UPC7 72995 15015 1
