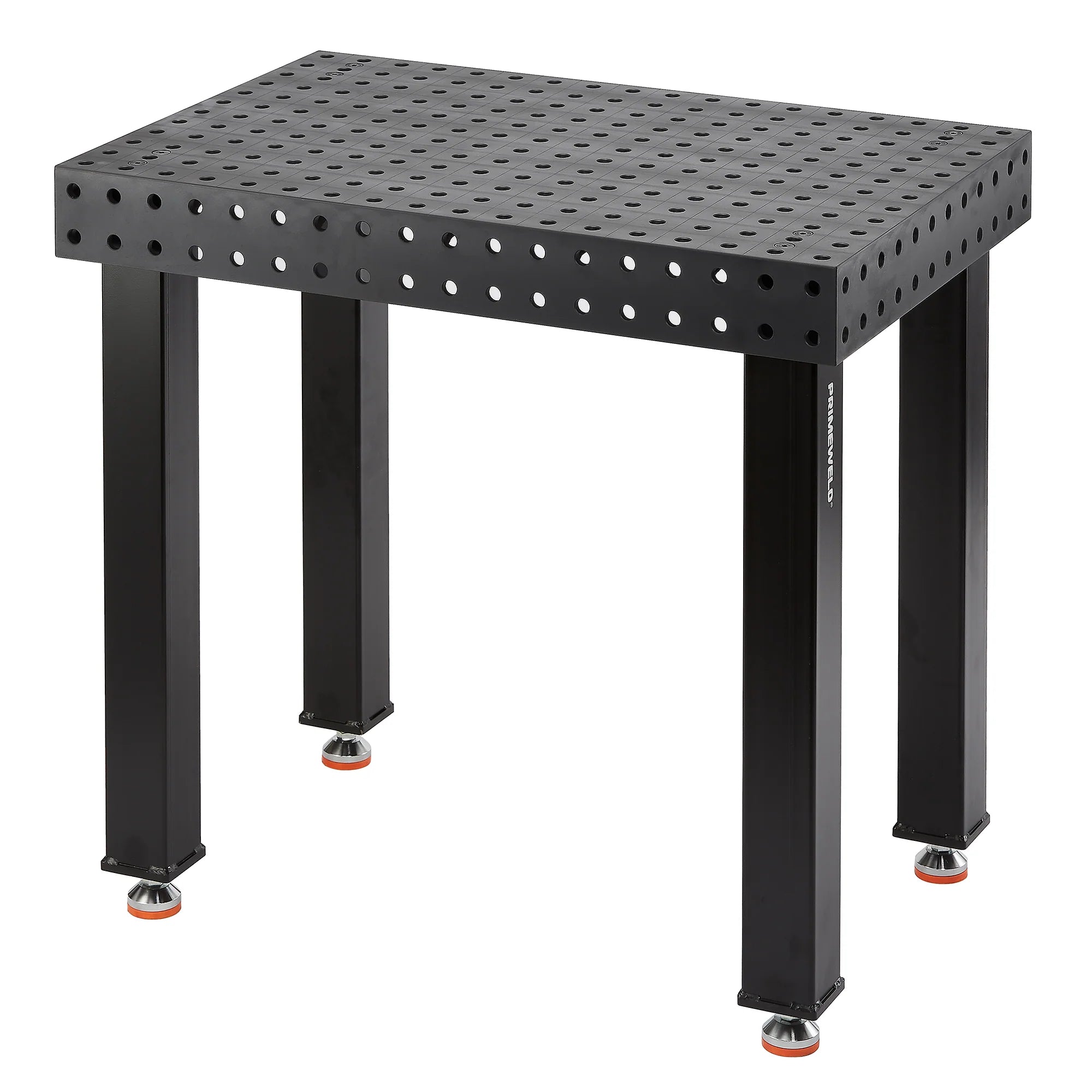

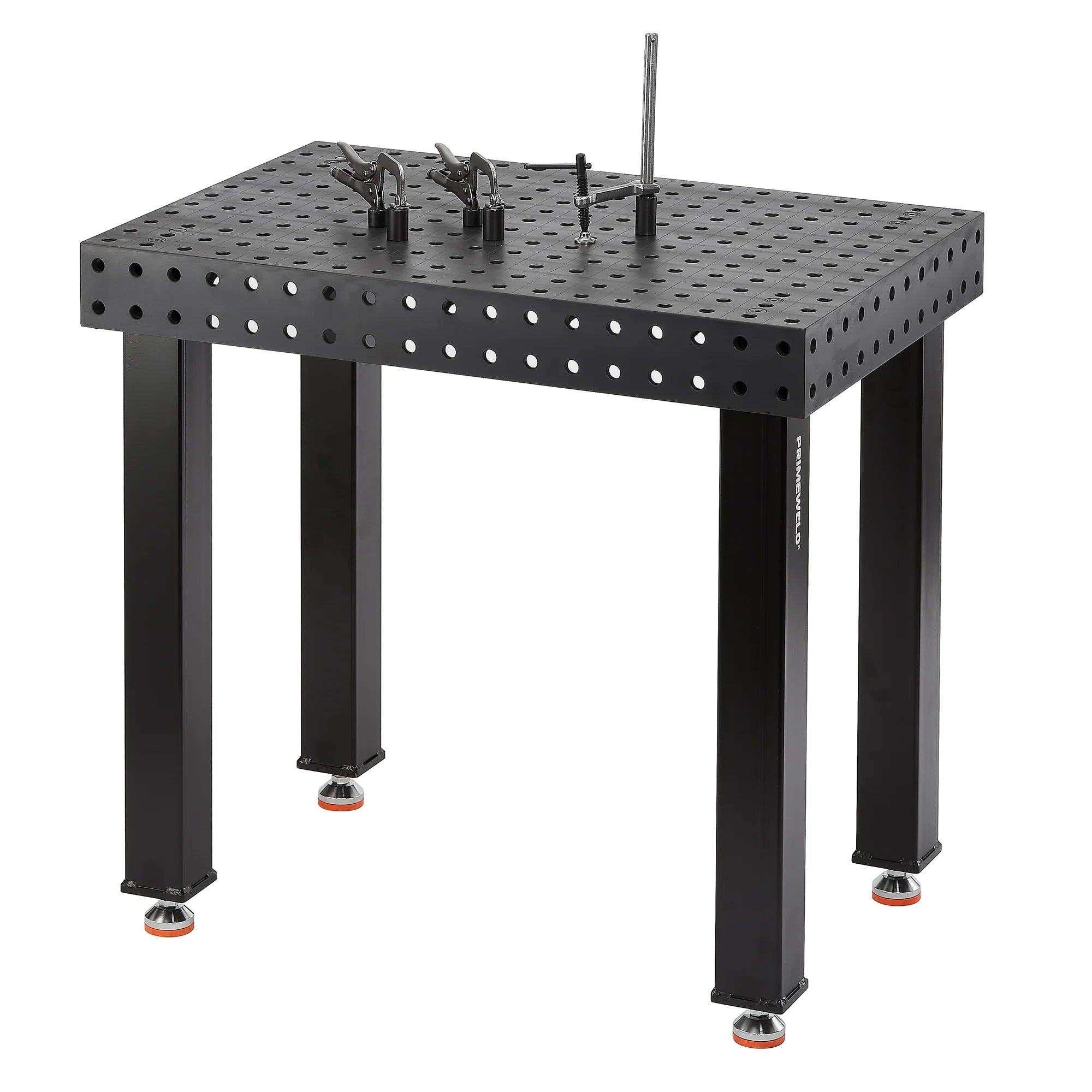

The Fixture Table 2 x 3 is perfect for heavy-duty work with its nodular cast iron construction, nitrate coating, and leg set. It can withstand up to 1240 lbs of evenly distributed weight and is 31" tall. This 2x3 table boasts a flat surface with edge perpendicularity within 0.1" and 336 fixture holes in a 2x2 grid. It's a must-have for any workshop.
Welding Table Specs and Features:
-
Overall Tabletop Size: 2' x 3' (24" x 36")
-
Borehole Diameter: 5/8"
-
Welding Table Material Thickness: Approx. Top 3/8" Sides. 5/16"
-
Welding Table Material Type and Finish: Nodular Cast Iron With Nitrate Coating
-
Static Weight Load: 1240 lbs. (Based on Even Distribution)
-
Approximate Table Weight: Top Weights 139 lbs. Legs Weight 55 Pounds.
-
Surface Flatness: +/-0.0075"
-
Edge Perpendicularity: +/-0.1
-
Hole Pattern: 2 x 2 Grid
-
Fixture Holes: 336
-
Leg Height: 31"
- One Table 2 x 3 and 4 legs are 1 set
-

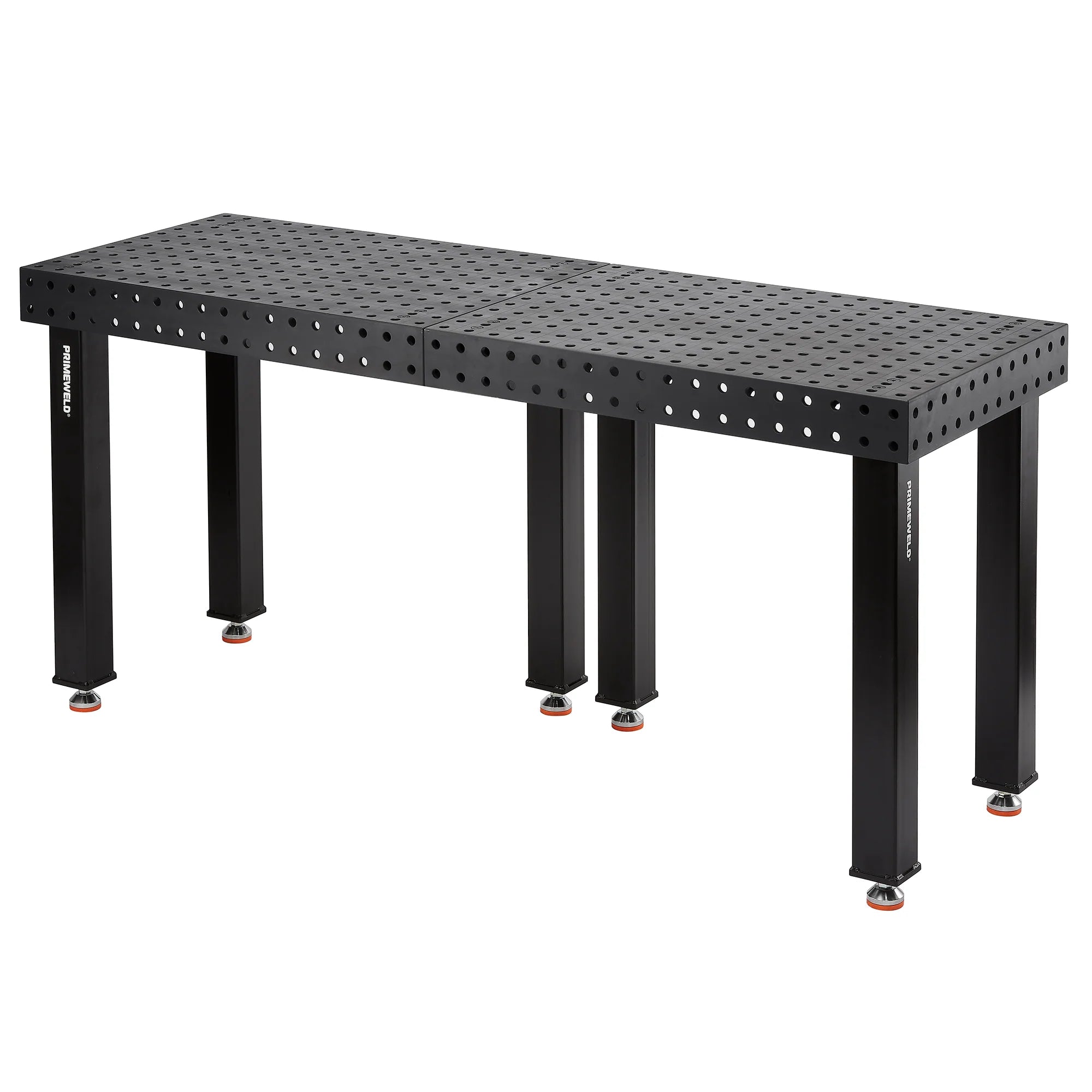

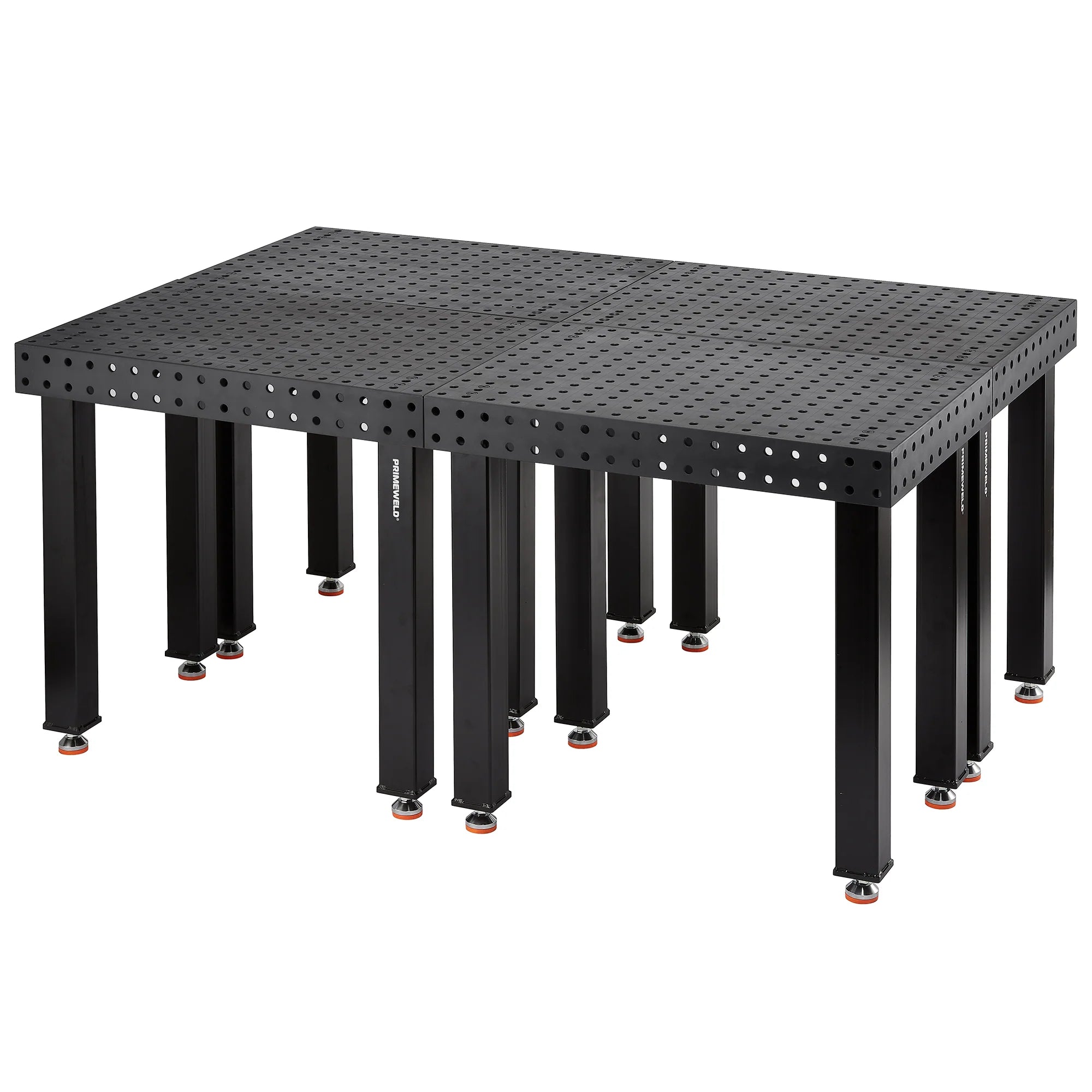

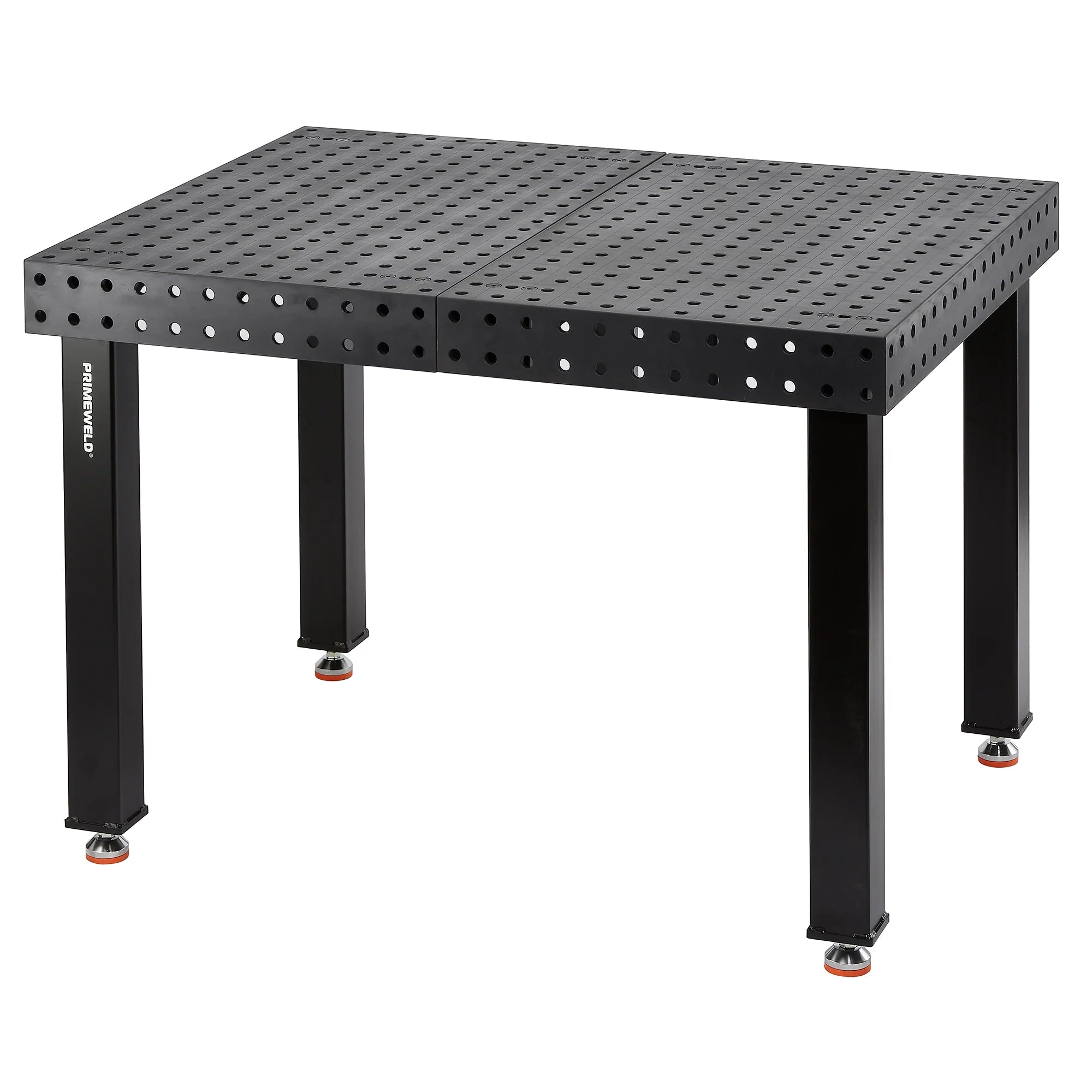

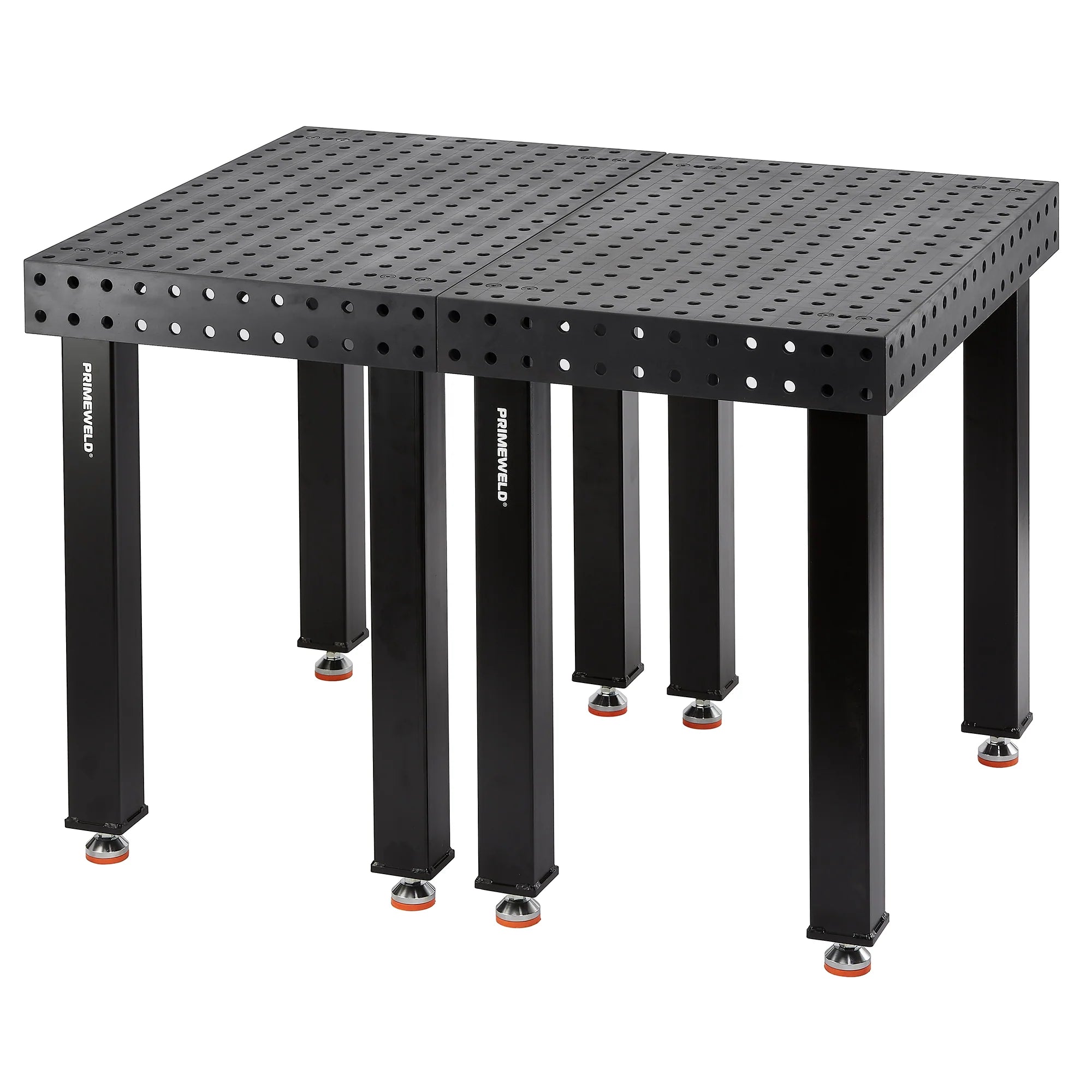

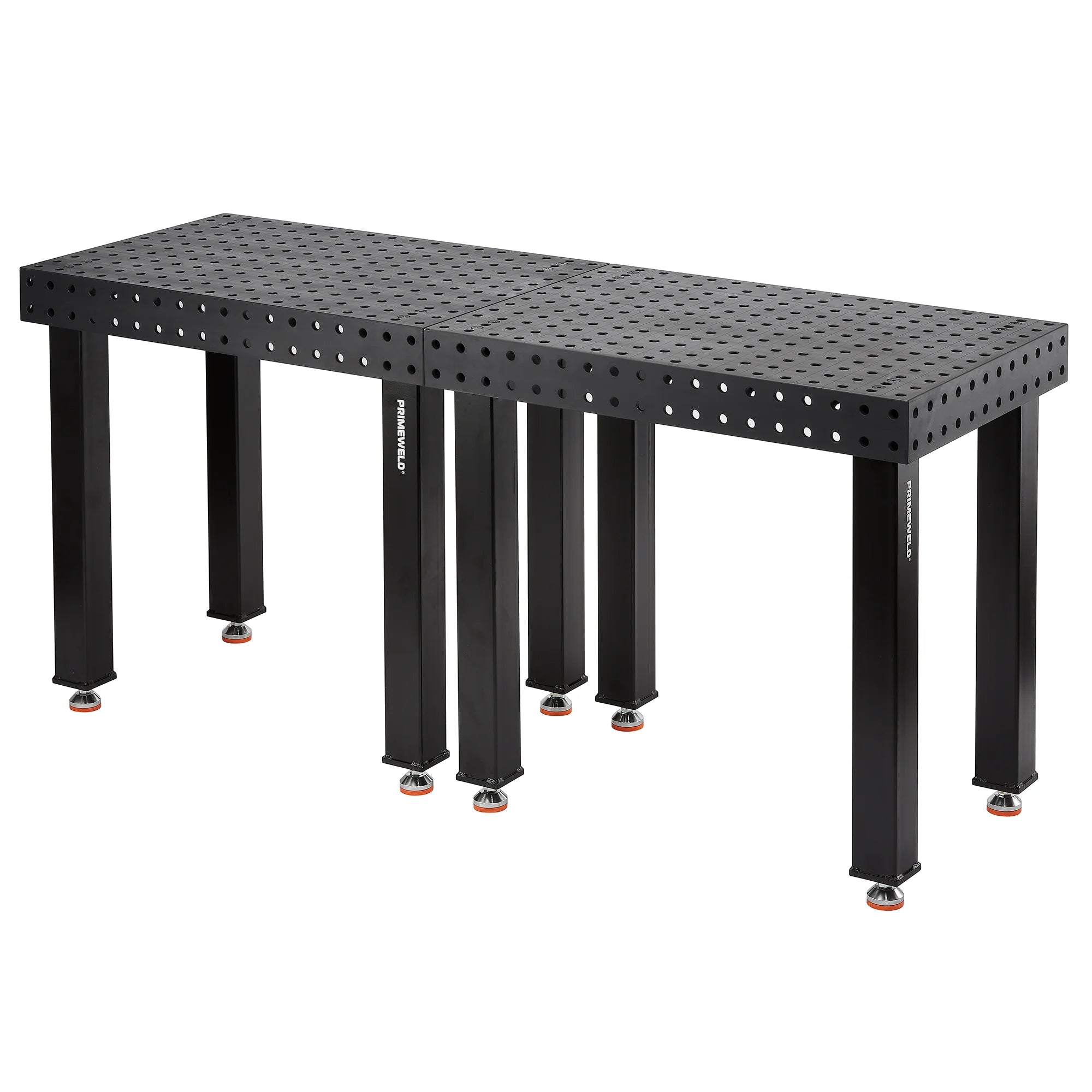

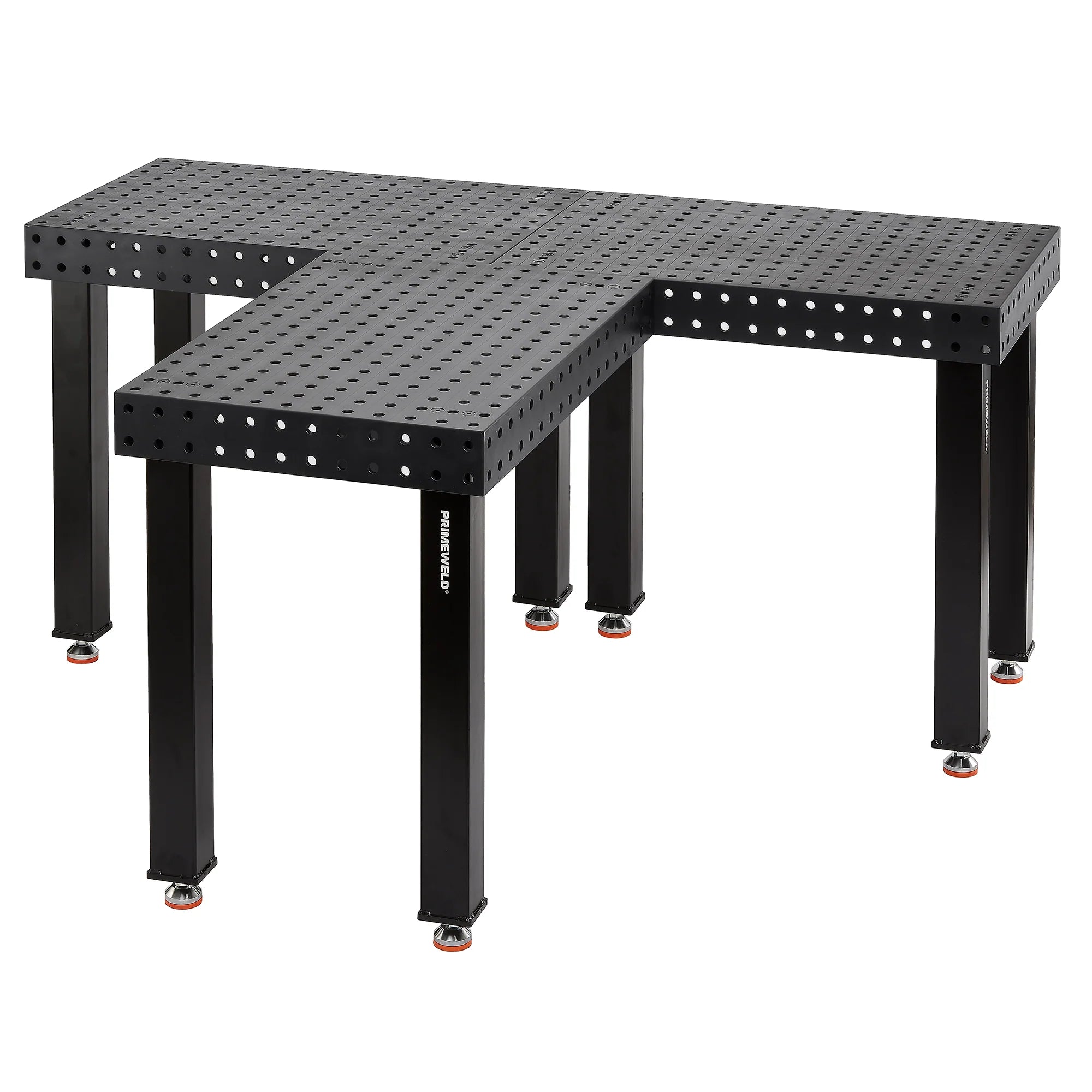

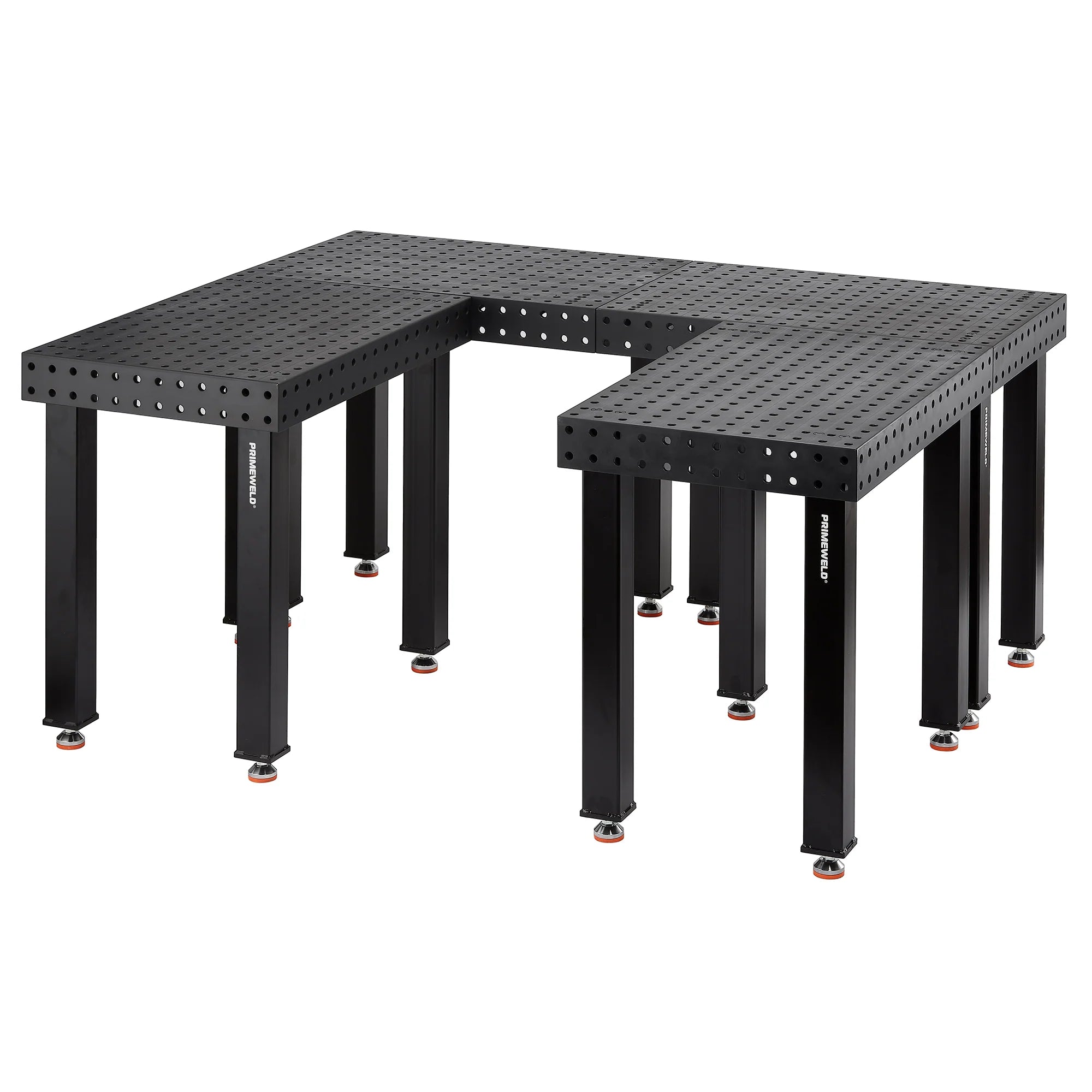

Photos below show options with 1-4 tables Tables that connect with Double
Countersink Locking bolts sold Separately.
