Regular price $1,599.00

The new Laguna Fusion Table Saws are unlike any saw on the market. Having the same quality demands earned through the original fusion table saw, the new fusion line will not only impress but exceed the expectations you have come to expect from Laguna. With a completely redesigned trunnion and arbor controls that focuses on buttery smooth controls and longevity of the saw, we are sure this is the saw that will give you the perfect rip cut for many many years.


  • 1.5HP TEFC Motor
  • 110V, Single-Phase, 60Hz Power Requirement
  • Fusion Dust Collection System
  • Polished Cast Iron Table
  • Included Tools & Integrated Tool Storage
  • Included 10 x 60T Carbide-Tipped Blade

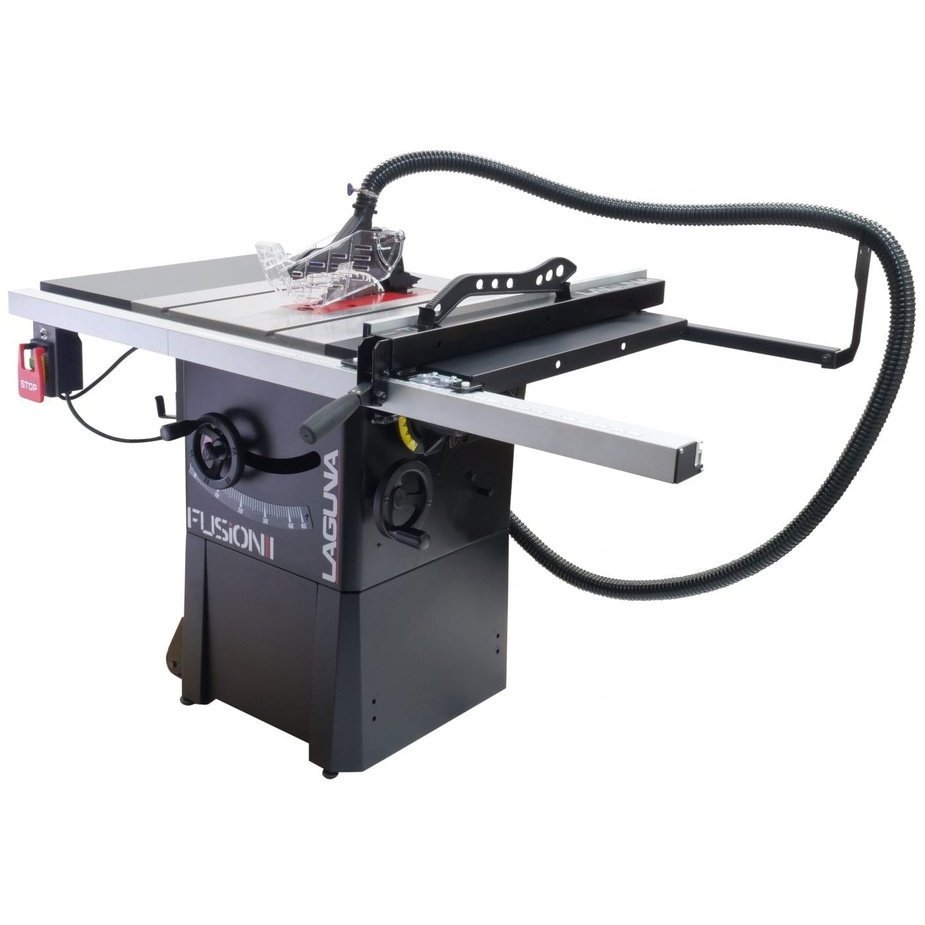

* Machine shown with Optional Wheel System

F1 Features

  • Fusion Hi-Lo Dust Collection
  • Fusion Over-Under Trunnions
  • Polished Cast Iron Table

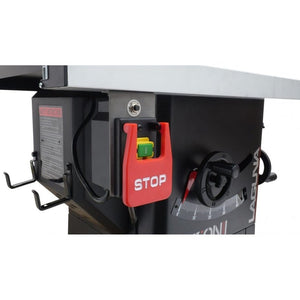

  • Reset Switch
  • Quick-Release Blade Guard and Spreader
  • Riving Knife Included
  • Push Stick Included
  • Miter Gauge Included
  • Blade Changing Tool Included
  • Integrated Tool Included
  • Premium Handles
  • Included 10 x 60T Carbide-Tipped Blade
  • Premium Arbor and Motor Bearings

Additional Specs

Dust Port Size: 4″

Blade Guard Dust Port Size: 1-½″ in.

Table Saw Type: Hybrid Cabinet

Maximum Blade Diameter: 10″

Arbor Size: ⅝″

Arbor Speed: 4000 RPM

Maximum Width Of Dado: ¾″

Blade Tilt Direction: Left

Max Blade Tilt: 45°

Maximum Depth Of Cut At 90°: 3-⅛″

Maximum Depth Of Cut At 45°: 2-⅛″

Max Rip Right Of Blade With Included Fence & Rails: 31″*

* The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on LEFT side is provided only to make the ON/OFF switch position adjustable.

Blade Information

Included Blade Information: 10″ x 60T

Riving Knife/Spreader Thickness: 3/32″

Required Blade Body Thickness: > ⅛″

Required Blade Kerf Thickness: < 5/64″


Table Information

Floor To Table Height: 34-⅜″

Table Size With Extension Wing Width: 44″

Table Size With Extension Wings Depth: 27″

Distance – Front Of Table To Center Of Blade: 13-7/16″

Distance – Front Of Table To Blade At Maximum Cut: 8-⅝″

Main Table Size Thickness: 1-½″


Fence Information

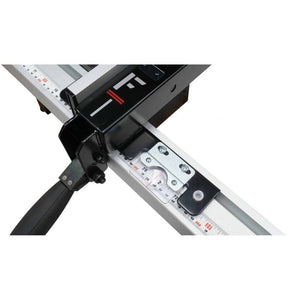

Fence Type: Camlock T-Shape With Aluminum Face

Fence Size Length: 33-7/16″

Fence Size Width: 9-13/16″

Fence Size Height: 2-7/16″

Fence Rail Type: Aluminum Extrusion/Angle Steel

Fence Rail Length: 59-⅜″

Fence Rail Width: 2-15/16″

Fence Rail Height: 1-15/16

Product Dimensions

Weight (Net): 195 lbs

Overall Width (Side-To-Side): 58″

Overall Depth (Front-To-Back): 37-7/32″

Overall Height: 20-½″

Footprint Width: 20-½″

Footprint Length: 20-21/32″

Space Required For Full Range Of Movement Width (Side-To-Side): 58-13/16″

Space Required For Full Range Of Movement Depth (Front-To-Back): 37-7/32


Construction Information

Table: Precision-Ground Cast Iron

Wings: Pre-Formed Steel

Cabinet: Pre-Formed Steel

Trunnions: Cast Alloy

Body Assembly: Pre-Formed Steel

Fence Assembly: Aluminum Extruded Body

Rails: Steel

Miter Gauge Construction: Aluminum Body With Steel Bar

Guard: Steel And Clear Plastic

Body/Cabinet Paint Type/Finish: Powder Coated

Arbor Bearings: Sealed & Permanently Lubricated
