Dust Collectors MDCCF22201

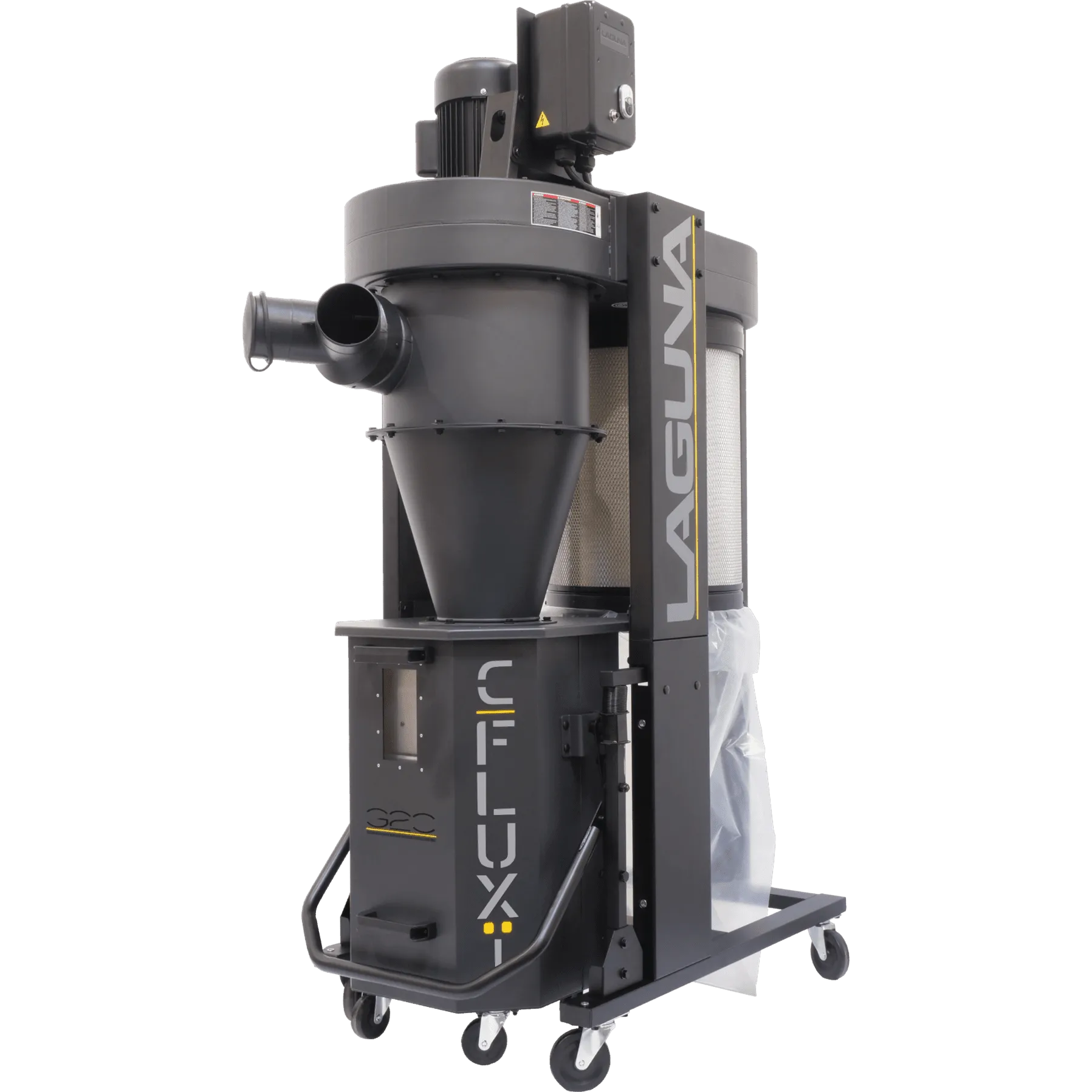

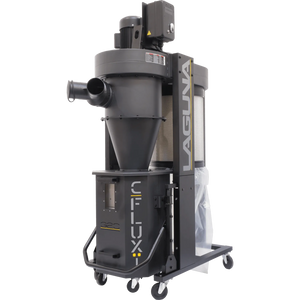

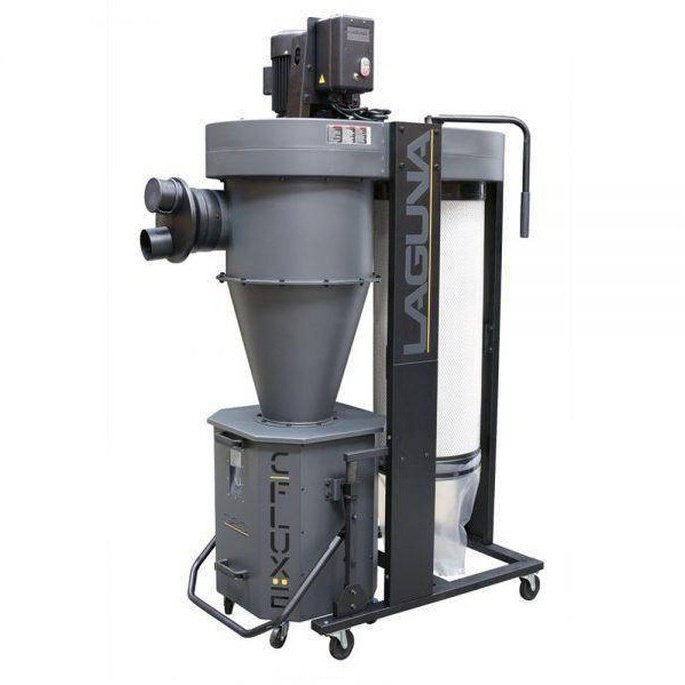

C|Flux: 2 Cyclone Dust Collector

MDCCF22201
Vendor
Laguna Tools
Regular price
$2,099.00
Sale price
$2,099.00
Quantity must be 1 or more

The c|flux series sets a new standard for cyclones. The horizontal chute is designed to maximize airflow while improving CFM. All shapes and dimensions has been reevaluated to optimize performance.

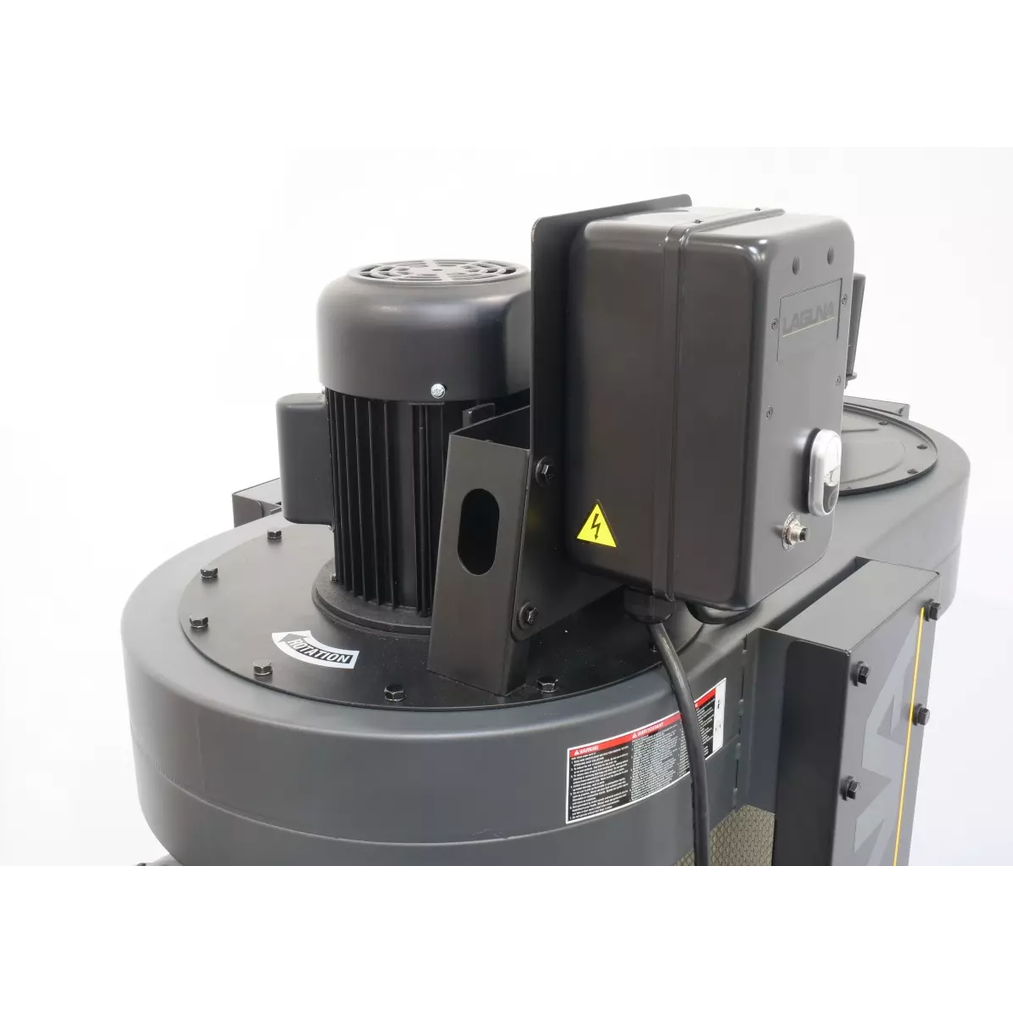

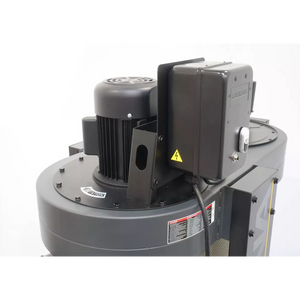

  • Motor HP: 2 HP
  • Phase: 1
  • Voltage: 220v
  • Amps: 18.8 Amps
  • Hertz: 60
  • Plug: No
  • RPM: 3450
  • Switch type: Radio Frequency Remote switch – Black Box
  • Hand held remote control: HF
  • Real CFM: 1166
  • Nominal CFM: 1740
  • Max Static Pressure (inches of water): 9.3?
  • Impeller/Fan Size: 14.5?
  • Impeller Material: Steel
  • Impeller type: Radial Fin
  • Balanced To:: ISO 1940
  • Inlet Diameters: 6? by 4? x 2 ports
  • Drum Capacity: 46 Gal.

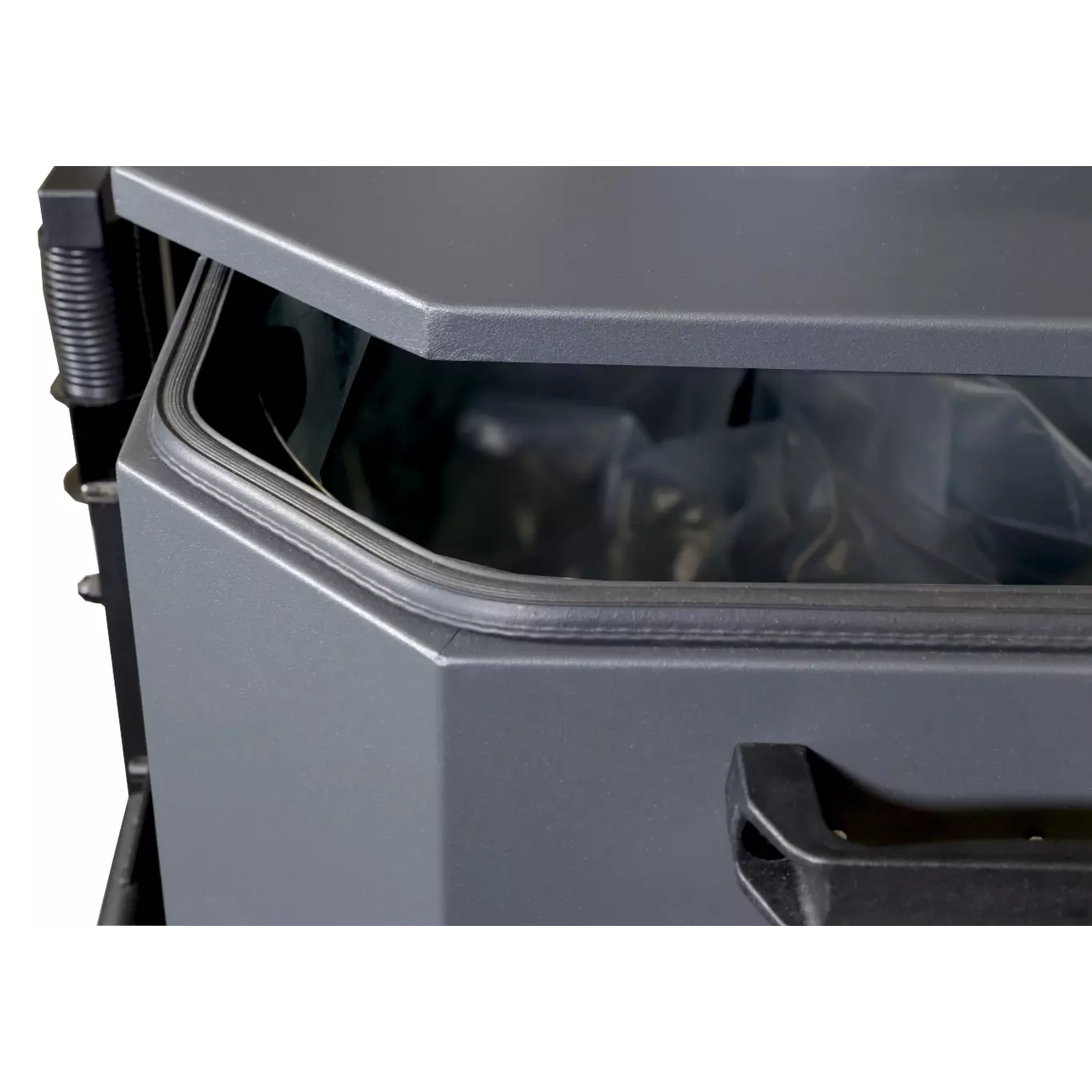

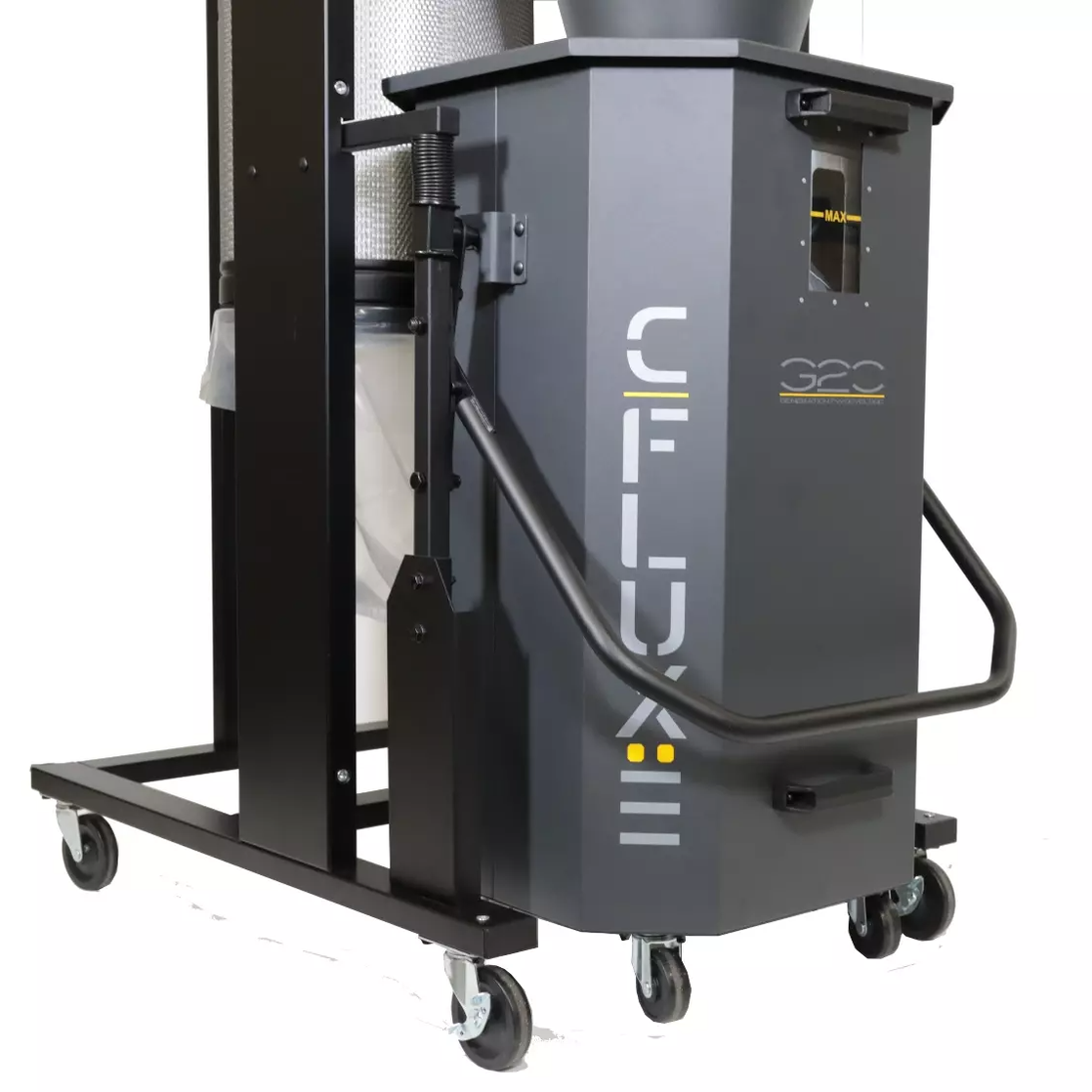

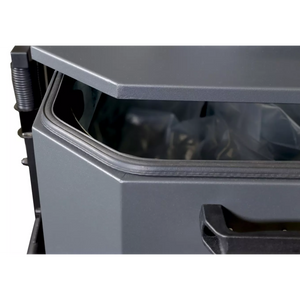

  • Octagon drum: Metal drum insert
  • Drum collection bag (Dia. x L): Plastic bag (610 x 950mmL)
  • Canister Filter type: 1 Micron
  • Filtration efficiency: 0.2-2micron @ 99.97%
  • MERV rating: 12
  • Canister diameter: 400mm (15.75?)
  • Cansiter length: 900mm (19.69?)
  • Filter Surface Area: 9.5m²/109ft²
  • Canister cleaning: Manual Handle Crank/*Optional Auto Cleaning Kit available
  • Canister filter lower dust collection: Plastic bag (400 x 600mmL)
  • Base with perforated sheet across canister floor: N/A
  • Wheels: 4? Flat Caster
  • US/CSA Approved: Yes
  • Decibel Reading: 88 d B(A) (@9.8ft)
  • Machine weight: 134kgs/296Lbs
  • Shipping weight: 165kgs/364Lbs
  • Assembled Dimensions (L x W x H): 46? x 27? x 79? | 1178x690x2025mm

Additional Shipping Charges will Apply, Your order will be processed once rate is calculated
