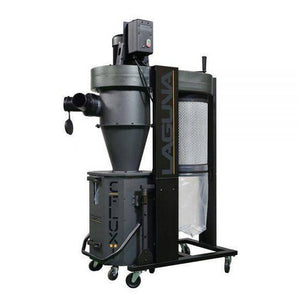

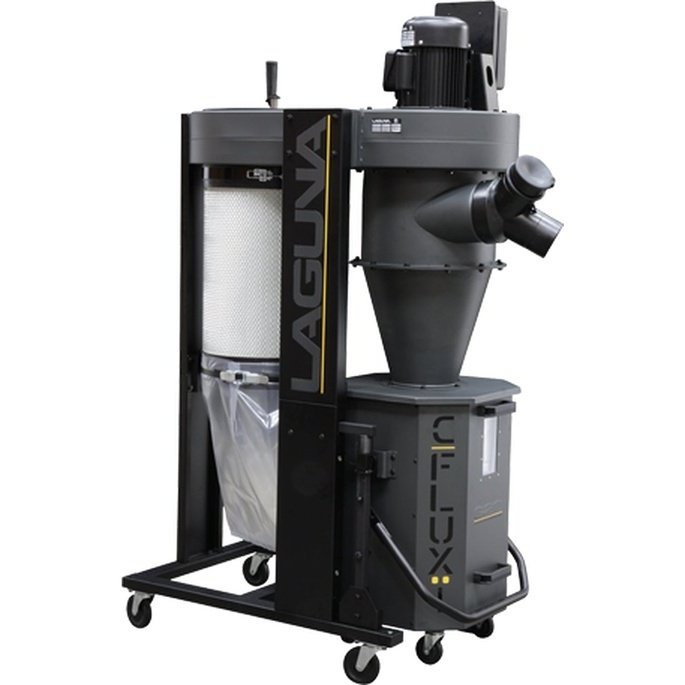

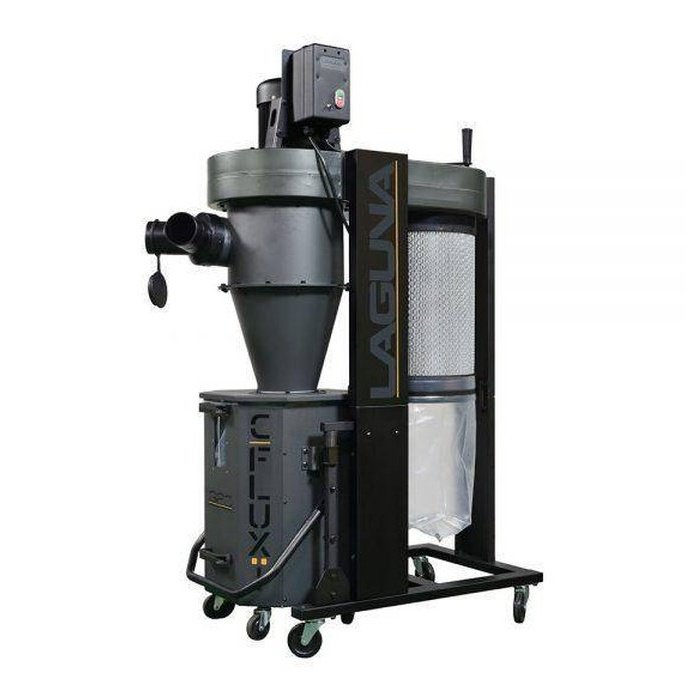

CFlux 1 Cyclone Dust Collector
CFlux 1 Cyclone Dust Collector
  • SKU: C|Flux1
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

CFlux 1 Cyclone Dust Collector

Shipping calculated at checkout.

Product Description

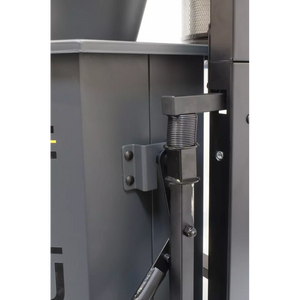

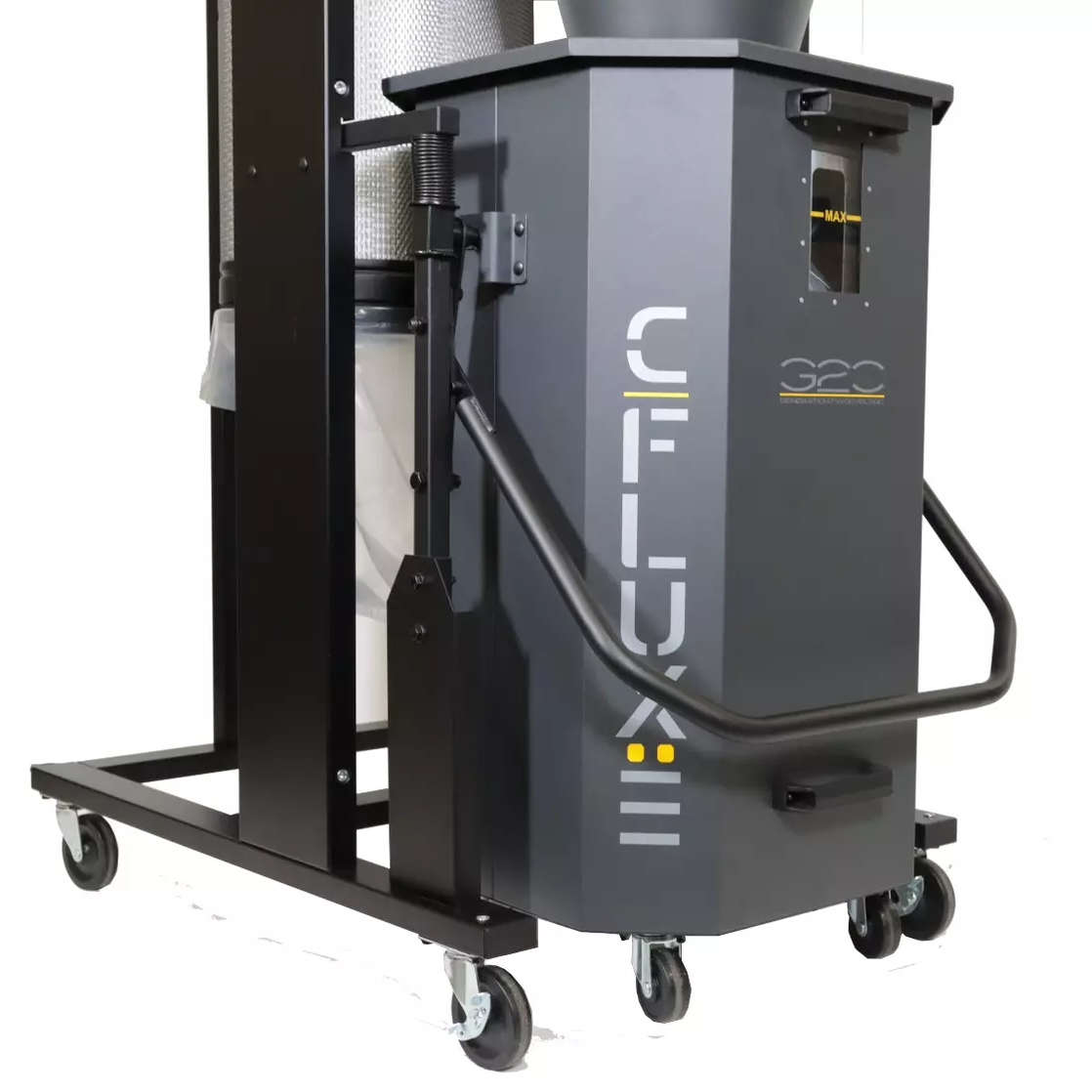

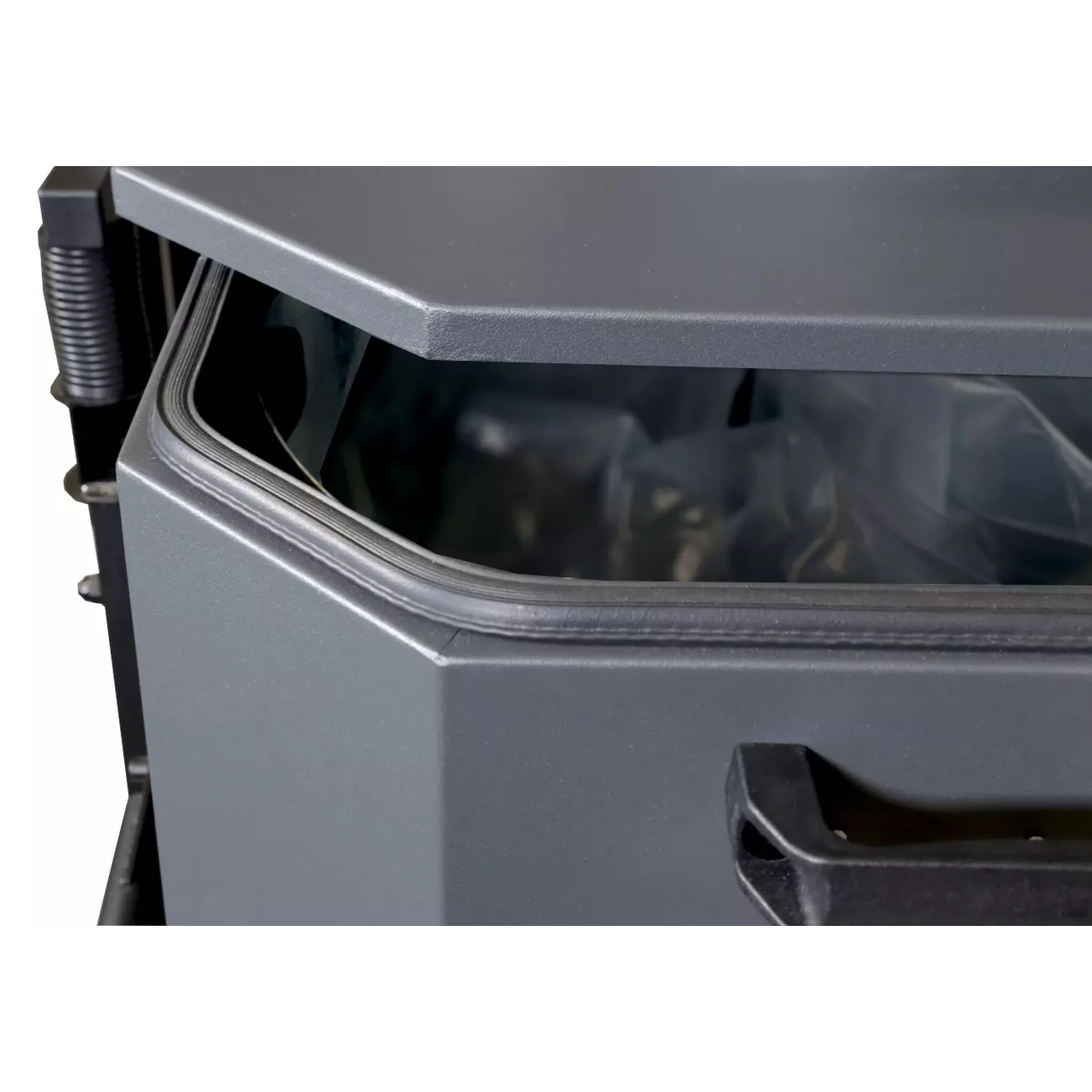

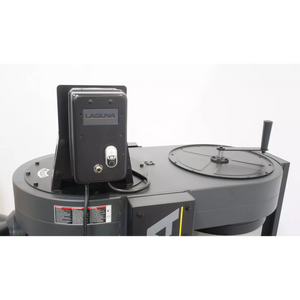

For the popular C|Flux cyclone dust collectors, we™ve kept the user-friendly aspects of the previous generation while adding smart new features to improve the user experience. Among the upgrades is a dual-paddle filter cleaning design, and a max level indicator to increase filter longevity. The iconic octagonal drum grows to an impressive 46-gallon capacity on the C|Flux 2 and 3 models, and the newly redesigned 3-piece drum construction requires far fewer joints and fasteners cutting assembly time, while the locking casters provide additional stability.

C|Flux: 1 Spec

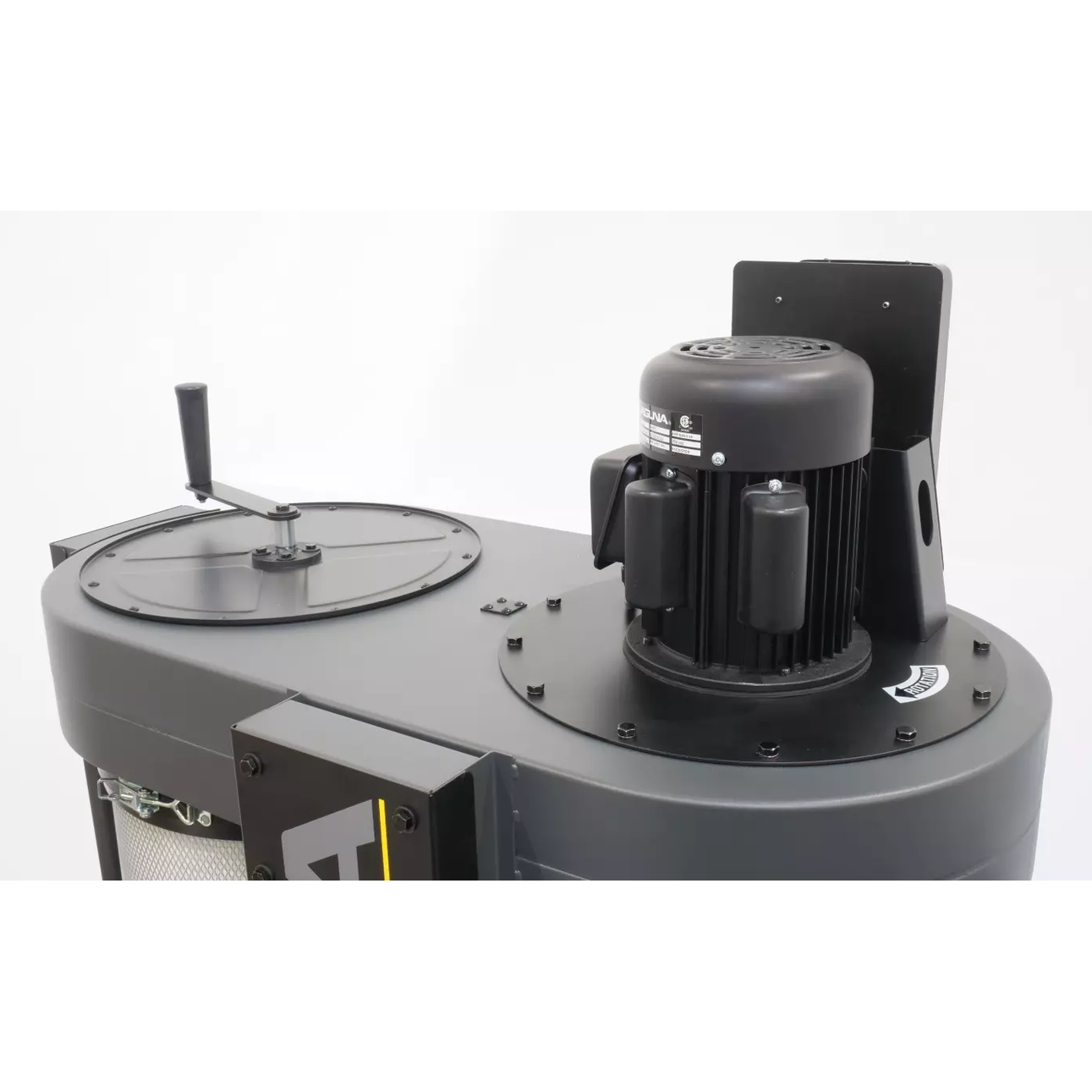

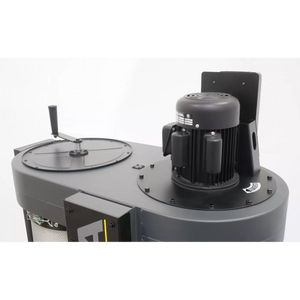

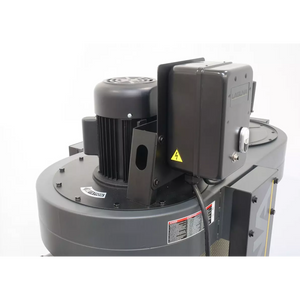

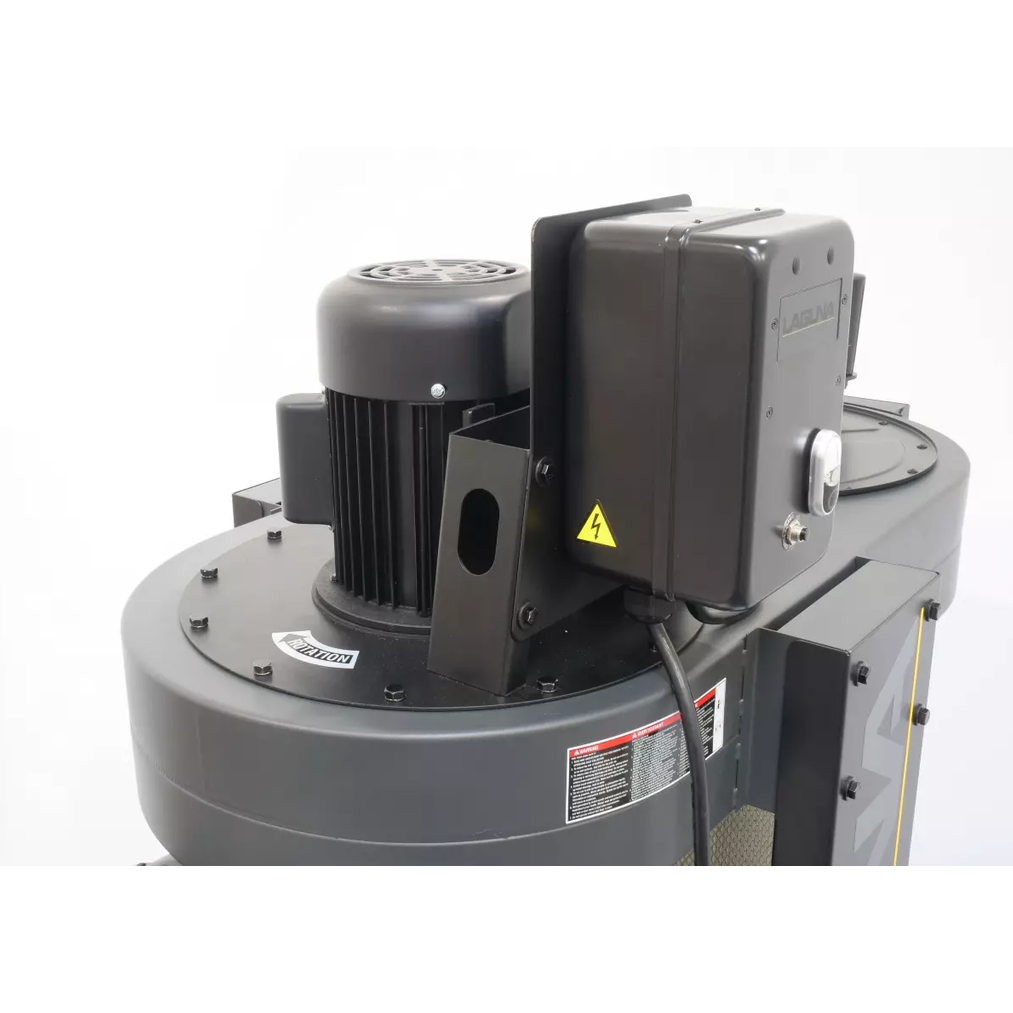

  • Motor Specs: 1.5HP
  • Electrical Specs: 110V/220V / 60Hz / 1PH / 3450 RPM
  • Running AMP: (with 6³ inlet) 18.8A at 110V; 9.4A at 220V
  • Air Volume: 900CFM (Cubic Feet Per Minute)
  • Max Static Pressure: 10.1³
  • Fan Size: 13.5³
  • Inlet: One 6³ or Two 4³ Ports

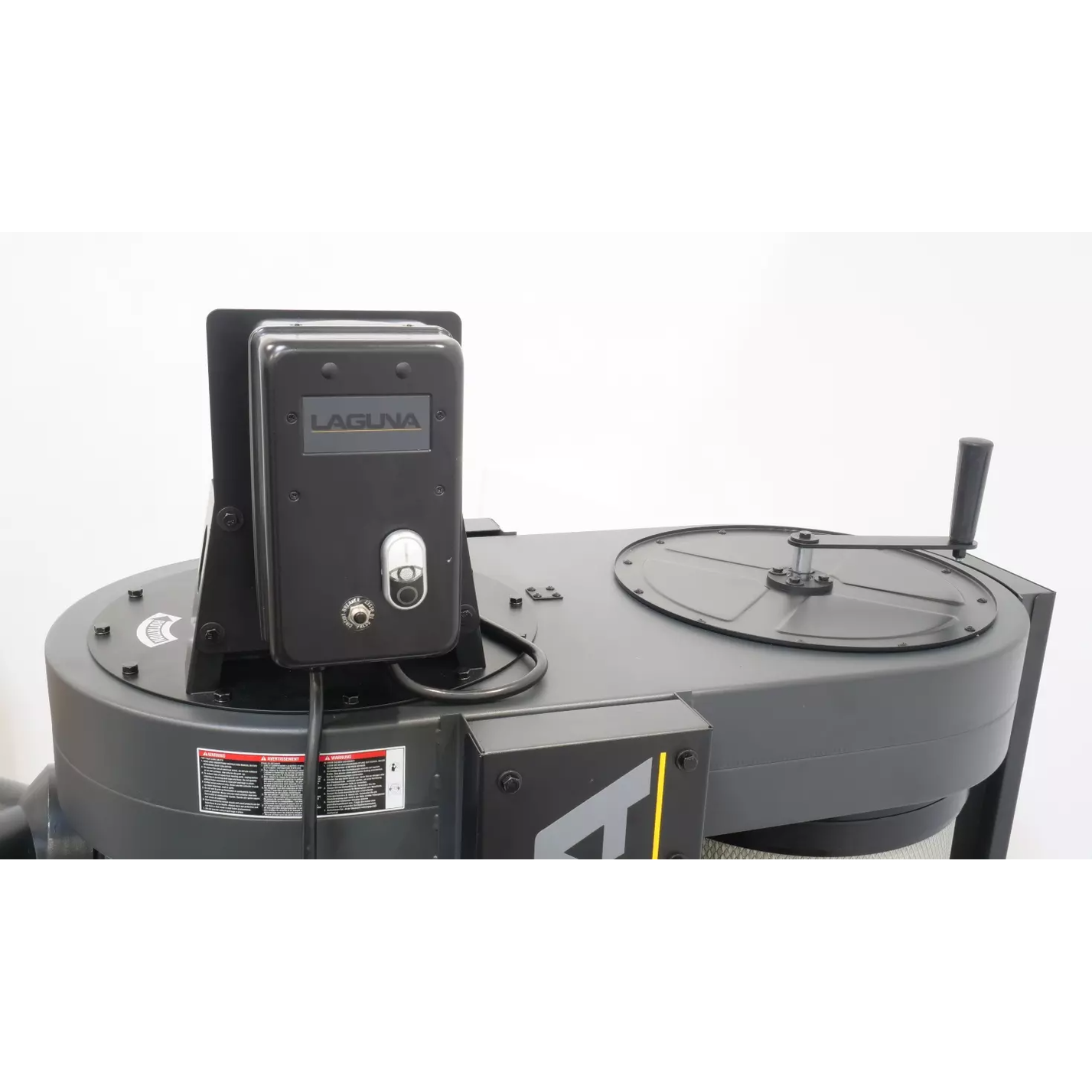

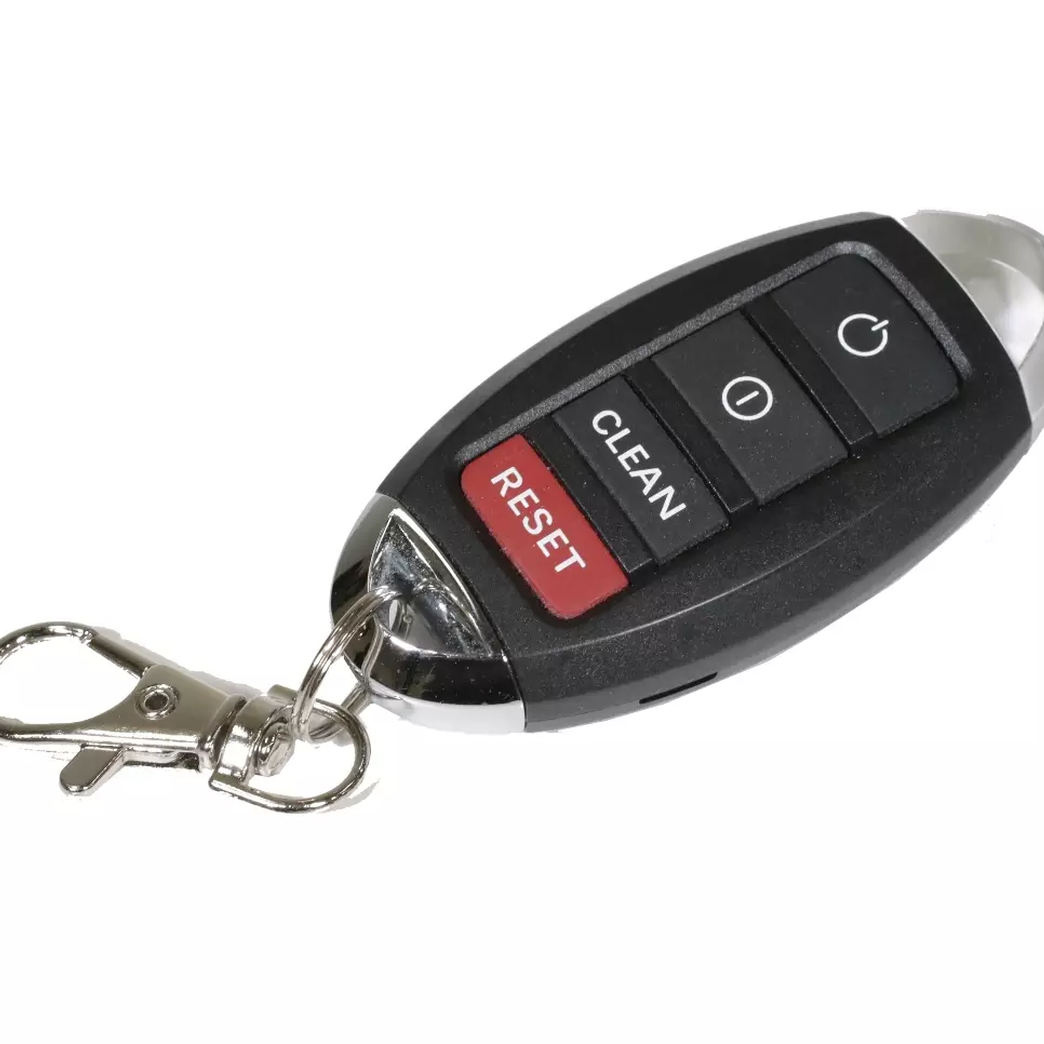

  • Remote Control: High Frequency

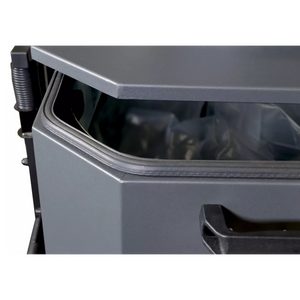

  • Collection Capacity: 25 Gallon Octagon Drum
  • Decibel Reading: 82 dB (@9.8ft)
  • Assembled Dimensions (L x W x H): 42³ x 25³ x 68³
  • Packing Size (L x W x H): 45³ x 28.3³ x 47³ (114.5 x 72 x 119.5 cm)
  • Machine Weight: 232 lbs. (105 kg)
  • Shipping Weight: 287 lbs. (130 kg)
  • Filter Specs
  • Filtering Area: 48.4sq/ft (4.5sq/m)
  • Cartridge Filter: 1 Micron, 15.74³ x 19.68³ (40 x 50 cm) x 1pc

Additional Shipping Charges will Apply, Your order will be processed once rate is calculated
