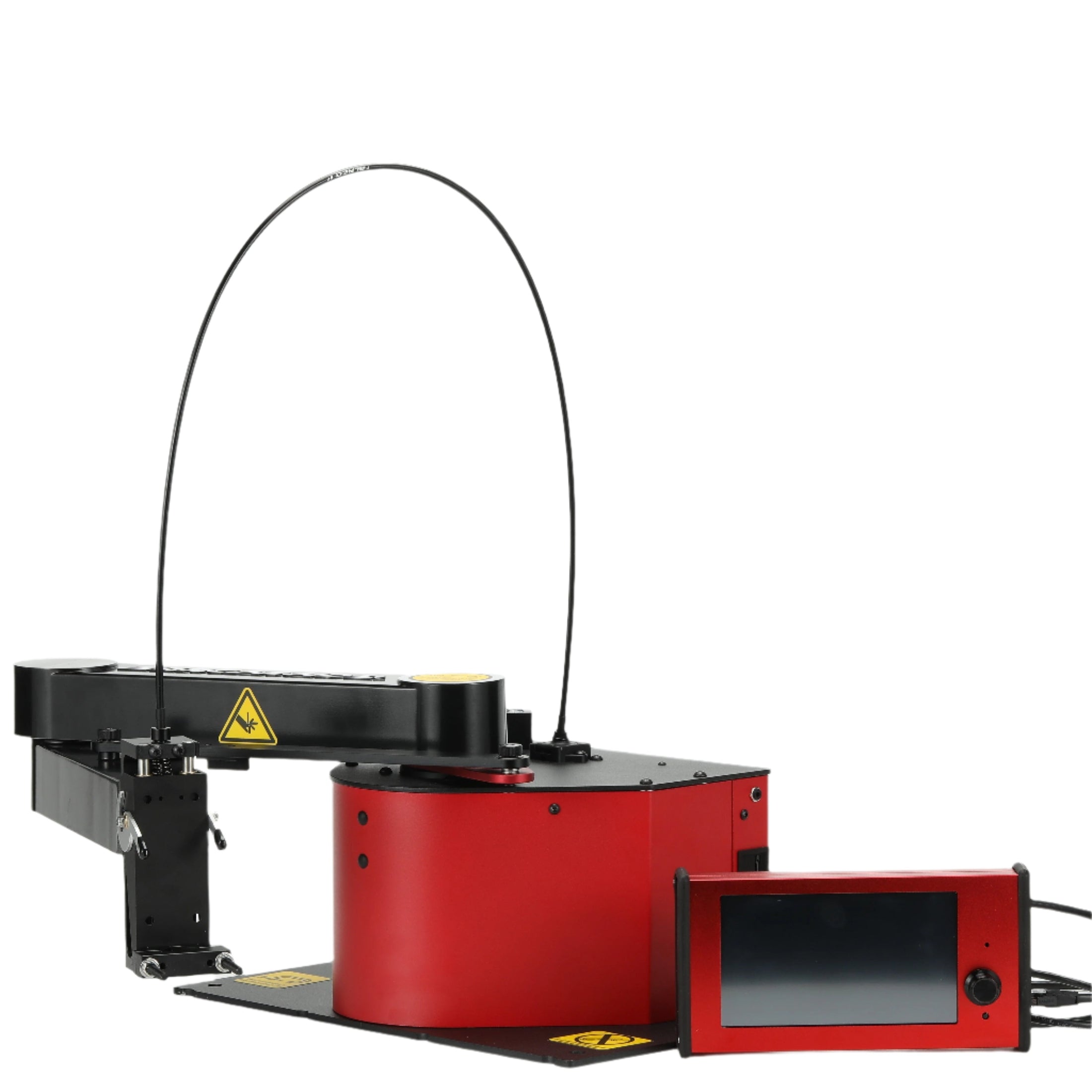

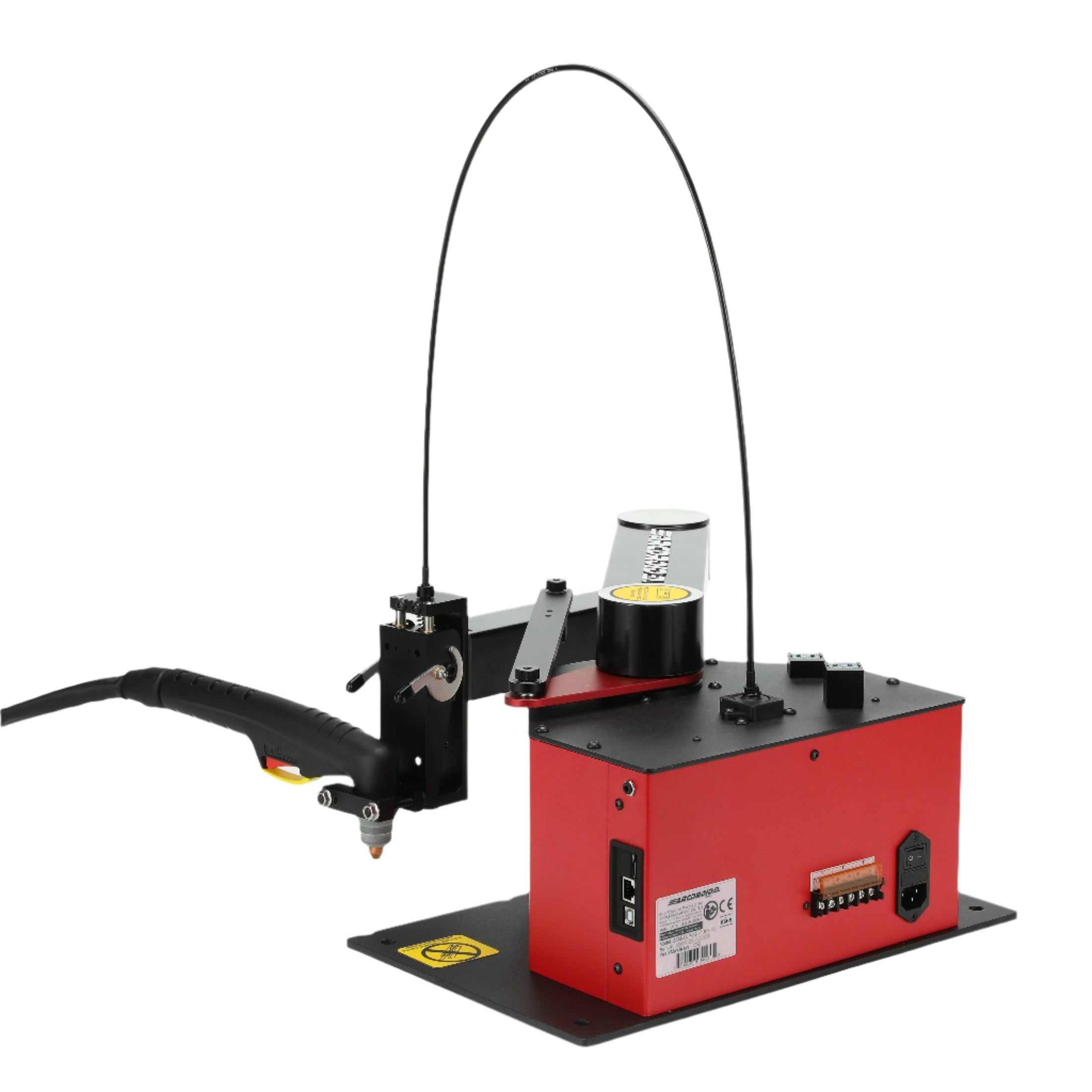

ArcDroid CNC Plasma Robot
ArcDroid CNC Plasma Robot
ArcDroid CNC Plasma Robot
ArcDroid CNC Plasma Robot
  • SKU: ARCDROID
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

ArcDroid CNC Plasma Robot

$3,348.95
Simple Trace technology; NO EXTERNAL SOFTWARE OR CAD SKILLS REQUIRED!



Compatibility List



CUT ANYTHING WITH SIMPLE TRACE™

Simple Trace™ is an easy to use and intuative interface. Point to point or free hand, trace your template and ArcDroid™ creates a cut file instantly. Simply use the ArcDroid™ arm to follow the contours of your template and high accuracy encoders map your every move. Now all your cardboard cut outs are functional
cut files!


  • Fusion 360 and SheetCAM compatible
  • Powerful touch screen interface. No external PC required!
  • Get more out of your plasma cutter
  • Everything you need to get started
  • NOTE: ArcDroid™ is not currently compatible with low cost High Frequency Start Plasma Cutters

PRECISION CUTS EVERY TIME

Use popular CAM programs like Fusion 360, SheetCAM and Pronest to create your G-code and load by USB.


SELF CONTAINED AND EASY TO USE

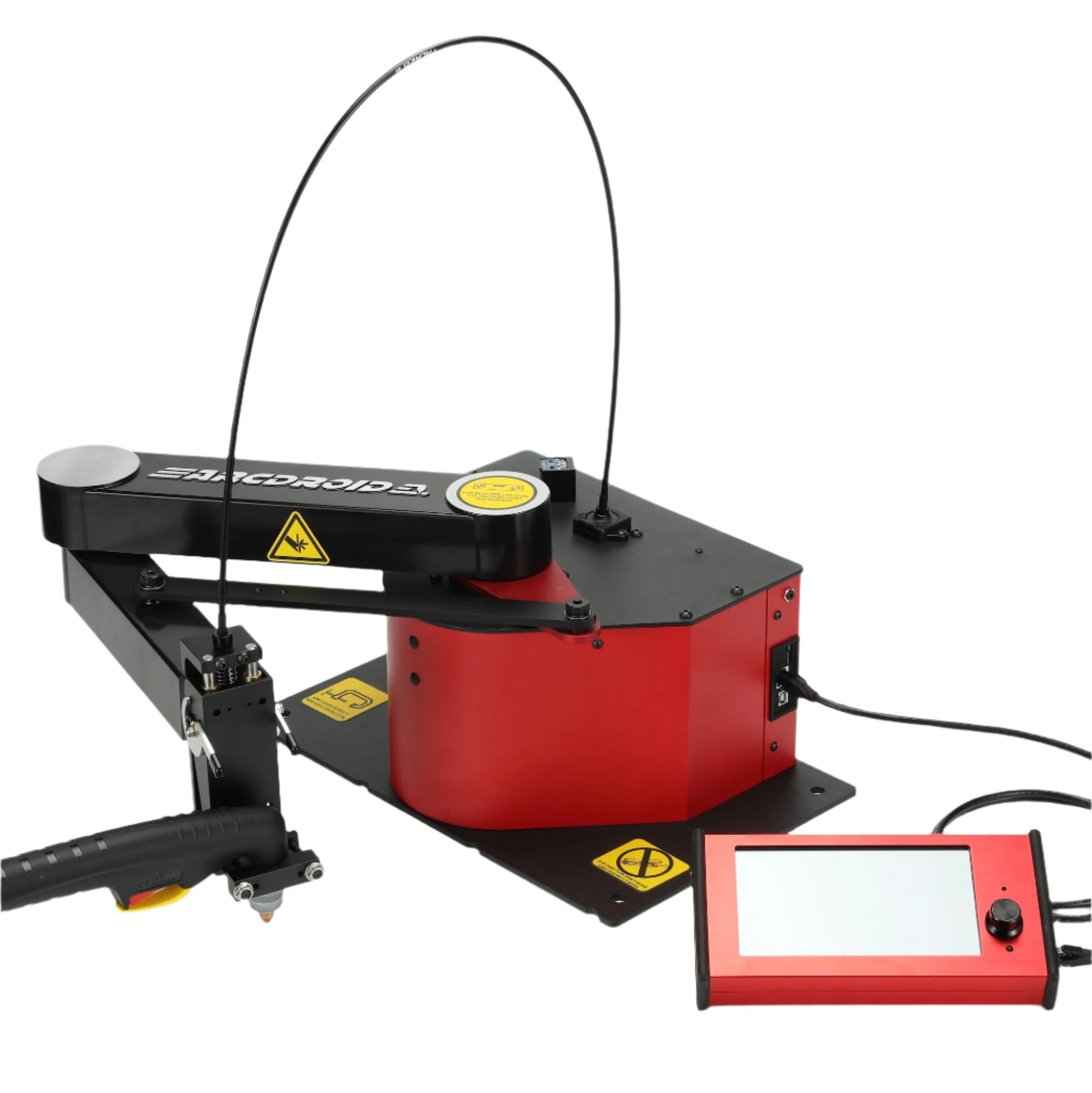

All-in-one glove friendly touch screen interface which means no external PC required!
Use popular CAM programs like Fusion 360, SheetCAM and Pronest to create.


INCREDIBLE CUTTING POWER IN A COMPACT FRAME

Whether you draw it, download it or just imagine it; you can cut it with ArcDroid™. Any table is a plasma table with ArcDroid™. Precision encoders and high resolution drives mean ArcDroid™ accurately reproduces your design. Get fast, accurate and repeatable par ts from your plasma cutter.


Features

Onboard Simple Trace™ software means no PC or external software required

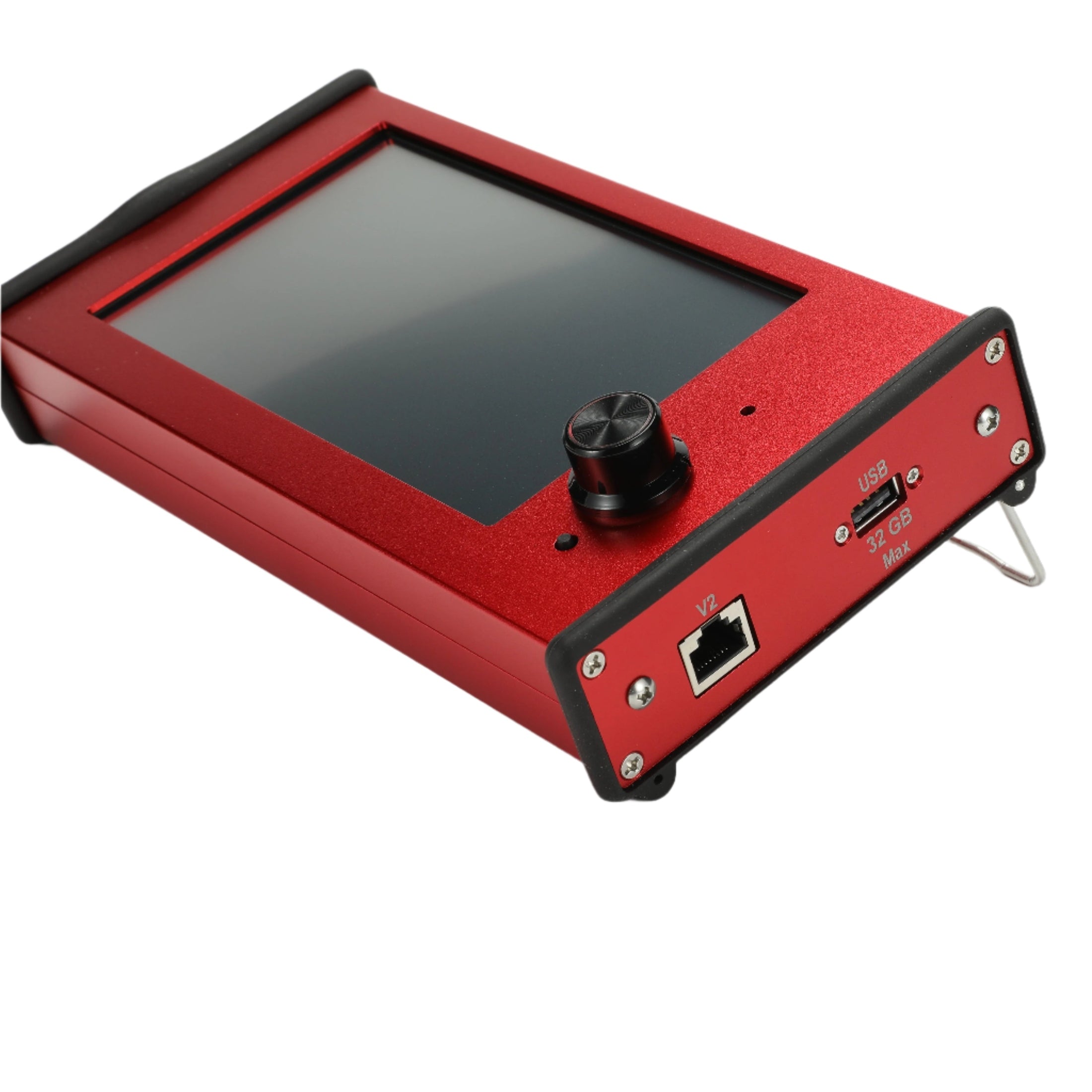

  •  Easy to read glove friendly touch screen Interface
  •  Works with most hand held plasma cutters *
  •  Compatible with CAM programs such as Fusion 360, SheetCAM and Pronest
  •  USB impor t of DXF and G-Code Files †
  •  Lightweight and portable less than 17 Kg (38 Lbs)
  •  Compact form factor 50 x 36 x 25 cm (20 x 14 x 10 inches)
  •  Can be repositioned easily to increase total cut envelope

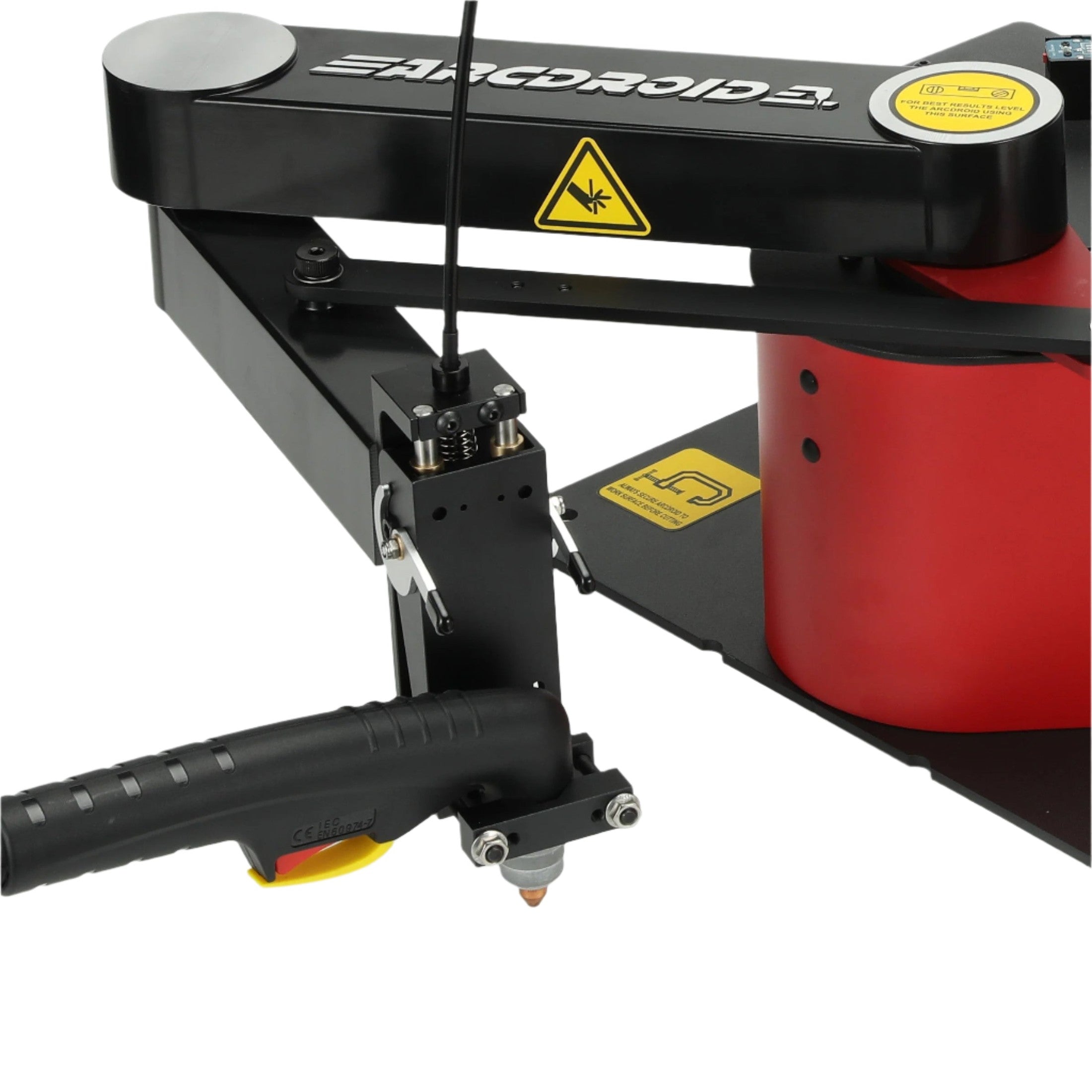

  •  Programmable pierce and cut heights
  •  Adjustable kerf compensation
  •  Full mechanical Z probing on every cut start
  •  Torch height compensation feature for uneven material **
  •  Programmable pierce and finish delays
  •  1 Year Manufacturer Warranty


Specification

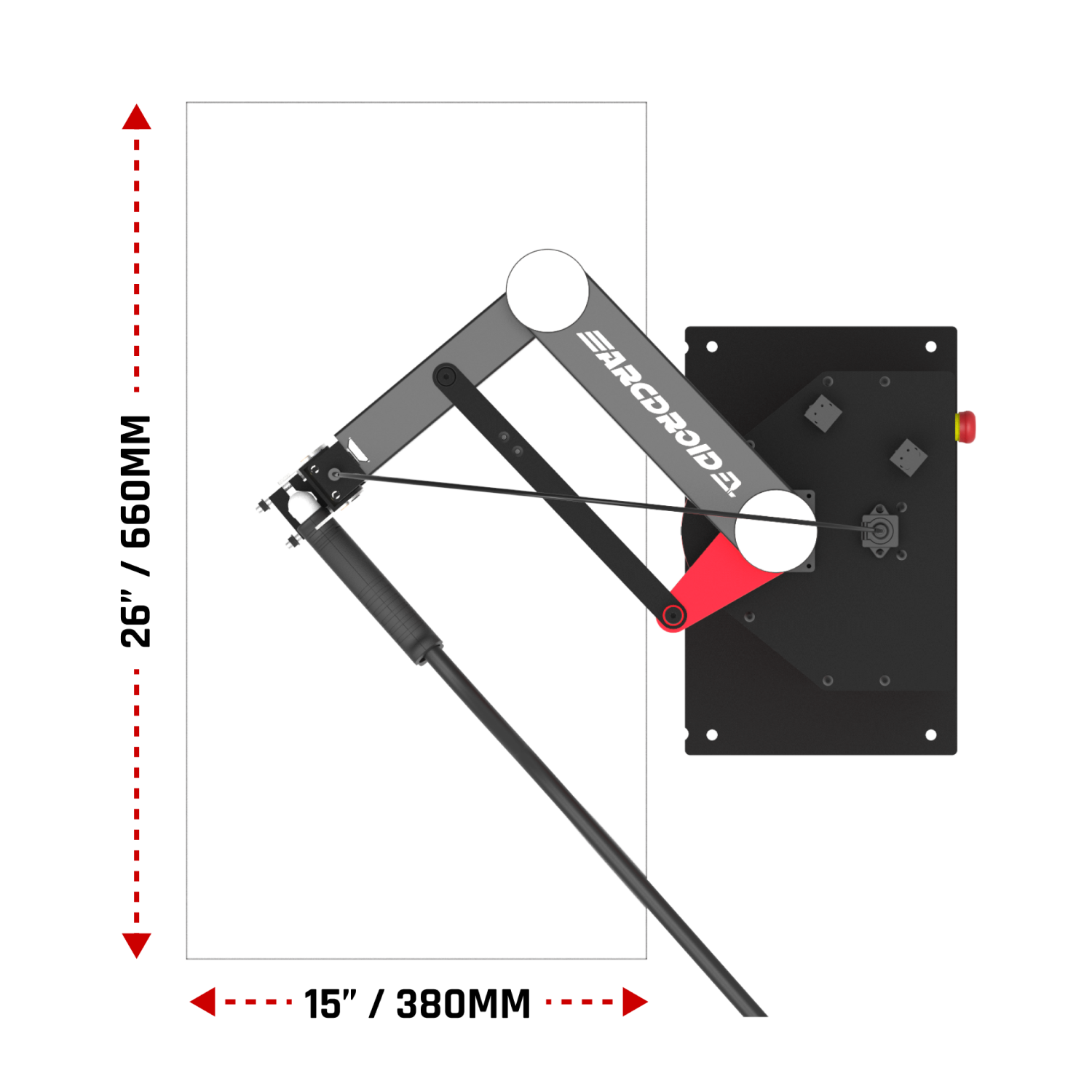

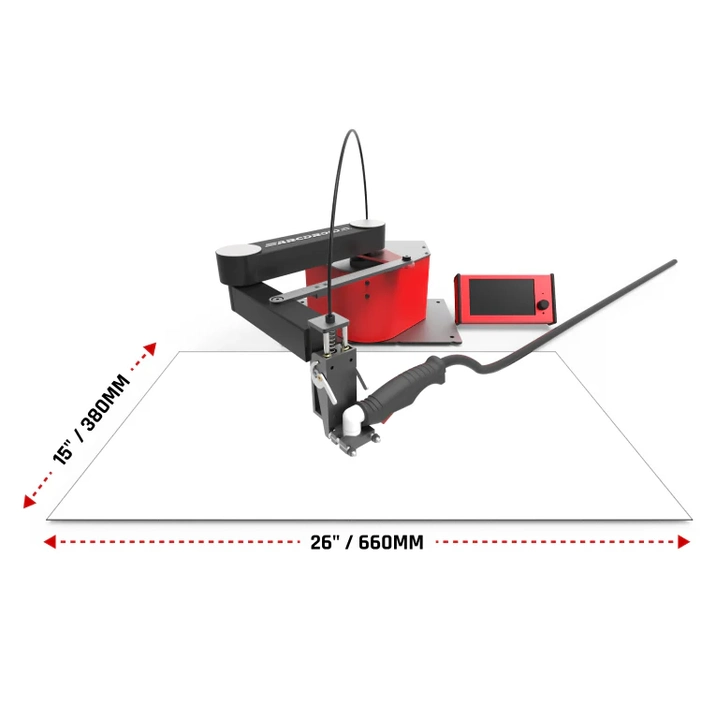

  •  Large cutting envelope, 660 x 380mm ( 26 x 15 inches)
  •  65mm Z travel (2.5 inches”)
  •  Max cut speed 5,000mm/min (200”/min)
  •  Max travel speed 8,000 mm/m (315”/min)

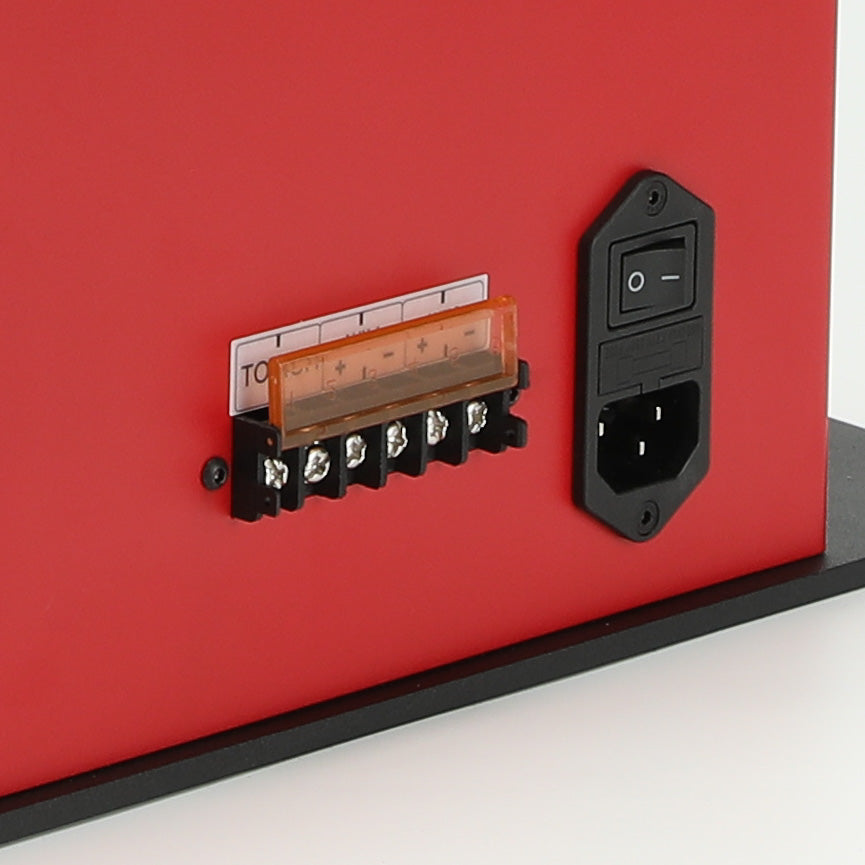

  •  Available in 120V and 240V versions
  •  CE Certified
  •  2006/42/EC Annex I
  •  EN 60204-1: 2018
  •  EN ISO 12100:2010
