AMS CNC 60 Master CNC Router Bit Collection
AMS CNC 60 Master CNC Router Bit Collection
AMS CNC 60 Master CNC Router Bit Collection
  • SKU: AMA-AMS-CNC-60

AMS CNC 60 Master CNC Router Bit Collection

$4,268.96
Shipping calculated at checkout.

We have the tool you need for every CNC application! Whether you’re creating signs building cabinets or surfacing large areas we have created a versatile mix of router bits to complete your project. Each router bit is manufactured from Amana’s exclusive grade carbide according to stringent quality standards.

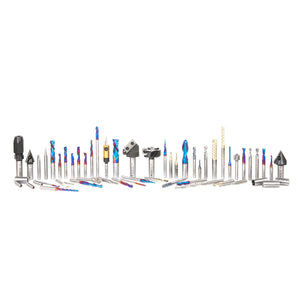

57 pieces of the most versatile CNC industrial quality high performance solid carbide carbide tipped and solid carbide insert router bits. Router bits feature superior cutting edges mirror like finish (on some of the tools) balancing carbide of different grades for different materials/applications and excellent tool design to allow for repeat sharpening.

Designed for cutting:

  • Aluminum Brass Bronze Copper
    Gold Silver & Titanium
  • Aluminum Composite Material (ACM)
  • Aluminum FoamCore
  • Composite
  • Corrugated Polyproplene
  • Fiberglass
  • Fiberglass PCB Board
  • FoamCore
  • Gatorfoam®
  • Graphite

  • Melamine
  • MDF/HDF
  • Laminate
  • Phenolic Composites
  • Plastic Acrylic & Plexiglas®
  • Sign Foam Sign Board & HDU
  • Solid Surface
  • Steel and Stainless Steel
  • Veneered Plywood
  • Wood
  • Xanita® Lightboard™ and X-Board™

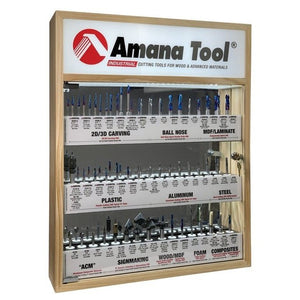

Stored in a freestanding or wall mounted LED illuminated solid wood display with mirrored interior and locking clear acrylic door.
Wood Storage Box Dimensions
27-1/2" H x 22-1/2" W x 6" Deep
Included
TOOL NO. PRODUCT NAME QTY
43500
43500 Solid Carbide Single O Flute Plastic Cutting 1/8 Dia x 1/2 x 1/4 Inch Shank 1
RB-102
RB-102 High Precision Steel Router Collet Reducer 1/4 Overall Dia x 1/8 Inner Dia x 1 Inch Long 1
RB-116
RB-116 High Precision Steel Router Collet Reducer 1/2 Overall Dia x 1/4 Inner Dia x 1 Inch Long 1
RB-122
RB-122 High Precision Steel Router Collet Reducer 1/2 Overall Dia x 3/8 Inner Dia x 1-3/16 Long 1
45783
45783 Solid Carbide Carving Liner 18 Deg x 1/4 Dia x 5/8 x 1/4 Inch Shank x 1-Flute 1
46270
46270 Solid Carbide CNC Foam Cutting Up-Cut Square End Spiral 1/8 Dia x 1-1/8 x 1/4 Shank x 2-1/2 Inch Long Router Bit 1
46272
46272 Solid Carbide CNC Foam Up-Cut Cutting Square End Spiral 1/4 Dia x 2-1/4 x 1/4 Shank x 2-1/2 Inch Long Router Bit 1
46424
46424 Solid Carbide Up-Cut Spiral Ball Nose 3/32 Radius x 3/16 Dia x 1/2 x 1/4 Shank x 2-1/2 Inch Long x 2 Flute Router Bit 1
46426
46426 Solid Carbide Up-Cut Spiral Ball Nose 1/8 Radius x 1/4 Dia x 1/2 x 1/4 Shank x 2-1/2 Inch Long x 2 Flute Router Bit 1
51460
51460 CNC Solid Carbide Spiral for Steel & Stainless Steel with AlTiN Coating 3-Flute x 1/8 Dia x 3/8 x 1/4 Shank x 1-1/2 Inch Long Up-Cut Router Bit / 45º Corner Chamfer End Mill 1
46308
46308 CNC Compression Solid Carbide ZrN Coated Honeycomb Cutting 3/8 Dia x 1-1/4 x 3/8 Shank x 6-Flute 1
RC-1075
RC-1075 CNC In-Groove Insert Engraving Tool Body 1/4 Inch Shank 1
46306
46306 CNC Solid Carbide ZrN Coated Honeycomb Cutting Hogger 1/4 Dia x 1-1/4 x 1/4 Shank x 4 Inch Long x 6-Flute 1
47640
47640 1/2 Inch Shank CNC Extension Adapter for 1/4 Inch Shank Router Bits 1
51593
51593 CNC Variable Helix Spiral Square Bottom 1/4 Dia x 5/8 x 1/4 Shank Solid Carbide AlTiN Coated End Mill 1
51410-K
51410-K Solid Carbide CNC Spektra™ Extreme Tool Life Coated Spiral O Flute, Plastic Cutting 1/8 Dia x 1/2 x 1/8 Shank Up-Cut Design Router Bit 1
51417-K
51417-K Solid Carbide CNC Spektra™ Extreme Tool Life Coated Spiral O Single Flute, Plastic Cutting 3/16 Dia x 5/8 x 1/4 Shank x 2 Inch Long Up-Cut Router Bit 1
51404-K
51404-K Solid Carbide CNC Spektra™ Extreme Tool Life Coated Spiral O Flute, Plastic Cutting 1/4 Dia x 3/4 x 1/4 Inch Shank Up-Cut Router Bit 1
RC-1045
RC-1045 CNC Insert V-Groove 45 Deg x 7/8 x 1/2 Inch Shank 1
RC-1108
RC-1108 Insert V-Groove 60 Deg x 1-1/16 Dia x 29/32 x 1/2 Inch Shank CNC 1
RC-1102
RC-1102 Insert V-Groove 90 Deg x 3/4 x 1/2 Inch Shank CNC 1
51464
51464 CNC Solid Carbide Spiral for Steel & Stainless Steel with AlTiN Coating 3-Flute x 1/4 Dia x 5/8 x 1/4 Shank x 2-3/8 Inch Long Up-Cut Router Bit / 45º Corner Chamfer End Mill 1
RCK-360
RCK-360 Solid Carbide Insert 30 Deg x 0.005 Inch V Tip Width Engraving Knife for In-Groove System 1
45792
45792 Carbide Tipped Double Edge Folding V-Groove 90 Deg x 0.090 Inch Tip Width x 1/2 Dia x 13/64 x 1/4 Inch Shank 1
45795
45795 Carbide Tipped Double Edge Folding V-Groove 108 Deg x 0.090 Inch Tip Width x 5/32 x 1/2 Dia. x 1/4 Inch Shank 1
46172-K
46172-K CNC Solid Carbide Spektra™ Extreme Tool Life Coated Compression Spiral 3/8 Dia x 1-1/4 Inch x 3/8 Shank 1
46188-K
46188-K CNC Solid Carbide Spektra™ Extreme Tool Life Coated Compression Spiral 1/2 Dia x 1-1/4 x 1/2 Inch Shank 1
46170-K
46170-K CNC Solid Carbide Spektra™ Extreme Tool Life Coated Compression Spiral 1/4 Dia x 7/8 x 1/4 Inch Shank 1
51411-K
51411-K Solid Carbide CNC Spektra™ Extreme Tool Life Coated Spiral O Flute, Plastic Cutting 1/8 Dia x 1/2 x 1/4 Shank Up-Cut Design Router Bit 1
51405-K
51405-K Solid Carbide CNC Spektra™ Extreme Tool Life Coated Spiral O Flute, Plastic Cutting 1/4 Dia x 1 x 1/4 Inch Shank Up-Cut Router Bit 1
46102-K
46102-K Solid Carbide Spektra™ Extreme Tool Life Coated Spiral Plunge 1/4 Dia x 3/4 x 1/4 Inch Shank Up-Cut 1
46202-K
46202-K Solid Carbide Spektra™ Extreme Tool Life Coated Spiral Plunge 1/4 Dia x 3/4 x 1/4 Inch Shank 1
45624
45624 Solid Carbide V-Groove 60 Deg x 1/4 Dia x 7/32 x 1/4 Inch Shank 1
46460
46460 Solid Carbide Spiral Plunge with Corner Radius 1/16 Radius x 1/4 Dia x 3/4 x 1/4 Inch Shank Up-Cut 1
46294-K
46294-K CNC 2D and 3D Carving 0.10 Deg Straight Angle Ball Tip 1/4 Dia x 1/8 Radius x 1-1/2 x 1/4 Shank x 3 Inch Long x 2 Flute Solid Carbide Spektra™ Extreme Tool Life Coated Router Bit 1
46180-K
46180-K CNC Solid Carbide Spektra™ Extreme Tool Life Coated Compression Spiral 1/8 Dia x 13/16 Inch x 1/8 Shank 1
46286-K
46286-K CNC 2D and 3D Carving 3.6 Deg Tapered Angle Ball Tip 1/8 Dia x 1/16 Radius x 1 x 1/4 Shank x 3 Inch Long x 3 Flute Solid Carbide Up-Cut Spiral Spektra™ Extreme Tool Life Coated Router Bit 1
51504-K
51504-K Solid Carbide CNC Spektra™ Extreme Tool Life Coated Spiral O Flute, Plastic Cutting 1/4 Dia x 3/4 x 1/4 Inch Shank Down-Cut Router Bit 1
46280-K
46280-K CNC 2D and 3D Carving 6.2 Deg Tapered Angle Ball Tip x 1/32 Dia x 1/64 Radius x 1 x 1/4 Shank x 3 Inch Long x 3 Flute Solid Carbide Up-Cut Spiral Spektra™ Extreme Tool Life Coated Router Bit 1
46282-K
46282-K CNC 2D and 3D Carving 5.4 Deg Tapered Angle Ball Tip 1/16 Dia x 1/32 Radius x 1 x 1/4 Shank x 3 Inch Long x 4 Flute Solid Carbide Up-Cut Spiral Spektra™ Extreme Tool Life Coated Router Bit 1
46284-K
46284-K CNC 2D and 3D Carving 1 Deg Tapered Angle Ball Tip x 1/8 Dia x 1/16 Radius x 1-1/2 x 1/4 Shank x 3 Inch Long x 3 Flute Solid Carbide Up-Cut Spiral Spektra™ Extreme Tool Life Coated Router Bit 1
46376-K
46376-K Solid Carbide Spektra™ Extreme Tool Life Coated Up-Cut Ball Nose Spiral 1/4 Dia x 1 Inch x 1/4 Shank Router Bit 1
46380-K
46380-K Solid Carbide Spektra™ Extreme Tool Life Coated Up-Cut Ball Nose Spiral 1/2 Dia x 1-1/4 Inch x 1/2 Shank Router Bit 1
46292-K
46292-K CNC 2D and 3D Carving Flat Bottom 0.10 Deg Angle x 1/8 Dia x 1-3/32 x 1/4 Shank x 2-1/2 Inch Long x 4 Flute Solid Carbide Up-Cut Spiral Spektra™ Extreme Tool Life Coated Router Bit 1
46094-K
46094-K Solid Carbide Up-Cut Spiral 1/4 Dia x 3/4 x 1/4 Shank x 2-1/2 Inch Long Composite, Fiberglass & Phenolic Cutting Spektra™ Extreme Tool Life Coated Router Bit 1
51406-Z
51406-Z Solid Carbide CNC Spiral O Flute, Aluminum Cutting 1/8 Dia x 5/16 x 1/8 Shank Up-Cut ZrN Coated Router Bit 1
51474-Z
51474-Z Solid Carbide CNC Spiral O Flute, Aluminum Cutting 1/8 Dia x 1/4 x 1/4 Shank Up-Cut ZrN Coated Router Bit 1
51454-Z
51454-Z Solid Carbide CNC Spiral O Flute, Aluminum Cutting 1/8 Dia x 1/2 x 1/4 Shank Up-Cut ZrN Coated Router Bit 1
51408-Z
51408-Z Solid Carbide CNC Spiral O Flute, Aluminum Cutting 3/16 Dia x 1/2 x 1/4 Shank Up-Cut ZrN Coated Router Bit 1
51402-Z
51402-Z Solid Carbide CNC Spiral O Flute, Aluminum Cutting 1/4 Dia x 5/8 x 1/4 Shank Up-Cut ZrN Coated Router Bit 1
51502-Z
51502-Z Solid Carbide CNC Spiral O Flute, Aluminum Cutting 1/4 Dia x 5/8 x 1/4 Shank Down-Cut ZrN Coated Router Bit 1
