Adjustable Scoring Blade 120x22mm BORE
Adjustable Scoring Blade 120x22mm BORE
Adjustable Scoring Blade 120x22mm BORE

Adjustable Scoring Blade 120x22mm BORE

DI120-ADJ-22SCOR

Regular price $524.53
/

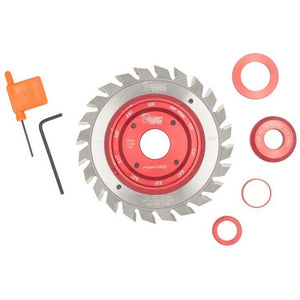

120mm Dia, Carbide Tipped, Adjustable Scoring Saw Blade, 22mm Bore, 2x12 Teeth, ATB

Dimar's Adjustable Scoring Saw Blades are ideal for chip-free scoring on plastic laminated materials.

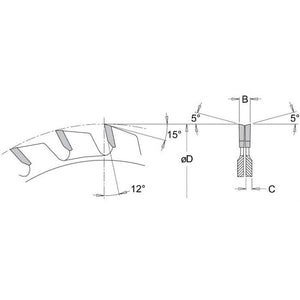

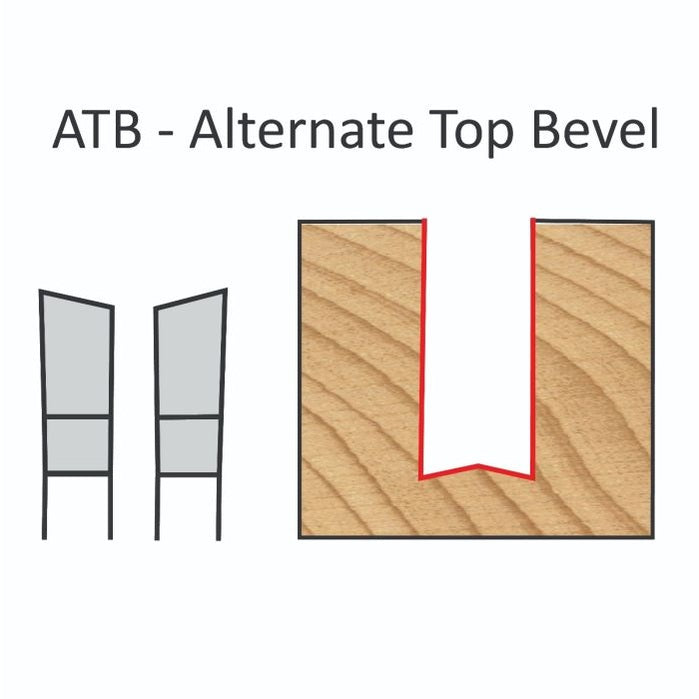

  • ATB 12° tooth with a positive cutting angle means an aggressive cut and high feed rate into the material.
  • Kerf can be adjusted from 2.8mm - 3.6mm.
  • These blades are designed for horizontal and vertical sizing machines equipped with the scoring device that allows minimal depth adjustment to the scoring depth.
  • Cuts most Single and Double sided plastic laminated panels and MDF.
