  • SKU: KC-0712ML
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

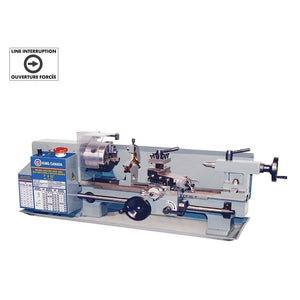

7" X 12" VARIABLE SPEED MINI METAL LATHE

$1,099.00

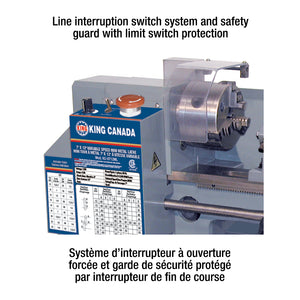

  • Safety guard with limit switch protection
  • Line interruption switch system needs a restart after a power failure
  • Variable speed control - 0-2,500 RPM
  • Forward/Reverse control
  • Cuts imperial threads
  • 1" x 8 TPI spindle thread
  • Bedways are hardened and precision ground
  • Comes complete with quick change gear box, face plate, steady rest, replacement gears, 4-way tool post, MT#2 dead center, threading dial indicator, 4"- 3 jaw chuck, emergency stop button, chuck key and hex. keys

Specification

  • DISTANCE BETWEEN CENTERS12"
  • SWING OVER BED7"
  • SPINDLE BORE3/4"
  • SWING OVER CROSS SLIDE4-1/2"
  • TAPER IN HEADSTOCKMT #3
  • TAPER IN TAILSTOCKMT #2
  • WIDTH OF BEDWAYS3-1/4"
  • TOTAL TRAVEL OF CROSS SLIDE2-3/4"
  • TOTAL TRAVEL OF TOP SLIDE3"
  • SPINDLE VARIABLE SPEED2 (0-1,100, 0-2,500) RPM
  • THREAD CUTTING RANGE12-52 TPI
  • MOTOR5.5 Amp.
  • VOLTAGE110V, 1 phase, 60 Hz
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT32" x 11-1/2" x 13" / 85 lbs
  • PACKAGING DIMENSIONS (LXWXH) / WEIGHT29-1/4" x 12" x 12-1/2" / 88 lbs
  • UPC7 72995 00267 2
