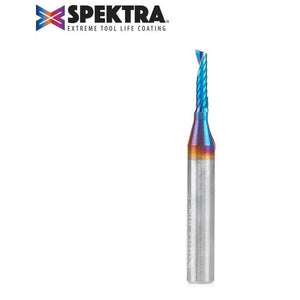

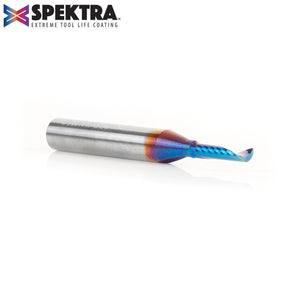

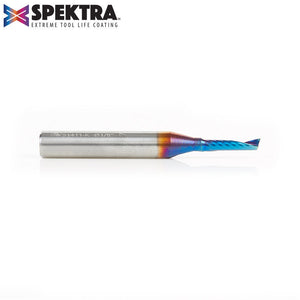

51411 K Solid Carbide CNC Spektra Extreme Tool Life Coated Spiral O Flute, Plastic Cutting 1/8 Dia x 1/2 x 1/4 Shank Up Cut Design Router Bit

    To be used only on CNC machines and routers with automatic feeding.

    Produce super clean, smooth cuts especially in acrylic materials (Plexiglas® Lucite®) other plastics and wood. Bits are made according to strict tolerances from an exclusive carbide grade and polished to a mirror finish using Amana’s unique process. Designed to eject chips up. Ideal for industrial applications and CNC machines. Right hand helix right hand cut.

    Excellent for cutting:

    • Plastic/Acrylic
    • Acetal and Nylon
    • Acrylic Stone
    • Acrylonitrile Butadiene Styrene (ABS)
    • Aluminum Composite Material (ACM)
    • Alupanel®
    • Corian
    • Coroplast®**
    • Corrugated Plastics* such as Correx Boards and Polypropylene
    • Crosslinked Polyethylene (XPE, PEX, XLPE)
    • Delrin
    • Dibond®
    • Extruded Acrylic
    • Foam Board
    • Fomex®
    • Gatorfoam®***
    • Hard Plastic
    • High Density Polyethylene (HDPE)
    • High Density Urethane (HDU Board)
    • High Impact Polystyrene (HIPS)
    • High Impact Polystyrene (HIPS) for digital printing
    • High Pressure Laminates (HPL)
    • Hydroxy-Terminated Polyether (HTPE)
    • King ColorCore® The Multi-Color Engravable Polymer Sheet.
    • Laminate
    • Low Density Polyethylene (LDPE)
    • LubX®
    • Lucite®
    • Mechanical/Engineered Plastics
    • Perspex® Cast Acrylic Sheet
    • Plexiglas®
    • Poly (methyl methacrylate) (PMMA)
    • Polycarbonate (Lexan™)
    • Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
    • Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde.
    • Polystyrene (PS)
    • PVC
    • Sign Foam
    • Sintra PVC
    • Solid Surface
    • StarBoard® (King StarBoard R) High Density Polyethylene Sheet (HDPE)
    • Teflon®
    • Thermoplastic Polyolefin (TPO)
    • Trespa® Meteon®****
    • Ultra High Molecular Weight Polyethylene (UHMWPE)
    • Urethane
    • Vinyl Flooring
    • Wood


    *Corrugated Plastics such as Correx refers to a wide range of extruded twinwall plastic-sheet products produced from high-impact Polypropylene resin with a similar make-up to corrugated fiberboard. They are used in a variety of applications including boat building packaging signage outdoor advertising and the production of pet cages.

    **A soft plastic cardboard made with super soft super flexible PVC.

    ***Gatorfoam® Foam Board a polystyrene foam board bonded between two layers of Luxcell® wood-fiber veneer.

    ****Decorative high-pressure compact laminate (HPL) with an integral surface.

    Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan.

    Benefits of Mirror-Finish:

    • Razor sharp cutting edge
    • Effortless chip removal
    • Helps prevent chip re-welding
    • Extends tool life
    • Exceptional cut quality
    • Dissipates heat well and
      prevents melting

    Our Spektra bits feature a nACo® nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.

    • nACo coating is a micro-thin ceramic coating which enables the tools cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
    • Coating prevents high heat and oxidation which is detrimental to cutting tool performance.
    • Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective.

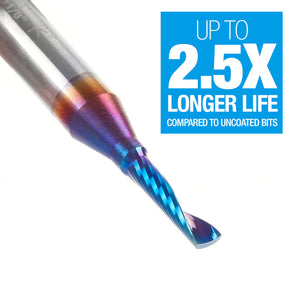

    • nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.

    Note: Blue based color dissipates immediately upon use. nACo® nanocomposite coating will not wear off.

    Maximum RPM: 35,000

    Fusion Logo

    Vectric and Fusion 360 compatible tool files for 51411-K available for download, click here.

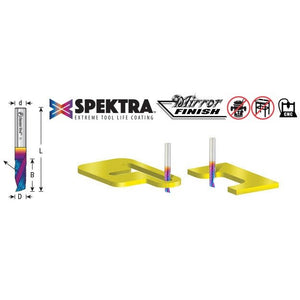

    Direction Up-Cut
    (D) Diameter 1/8
    (B) Cutting Height 1/2
    (d) Shank 1/4
    Overall Length (L) 2
    Type nACo Ceramic Coating
    Flutes 1
