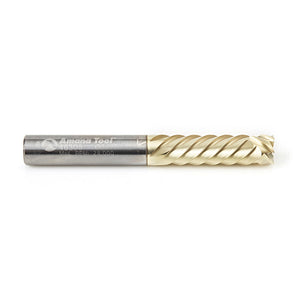

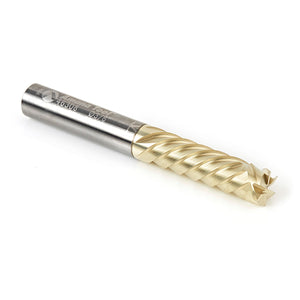

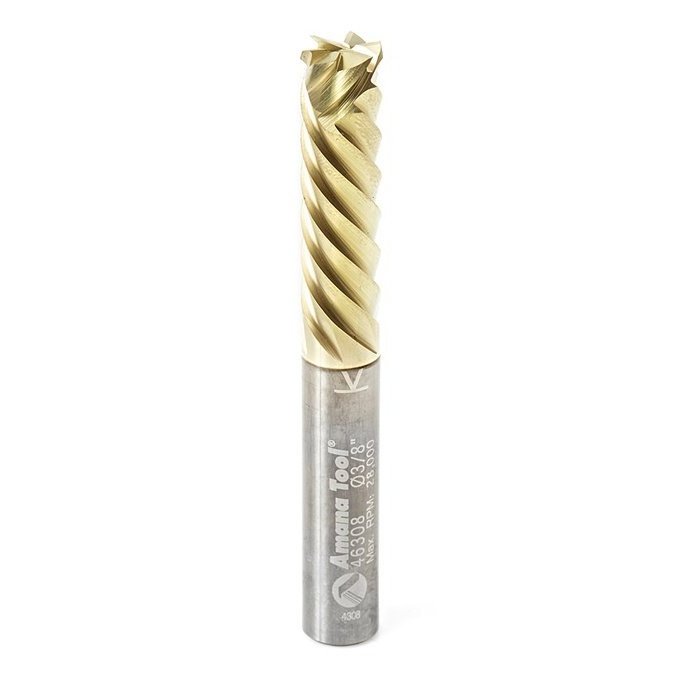

46308 CNC Compression Solid Carbide ZrN Coated Honeycomb Cutting

46308

Regular price $139.71
/

46308 CNC Compression Solid Carbide ZrN Coated Honeycomb Cutting

46308 CNC Compression Solid Carbide ZrN Coated Honeycomb Cutting 3/8 Dia x 1 1/4 x 3/8 Shank x 6 Flute

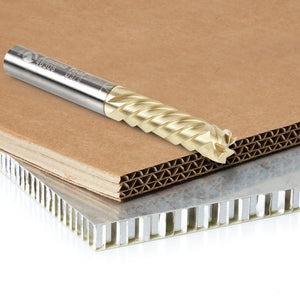

Solid carbide honeycomb cutting router bits provide a burr-free top and bottom finish, providing that the workpiece is thicker than 0.250”. Designed for cutting Bioboard™, Falconboard®, Aluminum Honeycomb (AHP) carbon fiber and honeycomb cardboard.

Excellent for Cutting:

  • Acrylonitrile-Butadiene-Styrene (ABS)
  • Aluminum Honeycomb Panel (AHP)
  • BioBoardâ„¢
  • Carbon
  • Carbon Fiber
  • Carbon Graphite
  • Composites
  • Falconboard®
  • Fiberglass Filled Plastics
  • Honeycomb Cardboard
  • Lexanâ„¢
  • Unfilled Plastics


Benefits of ZrN Coating

  • Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
  • High resistance to wear
  • Extended tool life
  • Less friction & heat buildup
  • High resistance to wear



Please note: For optimal results and to extend tool life please use mist lubricant system or air cooling. Please inspect cut and adjust accordingly.

Vectric compatible tool file for 46308 available for download, click here.

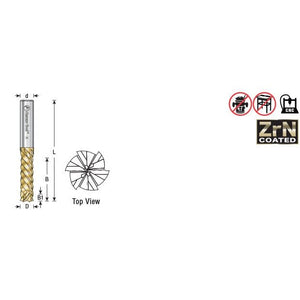

Specification
(D) Diameter 3/8
(B) Cutting Height 1-1/4
B1 1/4
(d) Shank 3/8
Overall Length (L) 3
Max RPM 28,000
Flutes 6
