46272 Solid Carbide CNC Foam Up Cut Cutting Square End Spiral

46272

Regular price $107.88
/

46272 Solid Carbide CNC Foam Up Cut Cutting Square End Spiral

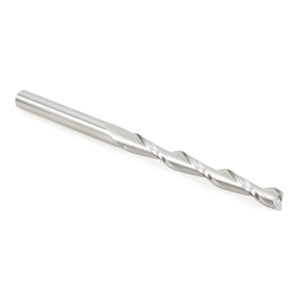

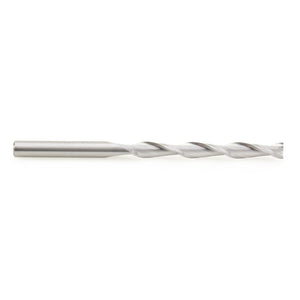

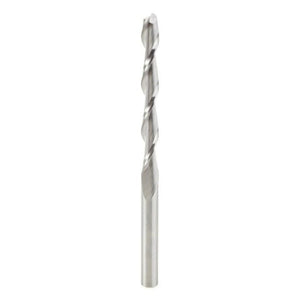

46272 Solid Carbide CNC Foam Up Cut Cutting Square End Spiral 1/4 Dia x 2 1/4 x 1/4 Shank x 2 1/2 Inch Long Router Bit

Ensure your foam projects are milled with unparalleled accuracy detail and clarity. Achieve both precision and depth for foam carving and milling applications. Provides deeper cuts and larger slices with fewer passes in thick materials resulting in improved productivity and less assembly. The up-cut spiral ejects chips away from the workpiece.

Specifically designed for milling:

  • Crosslinked Polyethylene Foam (XLPE)
  • Ethafoam**
  • Ethylene-vinyl Acetate Foam (EVA)
  • Expanded Polypropylene (EPP)*
  • Expanded Polystyrene (EPS)
  • Extruded Polystyrene Foam (XPS)
  • Flexible Polyurethane Foam (FPF)
  • Fomex®
  • High Density Urethane (HUD Board)
  • PALFOAMâ„¢
  • Polycarbonate (Lexanâ„¢)†
  • Polyethylene Foam**
  • Polylam**
  • Polyurethane Foam

*Expanded polypropylene (EPP) is a foam form of polypropylene.

**Ethafoam Polyethylene and Polylam are durable flexible closed-cell foams with excellent memory.

†Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.

For thick material with up-cut chip removal. For 2D & 3D CNC routing applications.

Fusion Logo

Vectric and Fusion 360 compatible tool files for 46272 available for download, click here.

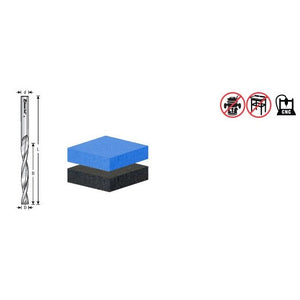

Specification
Direction Up-Cut
(D) Diameter 1/4
(B) Cutting Height 2-1/4
(d) Shank 1/4
Overall Length (L) 4
Type Square End
Flutes 2
