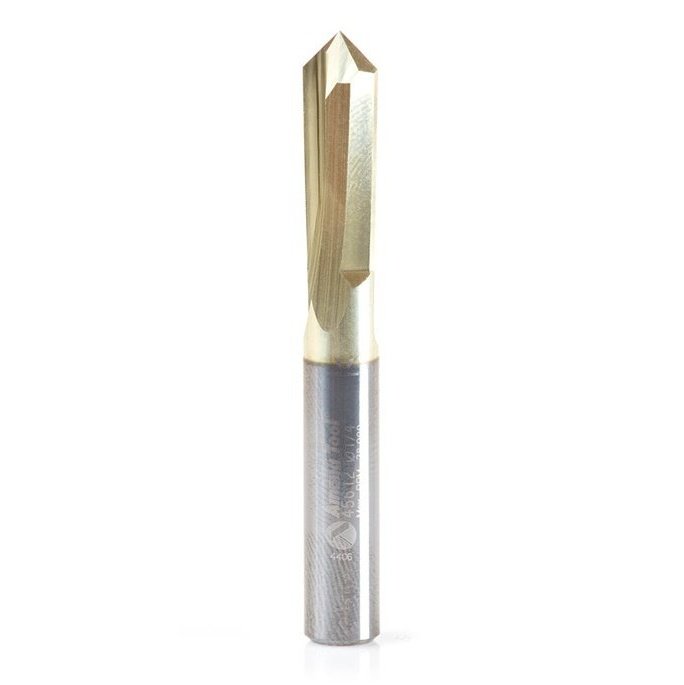

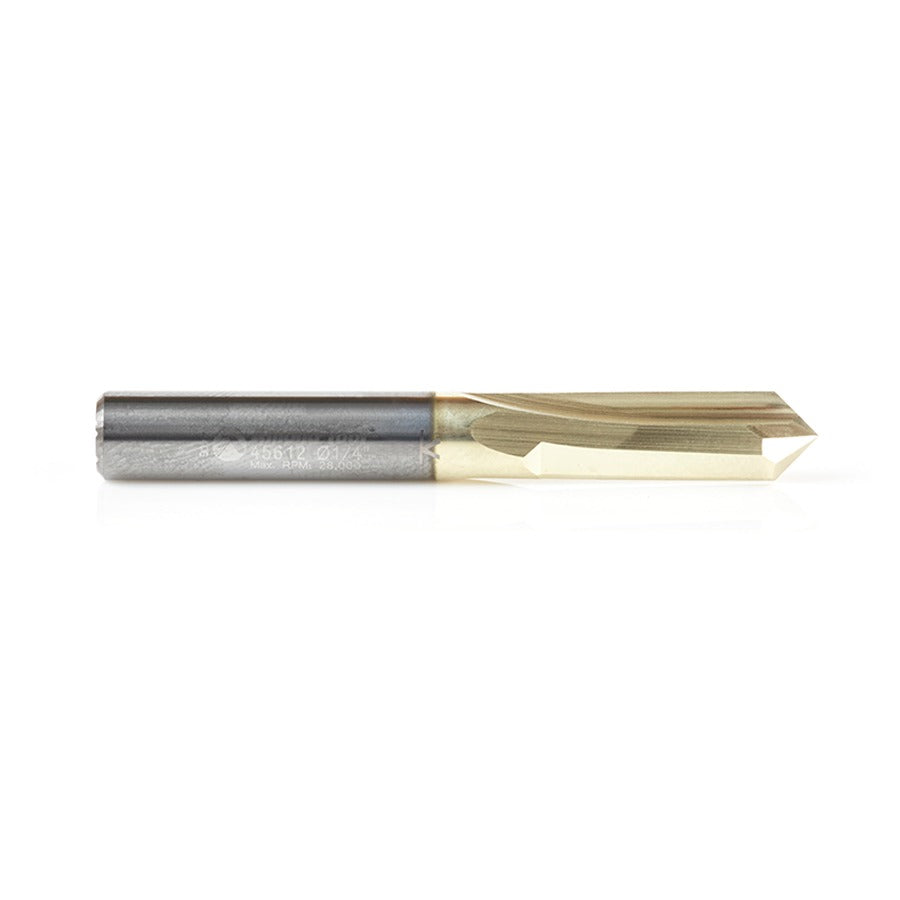

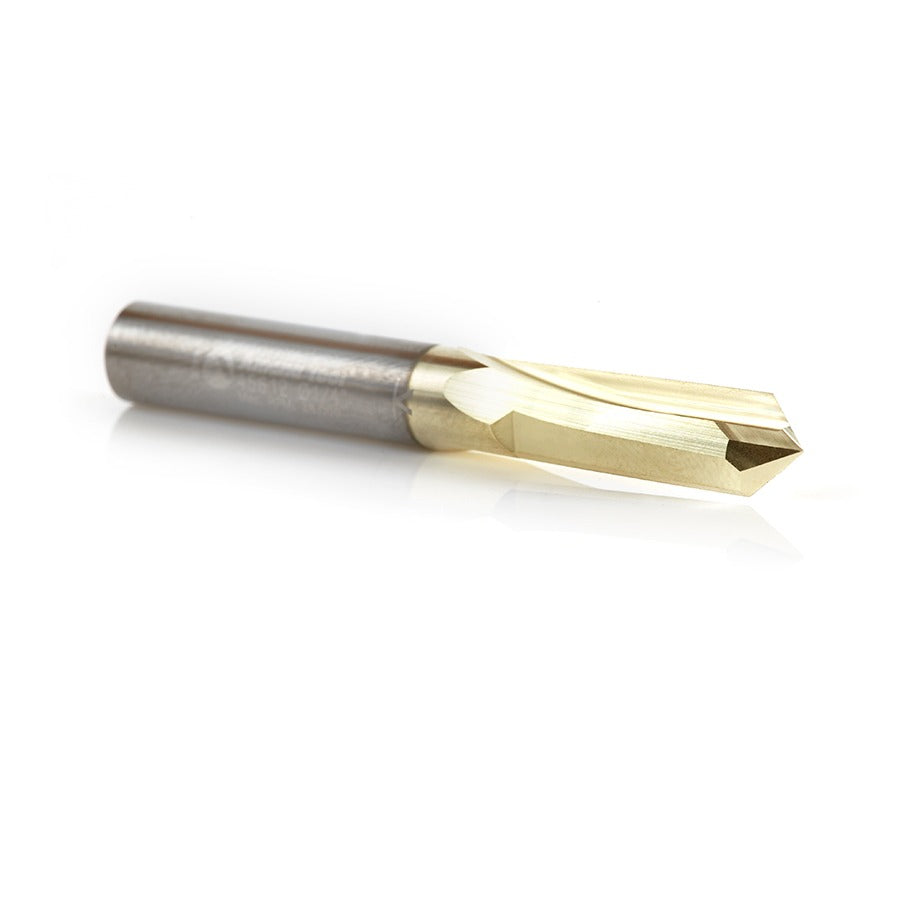

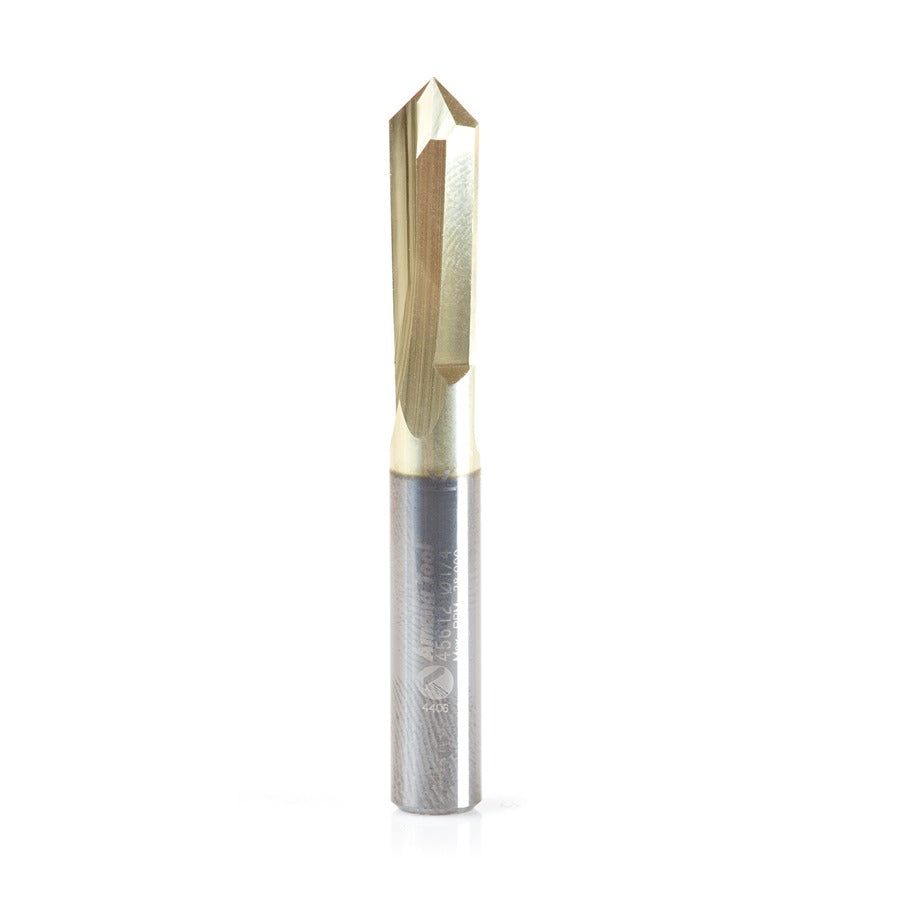

45612 "Zero Point" 90 Degree V Groove and Engraving 1/4 Dia x 1/8 x 1/4 Shank ZrN Coated Router Bit
Designed for beveling or V-Grooving 90° the following materials:
Â
Â
- Acrylonitrile-Butadiene-Styrene (ABS)
- Aluminum, Brass, Bronze, Copper, Gold & Silver
- Aluminum 5052
- Composites
- Fomex® with Aluminum Face
- Hard Plastics
- Hardwood
- Laminated Chipboard/Plywood
- MDF
- Non-Ferrous Metals
- Polycarbonate (Lexanâ„¢)â€
- Solid Surfaces (Corian®
Formica® ect) - Soft Plastics
- Softwood
- Veneer
†Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.
Benefits of ZrN Coating
- Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
- High resistance to wear
- Extended tool life
- Less friction & heat buildup
- High resistance to wear
| (a°) Angle | 90° |
|---|---|
| (D) Diameter | 1/4 |
| (B) Cutting Height | 1/8 |
| B1 | 3/4 |
| (d) Shank | 1/4 |
| Overall Length (L) | 2-1/4 |
| Flutes | 2 |
| Chip Load | 0.003" - 0.006" |
