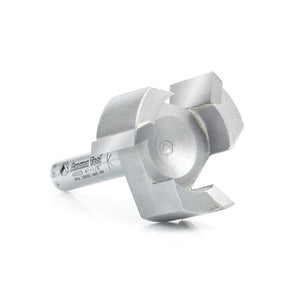

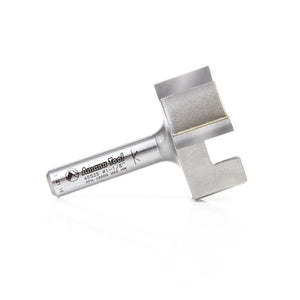

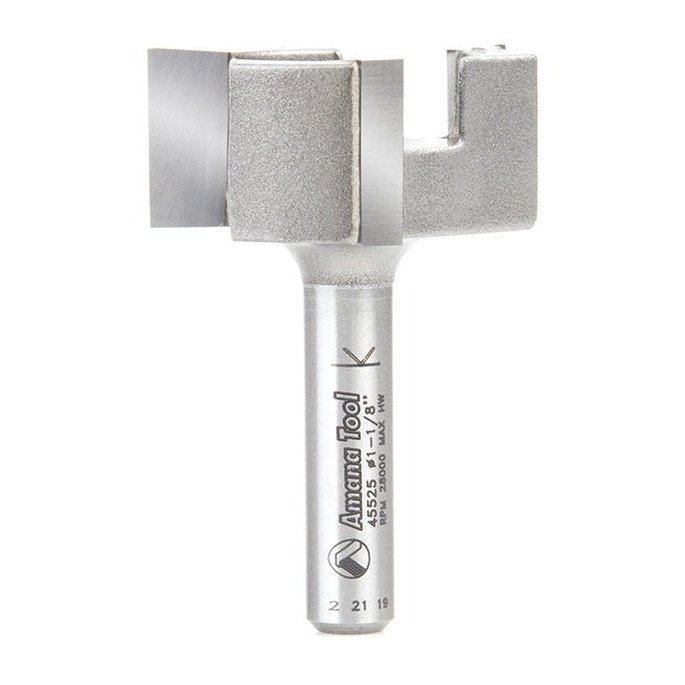

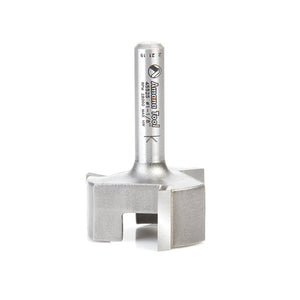

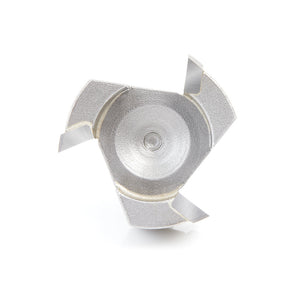

45525 Carbide Tipped Spoilboard Surfacing Shank Router Bit
45525 Carbide Tipped Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler, Surface Planer & Flattening 1 1/8 Dia x 1/2 x 1/4 Inch Shank Router Bit
Carbide tipped spoilboard surfacing & rabbeting router bit great for cutting tight corners and surface planing.
Also suitable for router sled machines,
Make sure that your router sled is fully stable and squared.
Perfect for:
- Resurfacing spoilboards using CNC
- Planing large glued up panels using CNC
- Surfacing and finishing wood using timber slab machines
- Rabbeting or slotting
Designed for planing & rabbeting the following materials:
- MDF
- Fiberboard
- HDF/LDF
- Balsa Core
- Plastic/Acrylic**
- Chipboard
- Hardwood/Softwood
**Use lower CNC spindle RPM and adjusted feed-rate to prevent Melting and adhesion of the acrylic material to the tool.
Featuring:
- Exclusive carbide grade for highest quality of cut
- Maximum cutting efficiency
- Faster material removal process
Fusion 360 compatible tool file for 45525 available for download, click here.

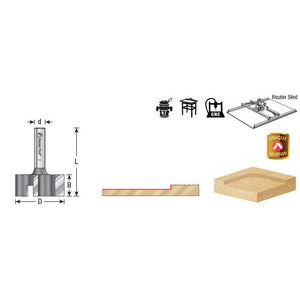

| (D) Diameter | 1-1/8 |
|---|---|
| (B) Cutting Height | 1/2 |
| (d) Shank | 1/4 |
| Overall Length (L) | 1-13/16 |
| Max RPM | 28,000 |
| Flutes | 3 |
