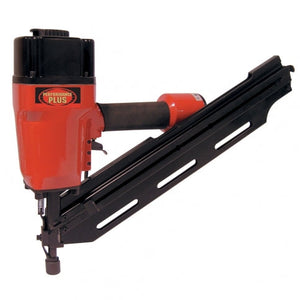

28° Clipped Head Framing Nailer Kit

Features

• Powerful framing nailer drives standard 28° - 30° clipped head nails
• Serrated nose tip for positive grip when toe nailing
• Protective nose tip for decking
• Special hardened driver for long, trouble free performance
• 360º directional air deflector
• Trigger for sequential and bump firing modes
• 1/4" air inlet
• Comes with safety glasses, oiler, hex. keys and carrying case
• It is recommended to use Stanley-Bostitch 28° wire-collated nails or Paslode 30° paper-collated (Prostrip)

Specification

• MODEL8228N
• NAIL RANGE28°-30°
• NAIL SIZE RANGE2-3/16" - 3-9/16"
• NAIL DIAMETER RANGE.113" - .131"
• RECOMMENDED NAILSStanley-Bostitch-28° / Porter-Cable-28° / Hitachi-30°
• RECOMMENDED NAILSPaslode-30° / Senco Frame Pro-30°
• MAGAZINE CAPACITY100
• OPERATING PRESSURE70-120 PSI
• AIR CONSUMPTION5-8 CFM (70-120 PSI)
• NAILER DISCHARGE RATE120 /min @ 90 PSI
• ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT19" x 4-1/4" x 14-1/2" / 9.5 lbs
• PACKAGE DIMENSIONS (LXWXH) / WEIGHT22" x 7" x 19" / 19 lbs
• UPC7 72995 00521 5
