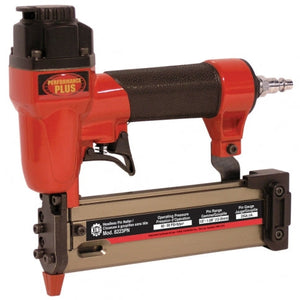

23 Ga Headless Pin Nailer 1/2" - 1 3/8"

Features

• Powerful pin nailer drives standard 23 Ga. headless pins from 1/2" to 1-3/8"
• Ideal for detailed woodworking, picture frames, molding and decorative trim
• Pin view finder shows quantity of pins in magazine
• Safety trigger prevents accidental firing
• Adjustable 360° air deflector controls the direction of air exhaust
• 60-90 PSI operating pressure
• Non slip rubber grip
• Onboard storage for hex. key and additional non-marring tip

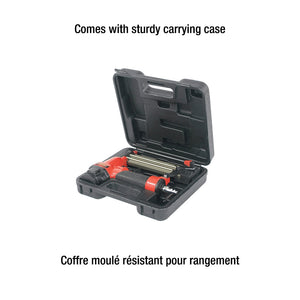

• Comes with 1/4" air inlet, 2 removable non-marring tips, oiler, hex. keys and sturdy carrying case

Specification

• MODEL8223PN
• HEADLESS PIN SIZE23 Ga.
• HEADLESS PIN SIZE RANGE1/2" - 1-3/8" (12 - 35mm)
• MAGAZINE CAPACITY120
• OPERATING PRESSURE60-90 PSI
• AIR CONSUMPTION (CFM)3.2 (60-90 PSI)
• HEADLESS PIN DISCHARGE RATE180/min @ 90 PSI
• ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT8-1/2" x 2" x 8" / 2.2 lbs
• PACKAGE DIMENSIONS (LXWXH) / WEIGHT9-1/2" x 3" x 9" / 3 lbs
• UPC7 72995 00671 7
