  • SKU: KC-526FX
  • Availability: Out of stock

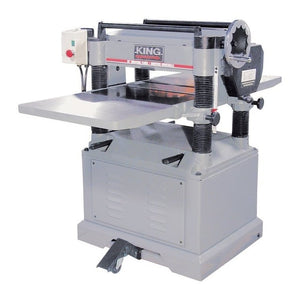

20" Industrial Planer With Spiral Cutterhead

$4,999.00

Additional Shipping Charges will Apply, Your order will be processed once rate is calculated

Features

  • Powerful 3 HP motor
  • Solid cast-iron extension tables
  • Mobile base system built into cabinet

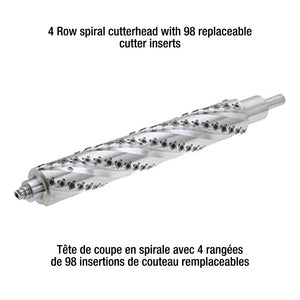

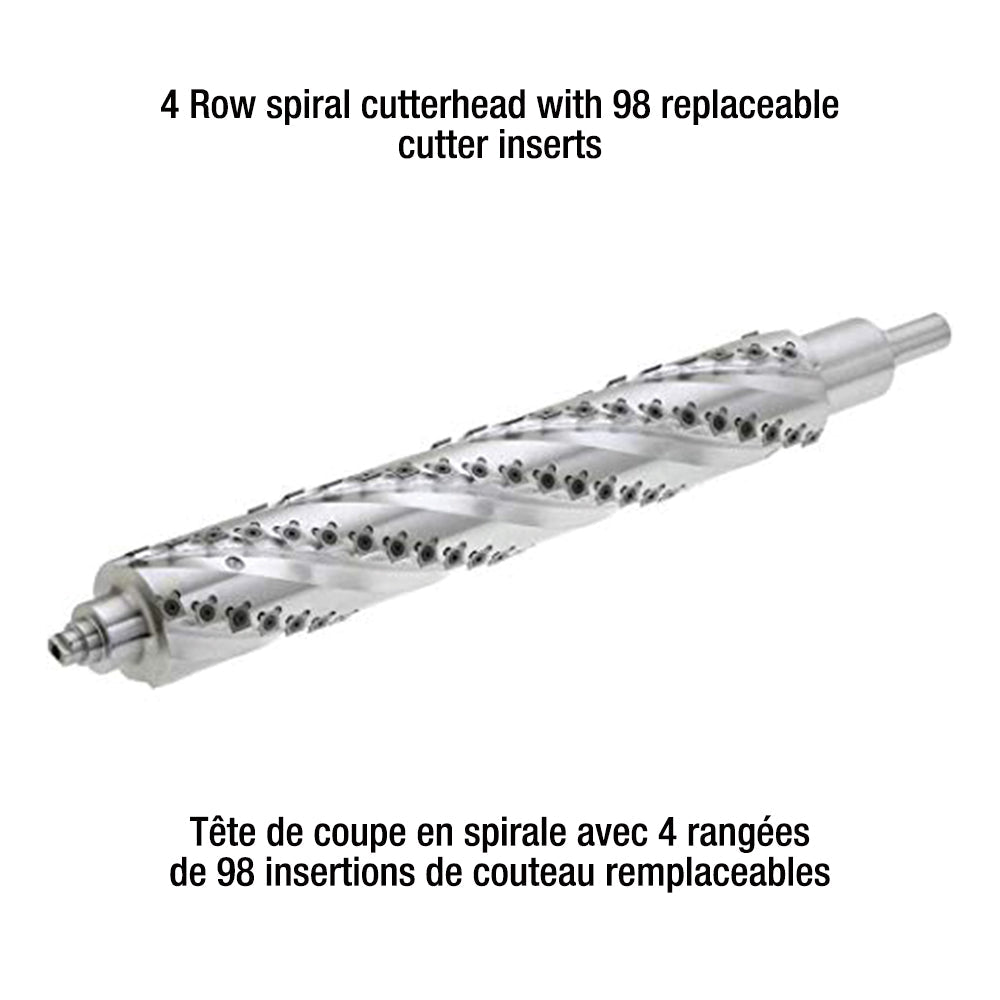

  • A spiral cutterhead is 50% quieter than a conventional cutterhead
  • Table raises and lowers on four precision‚ ground columns for extra stability
  • Anti-kickback fingers in front of the infeed roller prevents wood kickback
  • Magnetic safety switch
  • Lever allows you to shift gears for changing feed rates for excellent results in planing hard and soft woods
  • Comes with knife setting gauge and 5’ dust chute

Specification

  • MODELKC-526FX
  • MAXIMUM PLANING WIDTH20"
  • MAXIMUM PLANING THICKNESS8"
  • MAXIMUM DEPTH OF CUT3/32"
  • TOTAL SURFACE OF WORK TABLE56-1/2" x 20"
  • CUTTERHEAD SPEED5,000 RPM
  • CUTTERHEAD DIAMETER3.15"
  • NUMBER OF KNIVES98 (14 x 14 x 2mm)
  • FEED RATE2 (16-20) FPM
  • NUMBER OF CUTS PER INCH104-83
  • MOTOR19 Amp.
  • VOLTAGE220V,1 phase, 60 Hz
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT40" x 56-1/2" x 42" / 830 lbs
  • PACKAGING DIMENSIONS (LXWXH) / WEIGHT38-1/4" x 29-1/4" x 47-1/8" / 860 lbs
  • UPC7 72995 01224 4
