18bx Bandsaw
Laguna 18|BX Bandsaw
Laguna 18|BX Bandsaw
Laguna 18|BX Bandsaw
Laguna 18|BX Bandsaw
Laguna 18|BX Bandsaw
Laguna 18|BX Bandsaw
  • SKU: 18|BX
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

Laguna 18|BX Bandsaw

$3,699.00

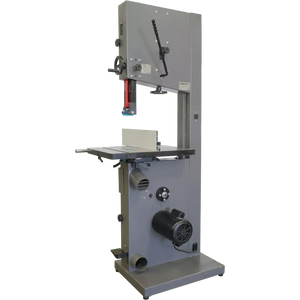

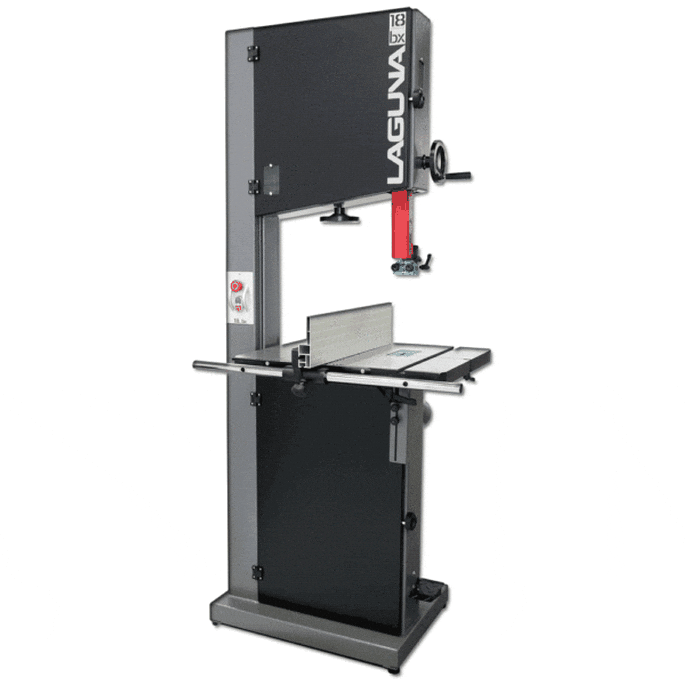

The 18|BX Bandsaw follows in the traditions of high-performance and reliability established by the widely-used Laguna Tools 14|12 and 14|bx models. The 18|bx is built around a 3HP, 220V motor and 145″ (368 cm) blade for consistent results, cut-after-cut, regardless of wood material. (Shown with optional mobility kit)

Shown with optional Blade, Lighting and Mobility Kit

THIS MACHINE SOLD EXCLUSIVELY THROUGH OUR DEALER NETWORK

Features:
  • Motor: 3HP, 220V, 1 Ph. 12 Amp.
  • Recommended Breaker: 20 Amp.

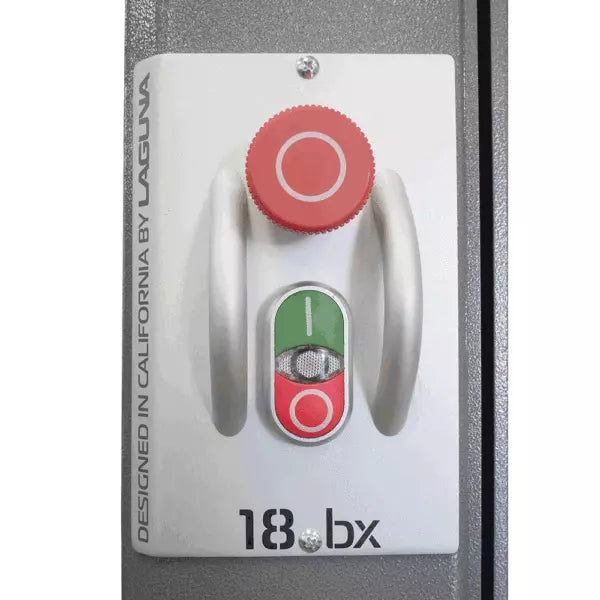

  • Magnetic Starter
  • Min-Max Blade Width: 1/8″ – 1-1/4″
  • Resaw Capacity: 16″
  • Throat: 18″
  • Blade Length: 145″


Additional Shipping Charges will Apply, Your order will be processed once rate is calculated

Specifications

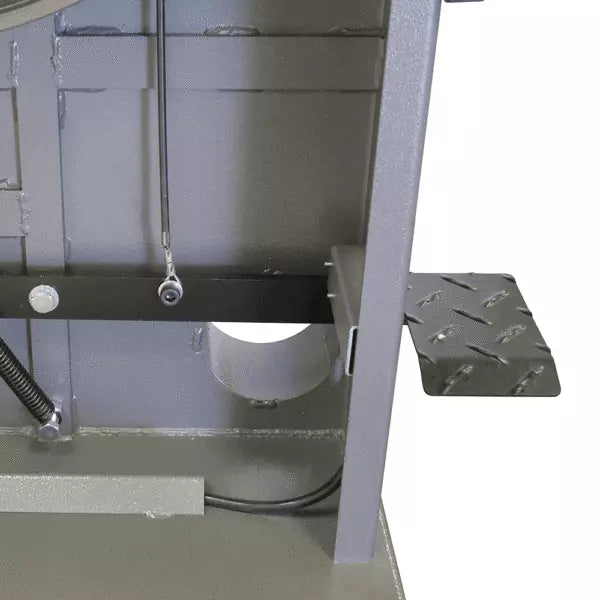

Disc-Brake With Micro Switch

220V Outlet On Back For Light

Window For Tension

Window For Tracking

Magnetic Blade Tension Guide

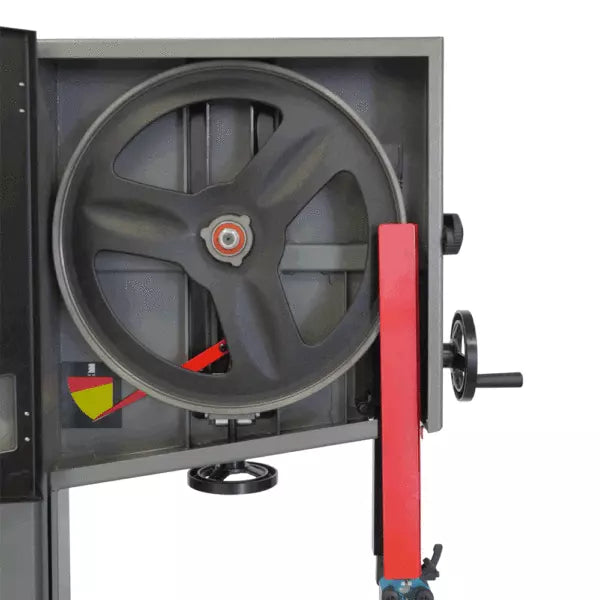

Worm Gear & Pinion Upper Guide

10 Point Laguna Ceramic Guides

Flat Poly-Groove Drive Belt

Premium Anodized Insert With Micro Adjustment

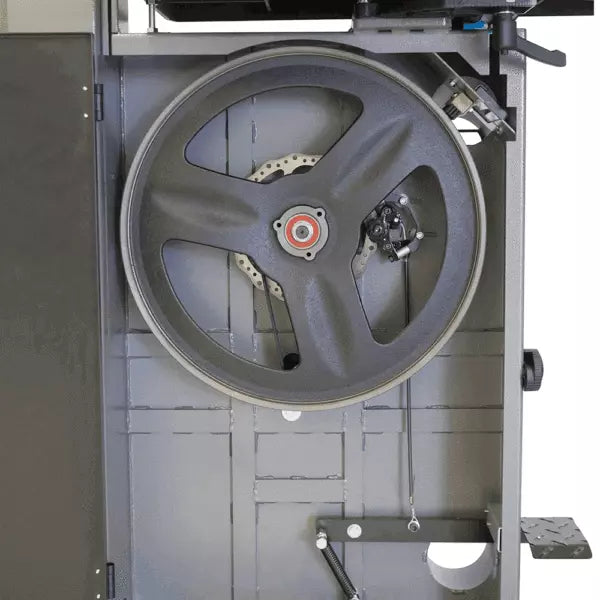

Dynamically Balanced Cast Iron Wheels

Urethane Single Piece Snap-On Tire

Cast Table Size: 20″ x 26″

Table Tilt: -6°, +45°

Cast Table Size: 20″ x 26″

Table Tilt: -6°, +45°

Quick-Release Tension

Hi/Low Anodized Aluminum Fence: 22-½″ x 5-¾″ x ½″

Table Height: 38″

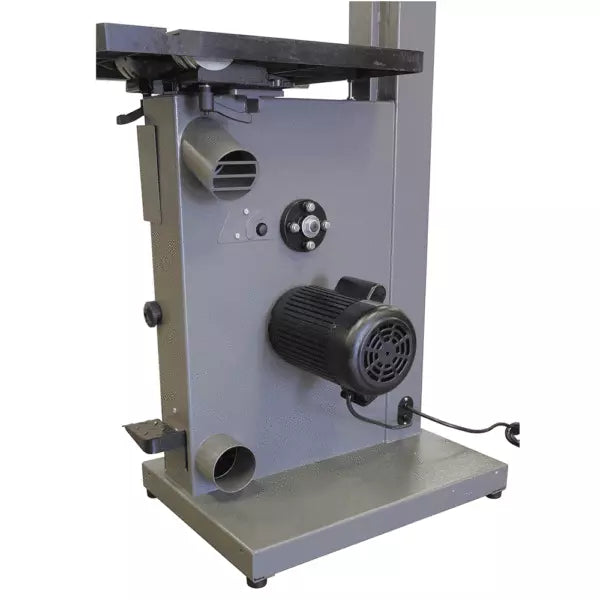

Dust Ports: 4″ x 2

Overall Height: 77-¾″

Dimensions (Base): 27″ x 20″

Dimensions Overall: 36″ x 30″

Dimensions Box: 36″ x 84″ x 30″

Weight (Net/Ship): 410/460 lbs

Optional Accessories

*Optional Accessory – 18|bx Wheel System

  • Foot Operated
  • 360° Omni-Directional
  • Rubber-Coated Wheels
  • Adjustable Rubber Pads
  • Oilite Bronze Bushing Allows For Less Friction & Longer Life
  • Easy Install With No Drilling Required
  • Pedal Raises & Lowers Front Wheel
  • Wheels Mounted Outside Frame To Maximize Stability




*Optional Accessory – Pro Light System

  • Swivels 220°
  • 12 Volt/50 Watt
  • Tilts Vertically 320°
  • Built-In Transformer
  • Independent On/Off
  • Ribbed Aluminum Case
  • Halogen Hi-Intensity Light
  • Bright, Glare-Free Flood Light
  • Designed for Even Light Distribution
  • Reinforced Glass, Dustproof Design
  • Top and Side Cabinet Mounting Position
