- Two powerful 3/4 HP 110V motors‚

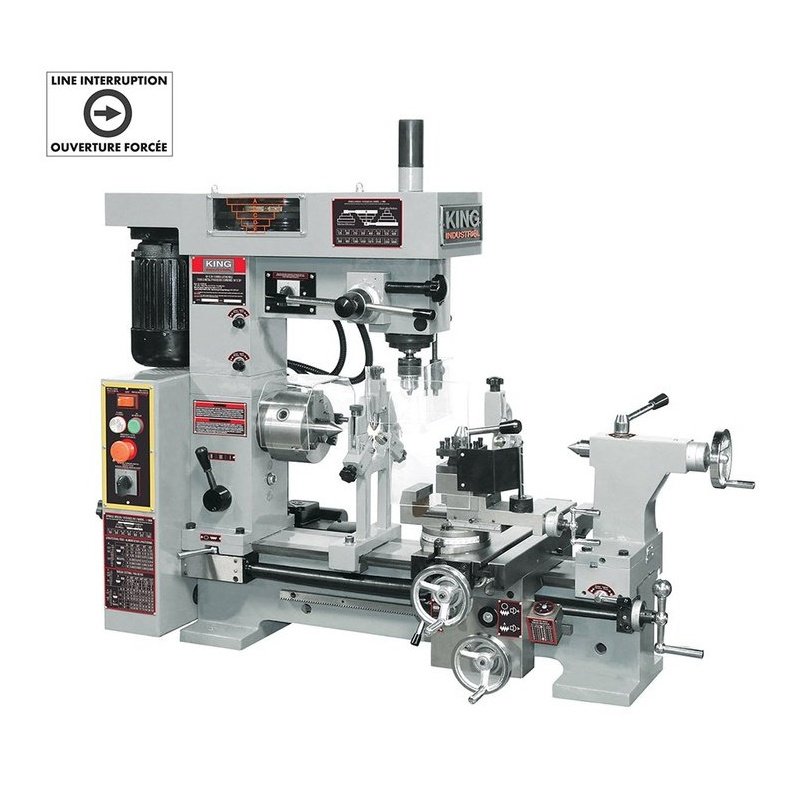

- Lathe chuck and drill chuck safety guards with limit switch protection and standard tool post safety guard‚
- Easily change from Lathe mode to Mill mode‚
- Forward/reverse switch for both operating modes‚
- Bedways are hardened and precision ground‚
- Comes with 5"- 3 jaw chuck, imperial and metric change gears, quick change tool post, steady rest, follow rest, thread chasing dial indicator, MT#3 and MT#4 dead centres, 1/2" drill chuck and tool box with adjusting tools
Specification
-
DISTANCE BETWEEN CENTRES20"
-
SWING OVER BED and carriage16-1/2" / 11-1/2"
-
SPINDLE BORE1-1/8"
-
HEADSTOCK/TAILSTOCK TAPERSMT#4 / MT#3
-
drill press guill taperMT#3
-
cross slide travel8"
-
lathe spindle sppeds7 (160 - 1,360) RPM
-
thread cutting range36 (4-120 TPI) 22 (0.2-6 mm)
-
automatic feeding range0.002 - 0.014" / 0.05 - 0.35 mm
-
drilling/face mill/end mill capacities7/8" / 1-1/8" / 3-1/8"
-
max. distance spindle nose to milling table12
-
drilling speeds16 (120 - 3,000) RPM
-
motors (lathe/mill)3/4 HP, 110V, 9 Amp., 1 phase, 60 Hz
-
assembled DIMENSIONS (LXWXH) / WEIGHT43" x 19-1/2" x 38" / 515 lbs
-
package dimensions (lxwxh) / weight45" x 23" x 42" / 615 lbs
-
upc7 72995 01540 5
