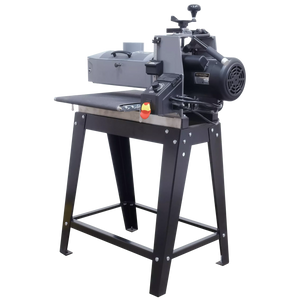

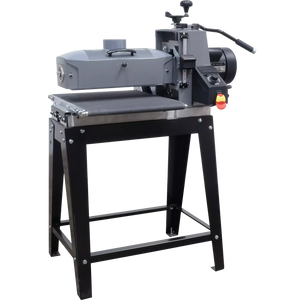

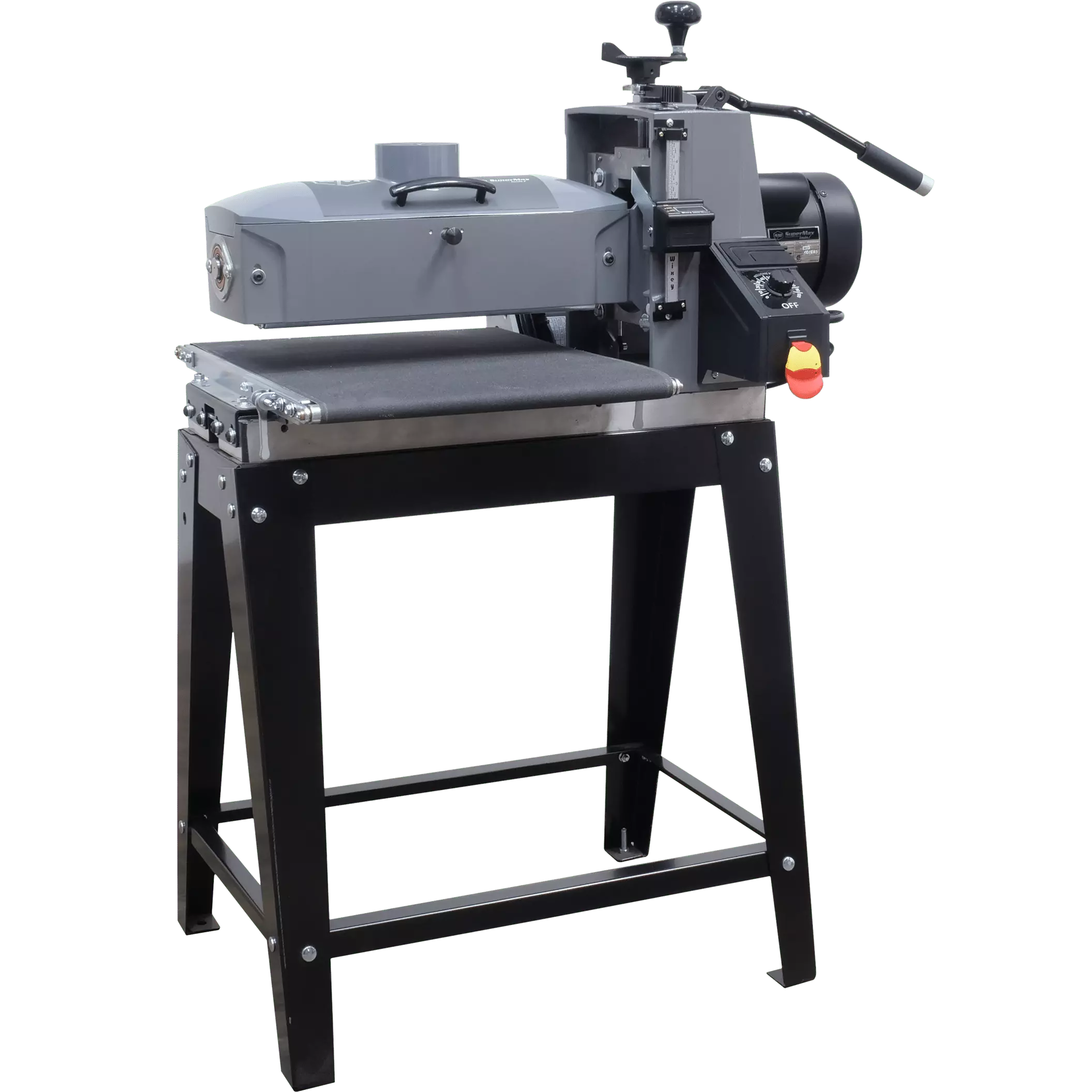

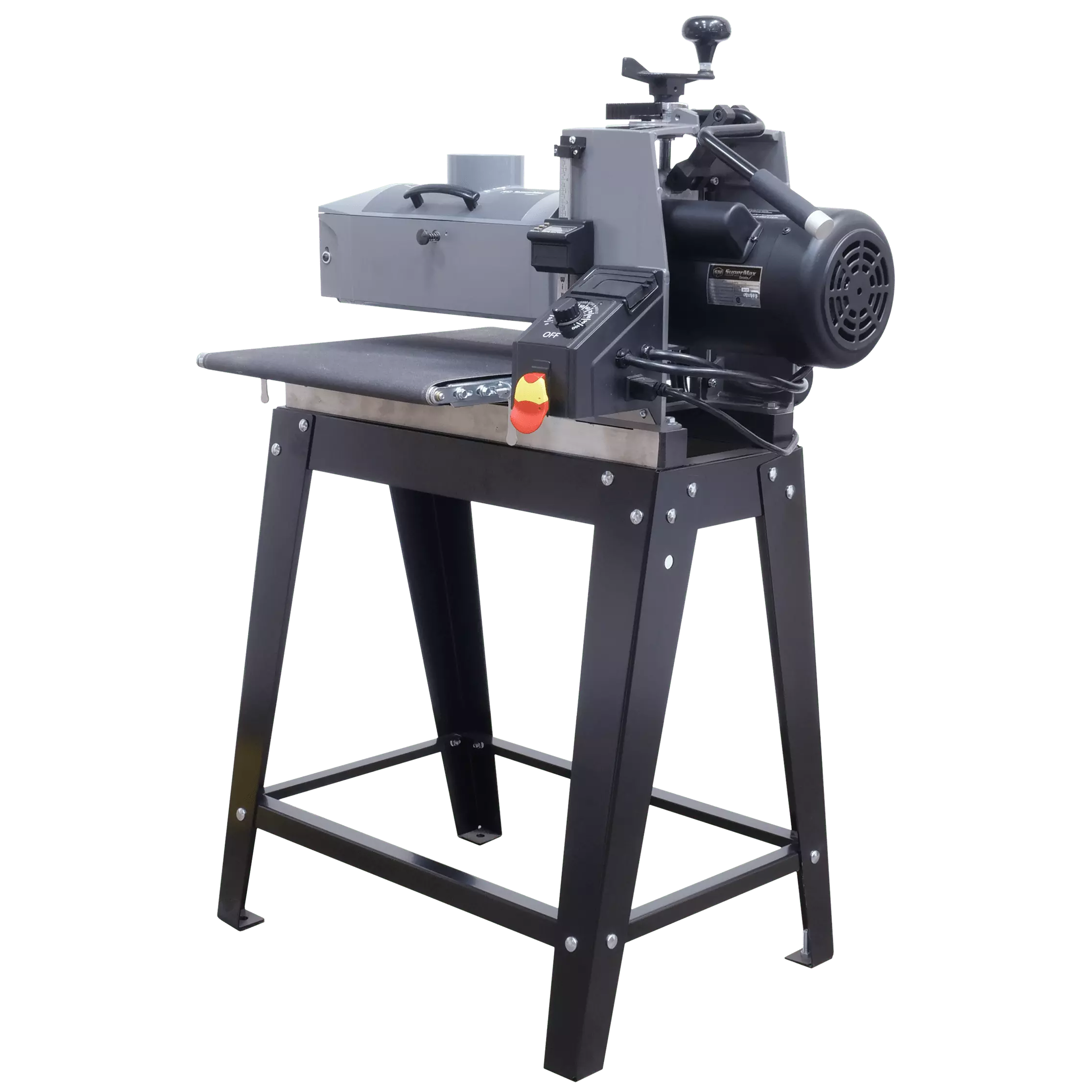

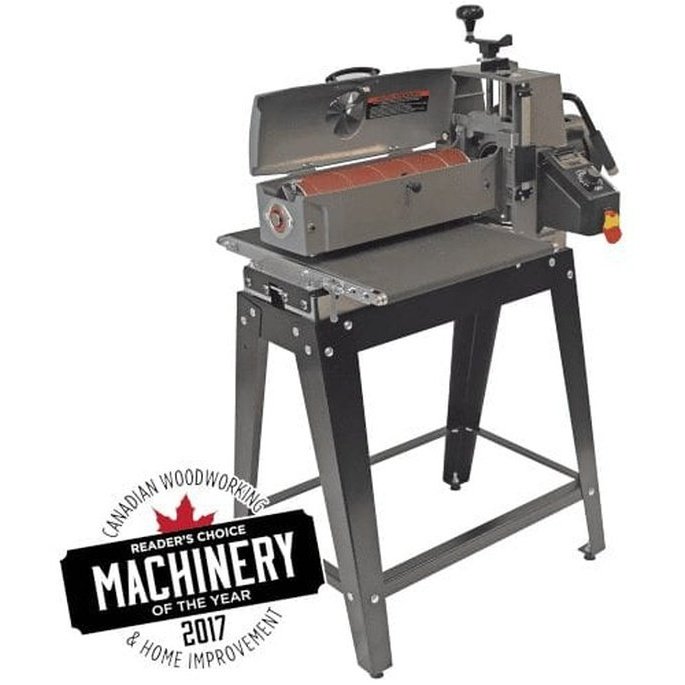

16-32 Drum Sander On Open Stand

16-32 Drum Sander On Open Stand

SUPMX-71632

Regular price $1,999.00
/

The 16-32 Drum Sander (#71632) is the newest member of SuperMax Tools drum sander family which was designed with new features to improve productivity.

  • Patented Quick Adjustment Lever: reduces set-up time.

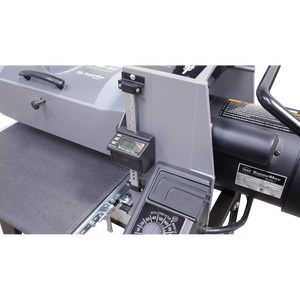

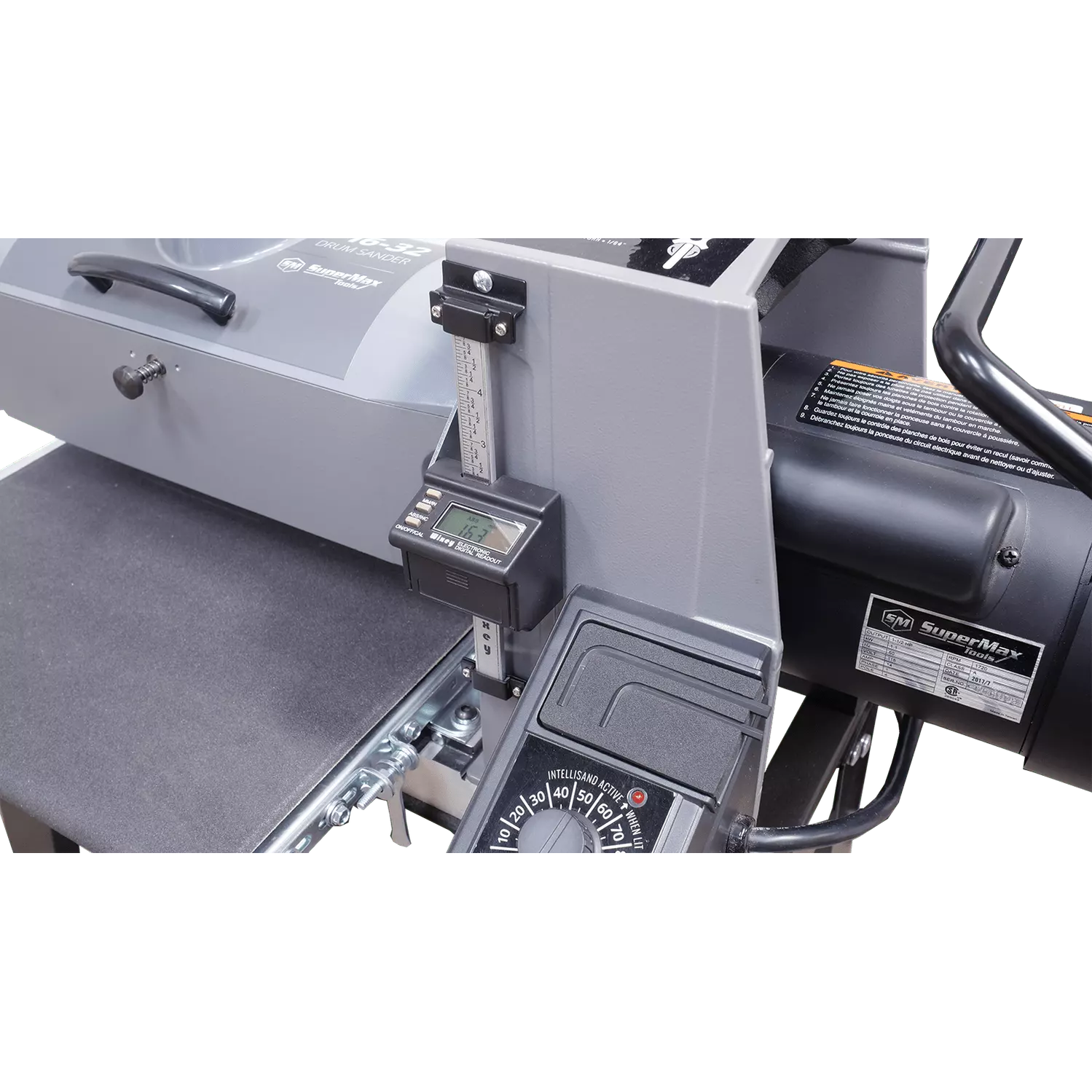

  • Built-in DRO (digital read out): maintain material thicknesses to increase accuracy and quality.
  • Turbo Vented dust port: increases airflow to your dust collector by 15%.
  • Rear placement of the Gear Motor: improve conveyor belt tracking.

These new features complement the same great features SuperMax Tools have provided for years.

  • Patented Fast Lever: allows quick adjustments for wide and narrow stock
  • INTELLISAND Technology: prevents gouging, damaging, or burning material.
Drum Speed 1740 RPM
Maximum Sanding Width 32″
Minimum Sanding Length 2-1/4″
Maximum Sanding Thickness 3″
Minimum Sanding Thickness 1/32″
Drum 5″ x 16″ extruded aluminum
Dust hood Turbo Vented – 1×4″, vacuum port (min. 600 CFM recommended)
Conveyor Speed 0-10 FPM
Drive Motor 1-1/2 HP
Power Requirements 110 V, 15 Amp, 20 AMP Service
Shipping Weight 158 lbs (1 box including stand)
Assembled Dimensions (Footprint) W: 34″  |  D: 22″  |  H: 48″ (without casters)
