  • SKU: KC-1440ML-2/KM-054

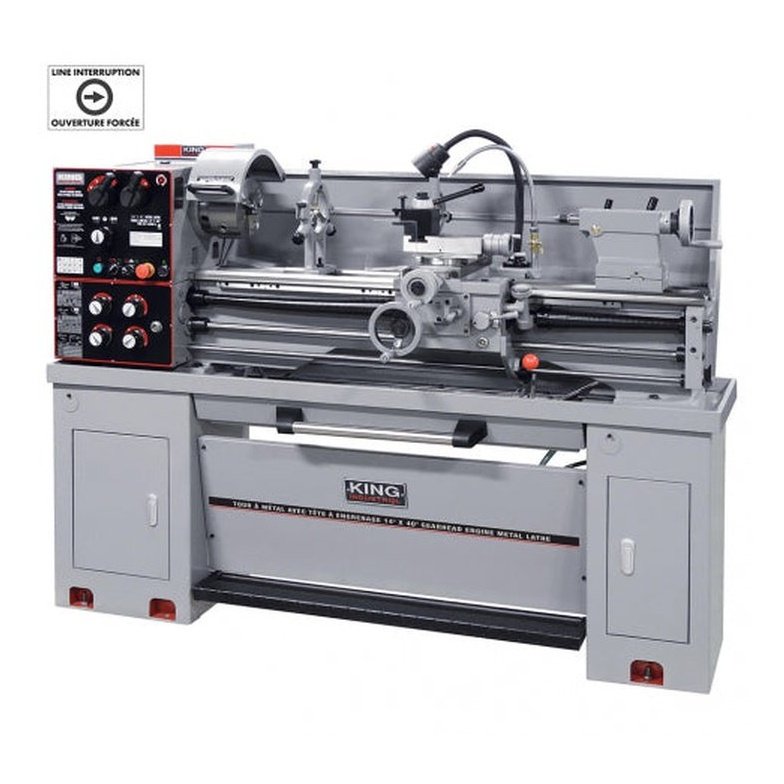

14" X 40" METAL LATHE W/TAPER ATTACHMENT

$9,999.00
Shipping calculated at checkout.
NOTE* Additional Shipping Charges will Apply, Your order will be processed once rate is calculated
  • Powerful 2 HP motor
  • 2" spindle bore capacity
  • Safety guard with limit switch protection
  • Line interruption switch system needs a restart after a power failure
  • Guideway and gears in headstock are all hardened and precision ground
  • Spindle foot brake incorporated in the cabinet stand for easy operation and reliable safety
  • Comes complete with 7"-3 jaw chuck, 8"-4 jaw chuck, imperial and metric gears, quick change tool posts, steady rest, follow rest, 12" D1-5 camlock face plate, coolant system, full length splash guard, thread chasing dial indicator, 2 MT#3 dead centers, MT#6-MT#3 sleeve, chip tray, tool box, halogen lamp, chuck keys, hex. keys and cabinet stand (with foot brake incorporated)

Specification

  • DISTANCE BETWEEN CENTRES40"
  • SWING OVER BED14"
  • Spindle bore2"
    ‚
  • Swing over cross slide8-5/8"
  • taper in headstockMT #6
  • TAPER IN tailstockMT #3
  • width of bedways7-5/16"
  • total travel of cross slide6-3/16"
  • TOTAL TRAVEL OF top slide3-1/2"
  • spindle speeds8 (70-2,000) RPM
  • thread cutting range34 (4-56 TPI) 26 (.4-7 mm)
  • motor11 Amp.
  • voltage240V, 1 phase, 60 Hz
  • assembled dimensions (lxwxh) / weight75" x 32" x 53" / 1,150 lbs
  • package DIMENSIONS (LXWXH) / WEIGHT74" x 29-3/4" x 58-1/4" / 1,375 lbs
  • upc7 72995 00271 9
