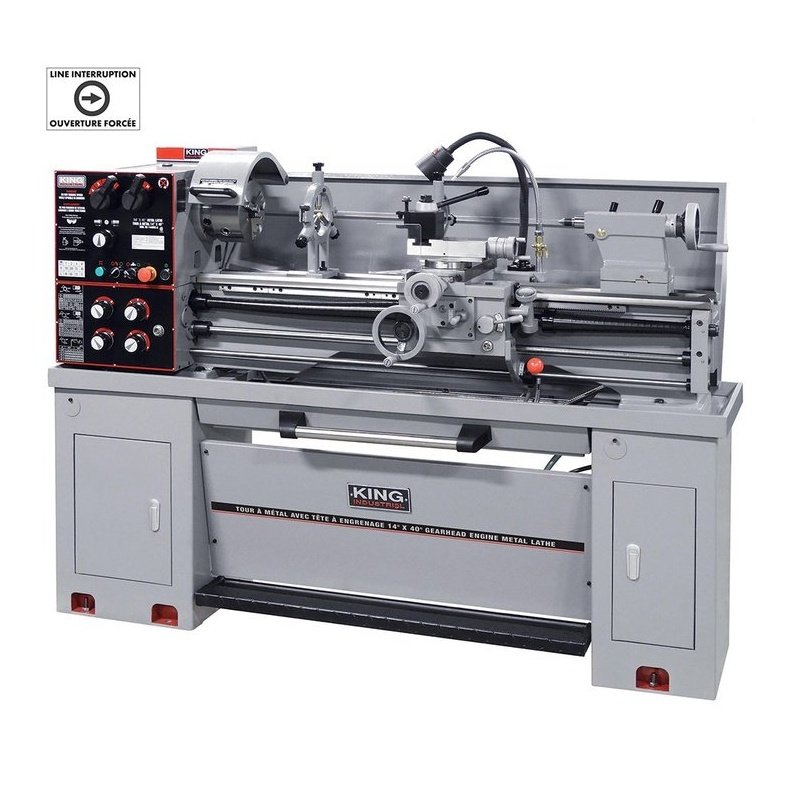

14" X 40" GEARHEAD METAL LATHE

SKU: KC-1440ML-2

14" X 40" GEARHEAD METAL LATHE

$9,499.95

Availability: Usually in Stock and Ships in 1-2 Days

Shipping Ask about this product

Vendor: King Canada
Product Type: Metal Lathe

Additional information

Description
Service Manual
Instruction Manual
Spec Sheet
Reviews

Description

Powerful 2 HP motor
2" spindle bore capacity
Safety guard with limit switch protection
Line interruption switch system needs a restart after a power failure
Guideway and gears in headstock are all hardened and precision ground
Spindle foot brake incorporated in the cabinet stand for easy operation and reliable safety
Comes complete with 7"-3 jaw chuck, 8"-4 jaw chuck, imperial and metric gears, quick change tool posts, steady rest, follow rest, 12" D1-5 camlock face plate, coolant system, full length splash guard, thread chasing dial indicator, 2 MT#3 dead centers, MT#6-MT#3 sleeve, chip tray, tool box, halogen lamp, chuck keys, hex. keys and cabinet stand (with foot brake incorporated)

Specification

DISTANCE BETWEEN CENTRES40"
SWING OVER BED14"
Spindle bore2"
Swing over cross slide8-5/8"
taper in headstockMT #6
TAPER IN tailstockMT #3
width of bedways7-5/16"
total travel of cross slide6-3/16"
TOTAL TRAVEL OF top slide3-1/2"
spindle speeds8 (70-2,000) RPM
thread cutting range34 (4-56 TPI) 26 (.4-7 mm)
motor11 Amp.
voltage240V, 1 phase, 60 Hz
assembled dimensions (lxwxh) / weight75" x 32" x 53" / 1,150 lbs
package DIMENSIONS (LXWXH) / WEIGHT74" x 29-3/4" x 58-1/4" / 1,375 lbs
upc7 72995 00269 6
