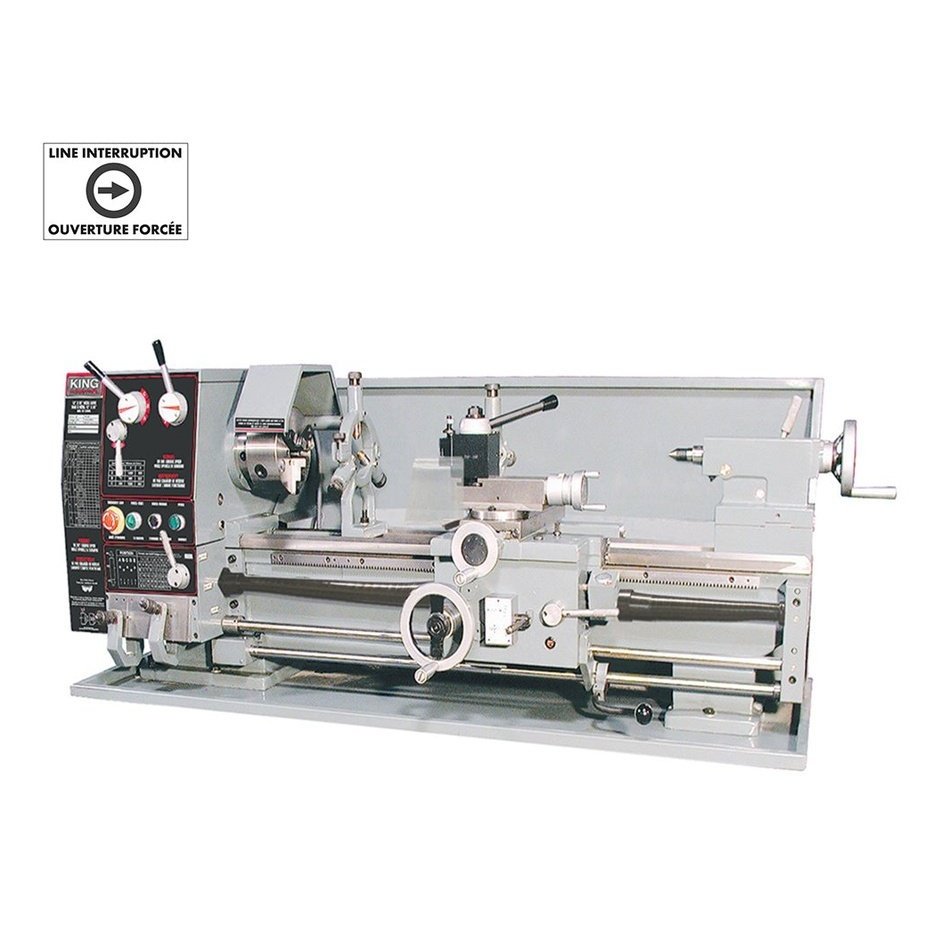

12" X 36" GEARHEAD METAL LATHE WITH TAPER ATTACHMENT

KC-1236ML/KM-053/SS-1236

Regular price $6,499.00
/

12" X 36" GEARHEAD METAL LATHE WITH TAPER ATTACHMENT
12" X 36" GEARHEAD METAL LATHE WITH TAPER ATTACHMENT
  • Powerful 1.5 HP motor
  • Safety guard with limit switch protection
  • Line interruption switch system needs a restart after a power failure
  • Guideway and gears in headstock are all hardened and precision ground
  • Comes complete with 6"-3 jaw chuck, 8"-4 jaw chuck, imperial and metric gears, quick change tool post, steady rest, follow rest, 10" DI-4 camlock face plate, thread chasing dial indicator, MT#3 dead center, MT#3 arbor taper, 1/2" drill chuck, full length splash guard, tool box, chuck keys and hex. keys

Specification

  • DISTANCE BETWEEN CENTERS36"
  • SWING OVER BED12"
  • Spindle bore1-1/2"
  • Swing over cross slide7-1/4"
  • taper in headstockMT #5
  • TAPER IN tailstockMT #3
  • width of bedways7-1/4"
  • total travel of cross slide6-3/8"
  • TOTAL TRAVEL OF top slide3-3/8"
  • spindle speeds9 (60-1,500) RPM
  • thread cutting range40 (4-112 TPI) 30 (0.2-4.5 mm)
  • motor8.7 Amp.
  • voltage220V, 1 phase, 60 Hz
  • assembled dimensions (lxwxh) / weight65" x 28" x 28" / 710 lbs
  • packaging DIMENSIONS (LXWXH) / WEIGHT65-3/8" x 29" x 29" / 925 lbs
  • upc7 72995 00273 3
