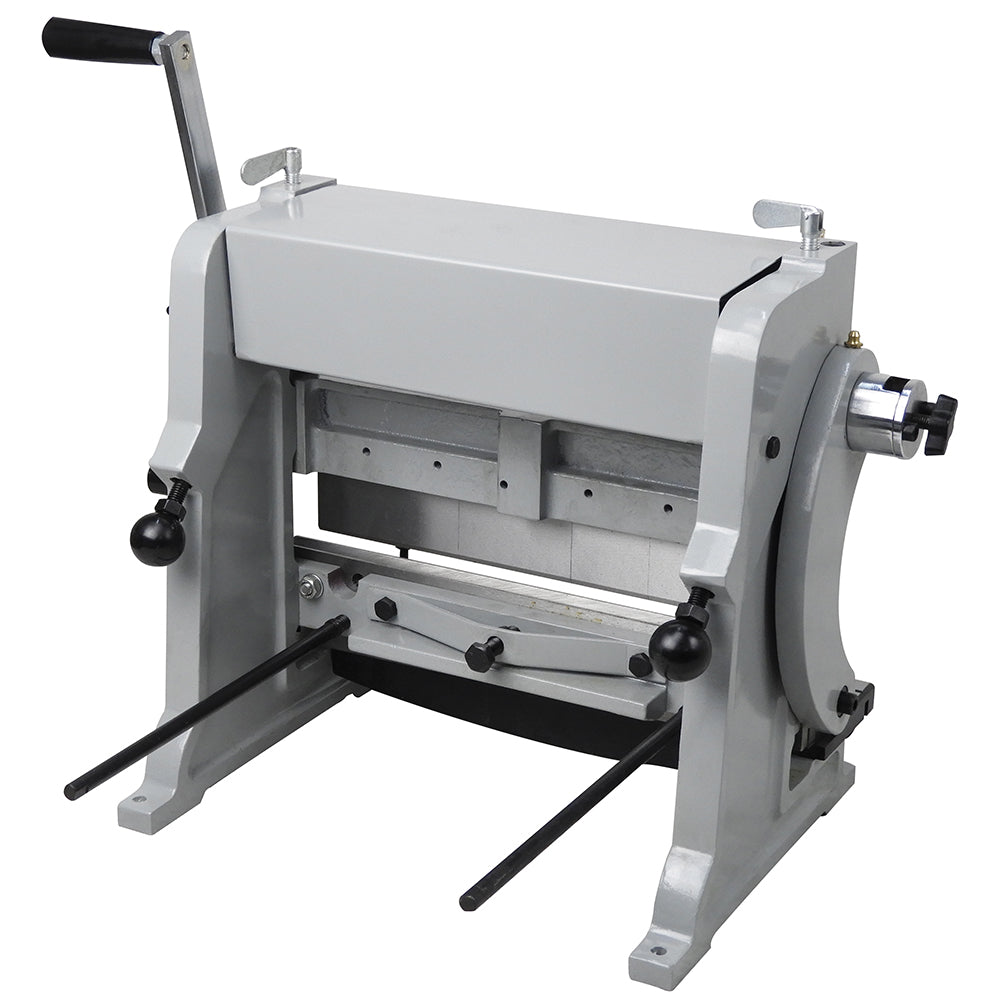

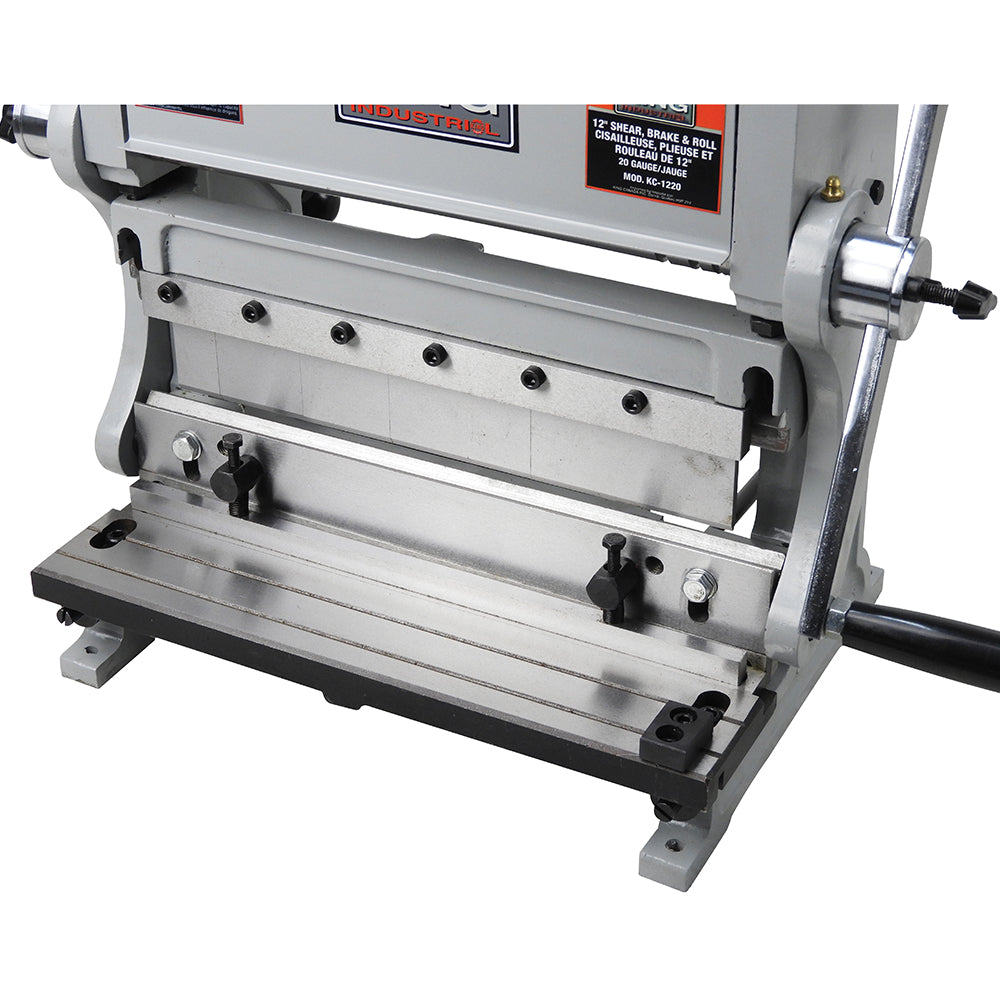

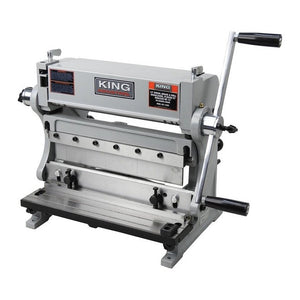

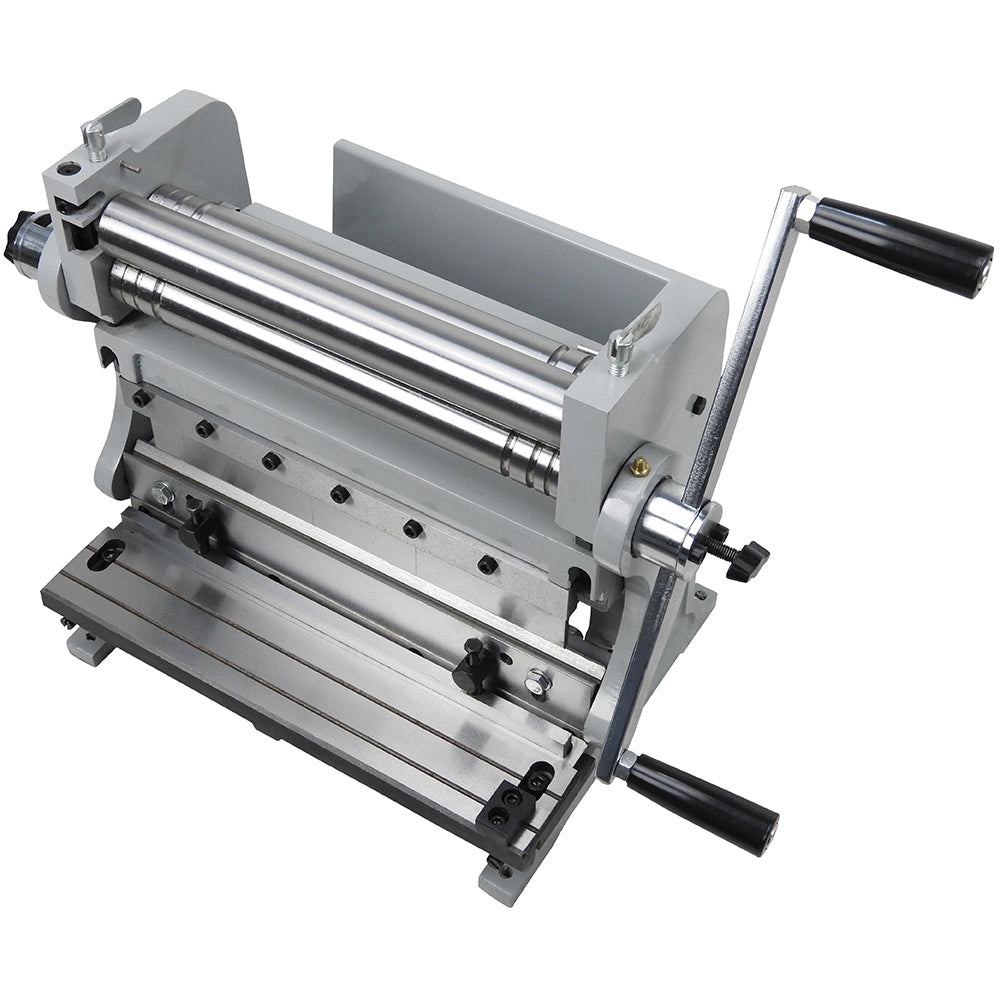

12" X 20 GA 3 IN 1 BRAKE SHEAR & ROLL
Guaranteed Safe Checkout
Vendor: Vendor:
King Canada
Pickup currently unavailable at Regina
Pickup available
-
Regina
Pickup currently unavailable
1238 Lorne Street
Check in google map
Unit #1
Regina SK S4R 2J9
Canada -
Saskatoon
Pickup currently unavailable
2815B Cleveland Avenue
Check in google map
Saskatoon SK S7K 8G1
Canada
- Sturdy cast-iron frame
- Bed is precision ground for an accurate working surface
- Dual edge, reversible shear blade
- One female "V’ shaped die

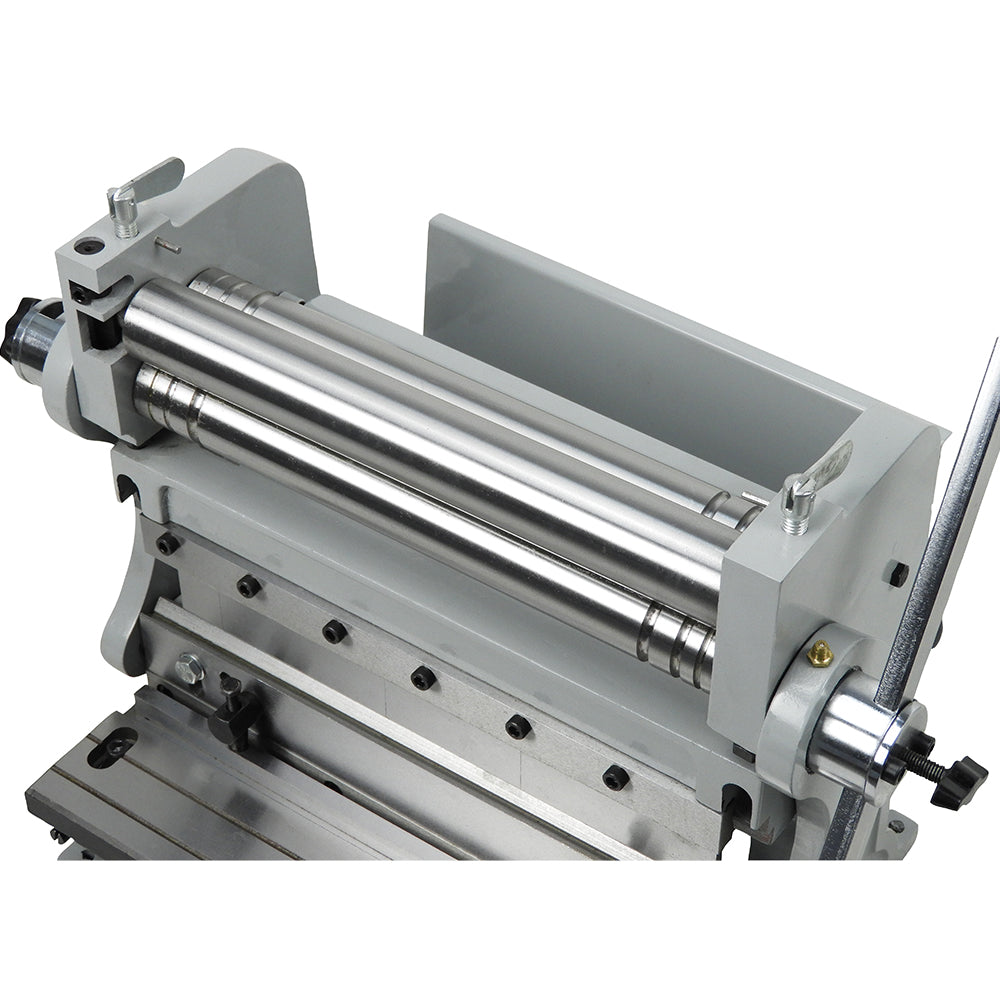

- Slip rolls are precision turned, ground and polished with wire grooves
- Includes adjustable length stop, height stop block and extension bars with 90‚° angles
| SHEAR | |
| MAXIMUM THICKNESS (MILDS STEEL) | 20 Gauge |
| MAXIMUM LENGTH | 12" |
| MATERIAL STOP RANGE | 2-1/2" - 10-5/8" |
| BRAKE | |
| MAXIMUM THICKNESS (MILDS STEEL) | 20 Gauge |
| SHUT HEIGHT | 2-1/2" |
| MATERIAL STOP RANGE | 1-3/4" - 10-1/4" |
| MALE DIE SIZES | 4", 3", 2 x 2", 1" |
| SLIP ROLL | |
| NUMBER OF ROLLS | 3 |
| MAXIMUM THICKNESS (MILDS STEEL) | 20 Gauge |
| MAXIMUM LENGTH | 10-3/4" |
| ROLLER DIAMETER | 1-1/2" |
| MINIMUM ROLL DIAMETER | 1-5/8" ID |
| MINIMUM RADIUS | 13/16" |
| WIRE GROOVE DIAMETERS | 5/64", 7/64", 9/64", 11/64", 13/64", 15/64" |
| ASSEMBLED DIMENSIONS (LXWXH) /WEIGHT | 20" x 16" x 15" / 95 lbs |
| PACKAGING DIMENSIONS (LXWXH) /WEIGHT | 19-1/4" x 13" x 16-1/2" / 99 lbs |
| UPC | 7 72995 01283 1 |
Additional Shipping Charges will Apply, Your order will be processed once rate is calculated
