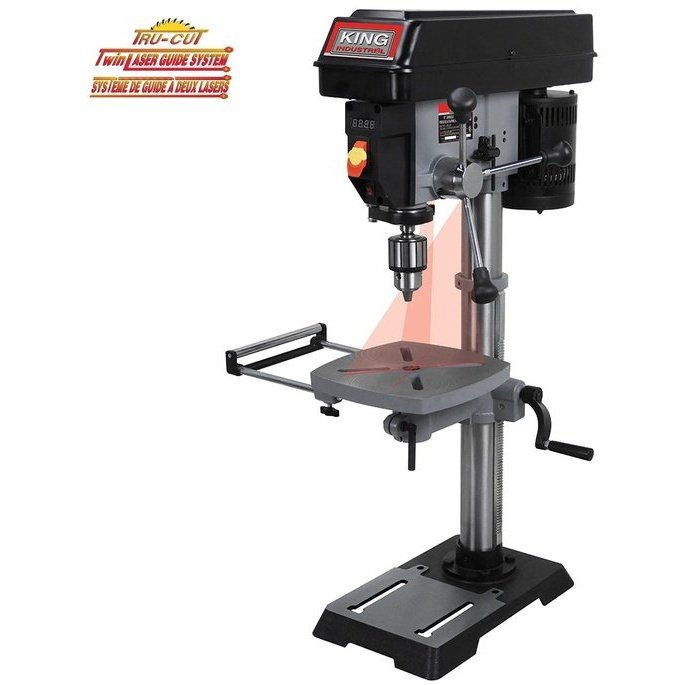

King Industrial

12'' VARIABLE SPEED DRILL PRESS

KC-12HS-VS

$449.99
/
12'' VARIABLE SPEED DRILL PRESS
12'' VARIABLE SPEED DRILL PRESS
12'' VARIABLE SPEED DRILL PRESS
12'' VARIABLE SPEED DRILL PRESS
12'' VARIABLE SPEED DRILL PRESS
12'' VARIABLE SPEED DRILL PRESS
12'' VARIABLE SPEED DRILL PRESS
12'' VARIABLE SPEED DRILL PRESS
  • Powerful 1/2 HP, 5 Amp. motor

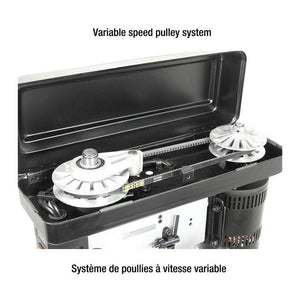

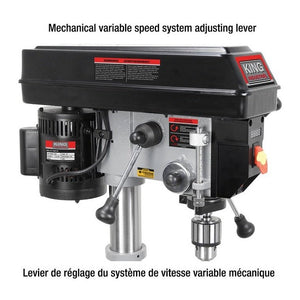

  • Mechanical variable speed system from 580 - 3,200 RPM

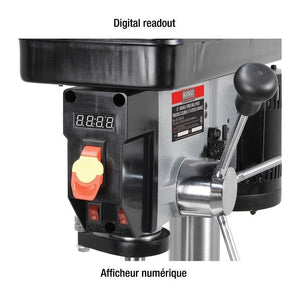

  • Digital readout for precise spindle speed
  • Dual intersecting adjustable laser guides
  • Accepts up to 5/8" shanked drill bits
  • Positive depth stop for quick and easy adjustment of the spindle travel
  • Worklight incorporated into head illuminates the work area for maximum visibility (LED bulb included)
  • Comes with 5/8" drill chuck, chuck key, onboard chuck key storage and adjustment hex. keys

Specification

  • MODELKC-12HS-VS
  • CAPACITY5/8"
  • CHUCK SIZE5/8"
  • SWING12"
  • MAX. DISTANCE CHUCK TO COLUMN6"
  • MAX. DISTANCE CHUCK TO TABLE13"
  • STROKE3"
  • TABLE SIZE with extention16-1/4" x 9-1/2"
  • SPINDLE TAPERMT #2
  • VARIABLE SPEEDS580 - 3,200 RPM
  • TABLE T-SLOTS9/16"
  • MOTOR/VOLTAGE5 Amp. @ 120V, 60 Hz, 1 phase
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT19-1/2" x 21" x 37-1/2" / 82 lbs
  • PACKAGING DIMENSIONS (LXWXH) / WEIGHT29-1/4" x 19-3/4" x 11-1/2" / 87 lbs
  • UPC7 72995 01708 9
