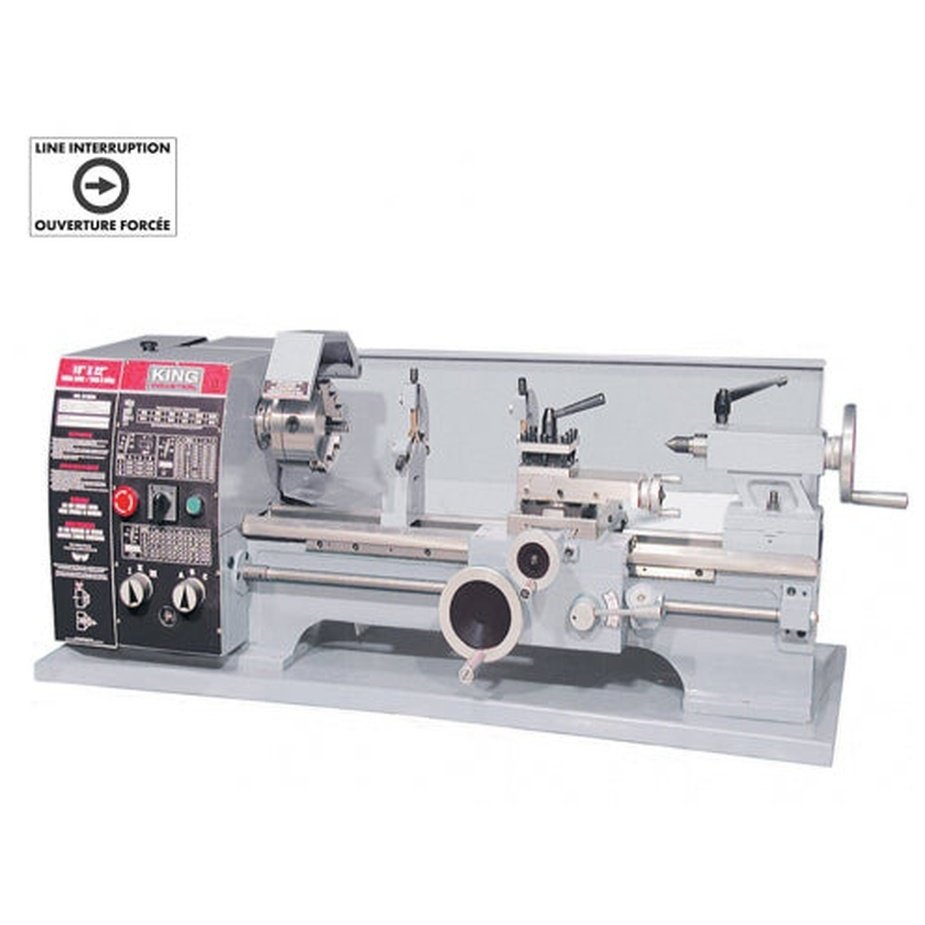

10" X 22" METAL LATHE

Sold Out

SKU: KC-1022ML

10" X 22" METAL LATHE

$3,199.00

Shipping calculated at checkout.

Product Availability Ask about this product

Vendor: King Canada
Product Type: Metal Lathe

NOTE* Additional Shipping Charges will Apply, Your order will be processed once rate is calculated

Powerful 1 HP motor
Safety guard with limit switch protection
Line interruption switch system needs a restart after a power failure
Guideway and gears in headstock are all hardened and precision ground
Comes complete with 5"-3 jaw chuck, 6-1/2"-4 jaw chuck, imperial and metric gears, 4 ways tool post, steady rest, follow rest, 8" face plate, thread chasing dial indicator, MT#3 dead center, full length splash guard, tool box, chuck key and hex keys

Specification

DISTANCE BETWEEN CENTERS22"
SWING OVER BED10"
SPINDLE BORE1"
SWING OVER CROSS SLIDE6"
TAPER IN HEADSTOCKMT #4
TAPER IN TAILSTOCKMT #3
WIDTH OF BEDWAYS6"
TOTAL TRAVEL OF CROSS SLIDE6-3/8"
TOTAL TRAVEL OF TOP SLIDE4-1/4"
SPINDLE SPEEDS6 (150-2,400) RPM
THREAD CUTTING24 (8-72 TPI) 18 (.25-3mm)
MOTOR12 Amp.
VOLTAGE110V, 1 phase, 60 Hz
ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT50" x 23" x 19" / 360 lbs
PACKAGING DIMENSIONS (LXWXH) / WEIGHT49" x 26-3/8" x 21-3/8" / 440 lbs
UPC7 72995 00276 4
