  • SKU: S28MAG

Evolution S28MAG: 1-1/8 In. Magnetic Drill With Carry Case

$732.95

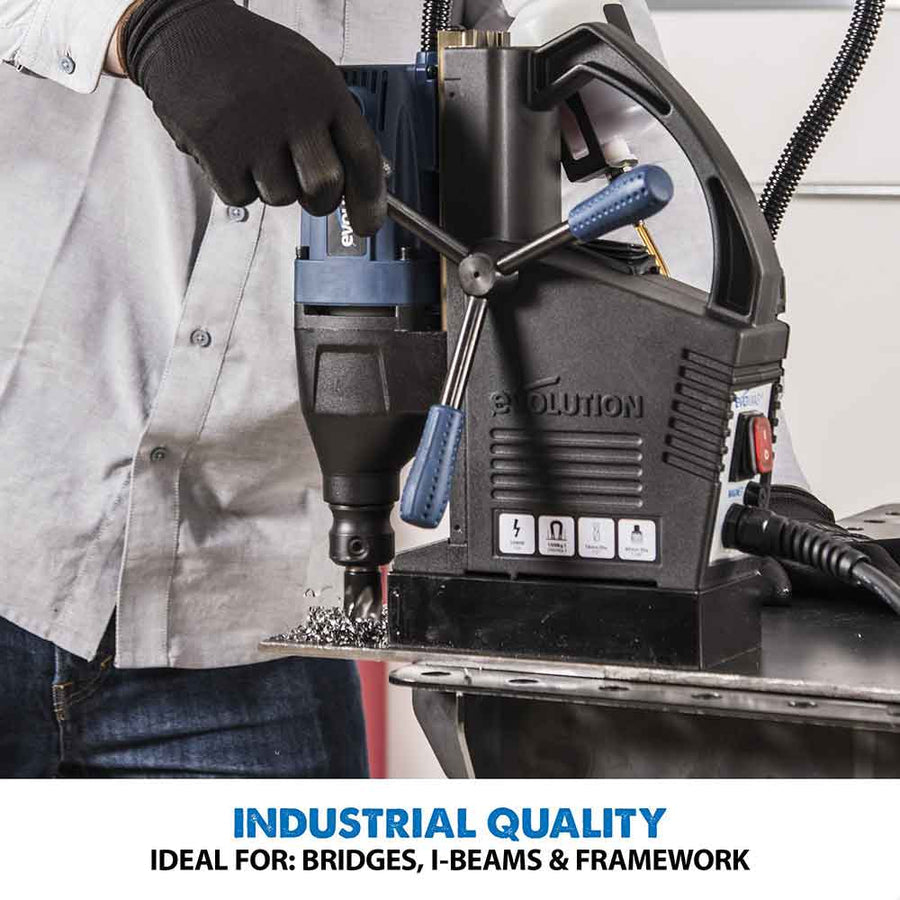

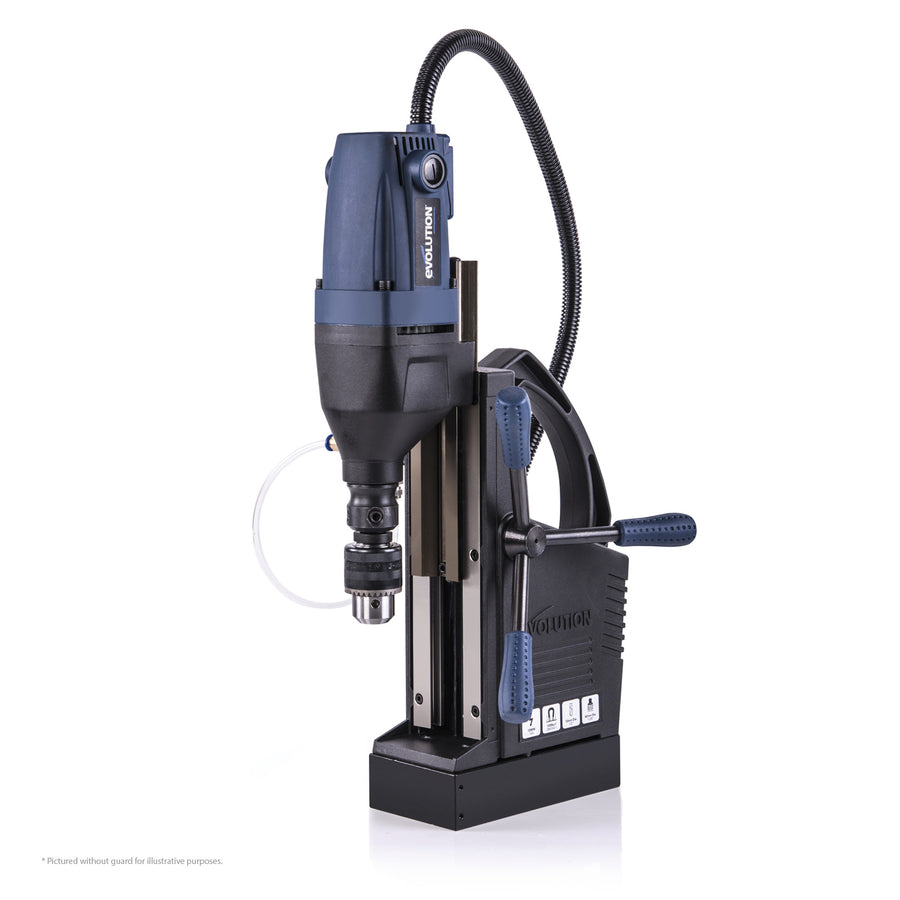

The Evolution S28MAG 1-1/8” Industrial Magnetic Drill effortlessly bores through steel – ideal for steel framework, I-beams and bridges. Equipped with a powerful 10-amp motor and a magnet with 2860 lbs force, this drill makes light work of steel drilling up to 1-1/8” wide and 2” deep. Use with Evolution Cyclone cutters for best results. The high torque gearbox and durable double dovetail slides have earned the S28MAG its heavy duty badge. This machine is made for the most demanding jobs both in and away from the workshop. Rear & top mounted controls make this tool easy to use in any orientation and the 8 ft power cord minimizes the need for extension cords.

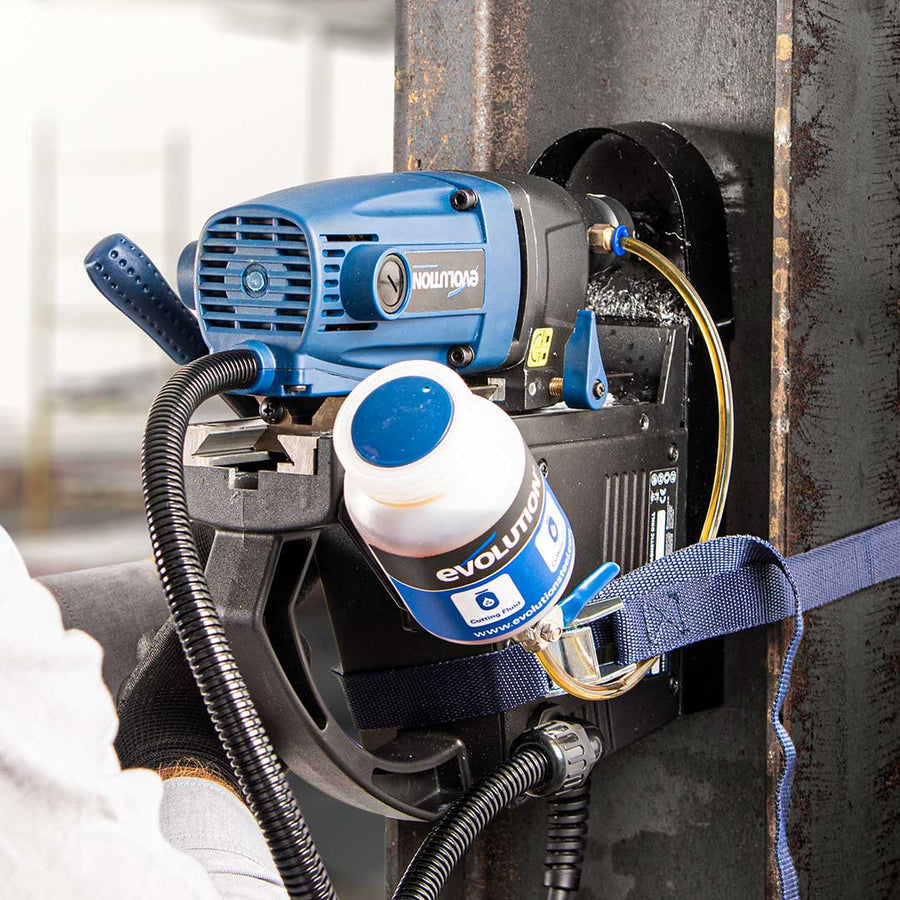

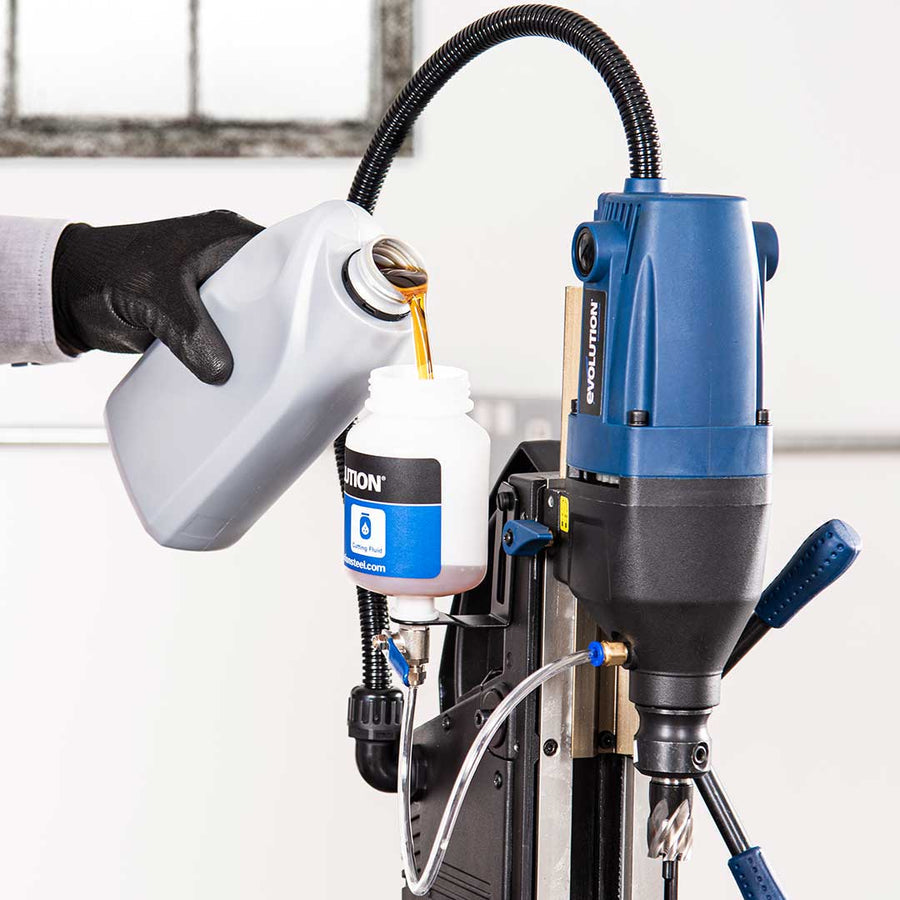

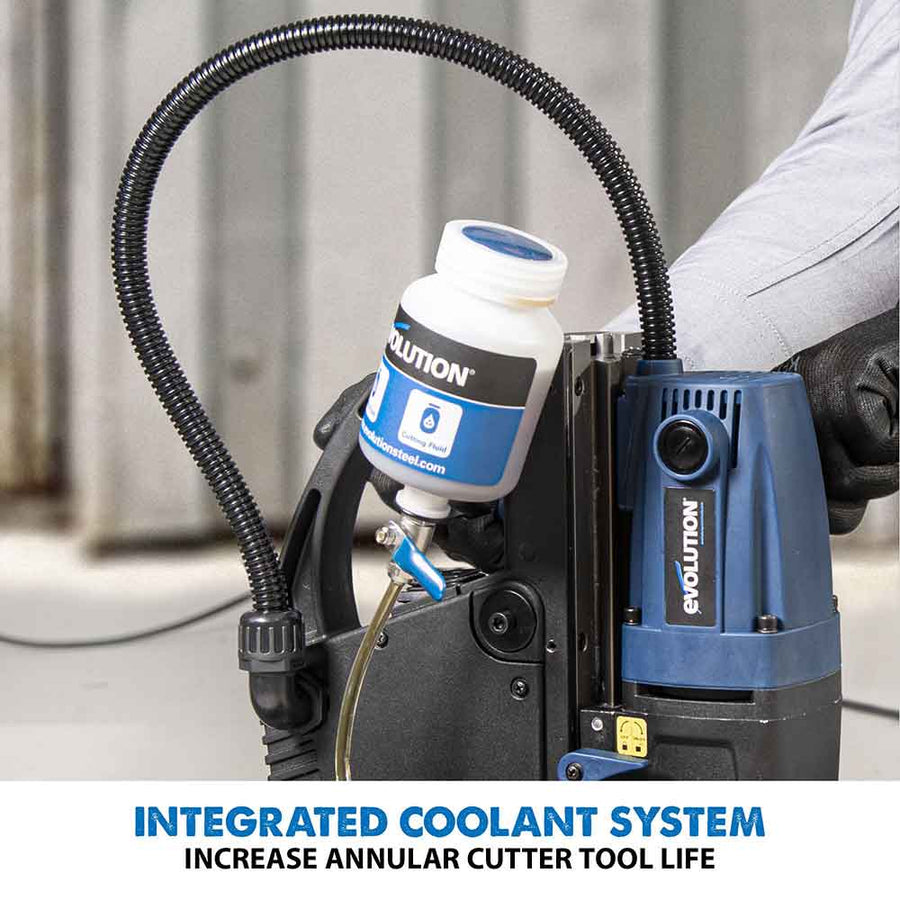

  • Simple to use coolant system ensures that the workpiece stays cool while drilling.

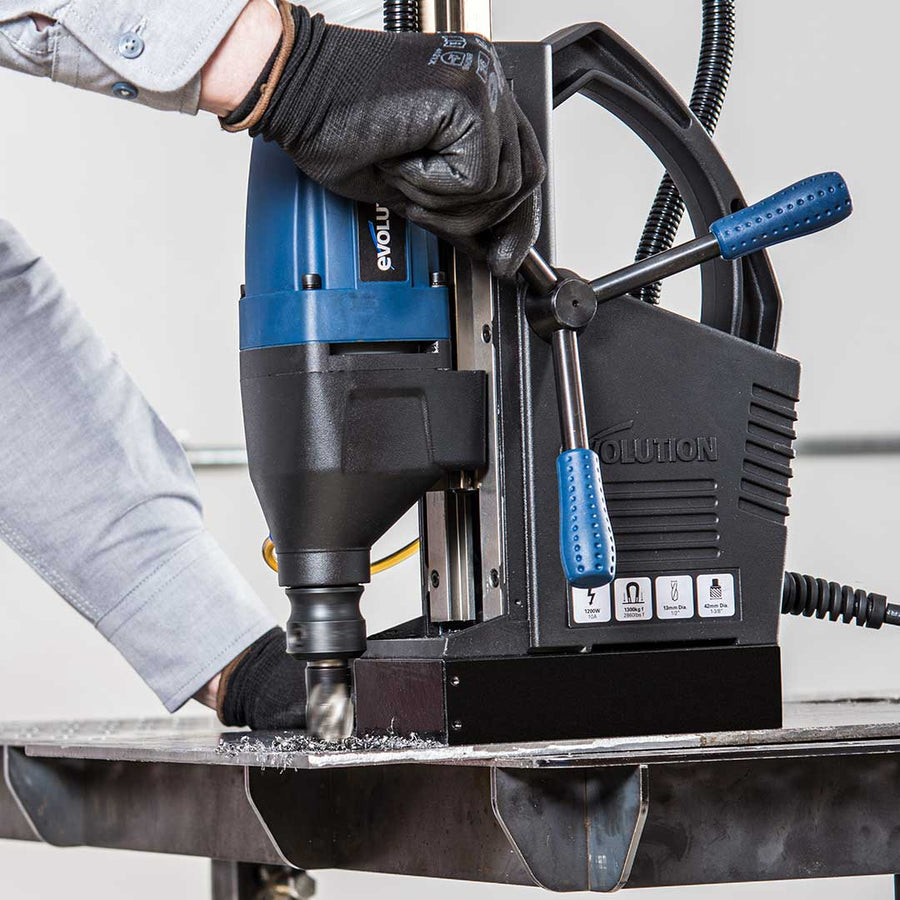

  • Textured, Tri-spoke spindle handle gives you ultimate control when lowering the drill.
  • Ultra-smooth dovetail slides offer smooth and precise operation.
  • 2 stage magnet allows you to precisely configure the machine so you get a perfect result.

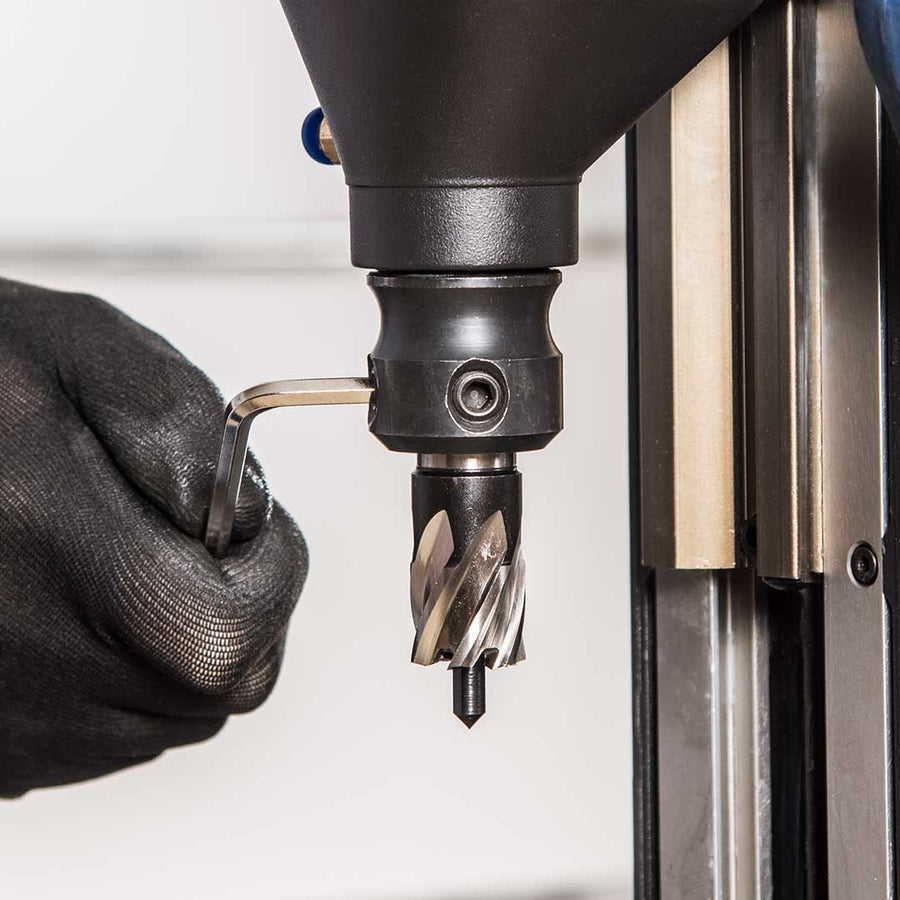

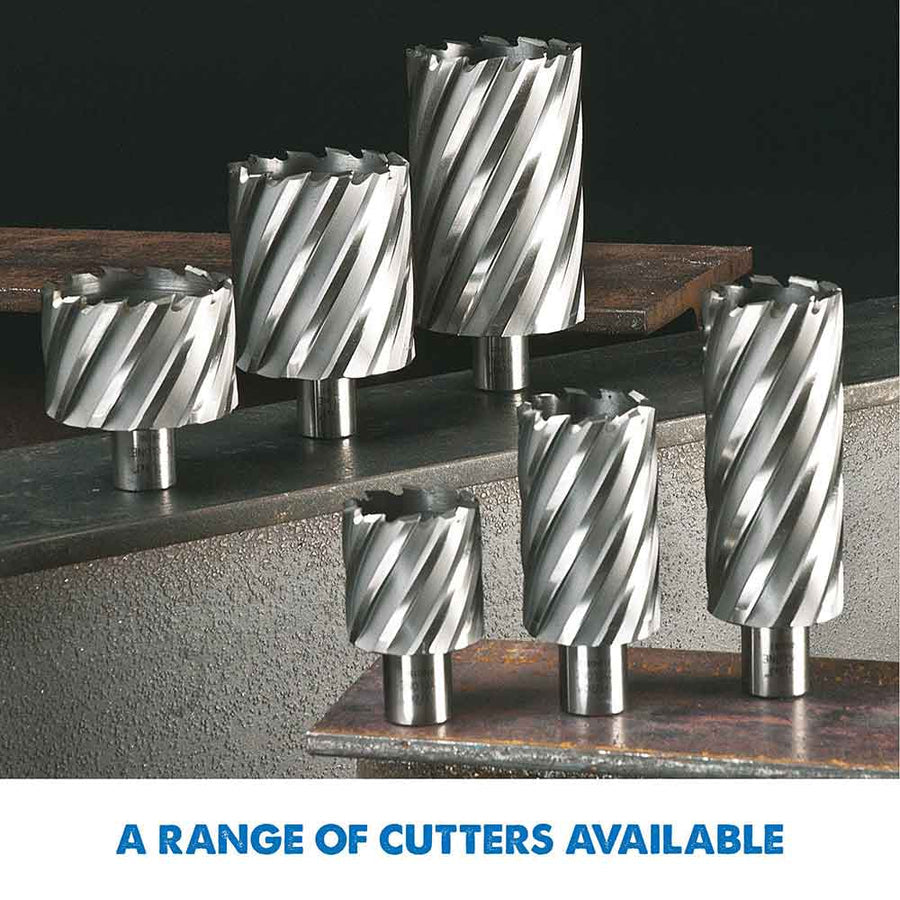

  • Compatible with a range of Evolution premium annular cutters and accessories.
  • Supplied in a robust carry case.
Motor (120V 60Hz): 10A
Speed No Load: 450 rpm
Number of Speeds 1
Insulation Class 1
Cable Length: 8ft 2inch
Magnetic Adhesion 2860lbs f


CUTTER CAPACITIES

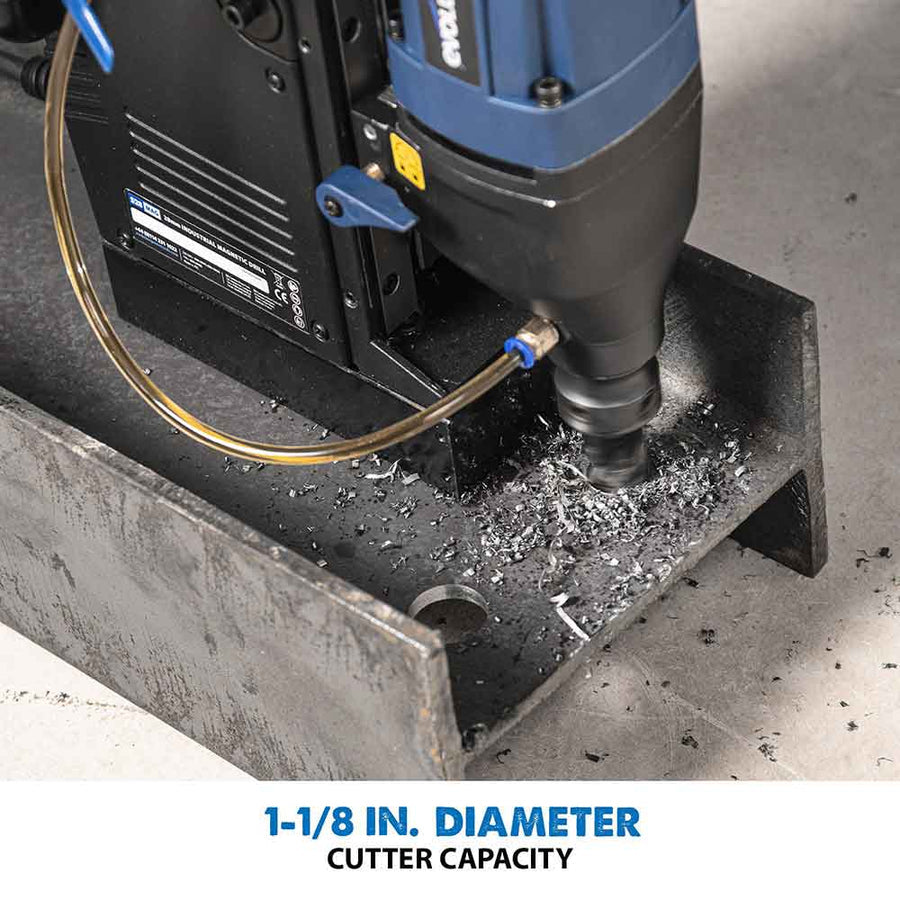

Maximum Annular Cutting Capacity 1-1/8 in.

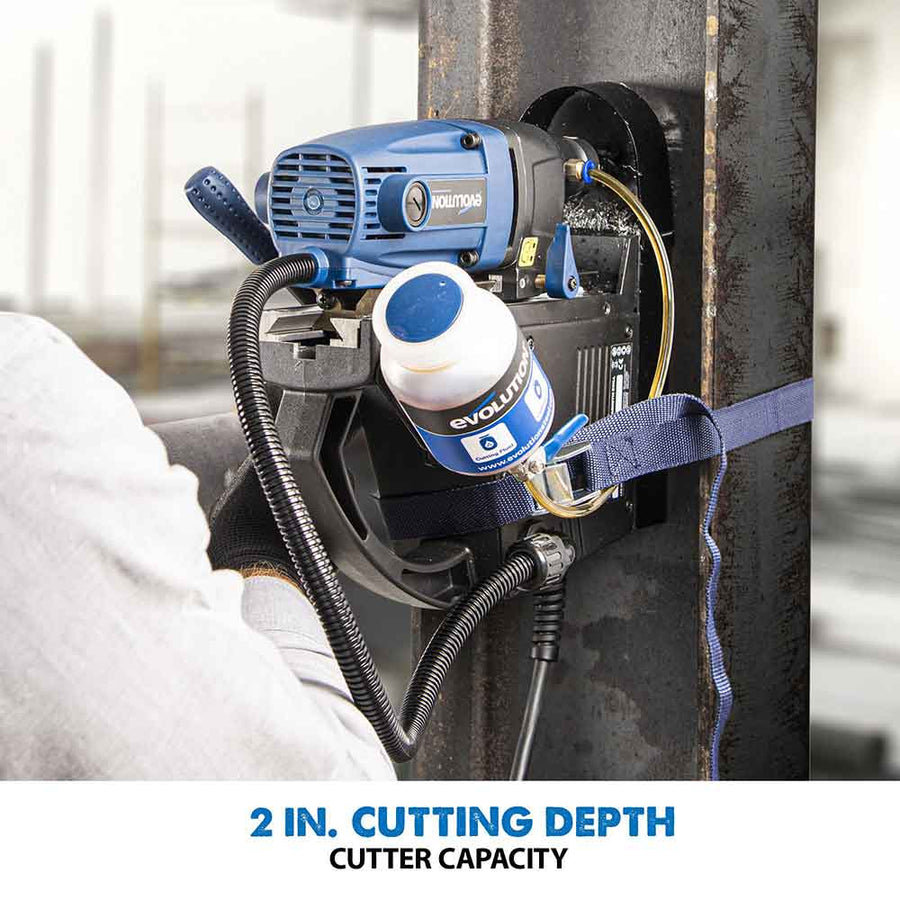

Maximum Cutting Depth 2 in.
Cutter Shank 3/4 in.

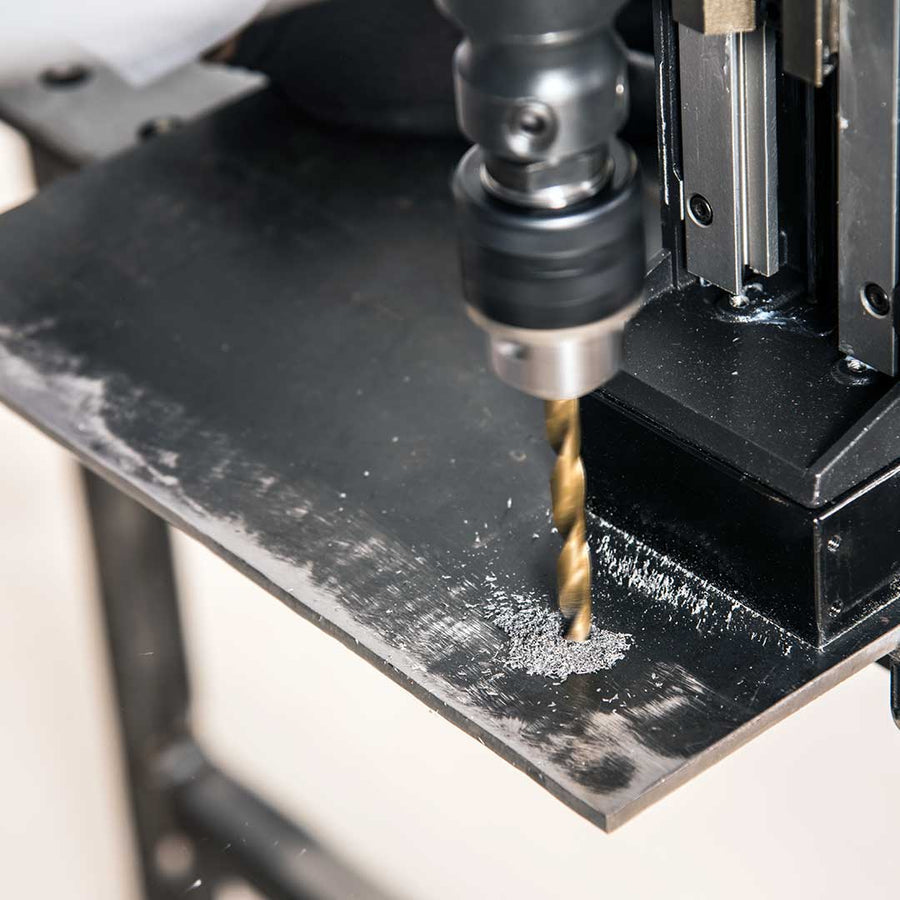

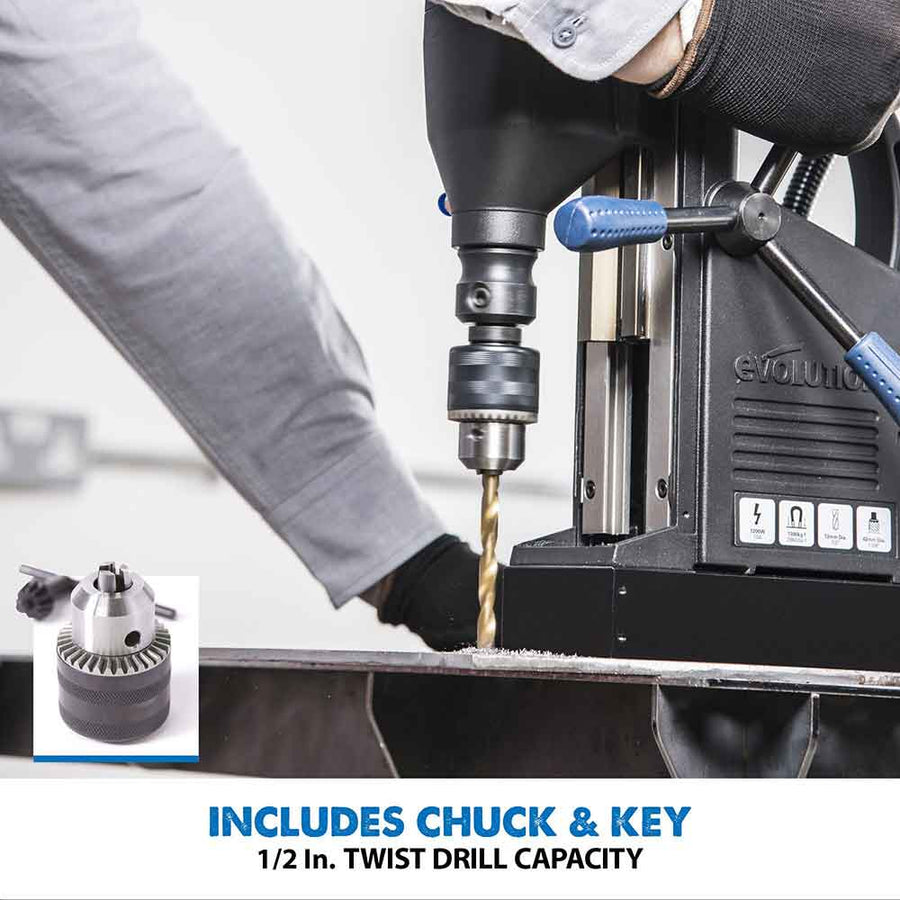

Standard Twist Drill Capacity 1/2 in.
Minimum Plate Thickness 3/8 in.


DIMENSIONS

Magnet Dimension 1-5/8 x 3-1/2 x 7-1/8 in.
Maximum Machine Height 25-5/8 in.
Minimum Machine Height 16-1/2 in.
Machine Width 7-7/8 in.
Product Weight:

26 lb

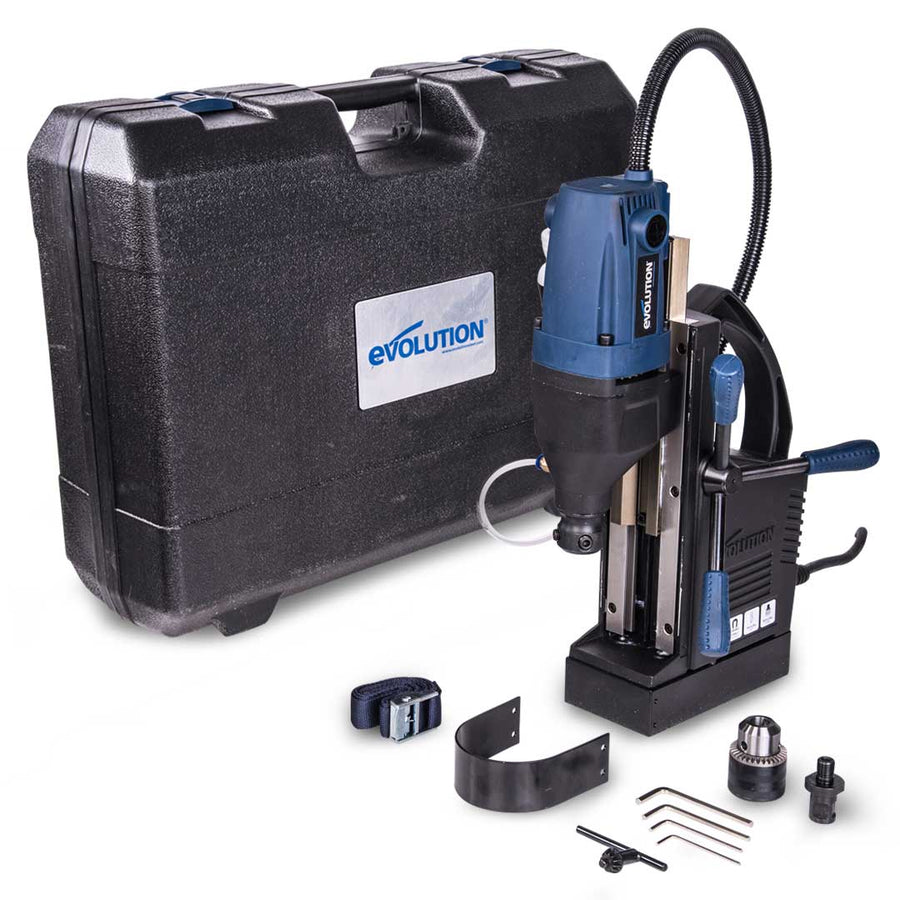

Instruction Manual
Coolant System
Safety Guard & Fixings
Safety Strap
Feed Handles x3
Hex Keys - x2
Chuck with Chuck Key
Carry Case
