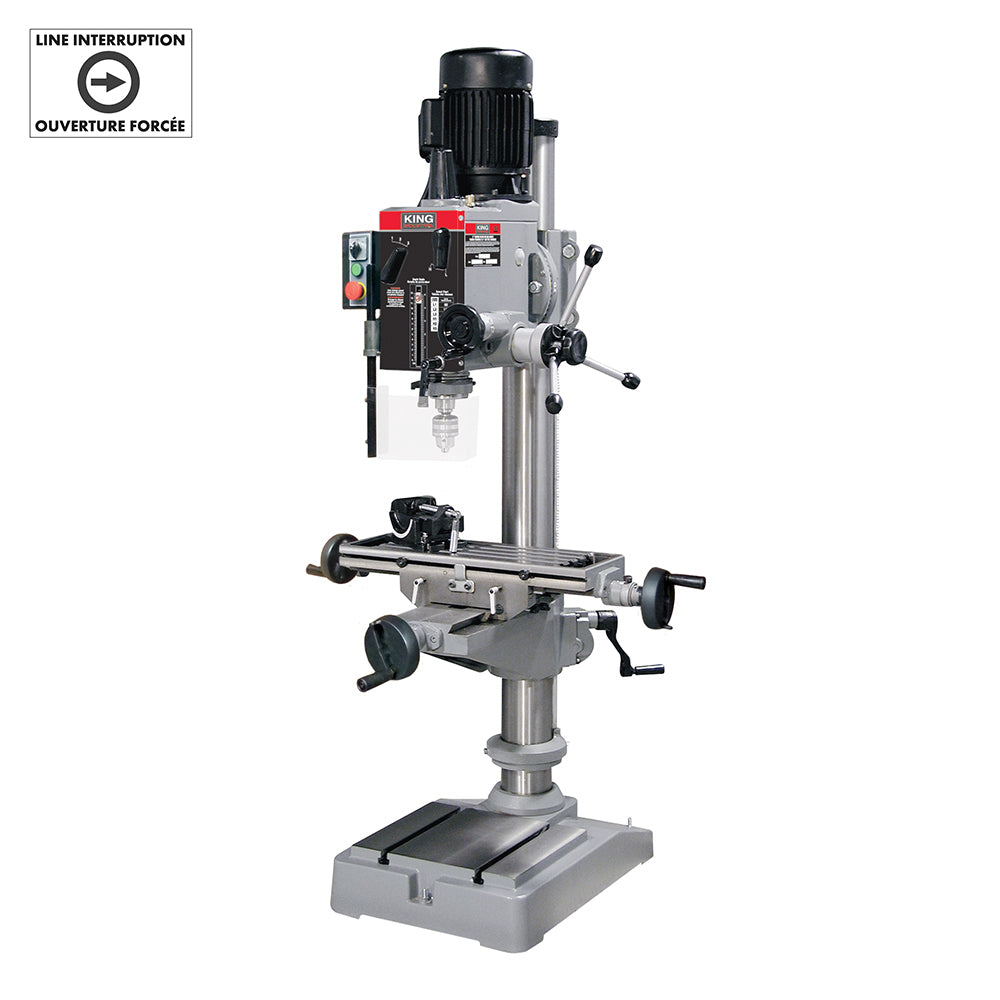

21" GEARHEAD MILLING DRILLING MACHINE 220V
21" GEARHEAD MILLING DRILLING MACHINE 220V
21" GEARHEAD MILLING DRILLING MACHINE 220V
21" GEARHEAD MILLING DRILLING MACHINE 220V
21" GEARHEAD MILLING DRILLING MACHINE 220V
21" GEARHEAD MILLING DRILLING MACHINE 220V

21" GEARHEAD MILLING DRILLING MACHINE (220V)

Sale price $5,999.00
Add to Wishlist Add to Compare

Ask a question
Share

Guaranteed Safe Checkout

Visa
Mastercard
American Express
Shop Pay
Google Pay
Vendor: Vendor: King Canada
SKU: KC-40HCBarcode: 7 72995 40000 3

Pickup currently unavailable at Regina

Pickup available

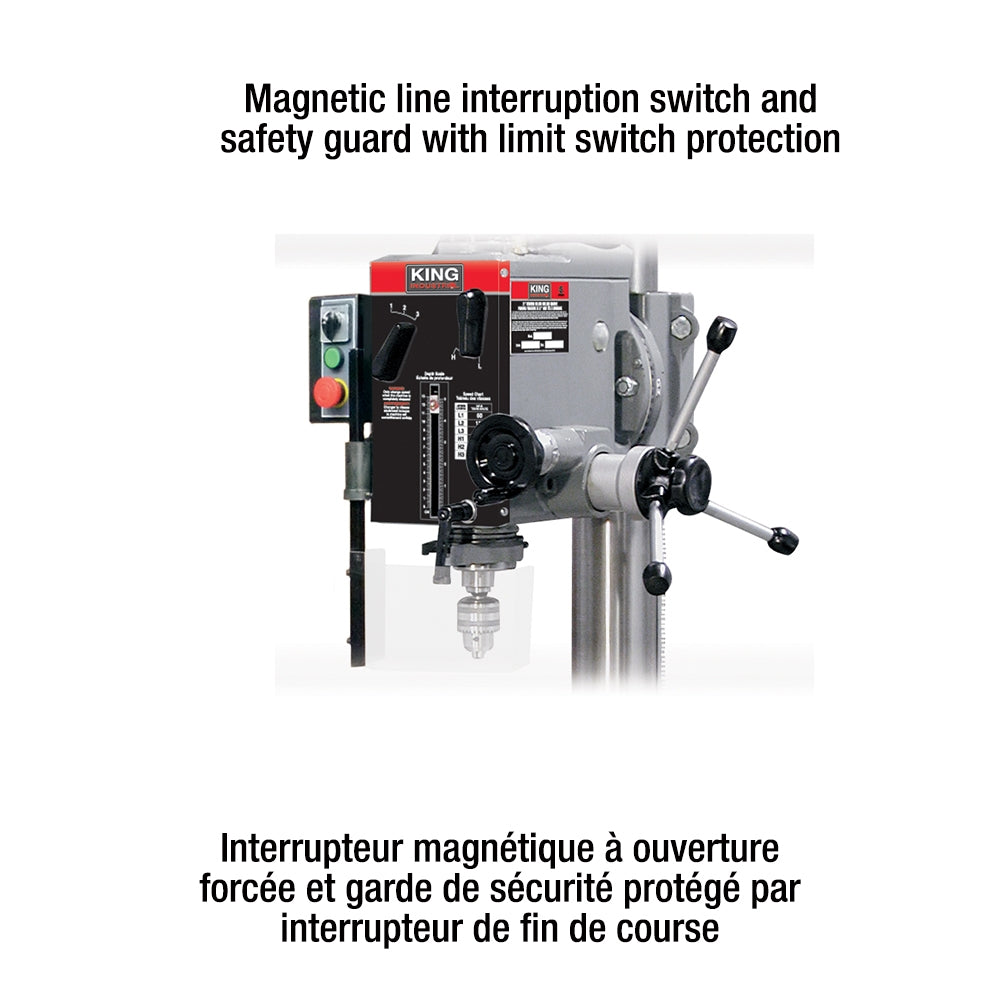

  • Safety guard with limit switch protection
  • Magnetic line interruption switch needs a restart after a power failure
  • Spindle is equipped with four heavy-duty tapered roller bearings
  • Powerful single phase 1.5 HP motor
  • Forward and reverse switch
  • Comes complete with 1/2" chuck with key, 3-1/2" angle vise and safety guard
  • DRILLING CAPACITY1-1/4"
  • MAX. DISTANCE SPINDLE NOSE TO TABLE26-1/2"
  • MAX. DISTANCE SPINDLE NOSE TO BASE47"
  • SWING20-7/16"
  • SPINDLE TAPERR8
  • SPINDLE STROKE5"
  • DIAMETER OF COLUMN4-1/2"
  • SPEEDS6 (60-1,500) RPM
  • FACE MILL CAPACITY4"
  • END MILL CAPACITY3/4"
  • TABLE SIZE23" x 7-1/2"
  • MAX. TABLE TRAVEL14-1/2"
  • CROSS TRAVEL6-1/4"
  • SIZE OF T-SLOT ON TABLE1/2"
  • MOTOR8.8 Amp.
  • VOLTAGE220V, 1 phase, 60Hz
  • ASSEMBLED DIMENSIONS (LXWXH) / WEIGHT38" x 37" x 78" / 630 lbs
  • PACKAGING DIMENSIONS (LXWXH) / WEIGHT29-1/4" x 33" x 73" / 690 lbs
  • UPC7 72995 40000 3
Additional Shipping Charges will Apply, Your order will be processed once rate is calculated
Service Manual
Instruction Manual
Spec Sheet
