AnchorPRO Combo 3/4" Miter Bar Kit

The AnchorPRO Combo 3/4" Miter Bar Kit is multi-use fixturing hardware featuring 3/4" miter bars and Bows Patented AnchorPRO design.  The Miter Bar design is uniquely configured to add more surface contact in the slot and generates greater hold force quickly, within just one turn of the knob. The T-Bolt and Miter Bar are designed to work together efficiently to maximize expansion quickly, and with less effort than traditional hardware.  Mounts to a 3/8" * 3/4" (quickly expands to fit 20mm) Miter Slot, or a 12-19mm T-Track if using just the T Bolts.  Comes with four Bow Comfortable oversized Ergonomic Knobs.

• AnchorPRO Fixturing Hardware
• 3/4" Miter Slot Hardware Kit
• Greater Expansion Range
• Faster Easier Securement
• Tightens in Less Than One Revolution
• Strong Hold
• Integrated T-Bolt for T-Track Applications
• Accommodates Variations in Miter Slots
• Knobs feature recessed nut to eliminate washers

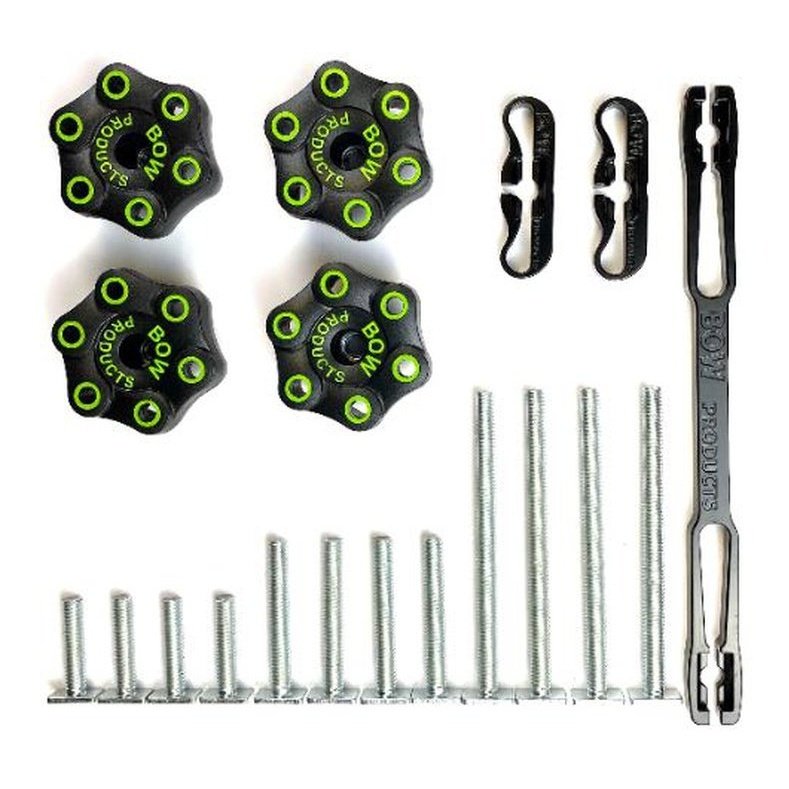

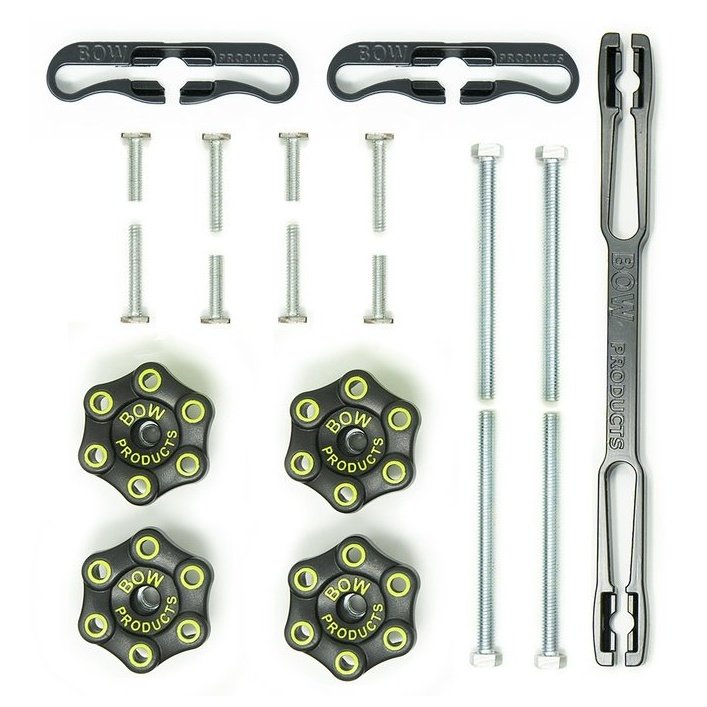

• Mounts to a 3/8" * 3/4" (fits up to 20mm) Miter Slot, or a 12-19mm T-Track.
• Two 3/4" (19mm) Short Miter Bars
• One 3/4" (19mm) Long Miter Bar
• Four Bow Branded oversized ergonomic Chain Link Knobs
• Three sets of T-Bolts that fit 12-19mm T Track:
  • Four 4-3/8" T Bolts (5/16" -18)
  • Four 2-1/4" T Bolts (5/16" -18)
  • Four 1-1/2" T Bolts (5/16" -18)
• T Bolt Head dimensions: .090 Thick x .45 Wide x .725 Long
